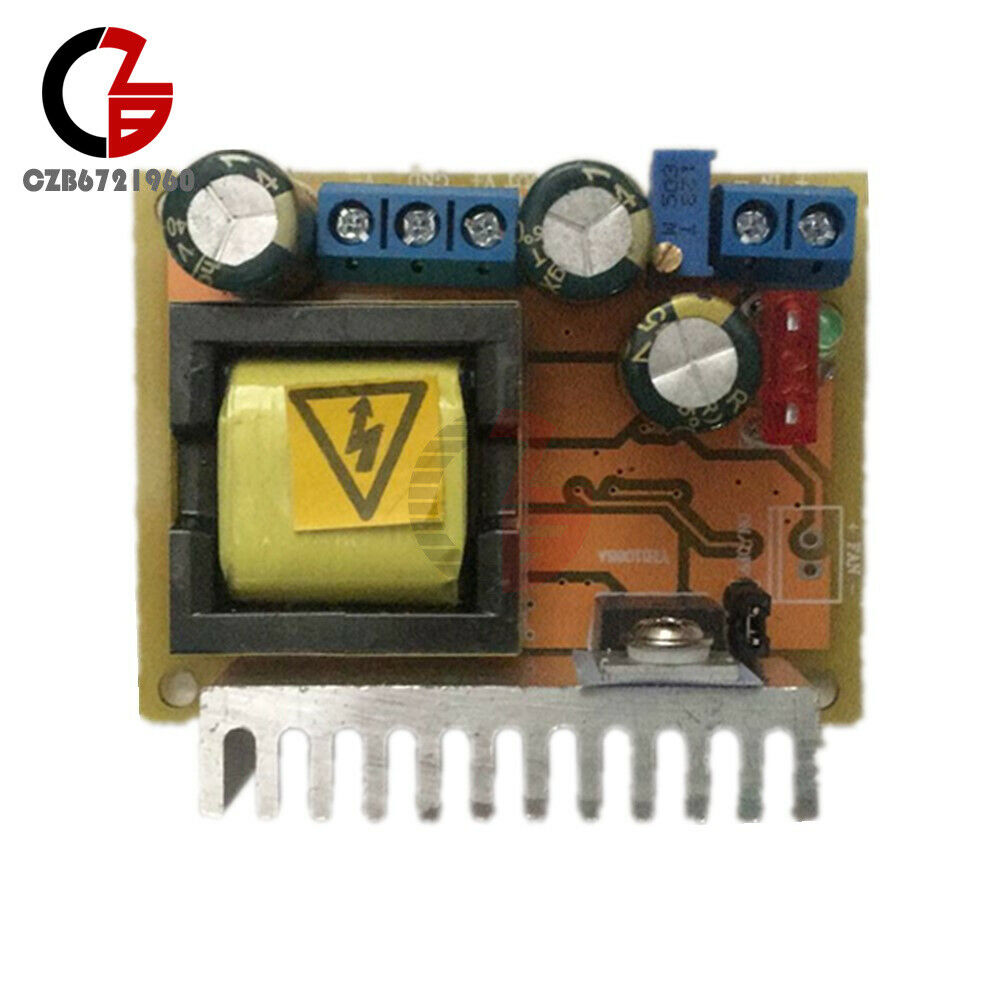

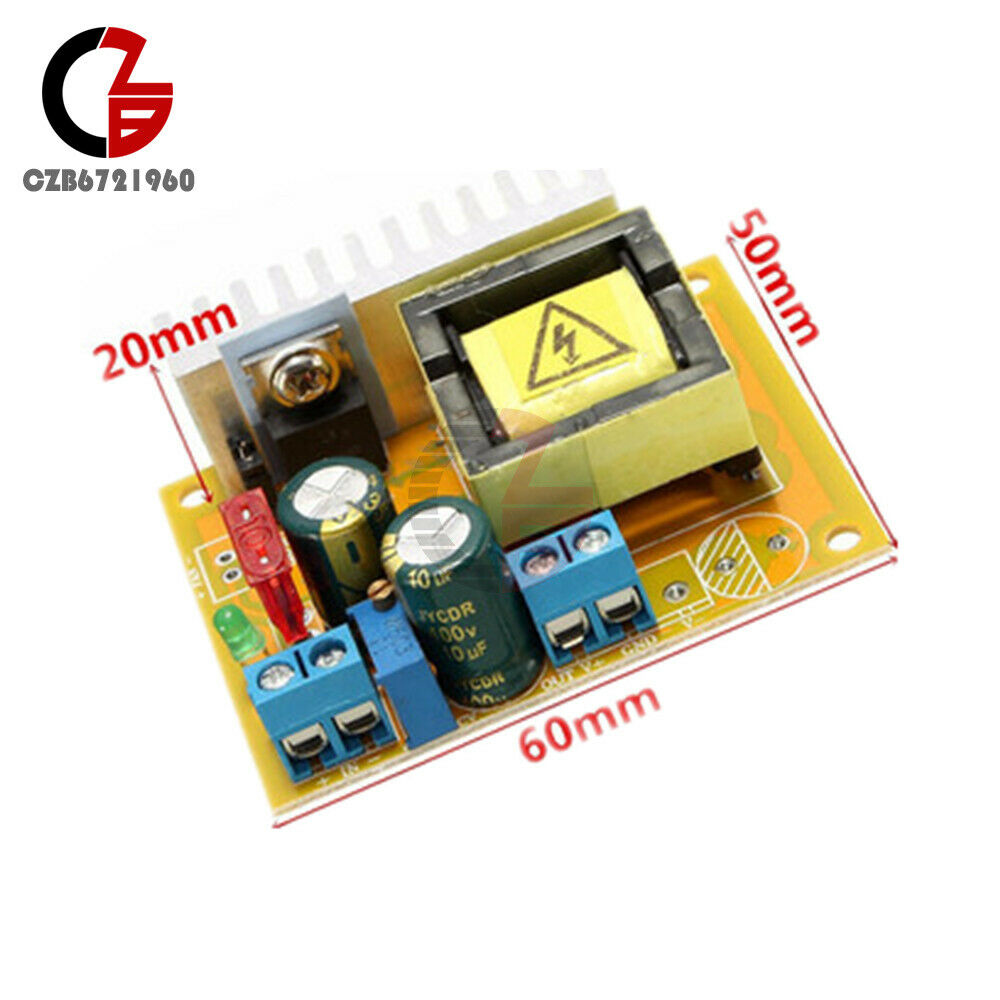

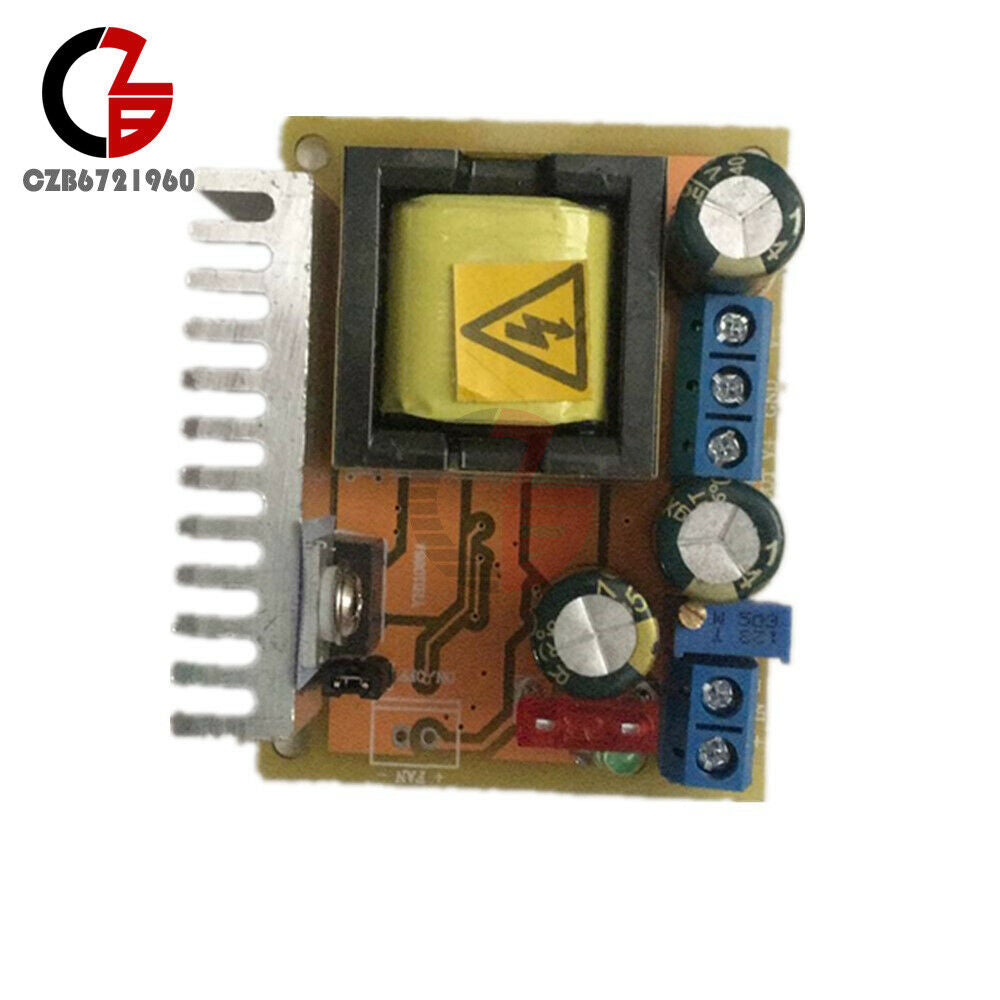

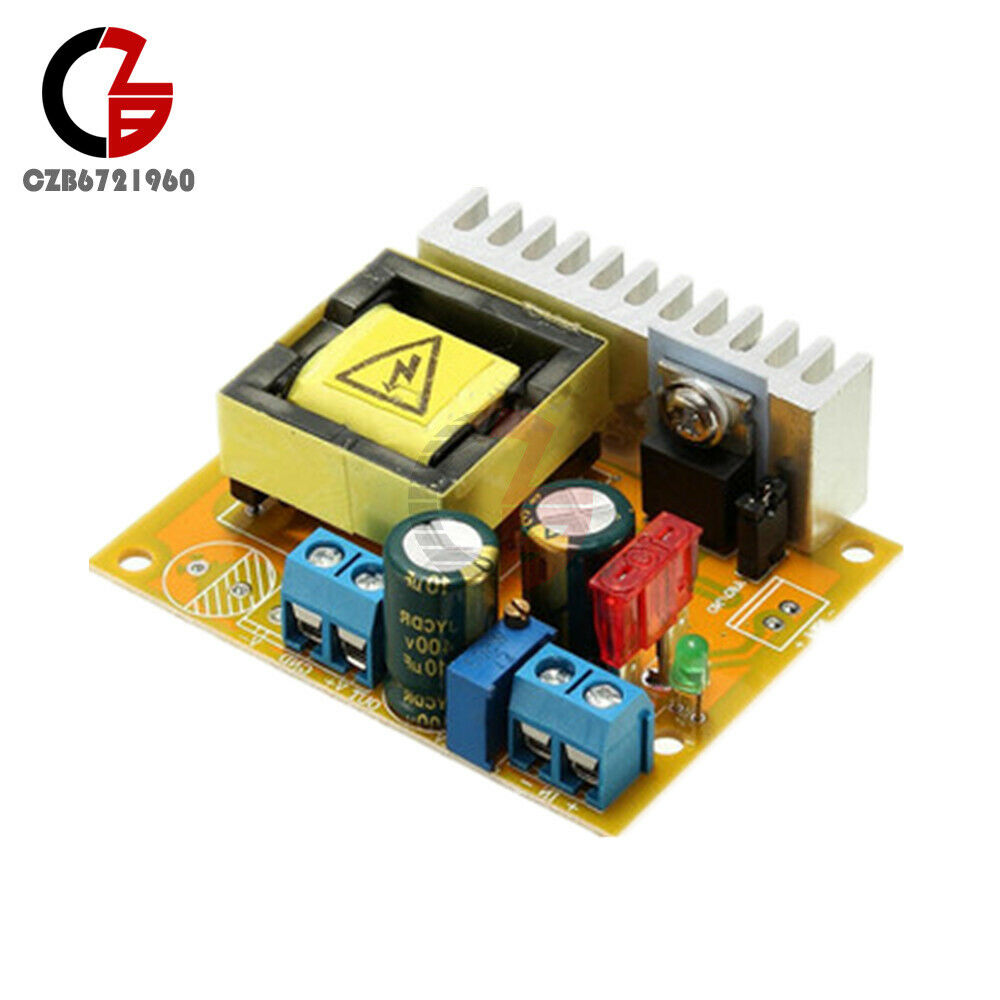

ITEM NAME:DC-DC 8-32V to ±45V-390V Step-up Module High Voltage Capacitor ZVS Charge Board Home Electronic Component Chips Sensor Arduino Module Raspberry Pi DC-DC 8-32V to ±45V-390V Step-up Module High Voltage Capacitor ZVS Charge Board Popular Popular Product Introduction Description： Module Name: High Voltage boost converter module Module Properties: non-isolated step-up module Input voltage: two input voltage range selectable, (jumper selectable through the back of the PCB, default setting 10-32V input) 1, 8V-16V input 2, 10V-32V input Input Current: 5A (MAX) Quiescent current: 15mA (12V step up to 50V, the higher the output voltage will increase the quiescent current) Output voltage: ± 45-390V continuously adjustable (the default output ± 50V. This module has regulator function, after adjusted output voltage is stable and unchanging, not with changes in input voltage changes) Output Current: 0.2A MAX (affected by input voltage and dropout voltage,the higher the output voltage, the smaller the output current) Output Power: 40W (peak 70W) Working temperature: -40℃ ~ + 85℃(if temperature too high , please enhance heat dissipation) Operating frequency: 75KHz Conversion efficiency: up to 88% (affected by input voltage, output volage, current and dropout voltage ) Short circuit protection: Yes. (Input 10A fuse, at the output please do not short circuit arc, it may damage the electronic component, if you need please add power resistor in series for limiting) Overcurrent protection: Yes. (Input current exceeds 4.5A, reducing the output voltage) Overvoltage protection: Yes (Output voltage exceeds 410V, lowering the output voltage) Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, you have better not reverse it.) Installation: four 3mm screws Connection: solderless terminals output Module dimensions: 60(L)*50(W)*22(H)mm The capacitor charging time measured data: 470uF full charge to 390V time is 2 seconds 1000uF full charge to 390V time is 4 .Find many great new & used options and get the best deals for DC-DC 8-32V to ±45V-390V Step-up Module High Voltage Capacitor ZVS Charge Board at the best online prices at Order2india Shopping! Free shipping for many products!
