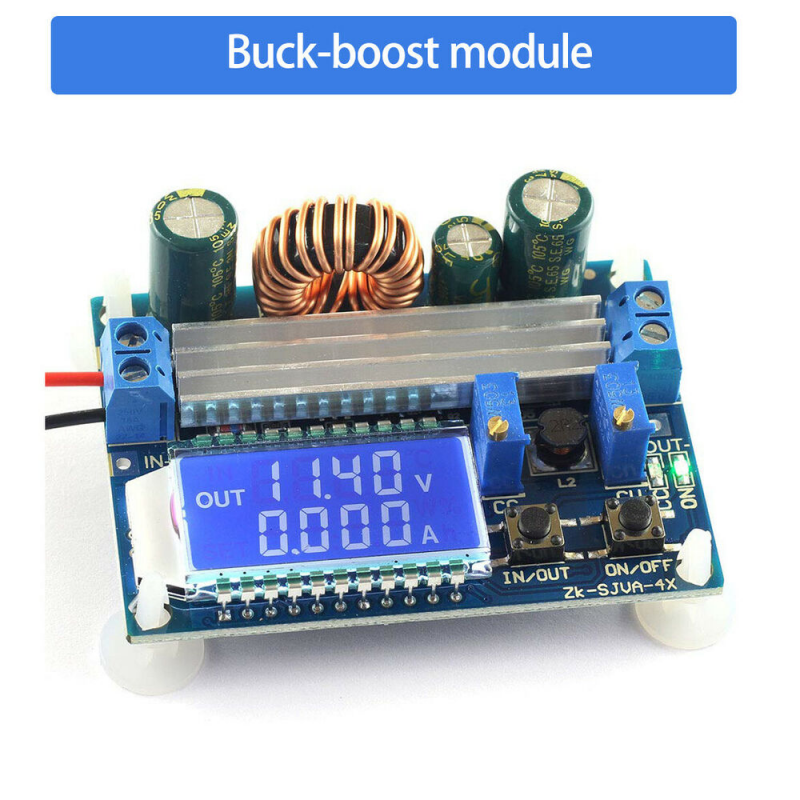

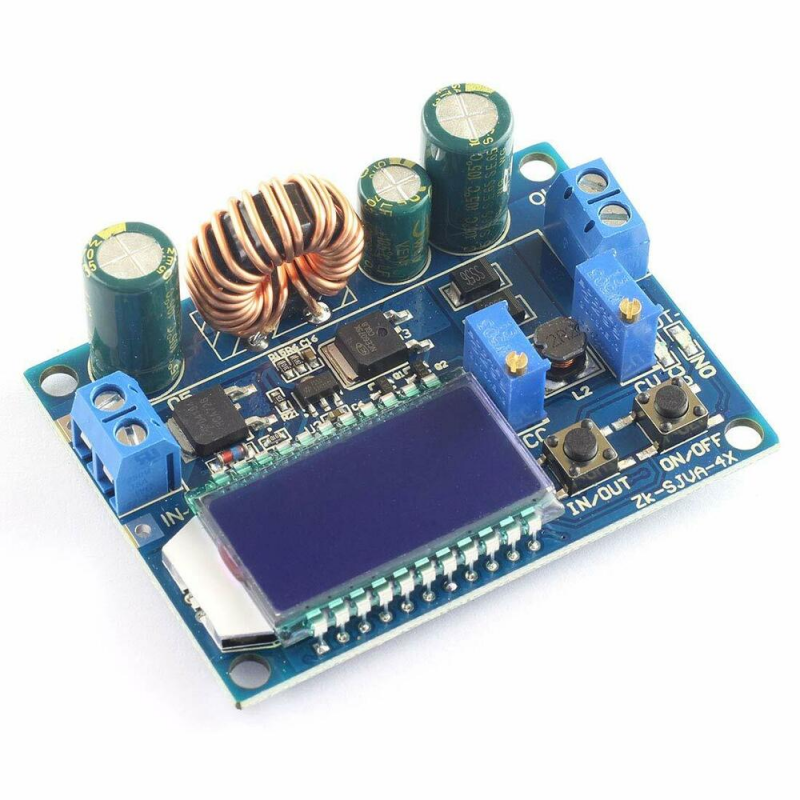

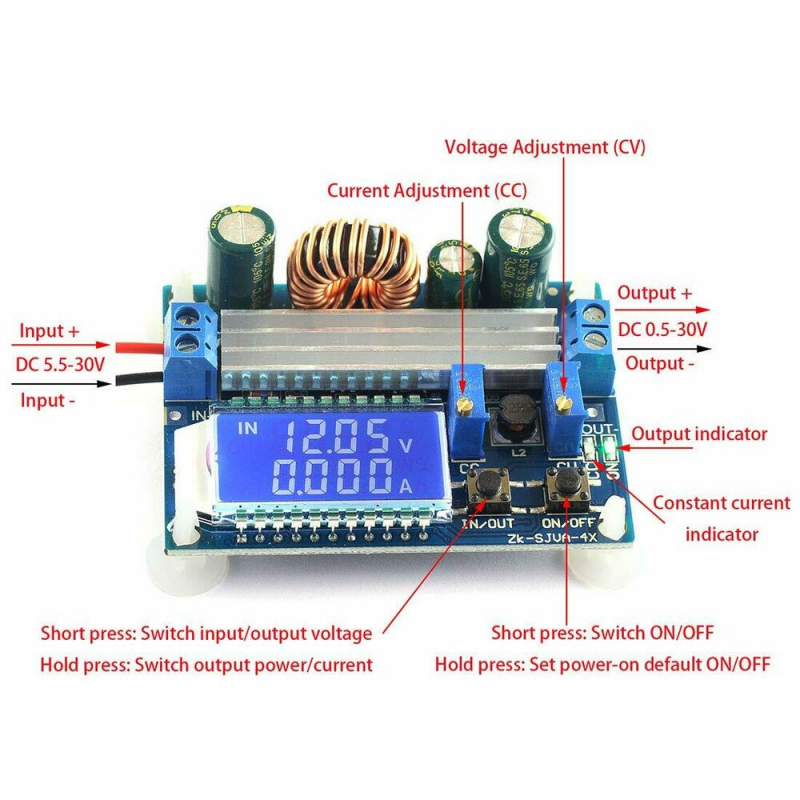

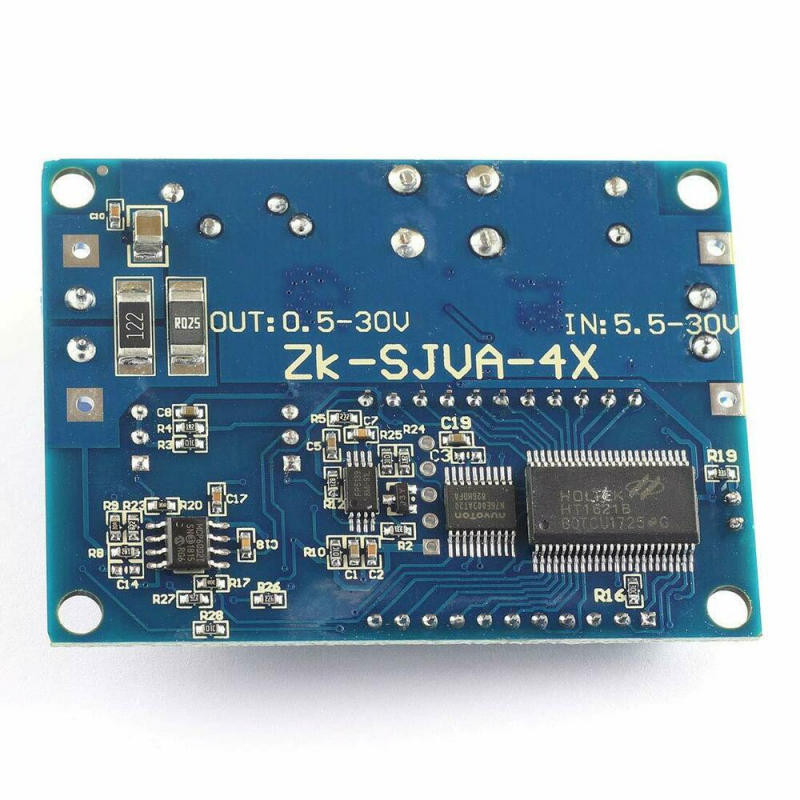

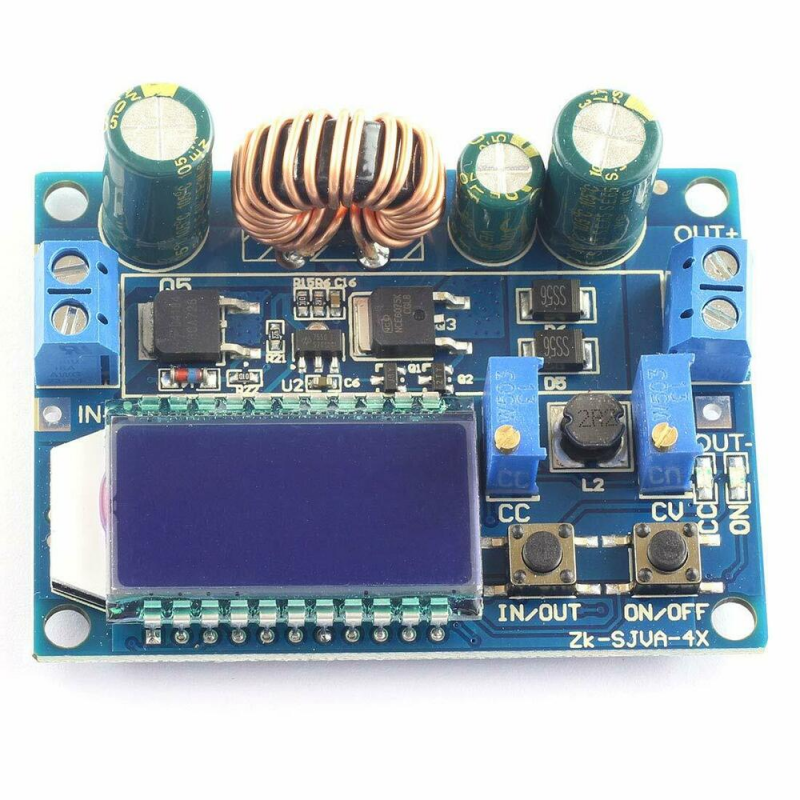

ITEM NAME:Dc-Dc 35W Step-Down Step-Down Boost Voltage Converter Constant Current Module Product Description Description: 1. Product highlights: 1.1 LCD input and output voltage, output current output power; 1.2. Input anti-reverse protection, reverse connection will not burn; 1.3. Can be step-up and step-down, the output voltage 0.5-30V arbitrary regulation, limiting the current 0-4A arbitrary regulation; 1.4 output anti-intrusion, the battery charge without additional anti-reflux diodes; 1.5. Button control output ON / OFF status, and you can set the power-on default is ON or OFF; 1.6. Ascending and descending chip used as the main controller, external 60V 75A MOS tube as a switch, double 60V 5A SS56 Schottky rectification, 60V voltage value, superior to the market immature XL6009 / LM2577 program (a lot Device pressure value is not enough, MOS tube and Schottky diode pressure value must be greater than the input plus input voltage value); 1.7. Output ripple small, LC filter; 1.8. With heat sink, send module support isolation column. 2. Product parameters: Input voltage: 5.5-30V (input voltage 5V, you can normally achieve buck-boost, but the voltage and current meter values are not accurate; less than 4.7V, undervoltage protection) Output voltage: 0.5-30V Output current: long-term stable work in 3A, strengthen the heat can reach 4A Output power: 35W natural cooling, heat dissipation to enhance 50W Voltage display resolution: 0.05V Current display resolution: 0.005A Conversion efficiency: about 88% Soft-start: Yes (very powerful with load startup, startup may fail) Input reverse protection: Yes Output anti-intrusion: Yes Short circuit protection: yes Working frequency: 180KHZ Size: L * W * H 66 * 48 * 21mm Mounting hole: 4mm in diameter Weight: 46g 3. Function Description: 3.1. Module has IN / OUT, ON / OFF two buttons: IN / OUT button to switch the input voltage and output voltage display, long press to switch the output current output power display; ON / OFF but.Find many great new & used options and get the best deals for Dc-Dc 35W Step-Down Step-Down Boost Voltage Converter Constant Current Module at the best online prices at Order2india Shopping! Free shipping for many products!
