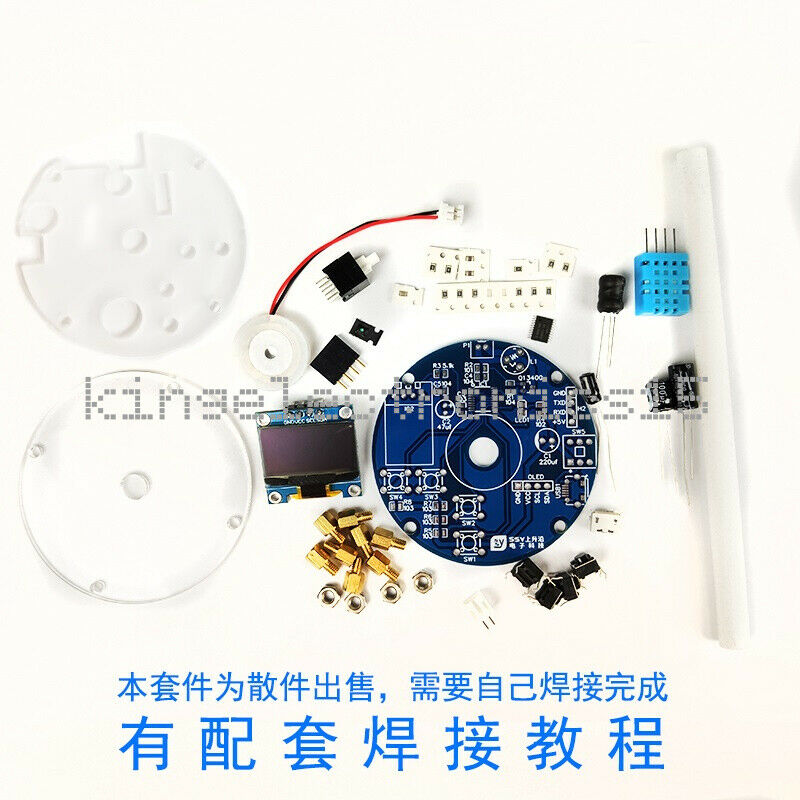

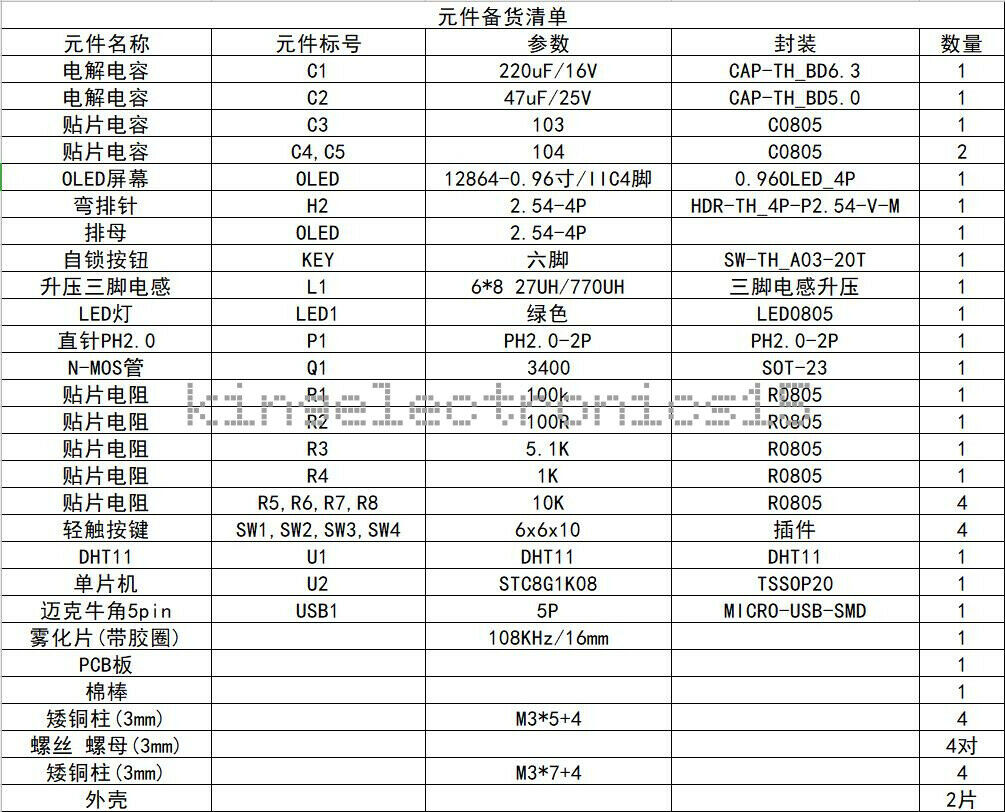

ITEM NAME:DC 5V 2W Humidifier Switch Humidity Control Spare Part DIY Kit Unassembled DC 5V 2W Humidifier Switch Humidity Control Spare Part DIY Kit Unassembled Product Image: Product Description: Description: Parameter: Input: DC5V (MICROUSB interface) Current: 300mA Power: 2W Atomization film: 108KHz, 740 holes Welding list: Component stock list Component name Component label parameter Package quantity Electrolytic capacitor C1 220uF/16V CAP-TH_BD6.3 1 Electrolytic capacitor C2 47uF/25V CAP-TH_BD5.0 1 SMD capacitor C3 103 C0805 1 SMD capacitor C4, C5 104 C0805 2 OLED screen OLED 12864-0.96 inch/IIC4 pin 0.96OLED_4P 1 Curved pin header H2 2.54-4P HDR-TH_4P-P2.54-V-M 1 Female header OLED 2.54-4P 1 Self-locking button KEY six-pin SW-TH_A03-20T 1 Boost tripod inductor L1 6*8 27UH/770UH tripod inductor boost 1 LED light LED1 green LED0805 1 Straight needle PH2.0 P1 PH2.0-2P PH2.0-2P 1 N-MOS tube Q1 3400 SOT-23 1 SMD resistor (104) R1 100k R0805 1 SMD resistor (101) R2 100R R0805 1 SMD resistor (512) R3 5.1K R0805 1 SMD resistor (102) R4 1K R0805 1 SMD resistor (103) R5, R6, R7, R8 10K R0805 4 Touch button SW1, SW2, SW3, SW4 6x6x10 plug-in 4 DHT11 U1 DHT11 DHT11 1 Microcontroller U2 STC8G1K08 TSSOP20 1 Mike Horn 5pin USB1 5P MICRO-USB-SMD 1 Atomizing film (with rubber ring) 108KHz/16mm 1 PCB board 1 Cotton swab 1 Low copper pillar (3mm) M3*5+4 4 Screw nut (3mm) 4 pairs Low copper pillar (3mm) M3*7+4 4 Shell 2 pieces Production notes: 1. The soldering time should not be too long, 1-3 seconds, otherwise the copper sheet will fall off. If the soldering is not done once, remove the soldering iron and solder again. Be optimistic about making pictures and text, and distinguish between positive and negative! When soldering, pay attention to the white silk screen soldering of the corresponding component 2. The cotton swab needs to be soaked in order to have a response. The new cotton swab needs to be soaked in water for several hours before it is effective. It is recommended to .Find many great new & used options and get the best deals for DC 5V 2W Humidifier Switch Humidity Control Spare Part DIY Kit Unassembled at the best online prices at Order2india Shopping! Free shipping for many products!
