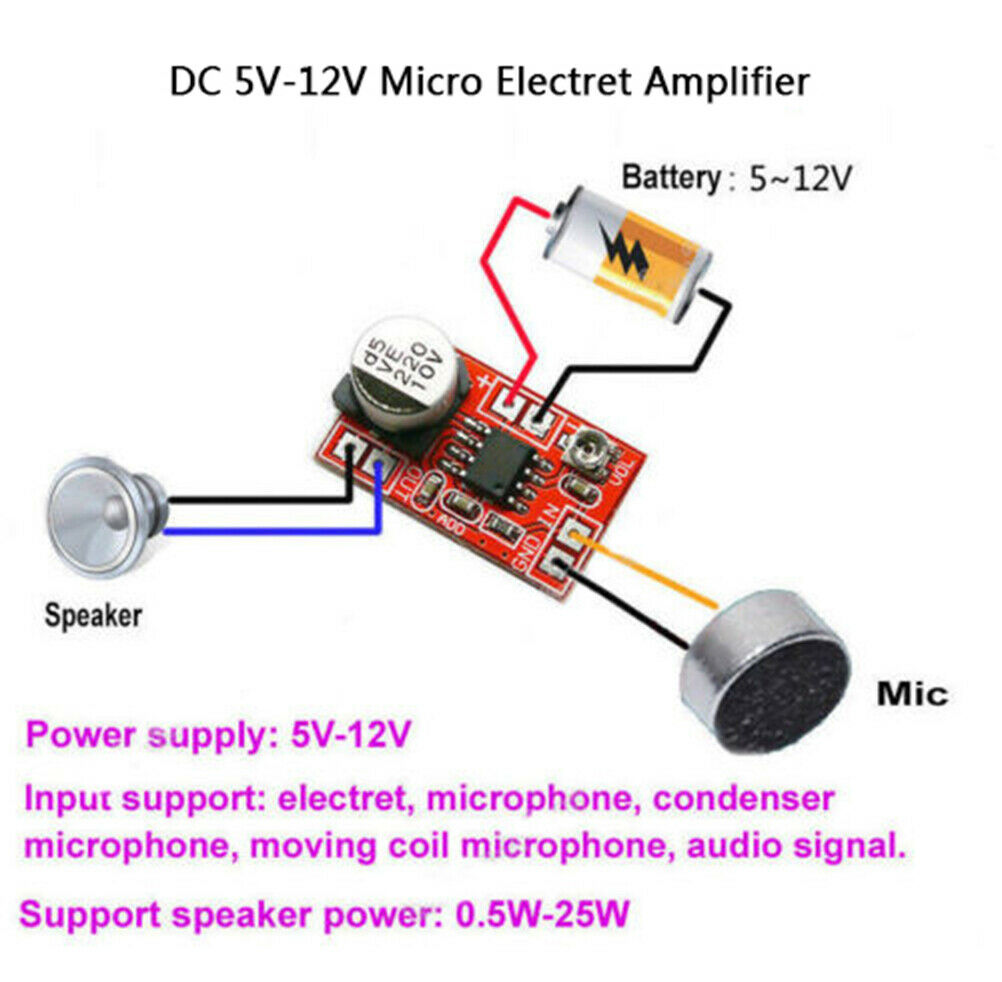

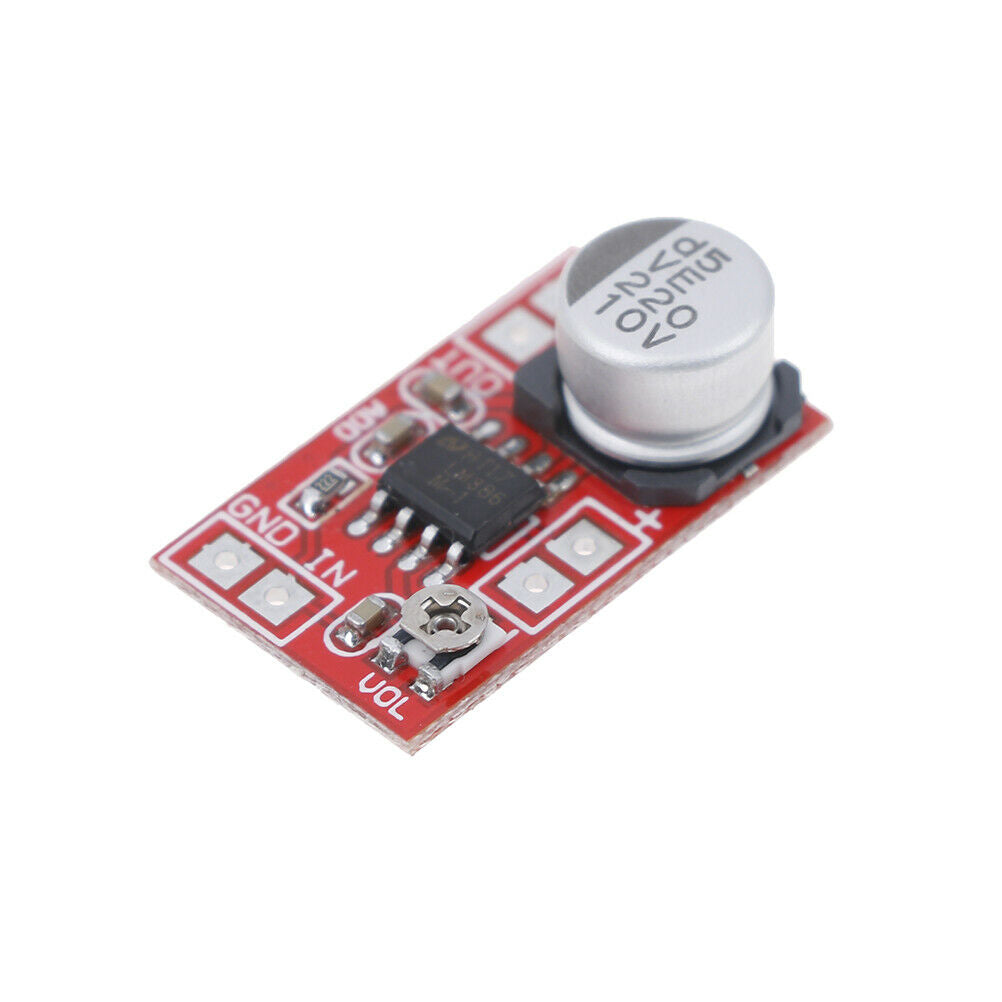

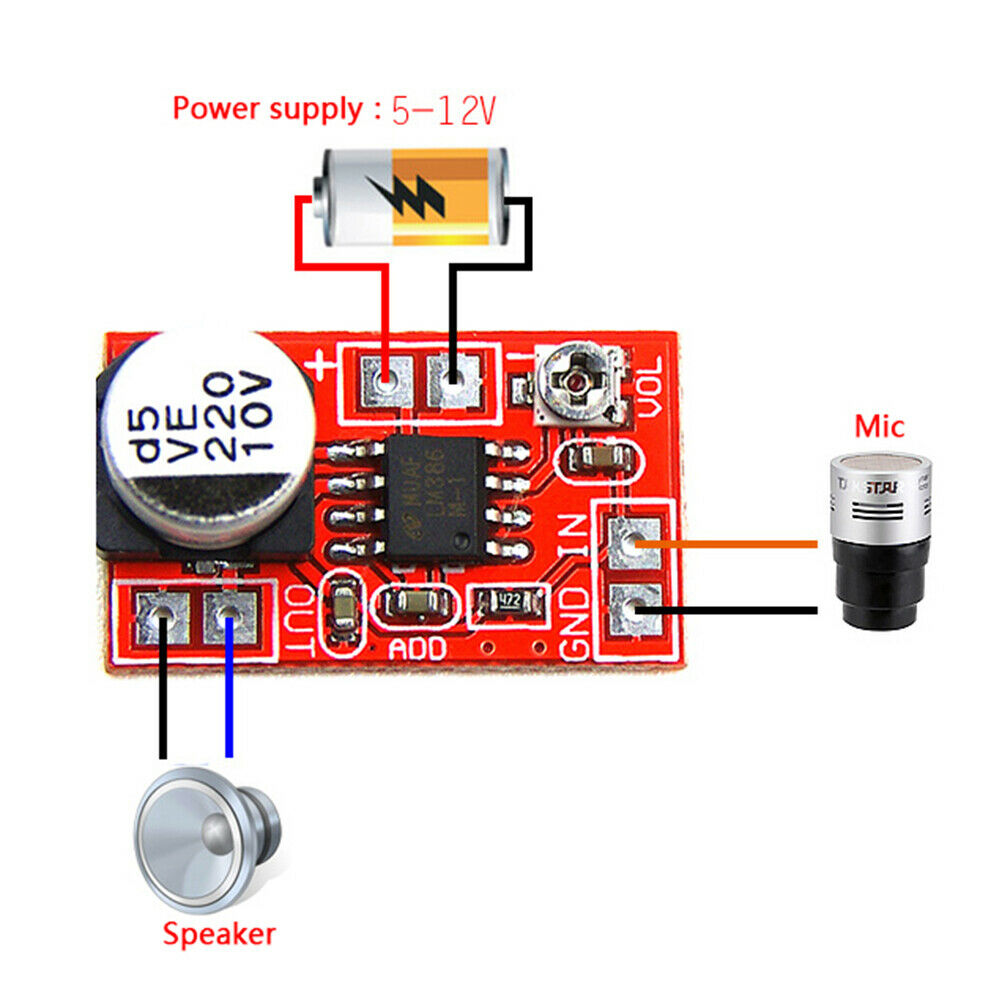

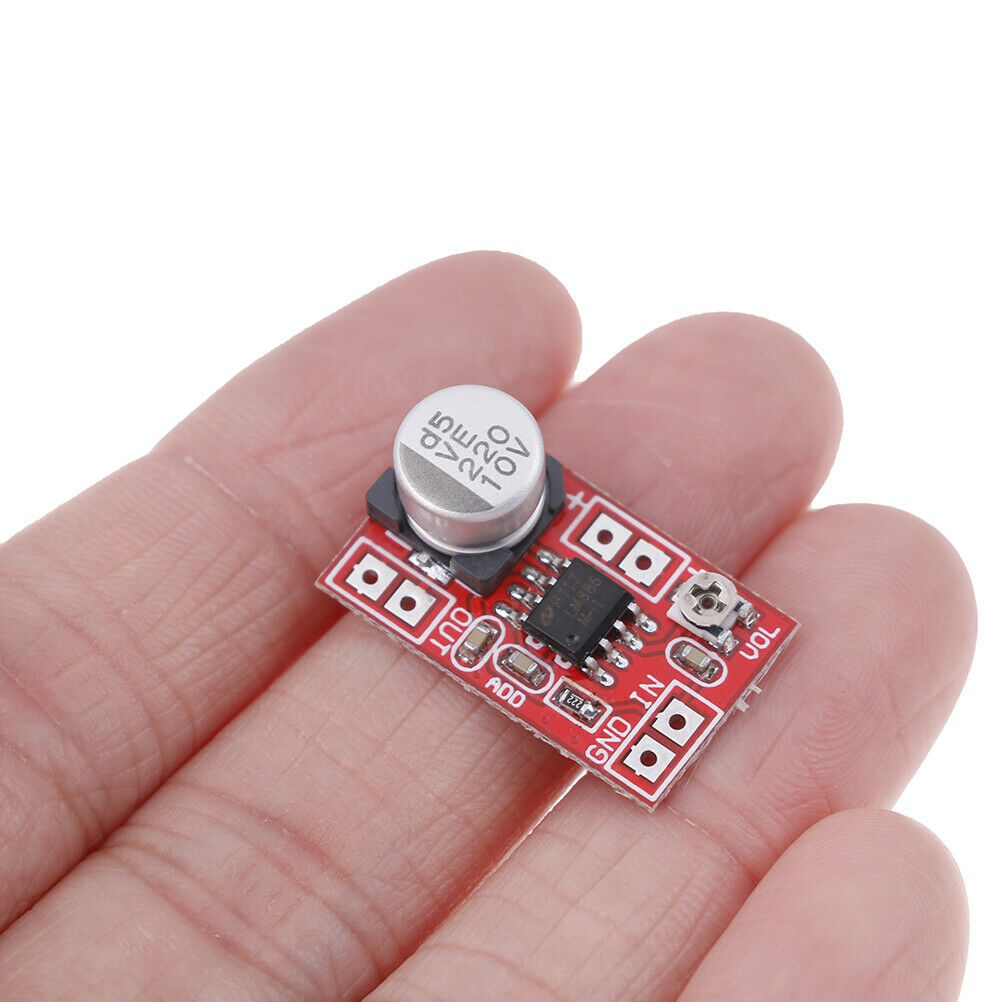

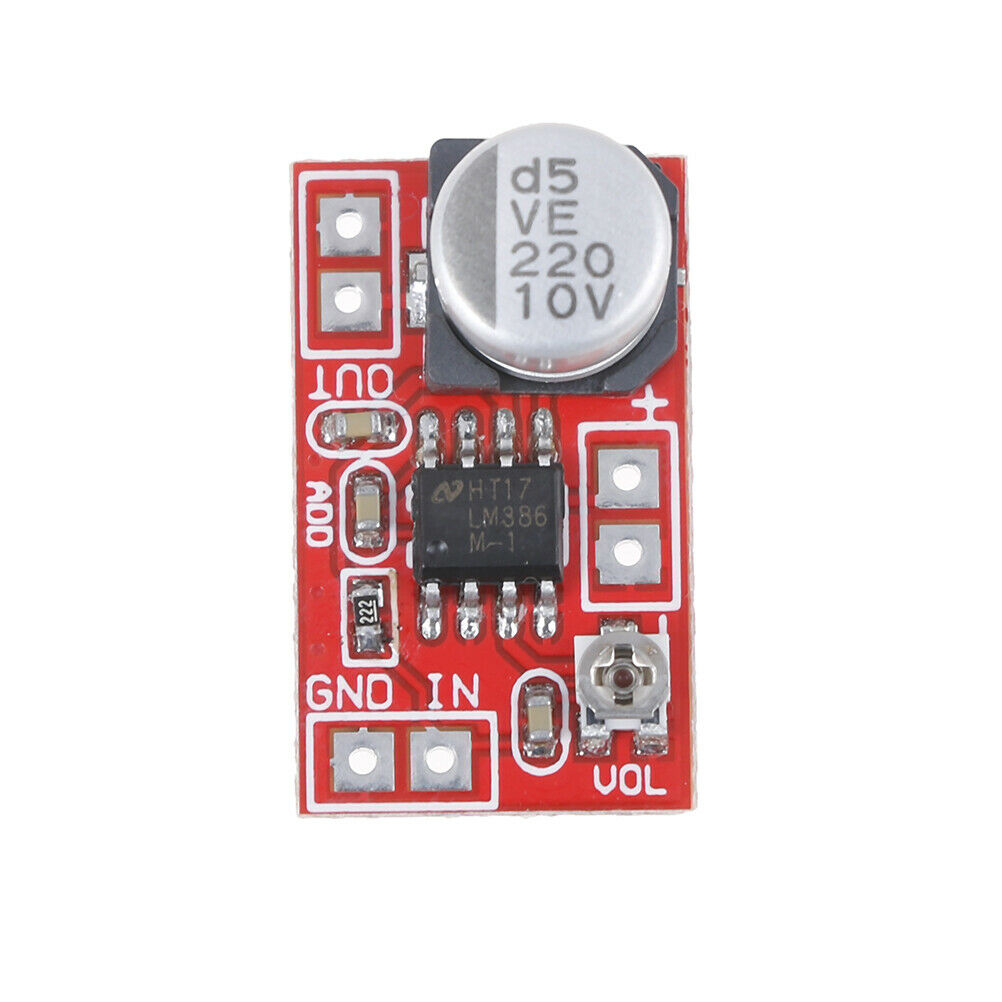

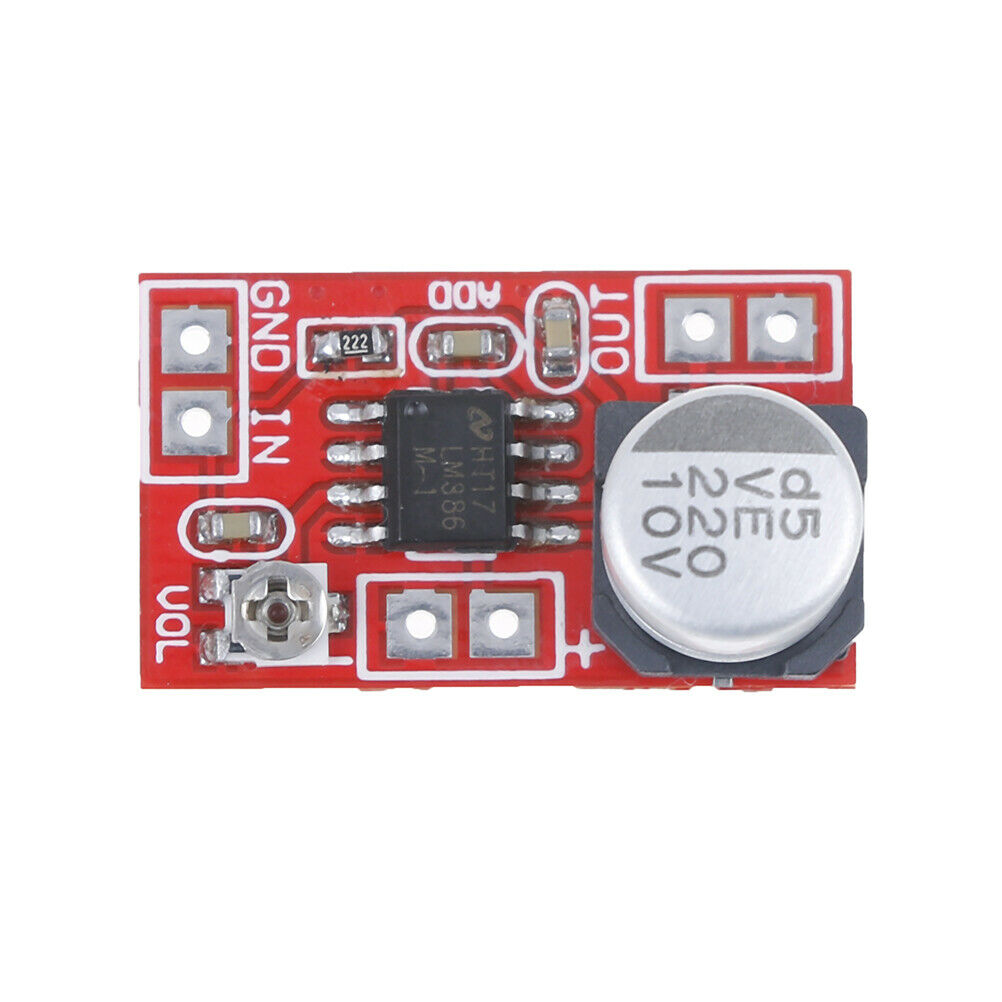

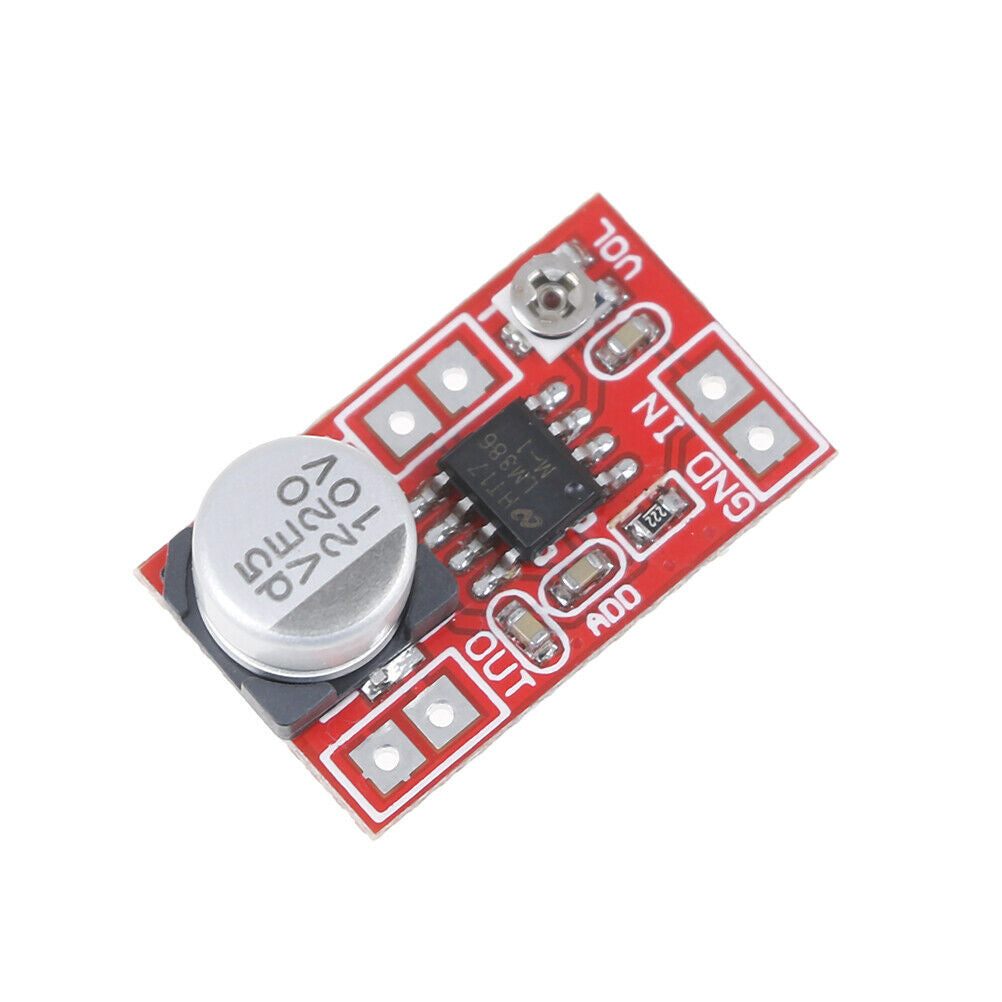

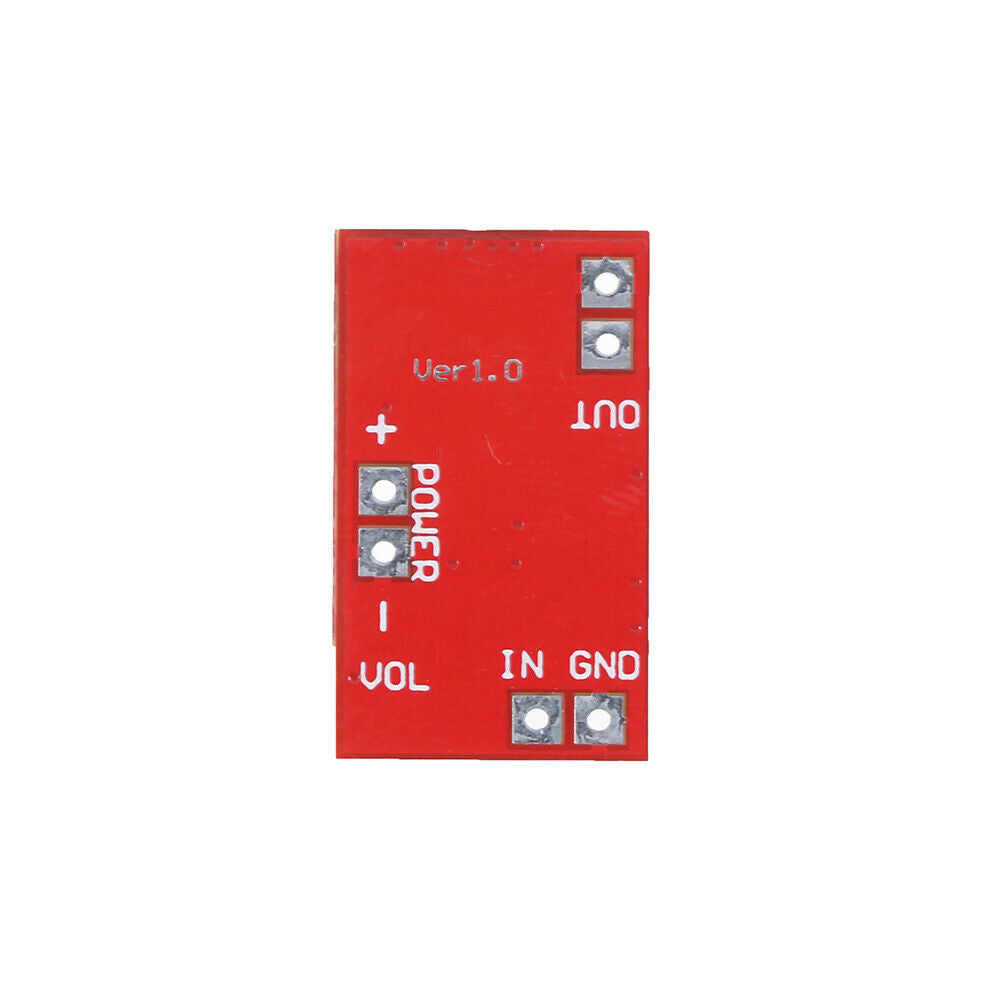

ITEM NAME:DC 5V-12V micro electret amplifier MIC condenser mini microphone amplifie tHSJC Ultra-miniature electret amplifier module, ultra-small size, support 5 ~ 12V DC power supply, input can be directly connected to the electret microphone without any bias circuit, the sound can be fine-tuned on-board trimmer, the output OUT can drive 8 ~ 32 European (0.5 ~ 35W) speakers, the output power of 750mW, very suitable for DIY various vocal amplifier, pickup, amplifiers, cable walkie-talkie and so on. Parameter: 1. Operating voltage: 5V-12V (voltage below 5V sound will be significantly reduced, the limit voltage can not exceed 15V); 2. Operating current: 1mA (static) ~ 150mA (max); 3. Output speaker impedance: 4 Ω-32 Ω(impedance high-sound, high efficiency); 4. Support the speaker power: 0.5W-25W (In fact, any power speaker can be used, the volume and the speaker power is not much relationship, as long as greater than the power amplifier output rating on the line); 5. Output power: 750mW (max); 6. Input support: electret, microphone, condenser microphone, moving coil microphone, audio signal. 7. Volume: 22.7 (L) * 13.5 (W) * 7.4 (H) mm; 8. Used for microphone preamplifier effect good , noise and AC ripple is very low, the output signal voltage greater than 1V or more, to promote the power amplifier signal strength. Instructions: 1. Amplifier board IN and GND use shielded cable access electret microphone, access to the attention of the polarity, the electret after the reverse will be very little or no sound; 2. Amplifier OUT board connected speakers, speakers away from the microphone, in order to avoid self-excited noise; 3. Power amplifier board positive and negative access 5 ~ 12V DC power supply, please do not reverse, otherwise it will burn out the module; 4. Amplifier board comes with a volume trimmer potentiometer, if you feel the sound is too large or too small can try to adjust. Precautions: 1. Soldering must be grounded when the soldering iron; 2. Do not reverse.Find many great new & used options and get the best deals for DC 5V-12V micro electret amplifier MIC condenser mini microphone amplifie tHSJC at the best online prices at Order2india Shopping! Free shipping for many products!
