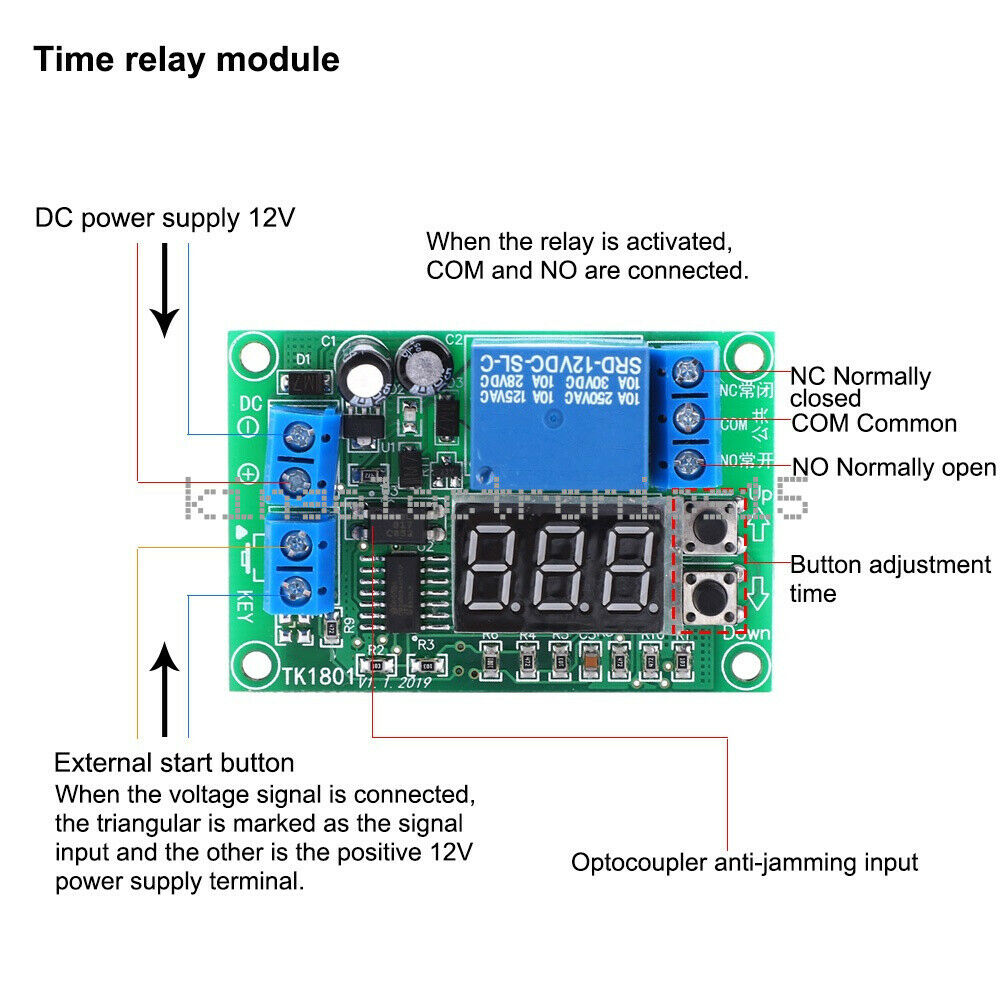

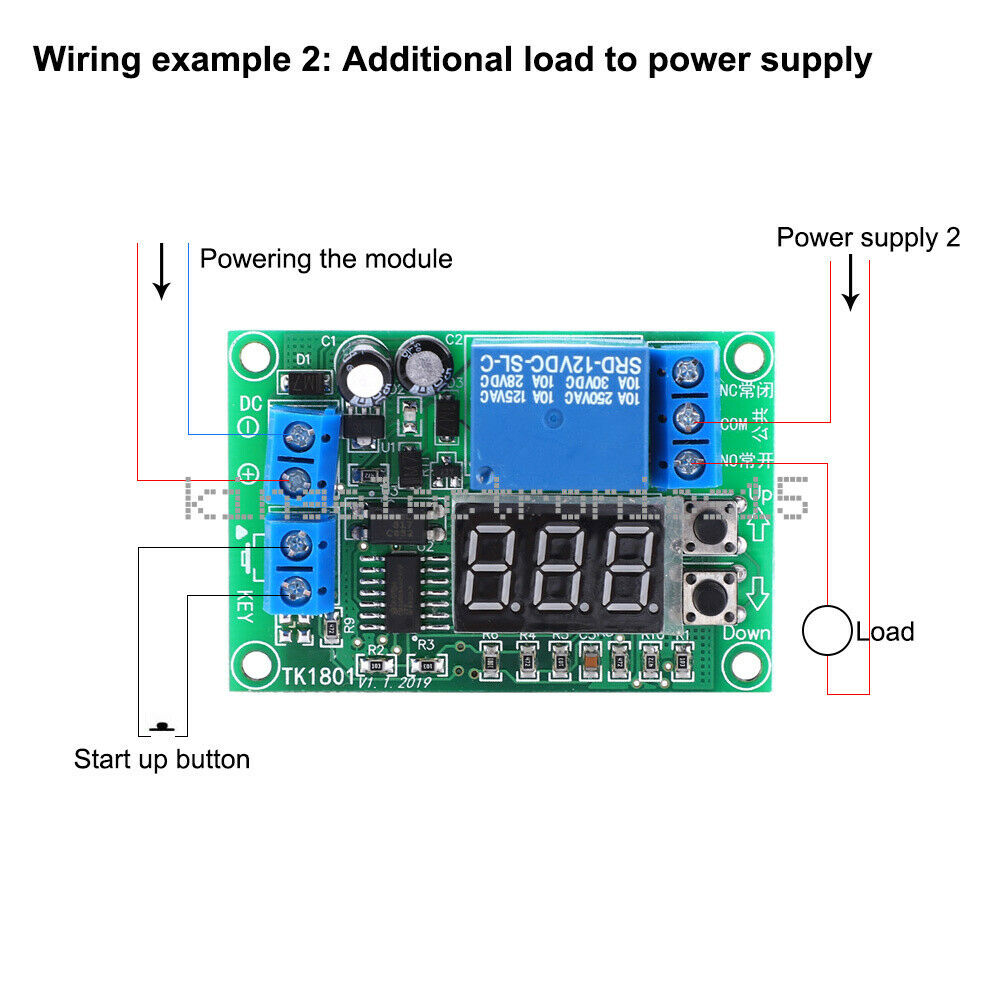

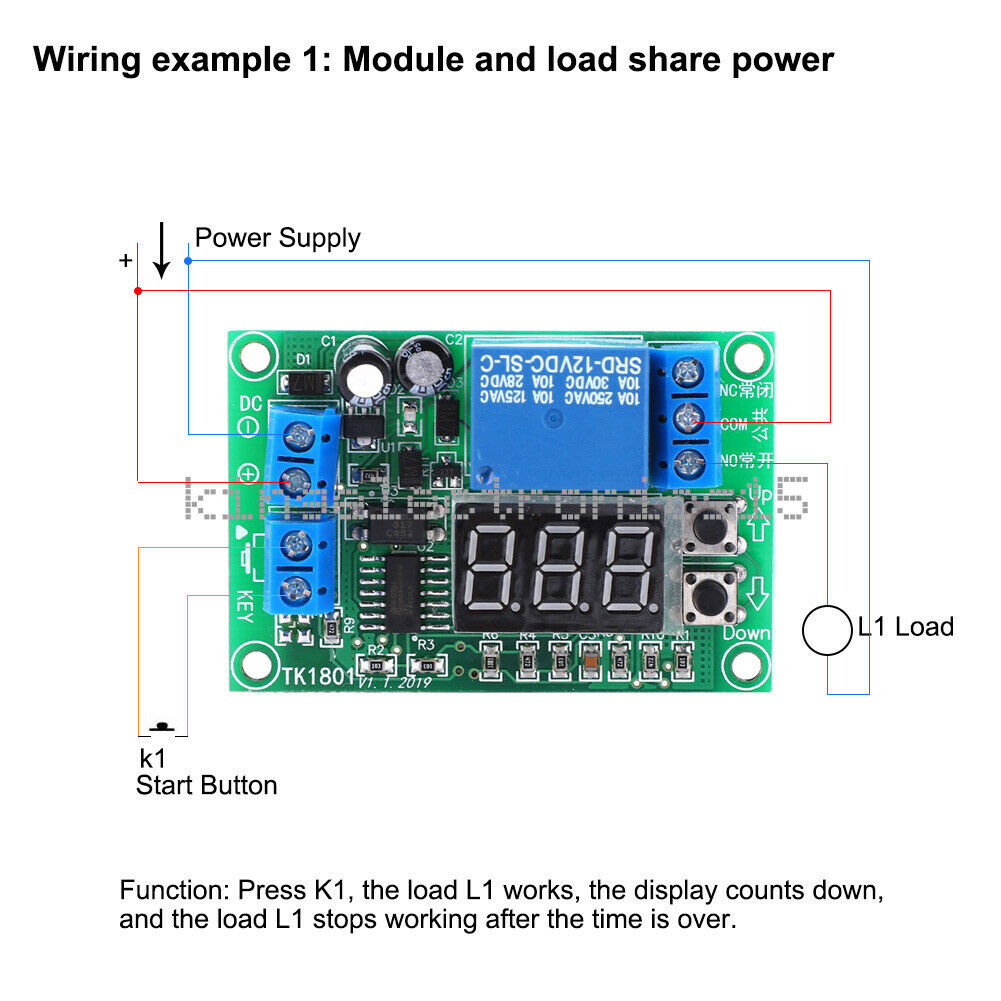

ITEM NAME:DC 12V Display Delay Timing Relay Module Timer Relay Board 1-999 Seconds DC 12V Display Delay Timing Relay Module Timer Relay Board 1-999 Seconds Product Image: Product Description: Feature: 1. Start delay after trigger, the relay will be turned on immediately, and the relay will be turned off after the countdown ends. 2. Trigger refers to the short contact of the two lines of the KEY terminal. Generally, the external button can also be connected to the voltage signal. 3. Note that the trigger is invalid after the trigger, and must wait for the countdown to end before it can be triggered again. 4. Press the Up button to adjust the time up to 999. Press the Down button to adjust the time down. The minimum is 1, and the unit of time is seconds. 5. Note that the time cannot be adjusted during the count down. 6. Press and hold the button to quickly adjust the time. 7. Do not power off immediately after the time adjustment. Wait for more than 1 second to that the set time is saved effectively. The time you power on, the last setting will be transferred. 8. When not triggered, the set time is displayed; the remaining time (countdown) is displayed after triggering; the setting process flashes to show the set time. Specification: Item Type: Timer Delay Module Voltage: DC 12V Power Consumption: 0.5W Time Range: 1-999 Seconds Display Mode: 3-digit red digital tube (the remaining time is displayed during the countdown, otherwise the set time is displayed) Time Adjustment: Button adjustment, (with power-off memory, the call is automatically transferred to the last setting) Accuracy: 1 second Error: 2% Trigger Mode: Short-circuit valid for more than 0.025 seconds Output Contact: A set of normally open + normally Output Capacity: 10A (voltage range 0-250V AC, or 0-30V DC) Output Mode: Passive (ie dry contact, no charge, switch quantity, equivalent to switch) Interface Description: 12V+: Module.Find many great new & used options and get the best deals for DC 12V Display Delay Timing Relay Module Timer Relay Board 1-999 Seconds at the best online prices at Order2india Shopping! Free shipping for many products!
