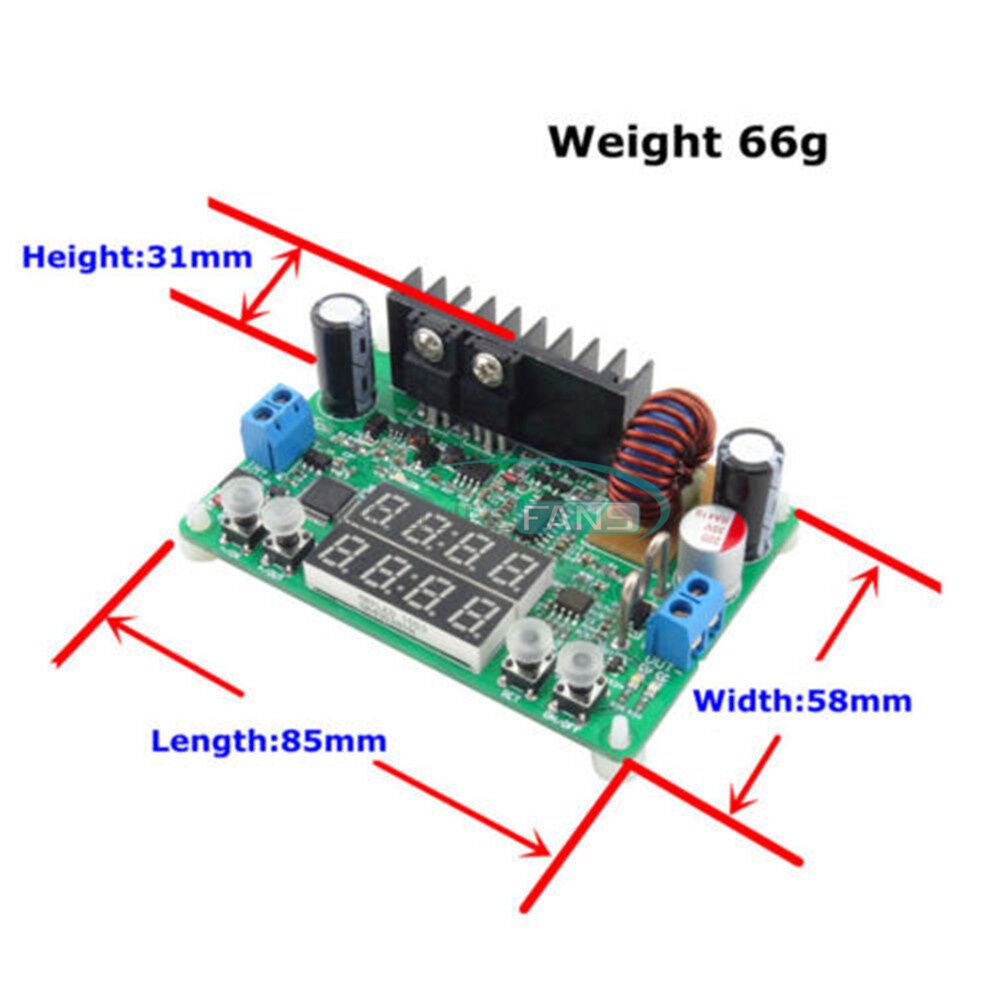

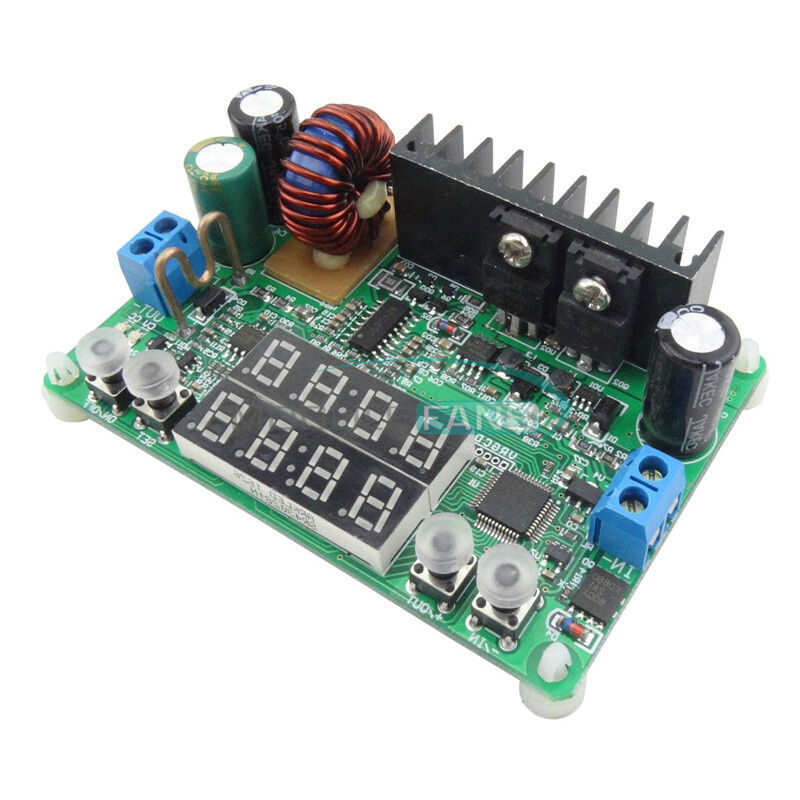

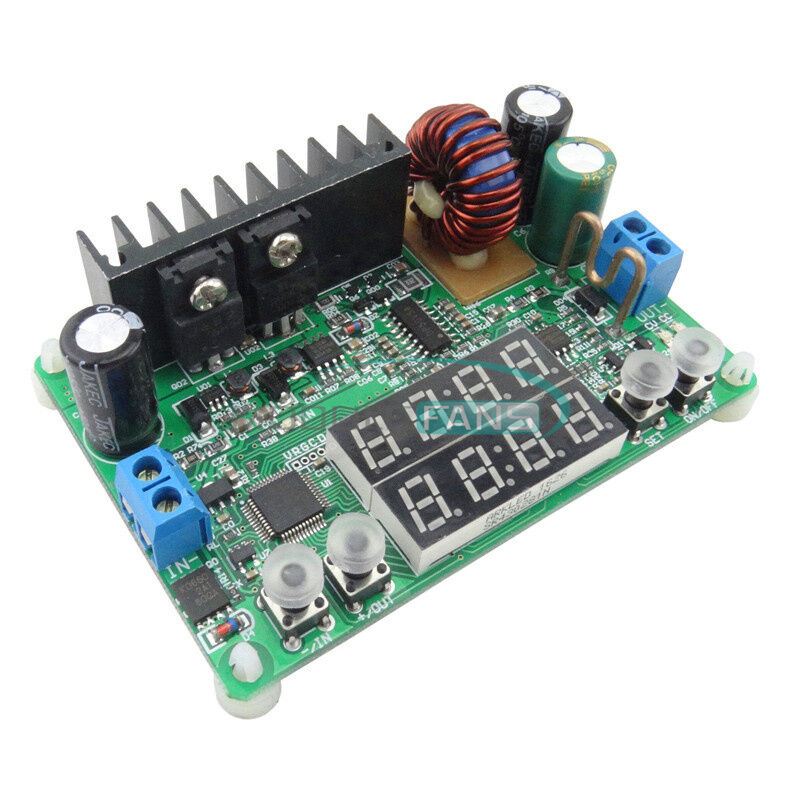

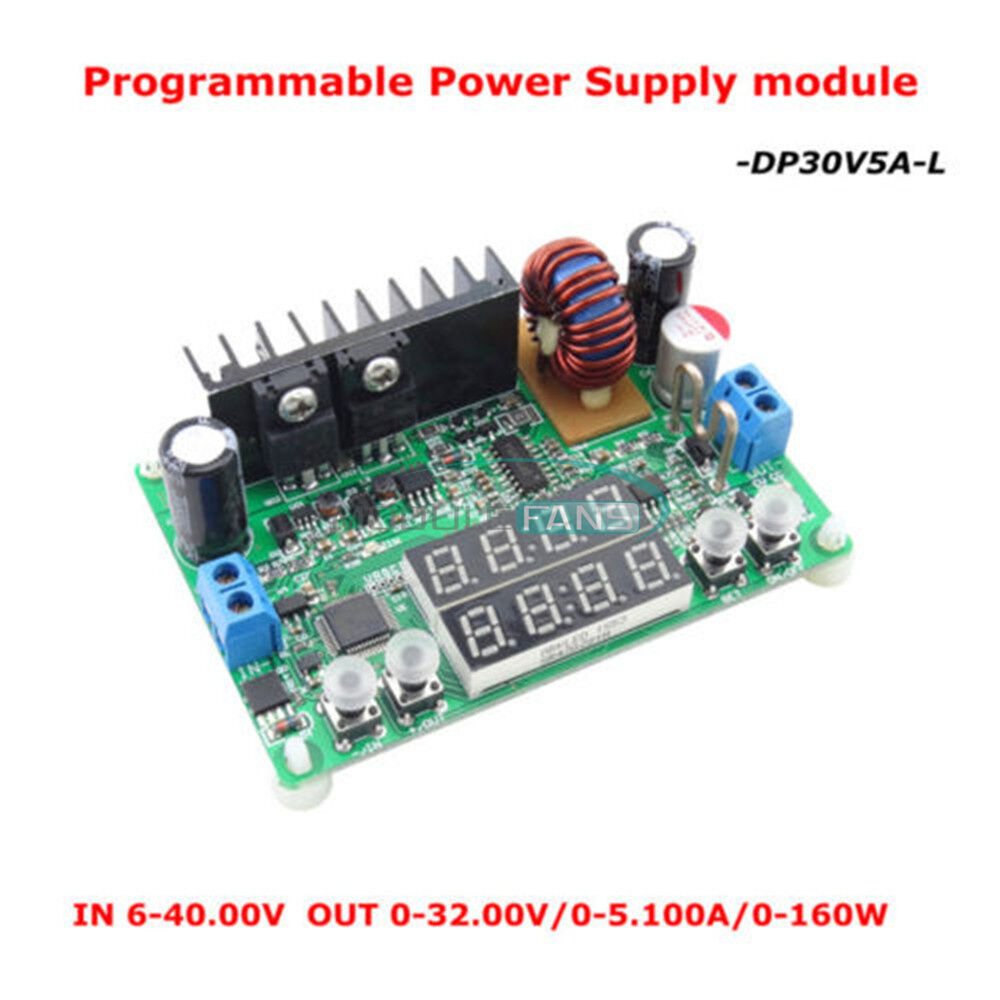

ITEM NAME:Constant Voltage/Current Power Supply Converter DP30V5A-L LED Module 32V 5A 160W Product Overview Constant Voltage/Current Power Supply Converter DP30V5A-L LED Module 32V 5A 160W Technical Parameters: Input voltage range: 6-40.00V Output voltage range: 0V-32.00V Output current: 0-5.100A Output power range: 0-160W Product Weight: 66g Product Dimension: 85*58*31(mm) (L*W*H) Output voltage resolution: 0.01V Output current resolution: 0.001A Output Voltage accuracy: ± (0.5% + 1 digits) Output Current accuracy: ± (1% + 3 digits) Ripple Wave (full load 40v to 32V/5A): about 100 mV VPP Note: On the status of output, the Input must be 1 V higher than the output. Please strengthen the heat dissipation when working with big current. Operating Instructions: 1. Open or close output: press ON/OFF button one time to open or close output in any state; press again, output will be closed or open, followed by recycling. When closed output, the LED display will show “OFF”.2 2. Set output voltage and current: Press SET shortly, the led display will be blinking. You can press the two buttons (+ key and - key) on the tube left to increase or decrease the value. Press SET key shortly again to switch 0.01V to 0.1V to 1V to 0.01A to 0.1A to 1A to exist adjustment, followed by recycling. At the corresponding value place, you can press the two buttons (+ key and - key) to increase or decrease the value. if you don’t press the set key, the set mode will be automatically exited after 6s and the current set value will be automatically stored. 3. Switch input and output display: At no output state, press the two buttons on the tube left (IN key and OUT key) to switch the tube display between the current input voltage and the current output voltage. When show input voltage, “IN” LED lights; when show output voltage, “OUT” LED lights. 4. 4. CC and CV indication: When the module is in the state of constant voltage (CV) or constant current (CC), the CC or CV led will lights correspond to sh.1 x DP30V5A LED Display Converter Module. Note: On the status of output, the Input must be 1 V higher than the output. Then you can loosen the SET key. You can press the two buttons (+ key and - key) on the tube left to increase or decrease the value.
