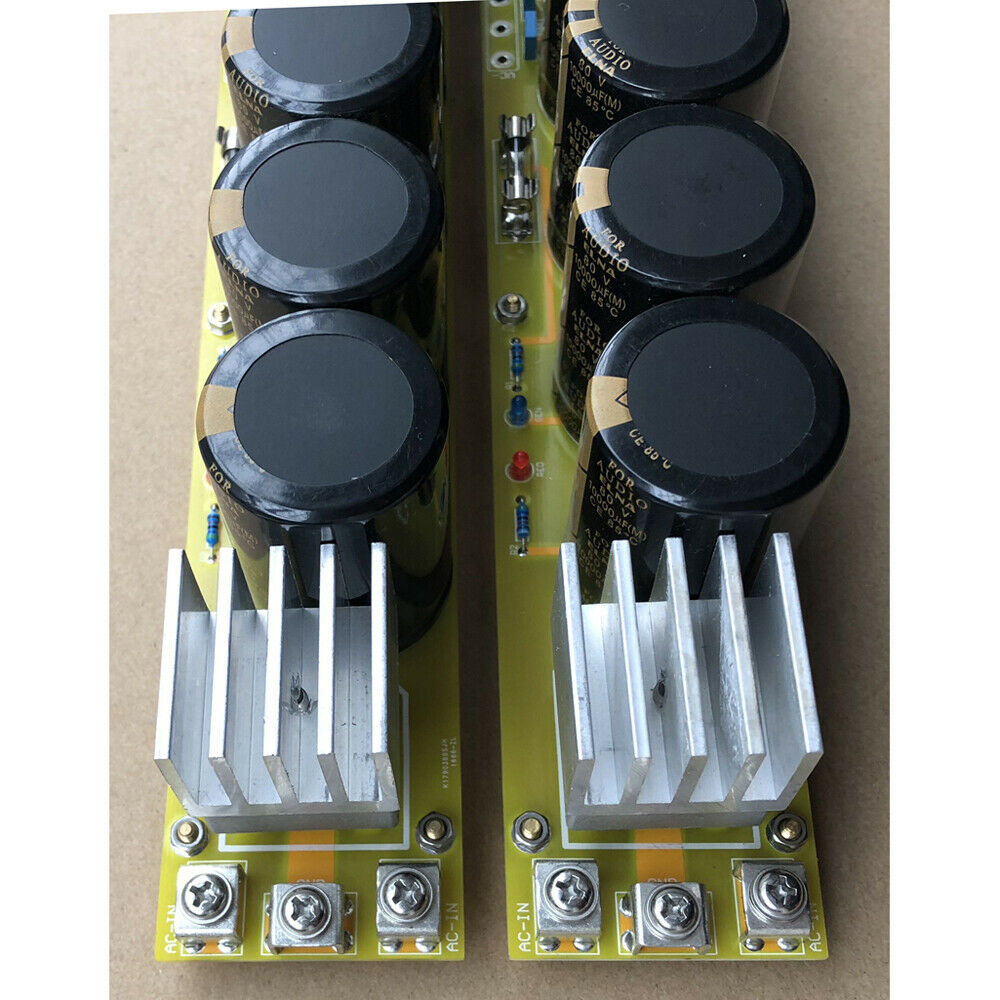

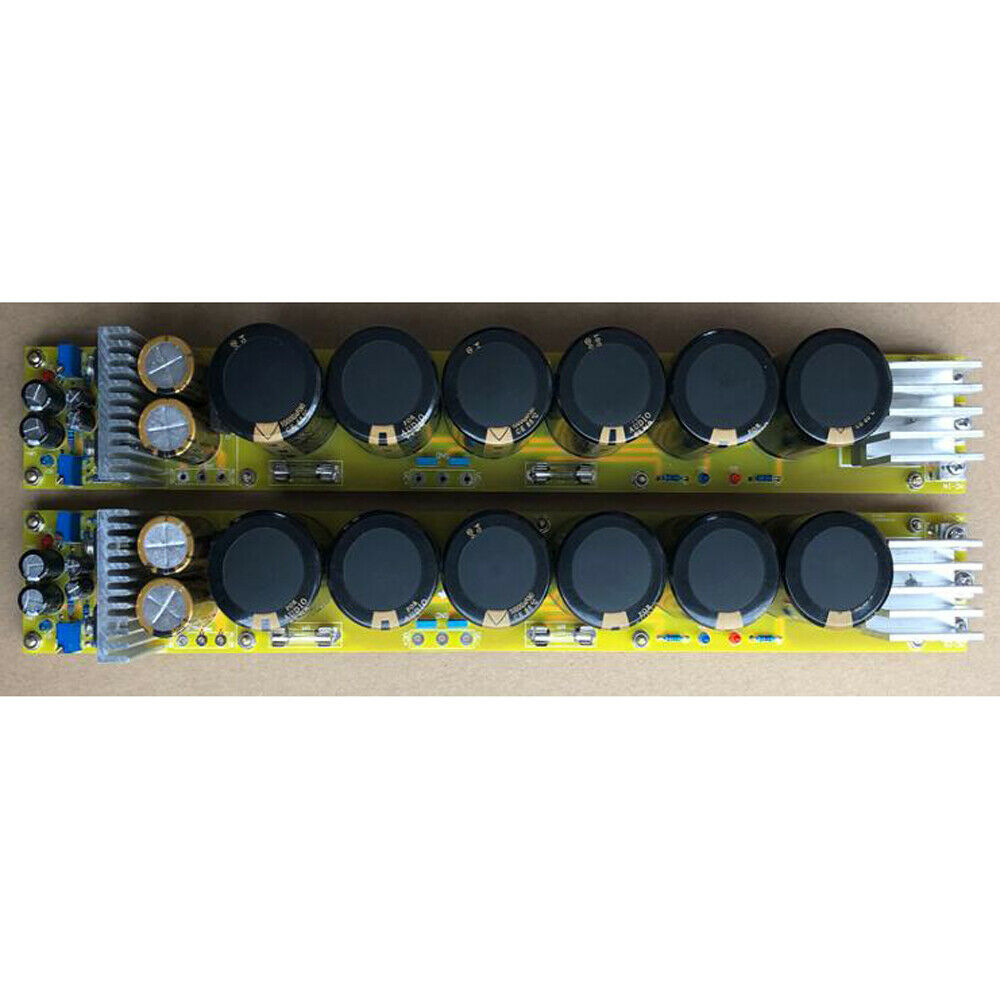

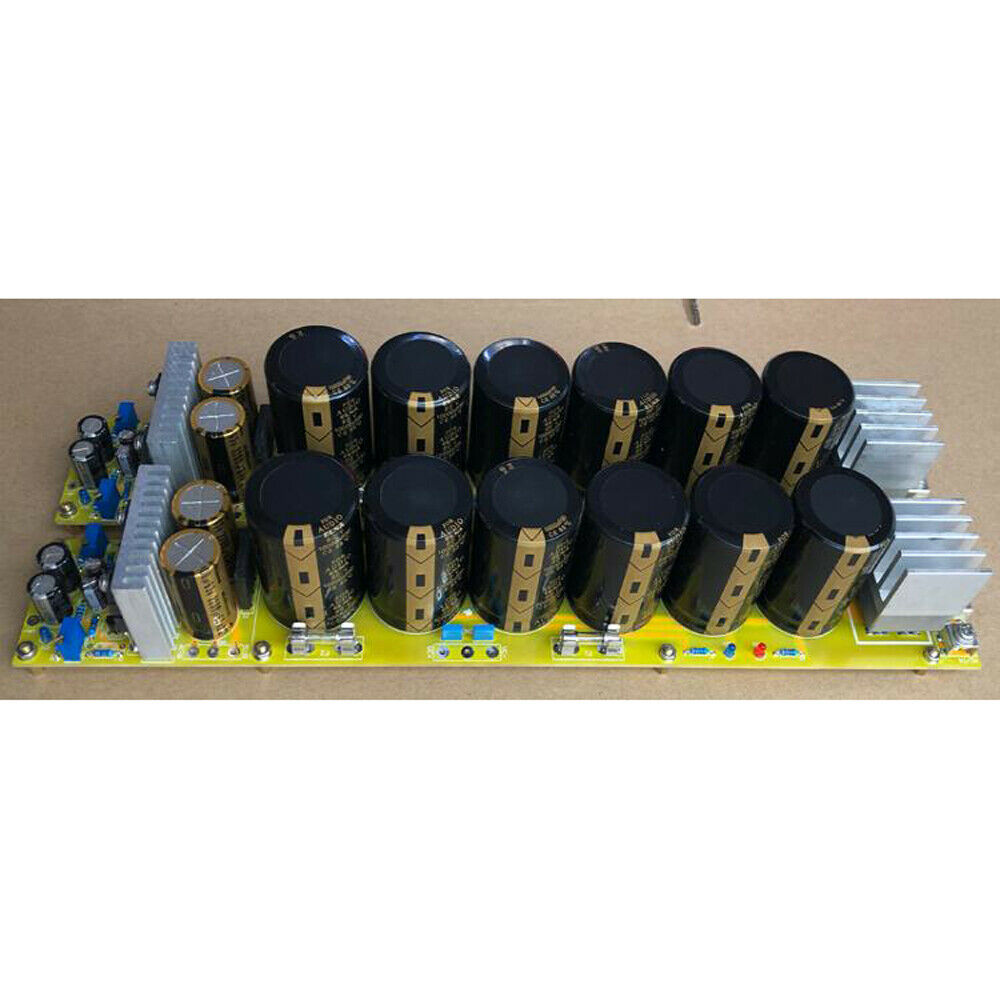

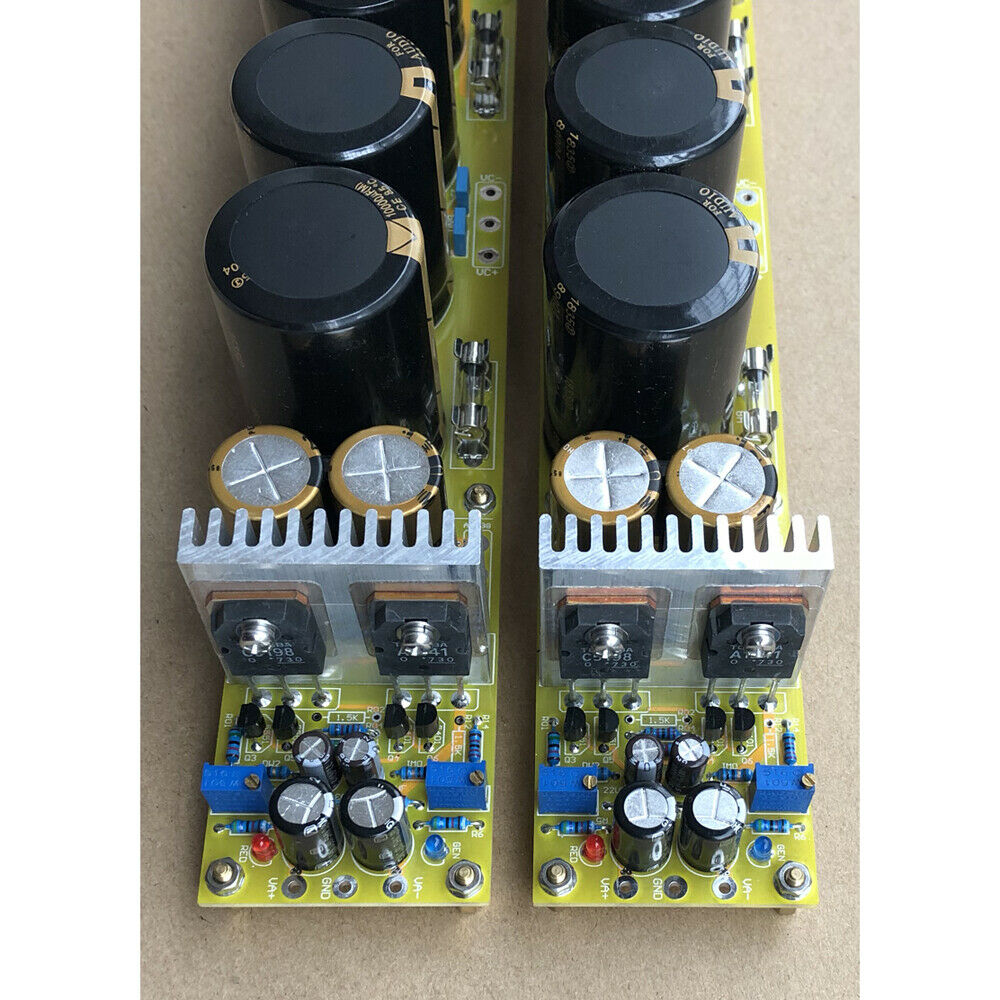

ITEM NAME:Class A Power Amplifier Board A6 Power Rectifier Bridge With ELNA Capacitance Title： Class A Power Amplifier Board A6 Power Rectifier Bridge With ELNA Capacitance Specification: 1: Servo regulated output voltages are both positive and negative 26V -45V adjustable (the error of positive and negative to GND voltage is 1% during adjustment) 2: Maximum current: 3A 3: The A6 long strip rectifier board has 6 capacitors, each with 10,000 UF, which is a single input and single output. The group power amplifier needs 2 pieces. 4: A6 long strip size: 335 X 45 X 65 (length, width and height) 5: The requirements of the A6 rectifier board for the transformer are as follows: Main power supply: 26V-0-26V to 42V-0-42V (AC) any voltage (above 6A) Recommended voltage: 35V-0-35V current (10A) Voltage amplification: 36V-0-36V to 42V-0-42V (AC) any voltage (0.6-1A) Power amplifier board speaker protection power supply: 0-12V 0-12V to 0-18 0-18 (AC 0.5A) note: 1: Since the voltage amplifier power supply adopts a servo voltage regulator circuit, the voltage requirement is higher. If the voltage is lower than 36V, the voltage regulator circuit will fail, and if the voltage is higher than 42V, the filter capacitor will not be able to withstand the withstand voltage. 2: Regarding the selection of the voltage level of the main power supply of the current amplifier circuit: Since the Class A power amplifier is working in a non-linear state, the voltage is too high, the stability will be worse, and the heat will increase. So you can choose a low voltage power supply, not only the work is stable, but also can be adjusted to a larger current, but the disadvantage is power Will become smaller. So it is up to the user to determine the voltage of the main power supply according to their own needs. Package: 1 x Class A Power Amplifier Board A6 Power Rectifier Bridge with ELNA Capacitance 无标题文档.Find many great new & used options and get the best deals for Class A Power Amplifier Board A6 Power Rectifier Bridge With ELNA Capacitance at the best online prices at Order2india Shopping! Free shipping for many products!
