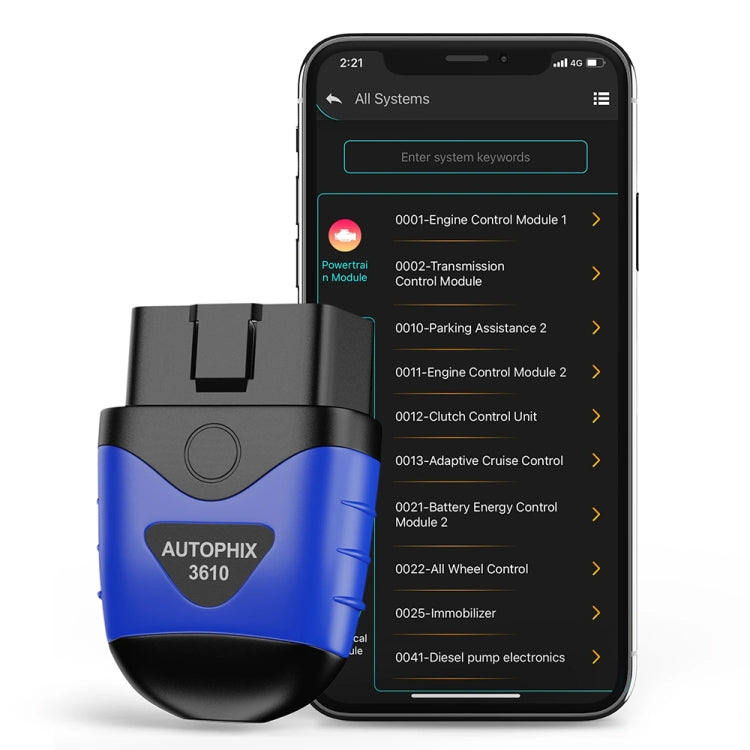

AUTOPHIX 3610 Bluetooth Car Full System Diagnostic Scanner For VW / AUDI / SKODA / SEAT

Features:
1. Affordable diagnostic scanner for in-depth inspection of powertrain modules, suspension modules, body modules, electronic modules for VW Audi Skoda Seat 1996.
2. Full system diagnostic tool: access ECU information, read and erase fault generic/manufacturer specific codes, turn off warning lights.
3. AUTOPHIX 3610 Bluetooth diagnostic scan tool has 3 hot service functions, including service reset, EPB brake pad replacement, throttle learning, supporting OEM-level diagnostics.
4. All OBD2 modes of all 8 test modes are suitable for most OBDii/CAN cars manufactured from 1996 and forward.
5, Battery Voltage Monitor: Real-time check of vehicle battery voltage status.

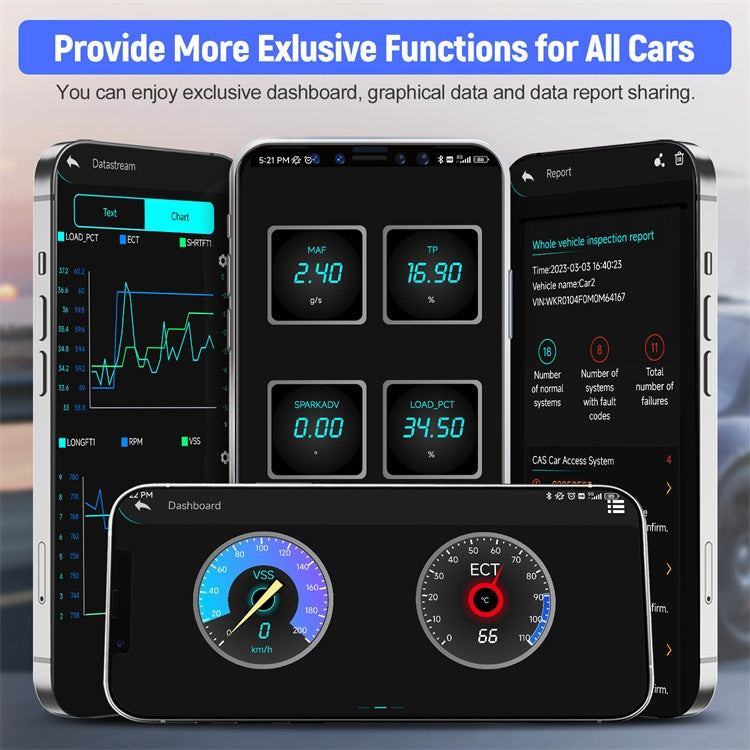

6. The upgraded 3610 Bluetooth diagnostic tool can help you read many data stream parameters of VAG vehicles. Such as engine speed, coolant temperature, voltage, etc. Allowing you to understand the vehicles situation more accurately and simply.
7. Automatically generate diagnostic reports, and when you encounter problems you dont understand, you can print the diagnostic report to the mechanic.
8. Quick to learn and easy to use: Supports Android 4.2; Logically well laid out interface; DTC lookup library.
9. Free lifetime updates via app; Feedback feature for timely online technical help.

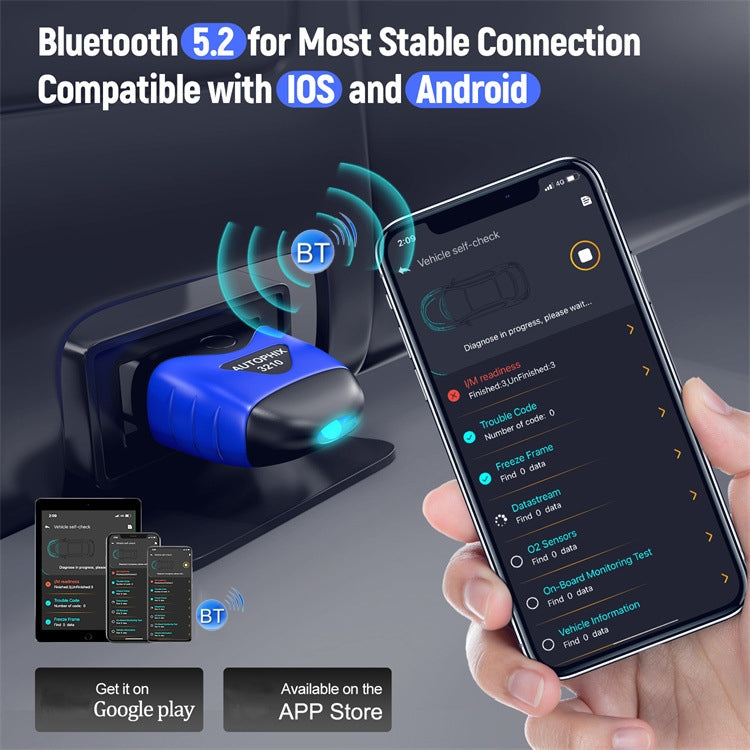

10. Automatic connection: Simply plug the product into the cars OBD port, turn on the ignition, and then open the "Autophix" app to automatically connect successfully.

Supports OBD full mode diagnostics:
Mode 1: Live Data/Data Stream displays a real-time data stream of read characters.
Mode 2: Freeze Frame is a snapshot of the operating conditions at the time of an emission-related fault.
Mode 3: Read Fault Code option is used to read current, pending, or permanent fault codes.
Mode 4: Erase/Clear Code option allows you to clear existing or historical fault codes.
Mode 5: O2 Monitor Test displays the results of the oxygen sensor monitoring test from the vehicles memory.
Mode 6: On-board Monitoring Test can be used to read the results of the on-board diagnostic monitoring test of a specific component/system.
Mode 7: I/M Ready checks whether the various emission-related systems on the vehicle are operating properly.
Mode 8: Component Test displays a list of components and their locations on the vehicle.
Mode 9: Vehicle Information allows you to view relevant information about your vehicle, including V-I-N (Vehicle Identification Number), CID (C-Calibration ID), and CVN (Calibration Verification Number).

Service Functions:

1.Oil Service Reset
The OBD2 Scanner Oil Reset is strictly based on the function of these mileages through maintenance-required indicator lights up to remind you to change the oil.

2.TP Position Adaptation
The OBD2 Scanner correct signal comes from the TPS, reminding you to start noticing drivability problems.

3.EPB Brake Pad Reset
Where the driver pulls the level, in the EBP, the driver presses the switch. The switch then sends a command to the electronic brake module. The module senses the need to operate the parking brake and then sends a command to the actuator in the brake caliper.

Product parameters:
1. Supported languages: English, German, Chinese, French, Italian, Czech, Spanish
2. Operating system: IOS, Android
3. Voltage: 12V
4. Operating temperature: -20 to 50 degrees Celsius
5. Dimensions: 6.5 x 9.5 x 3.5cm
