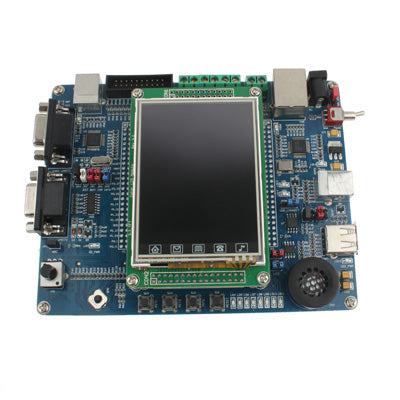

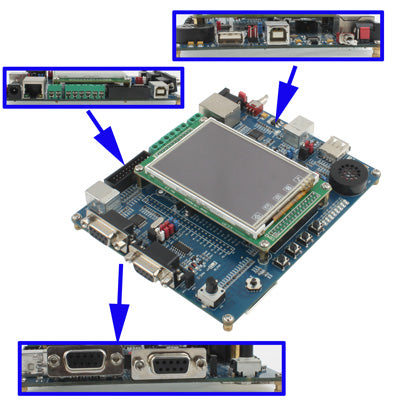

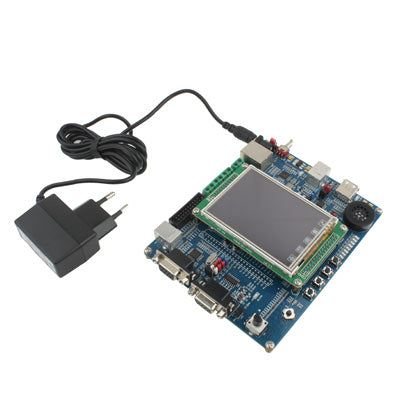

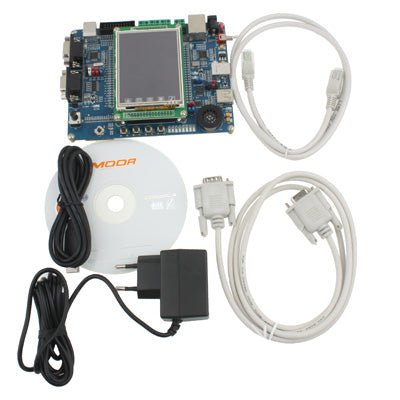

ARM NXP LPC1768 Development Board + 3.2" TFT LCD Module

* Land Rover development board with NXP LPC1768 ARM is a company based on second-generation ARM Cortex-M3 microcontroller core is designed for embedded system applications of high-performance, low-power 32-bit microprocessor for instrumentation, industrial communications, motor control, lighting control, alarm systems. Land Rover development board on-board USB emulator, supports USB2.0 Device, dual CAN interfaces, RS-485 interface functions. Land Rover development board supporting a wealth of routine and detailed information for users to quickly project development.

* Features:

-Powerful MCU core: Cortex-M3

-Processing rates of up to 100MHz, and includes a support eight areas of memory protection unit (MPU)

-Built-nested vector interrupt controller (NVIC)

-512KB on-chip Flash program memory, to support in-system programming (ISP) and In-Application Programming (IAP)

-64KB SRAM for high-performance CPU through the instruction bus, system bus, data bus access

-AHB multi-layer matrix with 8-channel DMA controller, general-purpose (GPDMA)

-Support the SSP, UART, AD / DA, timer, GPIO, etc., can be used for memory to memory transfers

-standard JTAG test / debug interface and debug serial line and serial line tracking port option

-Simulation trace module supports real-time tracking

-4 low-power modes: sleep, deep sleep, power-down, deep power-down

-Single 3.3V power supply (2.4V - 3.6V)

-Operating temperature: -40 ° C - 85 ° C

-Non-maskable interrupt (NMI) input

-On-chip integrated power-on reset circuit

-Built-in systems beat the timer (SysTick), to facilitate the operating system migration.

* Extensive on-board resources:

-2-Way RS232 serial interface (using the straight-through serial cable, serial port support them all the way ISP download)

2 Road CAN bus communication interface (CAN Transceiver: SN65VHD230)

-RS485 communication interface (485 Transceivers: SP3485)

-RJ45-10/100M Ethernet network interface (Ethernet PHY: DP83848)

-DA output interface (USB sound card can do experiments on-board speaker and speaker output driver)

-AD input interface (adjustable potentiometer input)

-Color LCD display interface (which can take 2.8-inch or 3.2-inch color TFT 320X240)

-USB2.0 Interface, USB host and USB Device Interface.

-SD / MMC card (SPI) interface (available with FAT12, FAT16, FAT32 file system)

-IIC Interface (24LC02)

-SPI serial FLASH interfaces (AT45DB161D)

-2 user keys, 2 function keys and the INT0 Reset button, 8 LED lights

-1 Five keys to enter the joystick (Joystick)

-Serial ISP download function (no need to set jumpers), the standard JTAG download, simulation debugging interface.

-Integrated USB emulator: simulation and debug capabilities to support online and support KEIL, IAR and other mainstream development environment.

-Optional external 5V power supply or USB input to provide 5V power supply.

-Leads all the IO, user-friendly external circuit to the secondary development of other applications

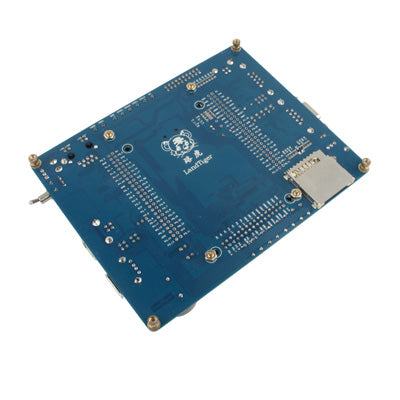

* Partâ…¡: Introduce for 3.2" TFT LCD Module

-8-bit or 16-bit parallel bus interface,8-bit mode use 74HC573 latch low 8-bit (short R7 enable 8-bit mode), open R7 is 16-bit mode (default), use high 8-bit operation bus in 8-bit mode low 8-bit float, Support a ATMEL DataFlash AT45DBxxx series device, Can directly use AVR,PIC,C51,ARM.STM32 MCU driver.

-General Introduce

-Resolution: QVGA 262K 240*RGB*320

-Size: 3.2"

-Controller: IL9320

-Touch Panel: 4-wire

-Pin Pitch: 37Pins & 1mm

-2.7-3.3V operating voltage

-Backlight: 5 LEDs Parallel

-RSM1843 touch panel controller onboard directly compatible with ADS7843

-Standard 2.54mm PCB headers for prototyping

-Support a SD card interface
