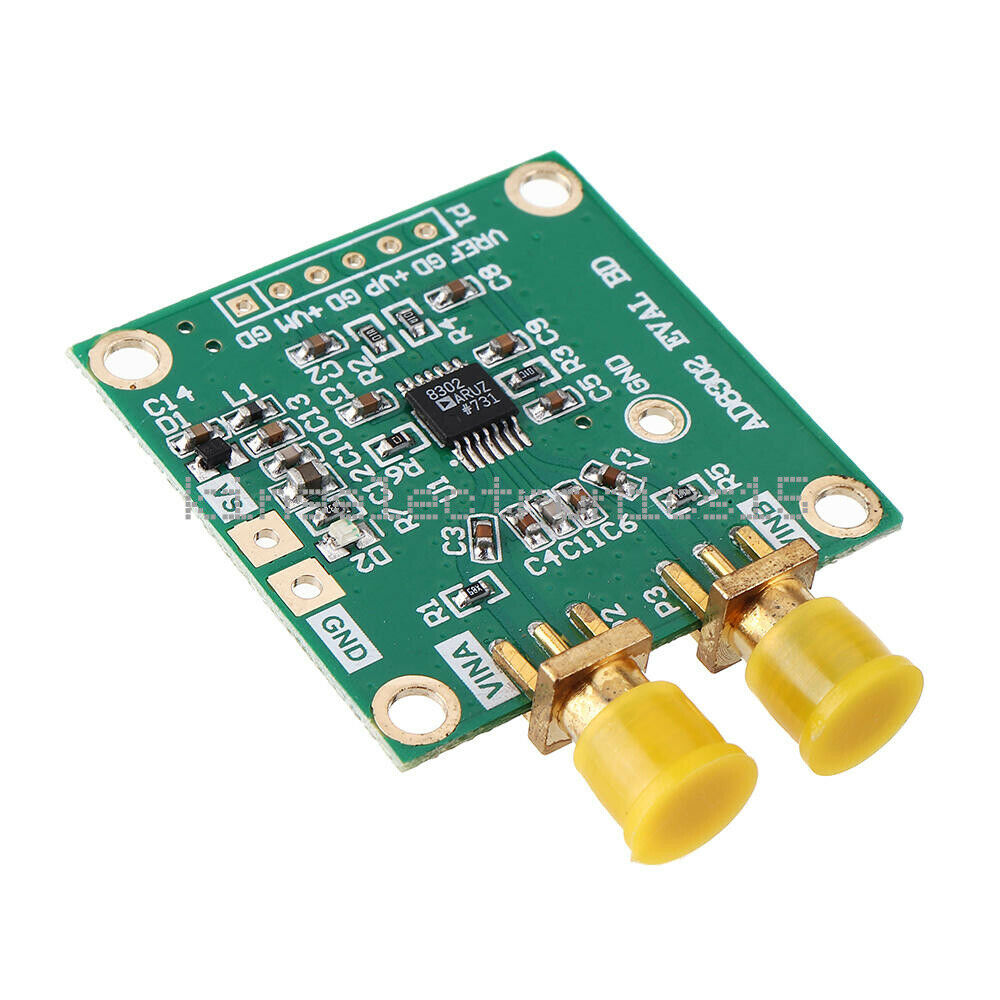

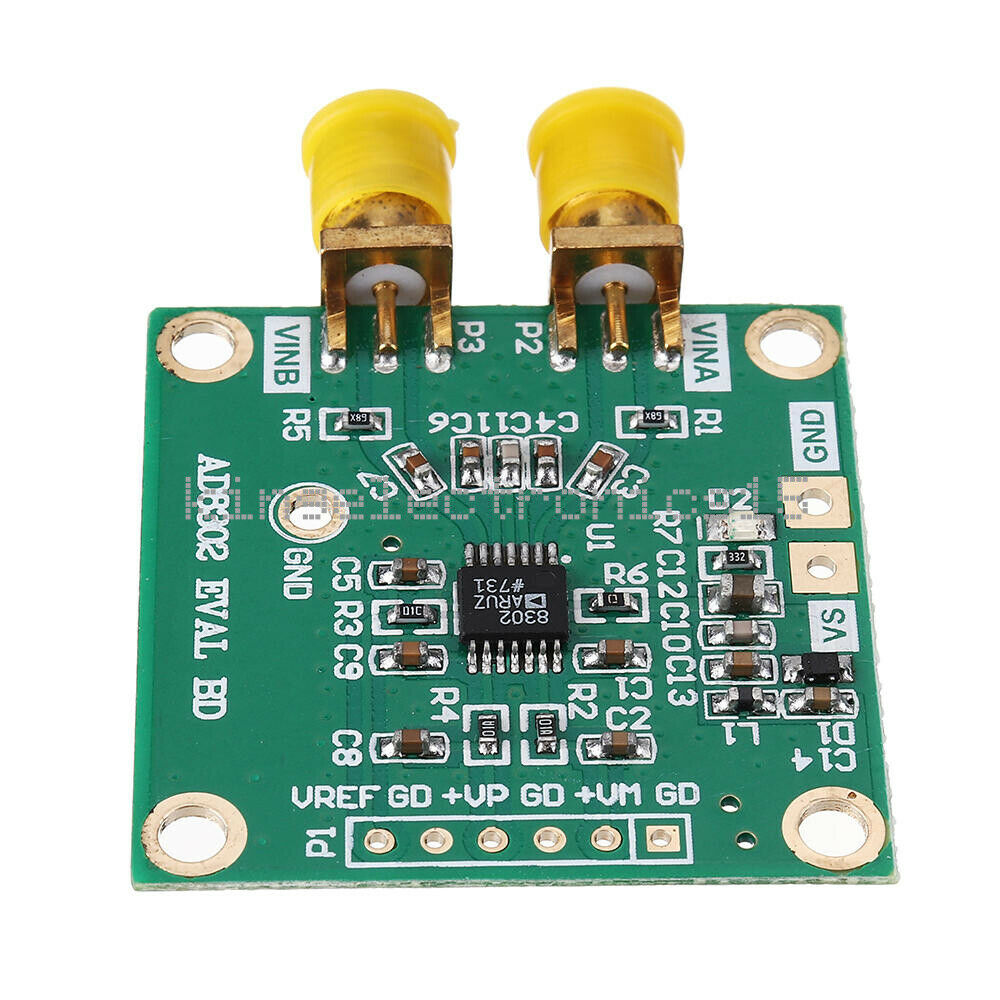

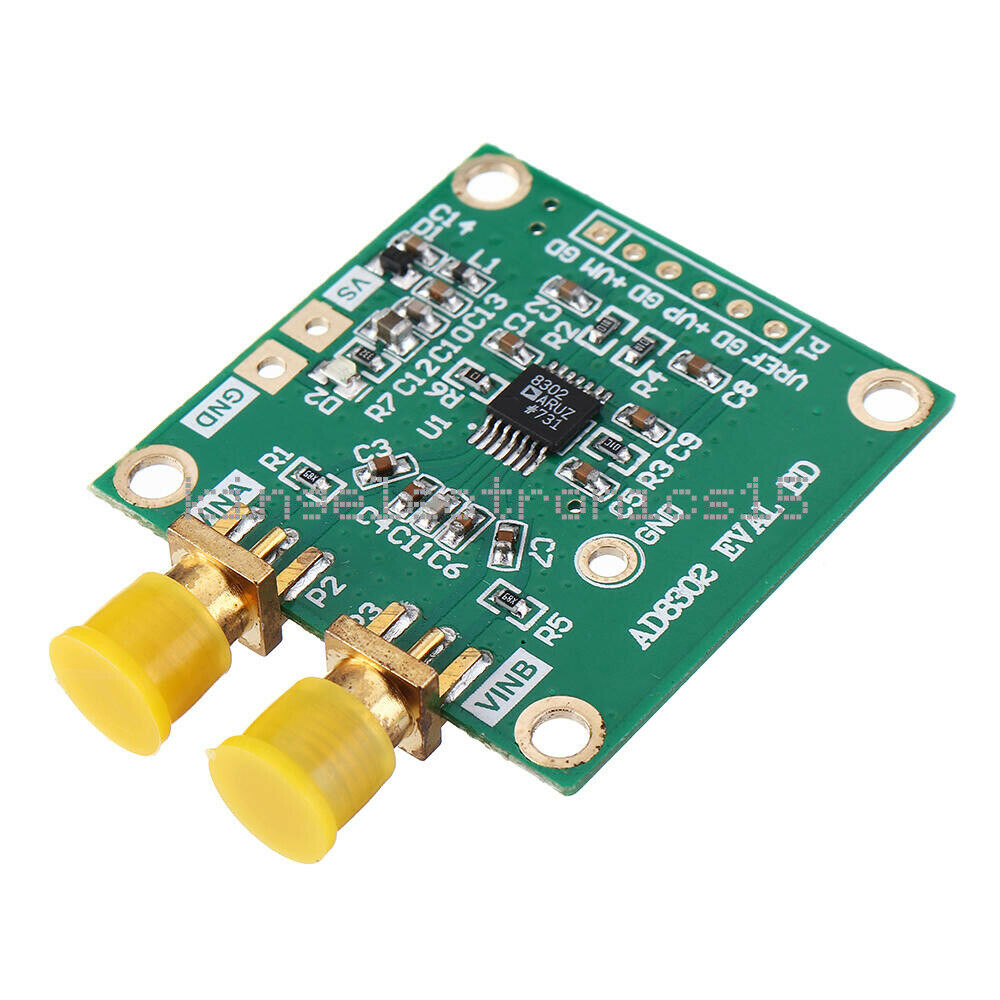

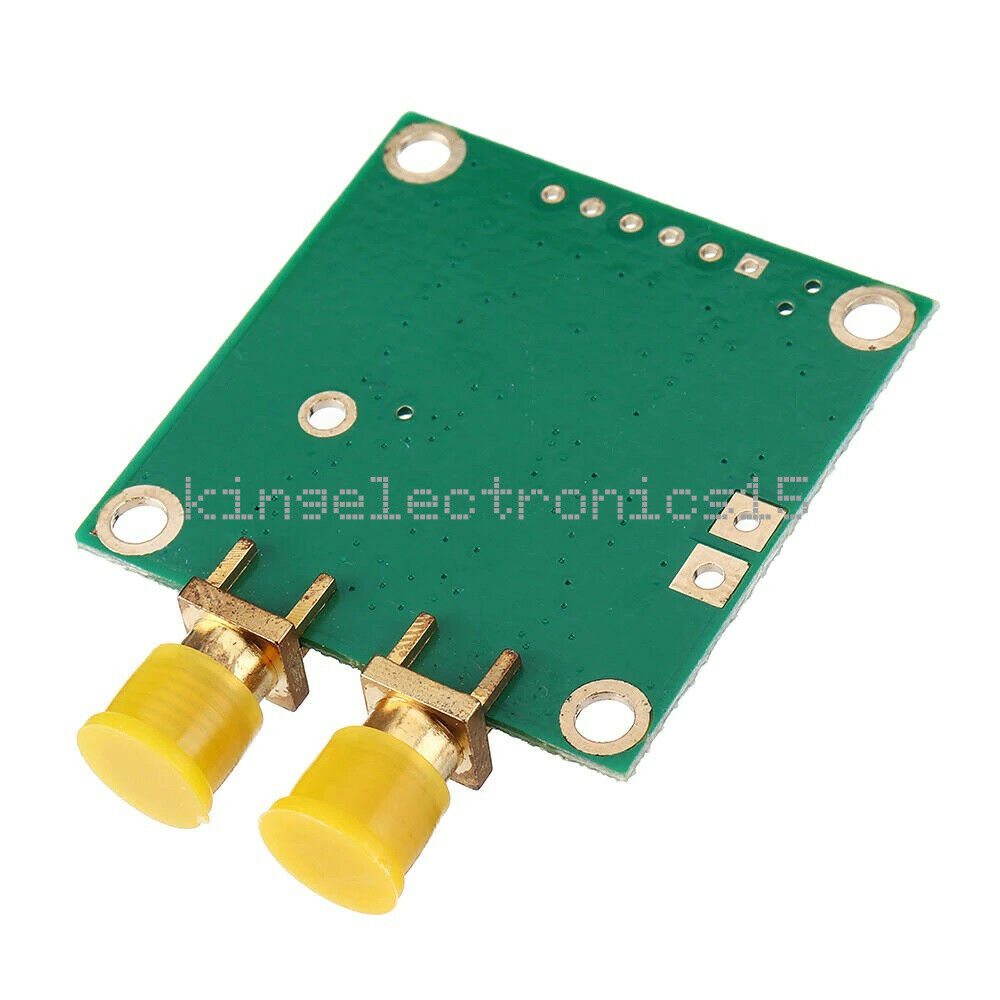

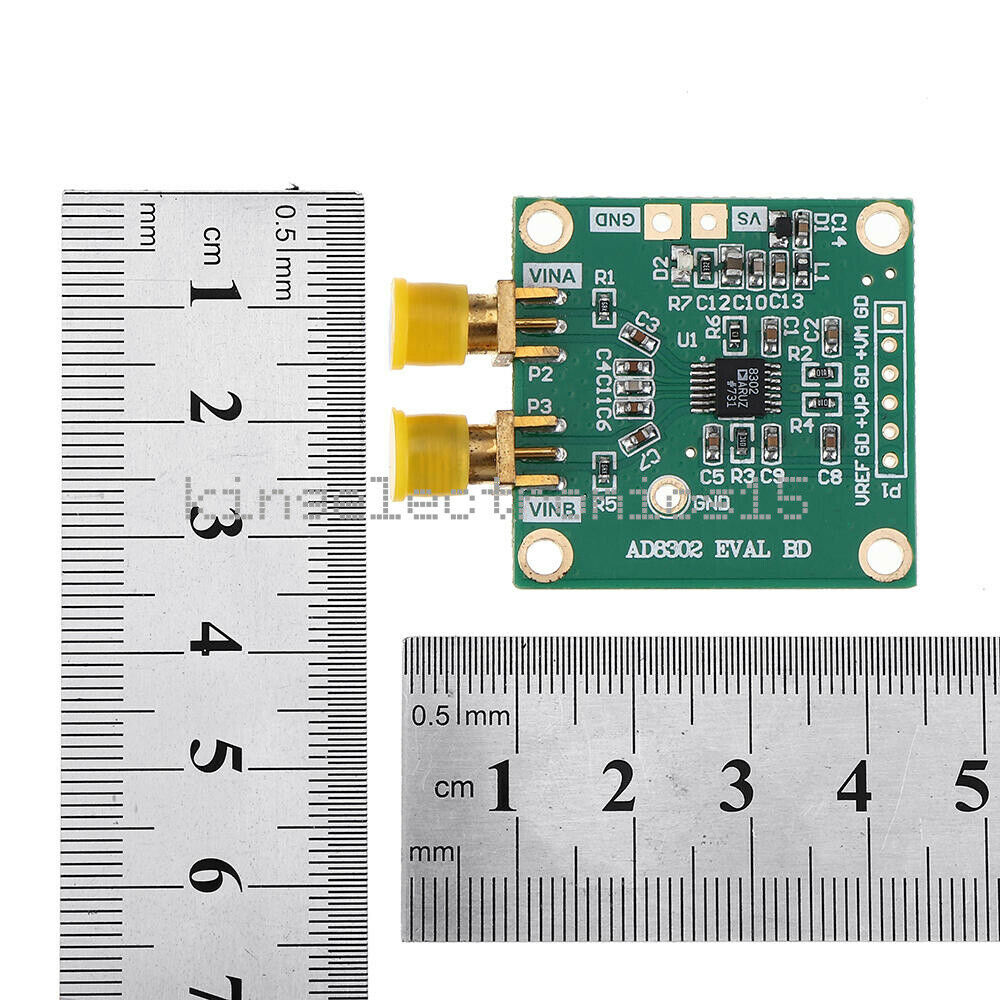

ITEM NAME:AD8302 RF Signal generator RF/IF LF-2.7G Function generator Impedance Frequency AD8302 RF Signal generator RF/IF LF-2.7G Function generator Impedance Frequency Product Image: Product Description: Feature: Single chip silicon bipolar device, amplitude / phase measurement The AD8302 is a fully integrated RF IC that measures the amplitude and phase between two independent input signals. The device operates from low frequencies to 2.7 GHz. The AD8302 contains two precision-matched wideband log amps, a wideband linear multiplier/phase detector, a 1.8V precision voltage reference, and an analog output proportional operation circuit. The input signal range is -60 dBm to 0dBm (reference impedance 50Ω) with a corresponding dynamic range of 60dB. The AD8302 output provides accurate amplitude measurements in the +/-30dB range with a slope of 30mV/dB; a phase measurement range of 0 to 180 ° with a slope of 10mV/degree. Note: Please refer to application note AN-691 for module low frequency detection. The AD8302 is available in a 14-pin TSSOP package and operates over a temperature range of -40 °C to 85 °C. Module application: 1. Measurement of insertion loss and phase of an amplifier, filter or mixer 2. Measure the vector reflection coefficient of any load 3. Impedance analysis Support cable: BNC male to SMA male SMA male to SMA male Frequency Hz Signal source RMS@50 ohm Source phase (degrees) Output voltage V CH1 CH2 CH1 CH2 VM VP 500K 0.2V 0.2V 0 90 0.908V 0.907V 500K 0.1V 0.2V 0 90 0.724V 0.906V 500K 0.2V 0.1V 0 90 1.093V 0.908V 500K 0.2V 0.2V 0 180 0.908V 0.032V 500K 0.2V 0.1V 0 180 1.094V 0.023V 500K 0.1V 0.2V 0 180 0.725V 0.022V 500K 0.2V / 0.2V 0 -90 0.908V 0.915V 500K 0.1V 0.2V 0 -90 0.725V 0.914V 500K 0.2V / 0.1V 0 -90 1.093V 0.915V 500K 0.2V 0.2V 0 -180 0.909V 0.032V 500K 0.2V / 0.1V 0 -180 1.093V 0.022V 500K 0.1V 0.2V 0 -180 0.724V 0.021V Package includes: 1 x AD8302 module Feedback Warranty.Find many great new & used options and get the best deals for AD8302 RF Signal generator RF/IF LF-2.7G Function generator Impedance Frequency at the best online prices at Order2india Shopping! Free shipping for many products!
