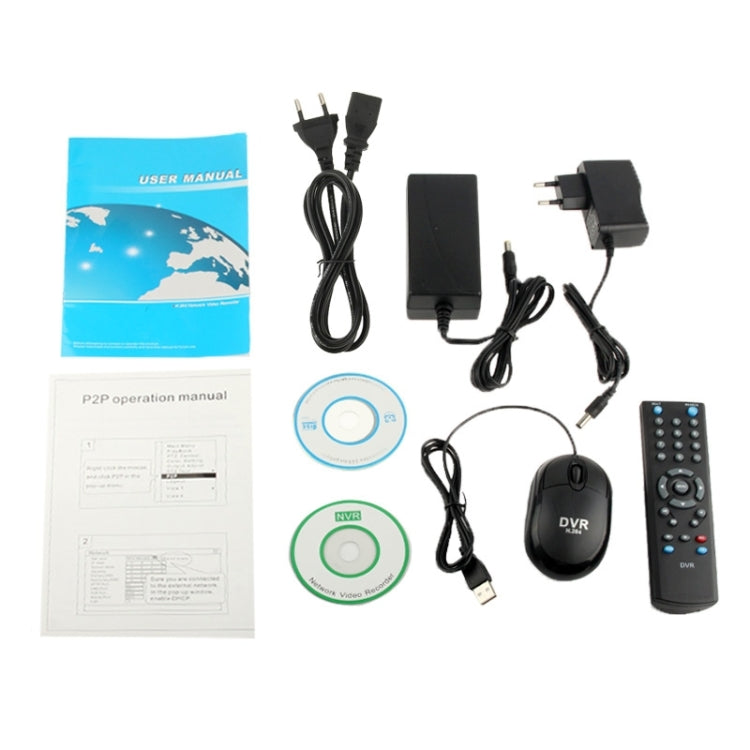

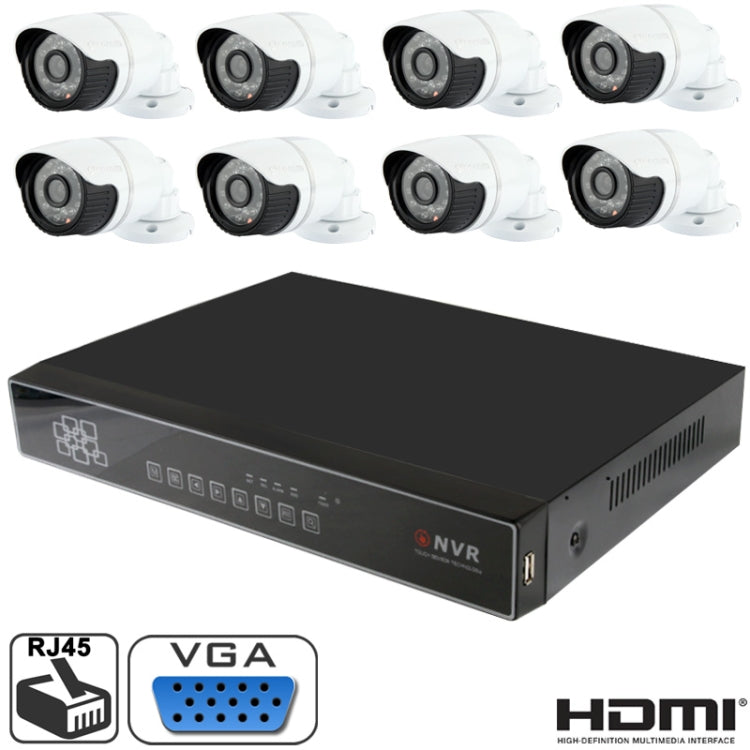

9CH 1080P RJ45 NVR Kit with 8 x H.264 1.0 Mega Pixel / 4.0mm Fixed Focal Lens Infrared 720P IP Camera, Support Mega Pixel HD Network Video Preview, Storage and Playback / 4CH Playback Simultaneously(Black)

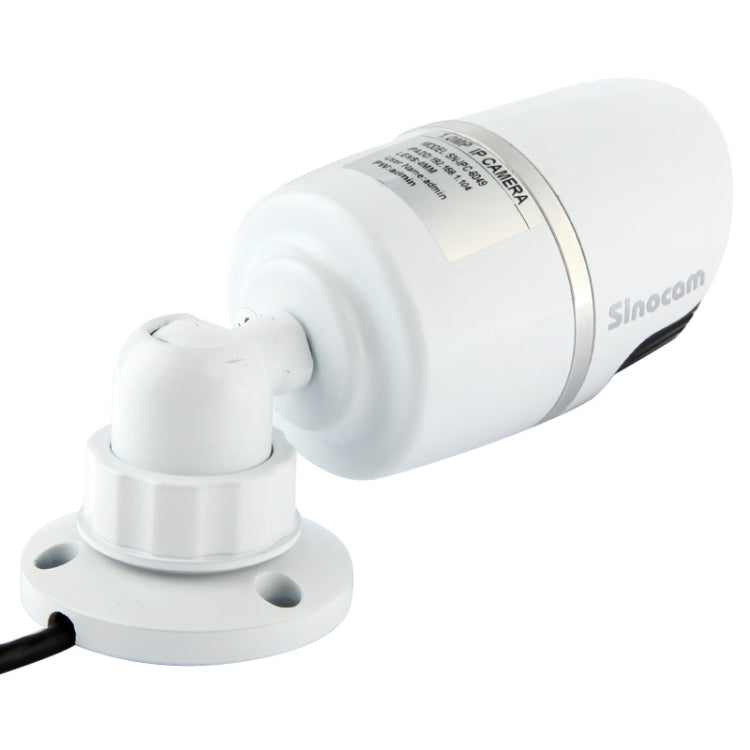

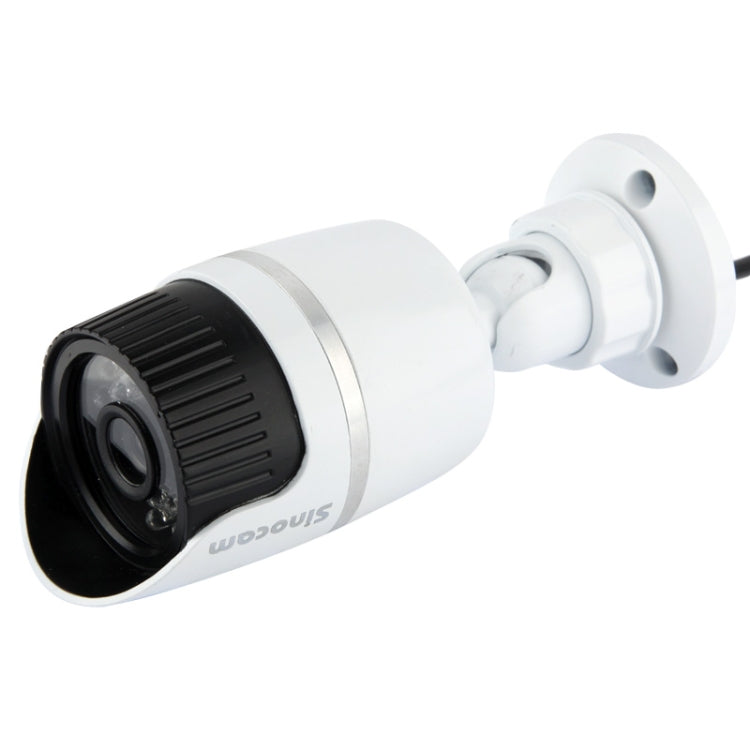

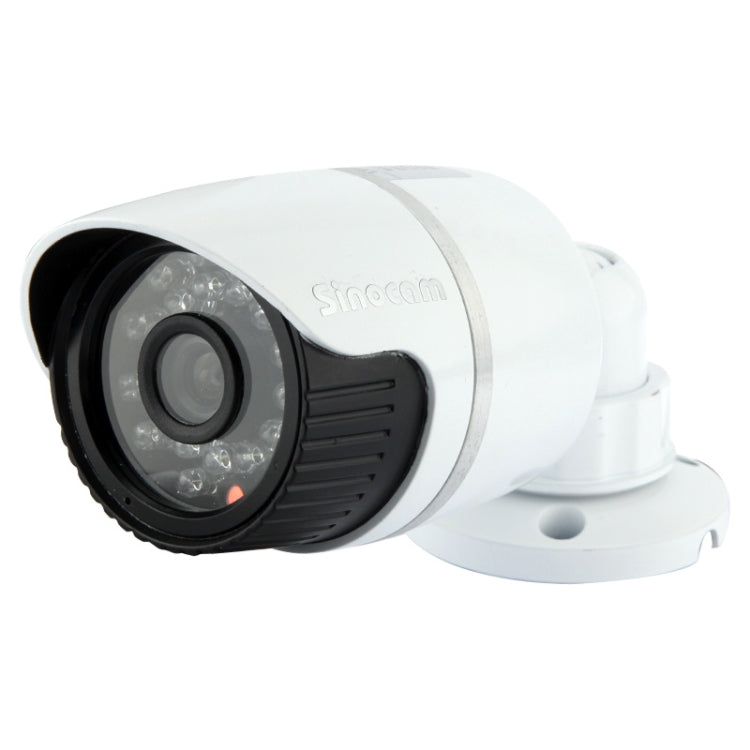

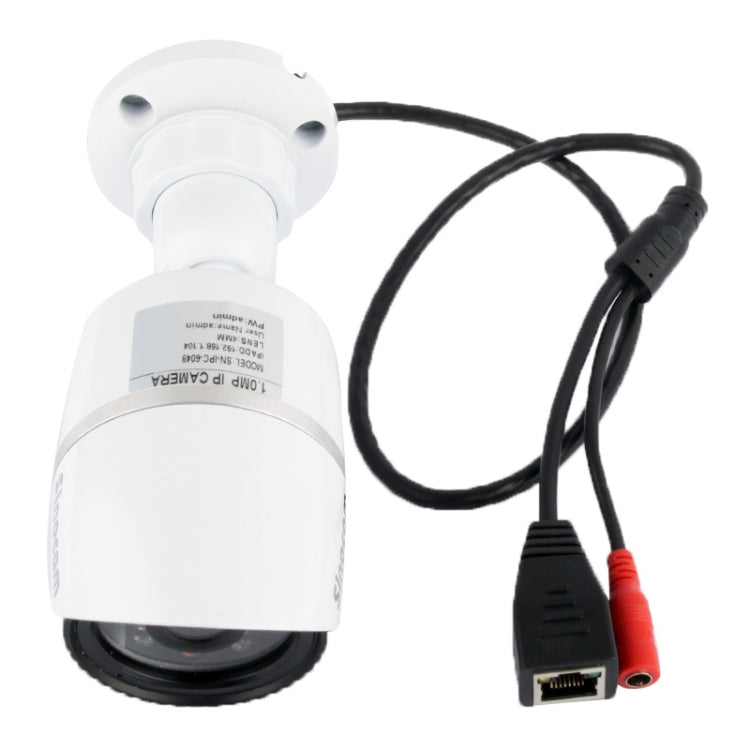

IP Camera Feature

1) H.264 compression format, MJPEG/JPEG Baseline

2) 1.0 Mega pixel Resolution, Support 720P (1280*720)

3) Dual Stream, resolution, bit rate adjustable

4) 4.0 mm Mega Pixel Fixed Lens included

5) Built-in IR-CUT, auto-switch day and night, IR Range 20 m

6) Motion detection recording, alert with snapshots via email

7) Build-in Privacy Mask, image snapshot, Title OSD, DDNS

8) Support RTSP Compatible with VLC Media Player

9) Support iPhone / iPad / Android Smart Phone

10) Support IE6.0~8.0, Fire fox, Google browser

11) Support up to 20 users online simultaneously

12) Free CMS Software, paid Software for optional

13) Support P2P and PnP function for optional

14) Sensor: 1/0" Progressive Scan CMOS

15) Effective Pixels: 1280(H) × 720(V)

16) Day/Night Auto, dual IR-Cut filter

17) IR LED: 24pcs IR LED IR Range 20m (98.43feet)

18) Max S/N Ratio: 39dB

19) Electronic Shutter Rolling Shutter

20) Focal Length: Fixed Focal, 4.0 mm / F1.8

21) Network Interface 10/100M, RJ-45 connector

22) Audio video encoding

23) Video Compression H.264 Main Profile; MJPEG/JPEG Baseline

24) Resolution: Main Stream 720P (1280*720) 25fps

25) Sub Stream: VGA 640*360 25FPS / 116*112 25FPS

26) Video Bitrate: 32Kbps～4Mbps,Supports CBR/VBR

27) Title OSD Supports channel name, date, and video stream information overlay;

28) OSD location is adjustable

29) Privacy Mask: 4 configurable regions

30) Image Orientation image flip and mirror

31) Auto Image Control Functions: Auto Exposure Control (AEC); Auto White Balance (AWB); 32) Auto Band Filter (ABF)

33) Auto Black Level Calibration (ABLC)

34) Image Controls: Color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling, and noise canceling 　

35) Data transmission and storage

36) Data storage: Video and Image

37) Recording set up to record by motion trigger, alarm trigger, manual, or schedule

38) Alarm Output: E-mail, Explorer, Software

39) Network protocol: TCP/IP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP

40) ONVIF protocols: Support 2.0 version

41) Remote View: PC IE 6.0~8.0, Firefox, Chrome; max 10 users

42) Environmental Casing: Waterproof (IP66 Rated), Outdoor Use

43) Installation: Brackets Included, Wall Mount

44) Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F) for DC 12V

45) Operating Humidity 0% -85% RH

46) Power: DC12V 1A

47) Power Consumption 9W(MAX)

48) Product size: 16.5cm x 6cm

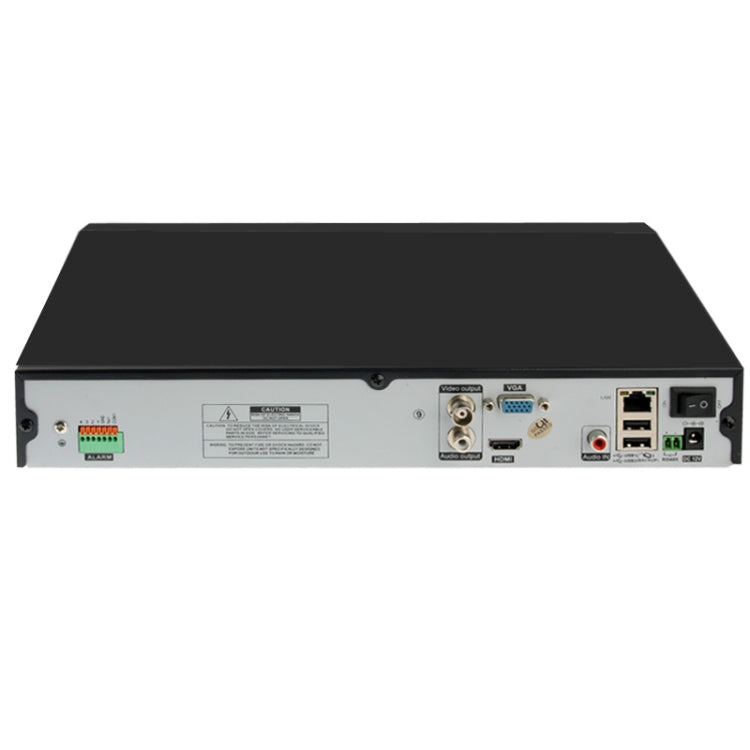

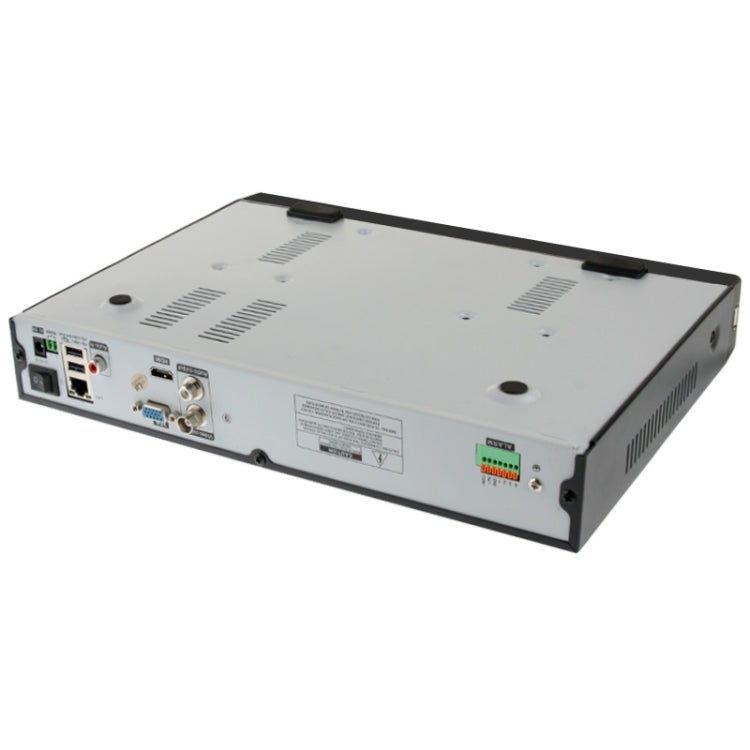

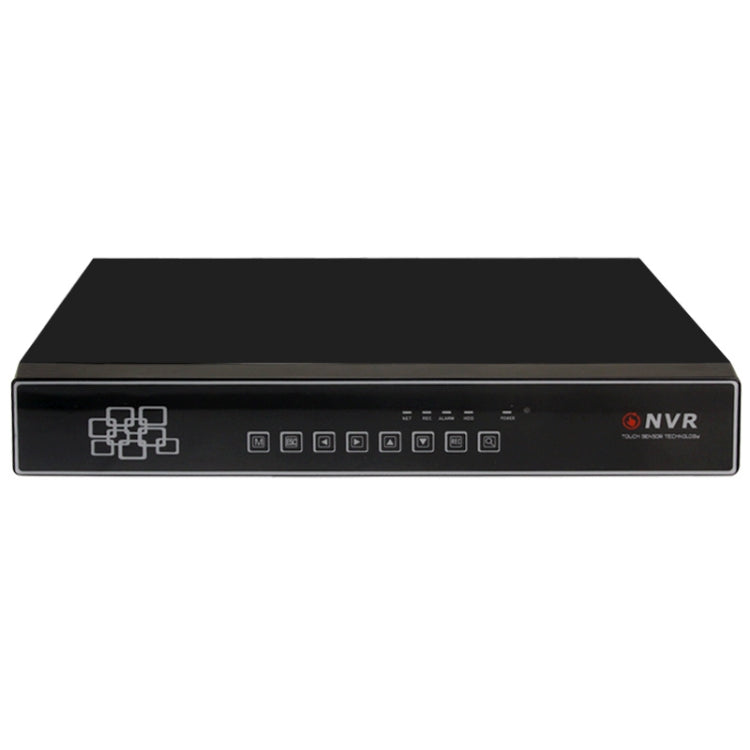

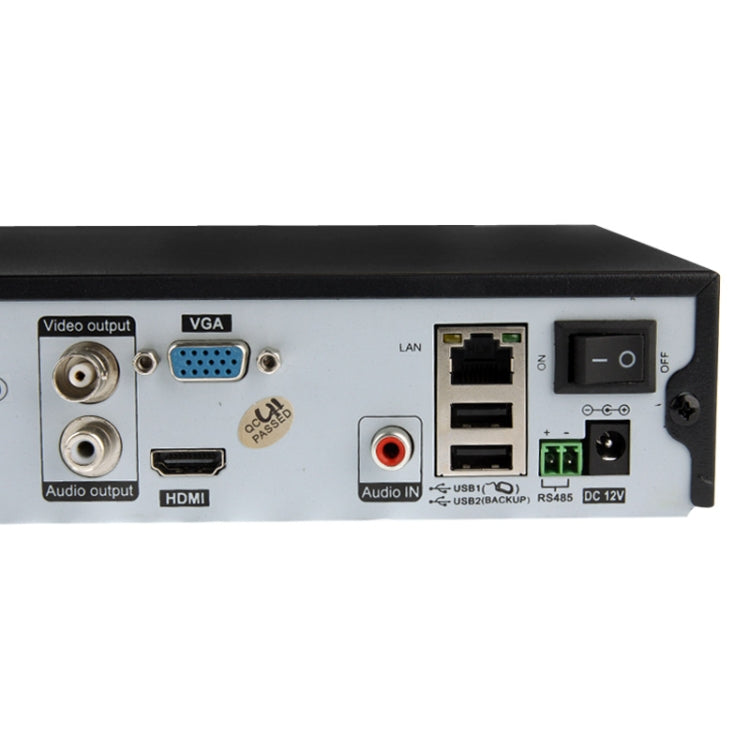

NVR Feature

1) It can connect with IP camera and network video server, support ONVIF / P2P / Video push

2) Live view, record, search file, backup, playback (9CH playback Syn)

3) Digital zoom (both in live view and playback)

4) Dual stream: Support

5) Resolution: 1080P (1920×1080) 30fps / 960P/ (1280×960) / 720P (1280×720) 30fps

6) Motion Detection: Multiple zone detection, 1~6 sensitivity adjustable(IPC match)

7) Playback: 9CH 960P/720P

8) Privacy Zone: 9 zone for each IPC (IPC match)

9) Record mode: Manual, Auto, MD, Alarm (IPC match)

10) Backup Local HDD / U-disk / removable HDD / DVR-RW / network storage

11) Operate mode: Mouse

12) Storage Local and network

13) Video input: 9 × (1280*720) IP camera / 9×(1280*960) IP camera

14) Audio input: 9 IP audio input

15) Video output: 1VGA+1HDMI

16) Audio output: 1 RCA

17) Network interface: 1 RJ45, 10M / 100Madaptive Ethernet Interface

18) RS485 port: Standard 485 port

19) USB port: 2 USB 2.0 port

20) Wireless: WiFi

21) HDD: Interface type 2SATA interface

22) Capacity Up to 3TB capacity for each disk

23) Power Supply: 12V2.6A

24) Consumption: ≤25(without HDD)

25) Working Temperature: -10℃～+55℃

26) Working Humidity: 10%-90%

27) Size: 33.5cm × 25.5cm × 5cm
