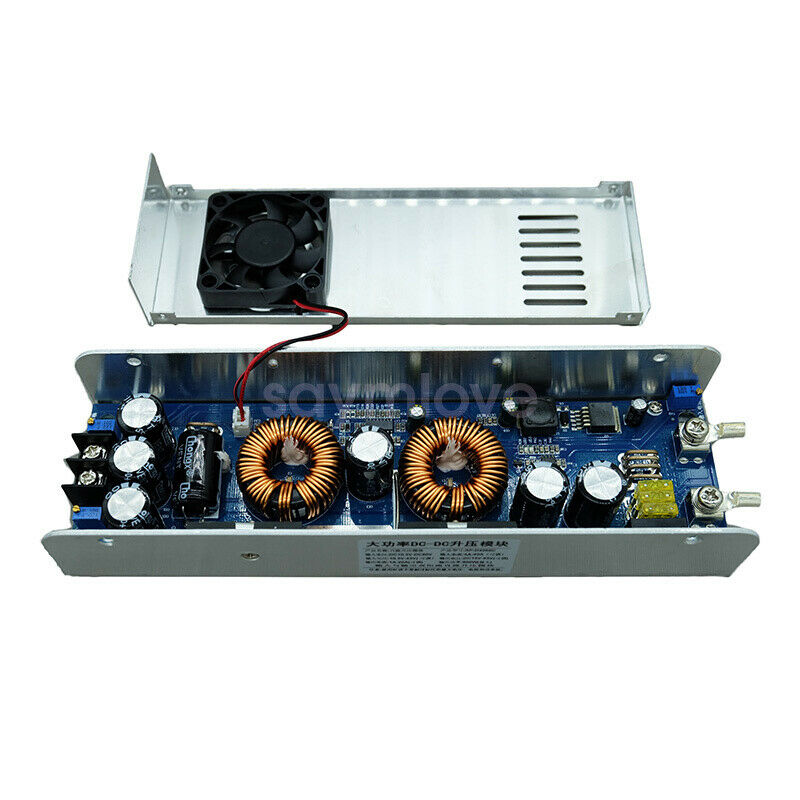

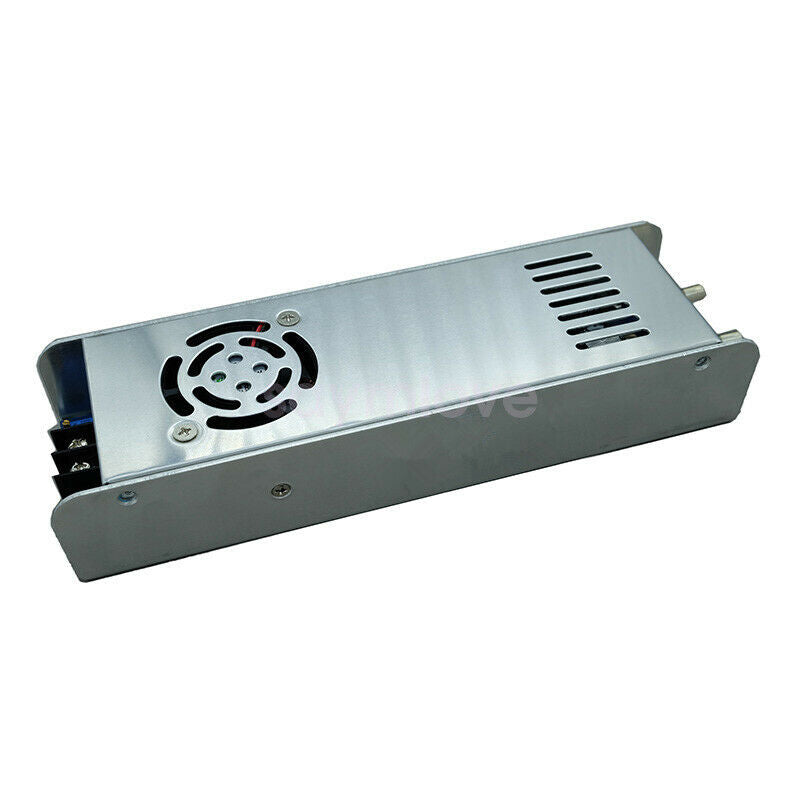

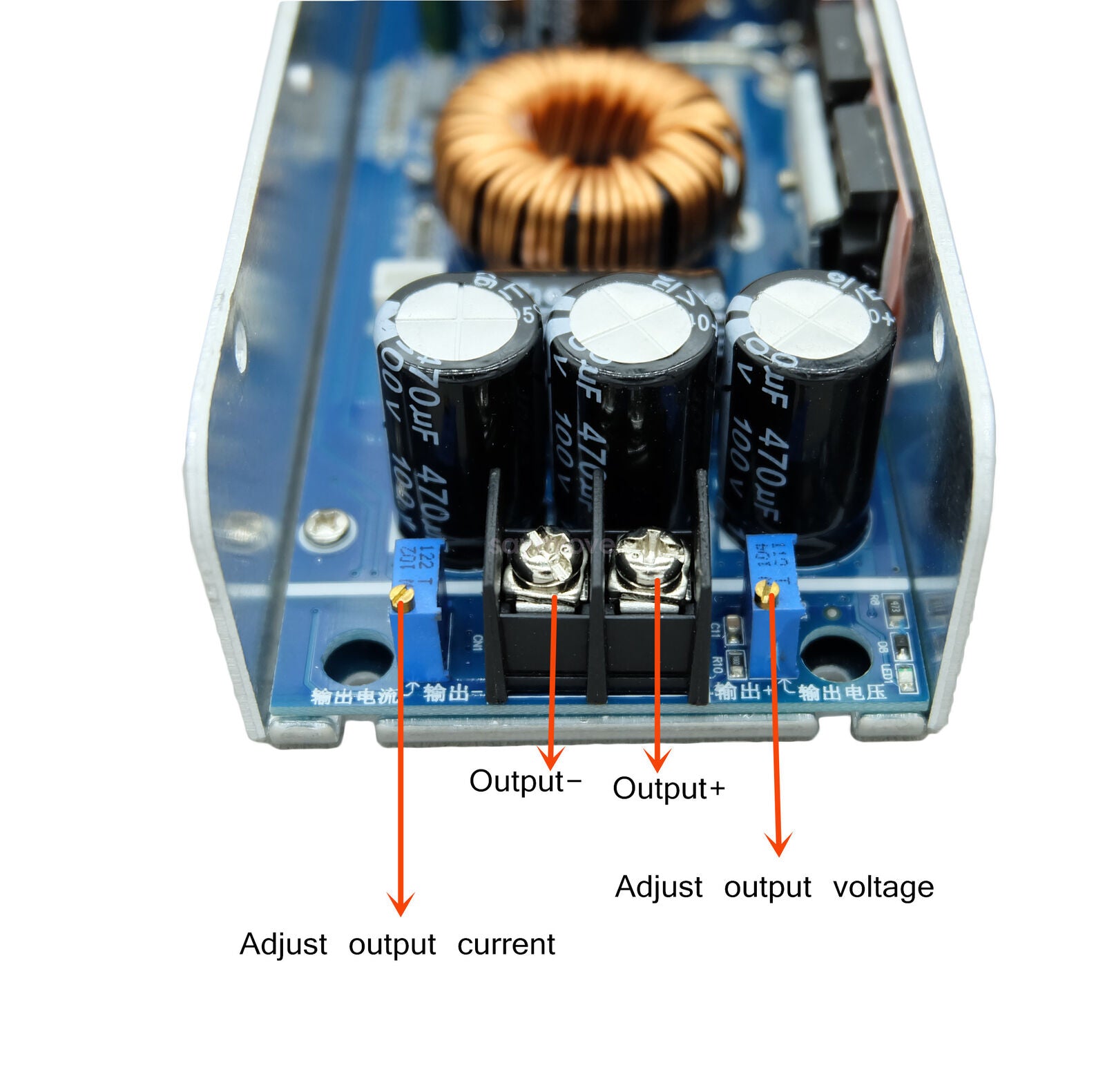

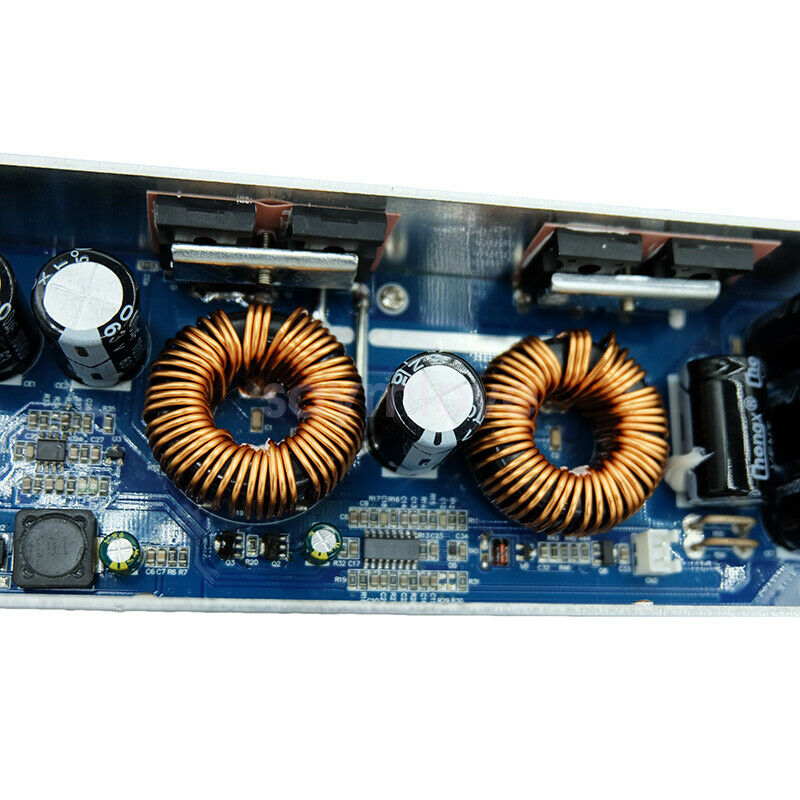

ITEM NAME:800W 40A DC Boost Converter Step-up Power Supply Module IN 10.5-60V OUT 15-65V Product Overview 800W 40A DC Boost Converter Step-up Power Supply Module IN 10.5-60V OUT 15-65V Detail Input parameters: 1, product: DC boost power converter 2, input voltage: DC10.5-60V 3, input current: 5A-40A (constant current adjustable). 4, no-load current: ≤ 0.12A (this current is 12V when input, the higher the voltage, the smaller the current) Output parameters: 1, the output voltage: DC15-65V adjustable 2, output current: 1A-20A constant current adjustable 3, output power: 800W peak 4, output mode: constant voltage constant current adjustable 5, conversion efficiency: 0.9-0.95 (efficiency is related to output voltage and current). 6, the output ripple: ≤ 5% (please add filters at the output to get lower ripple) Protection function: 1, input undervoltage: DC10.5V-45V adjustable, the output does not boost after protection 2, input current limit: 5A-40A adjustable 3, input insurance: 3 way 20A fuse Physical parameters: 1, circuit structure: non-isolated 2, working temperature: -20 ° C ~ +50 ° C 3, working humidity: 20~90% RH without condensation 4, storage temperature display: -20 ° C ~ +75 ° C / 10 ~ 95% RH 5, heat dissipation method: air cooling 6, vibration test: 10-500HZ, 2G, 10 minutes / cycle, X, Y, Z axis each 30 minutes 7, product weight: 0.5KG 8, size: 222.5mm x 68mm x 41mm(LxWxH) Instructions for use: 1, the above parameters are measured indoors, temperature 25 ° C, humidity 60% 2, each rating can not exceed when used, must be controlled within the rated value 3, the maximum output power of this module at different input voltages 12V input; 12V*40A=480W (input power), 480W*(0.9-0.95) (transition efficiency)=432W-456W (output power) At 24V input, the maximum output power has reached 800W, when inputting more than 24V, the output voltage* output current cannot exceed 800W. 4, all the potentiometer is clockwise to adjust smaller, counterclockwise to adjust bigger. 5,.Find many great new & used options and get the best deals for 800W 40A DC Boost Converter Step-up Power Supply Module IN 10.5-60V OUT 15-65V at the best online prices at Order2india Shopping! Free shipping for many products!
