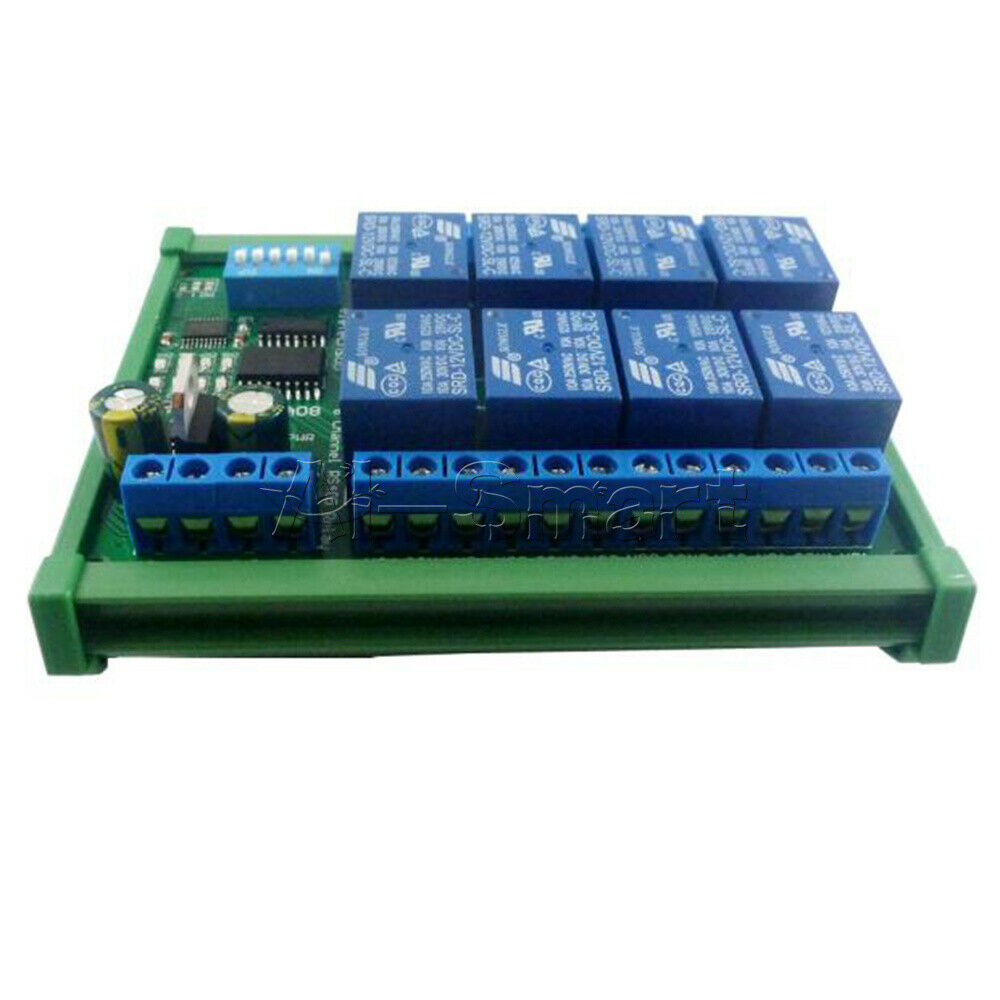

ITEM NAME:8 Channel RS485 Relay Module RS485 C45 Rail RTU Relay Board Controller W/case DIN rail box parameters: Product model: UM72 Color: green Width: suitable for circuit board width UM72 (inside 72) Insulation grade: flame retardant VO grade Base plate length: suitable for 10 cm circuit boards Net weight: 72 grams Installation method: DIM35 and C45 rail Features: 1 Working voltage: DC 12V 2 Working current: standby 12MA, 1 relay conduction 40MA, 2 relay conduction 68MA, 3 relay conduction 94MA, 4 relay conduction 120MA, 5 relay conduction 148MA, 6 relay conduction 174MA, 7 Two relays conduct 199MA, 8 relays conduct 224MA 3 Open, close, jog, self-lock, interlock, and delay six working modes 4 MODBUS command (default) and AT command two command control modes 5 The maximum delay under MODBUS command is 255 seconds, the maximum delay under AT command is 9999 seconds 6 AT commands can be input by serial port super terminal (serial assistant); MODBUS commands can be input by "Modbus Poll" besides serial port super terminal input 7 In MODBUS command mode, up to 64 devices can be used in parallel 8 The default baud rate is 9600BPS, you can select the baud rate 2400 4800 19200 BPS through the jumper 9 Size: 100 * 72 * 20mm (circuit board); 120 * 88 * 42mm (with rail box) 10 Weight: 120g (circuit board); 198g (with rail box) 11 Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC Package Included: 1 x 8 Channel RS485 Relay Module W/Case.1 x 8 Channel RS485 Relay Module W/Case. 2 Working current: standby 12MA, 1 relay conduction 40MA, 2 relay conduction 68MA, 3 relay conduction 94MA, 4 relay conduction 120MA, 5 relay conduction 148MA, 6 relay conduction 174MA, 7 Two relays conduct 199MA, 8 relays conduct 224MA.
