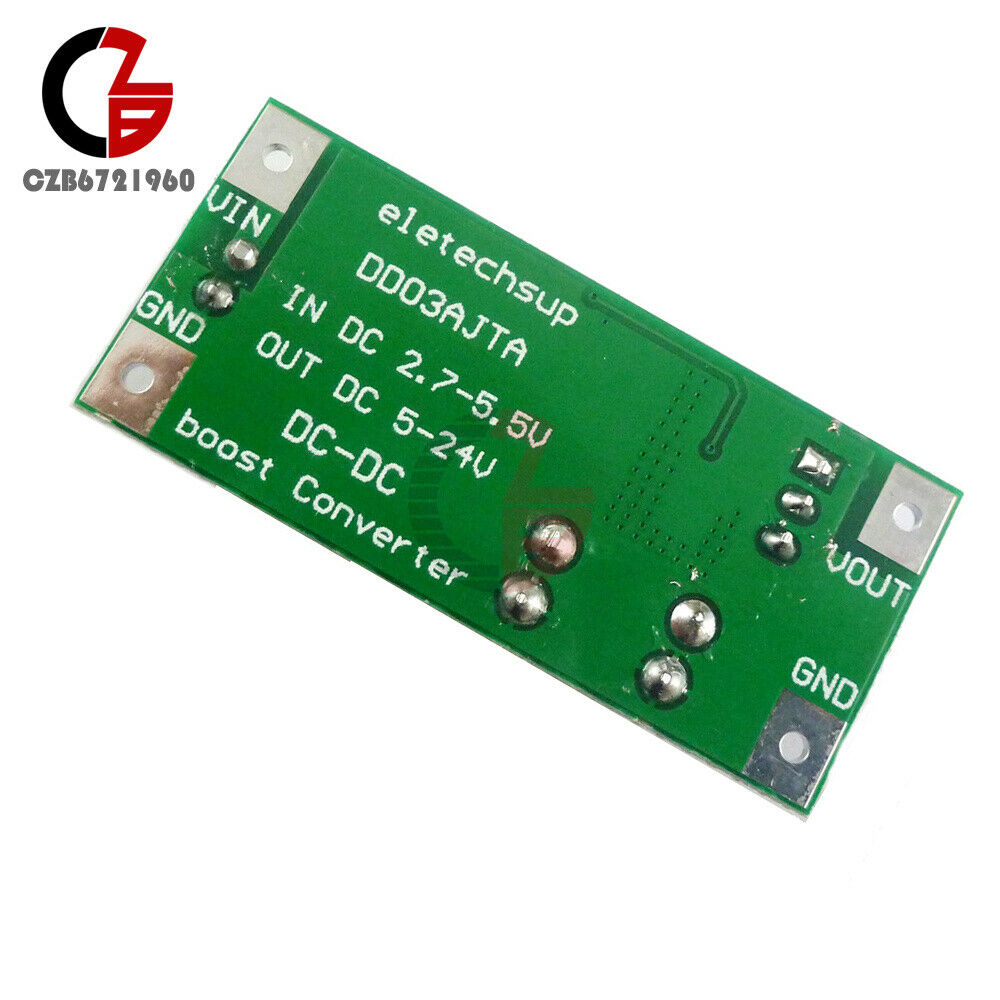

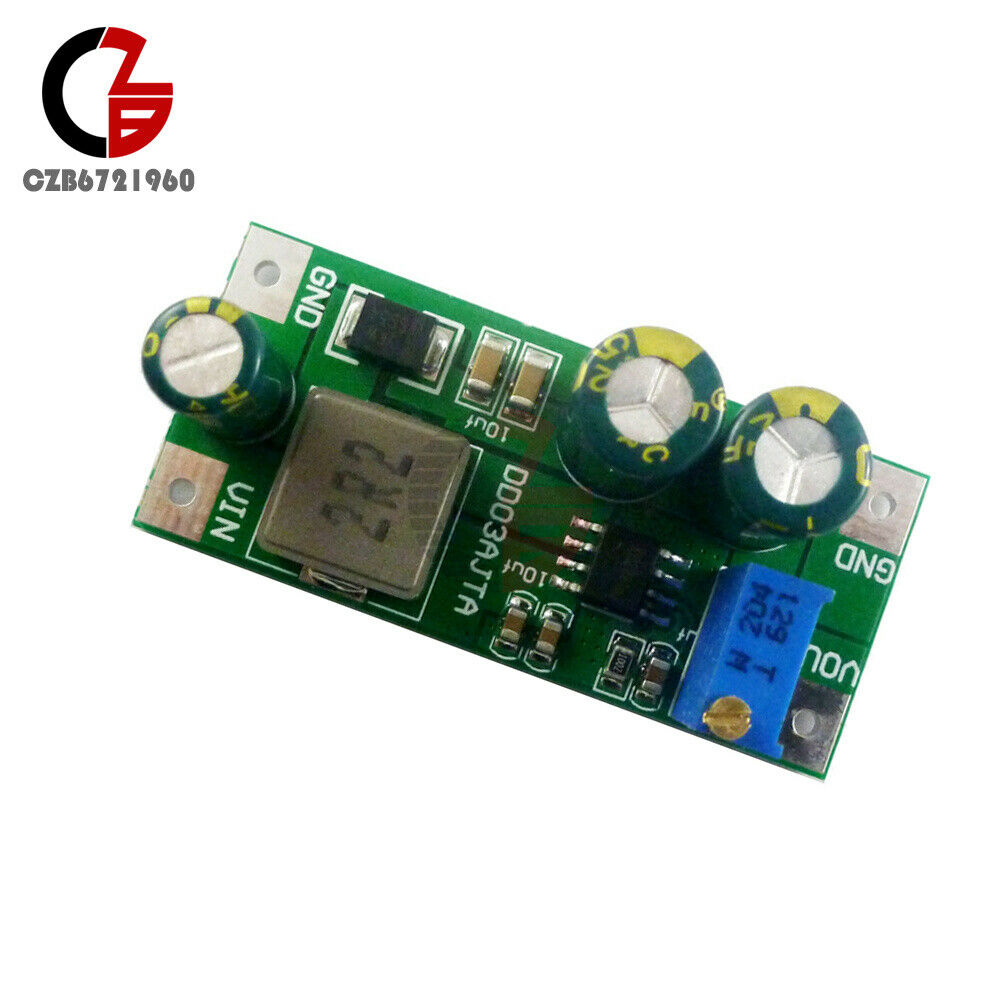

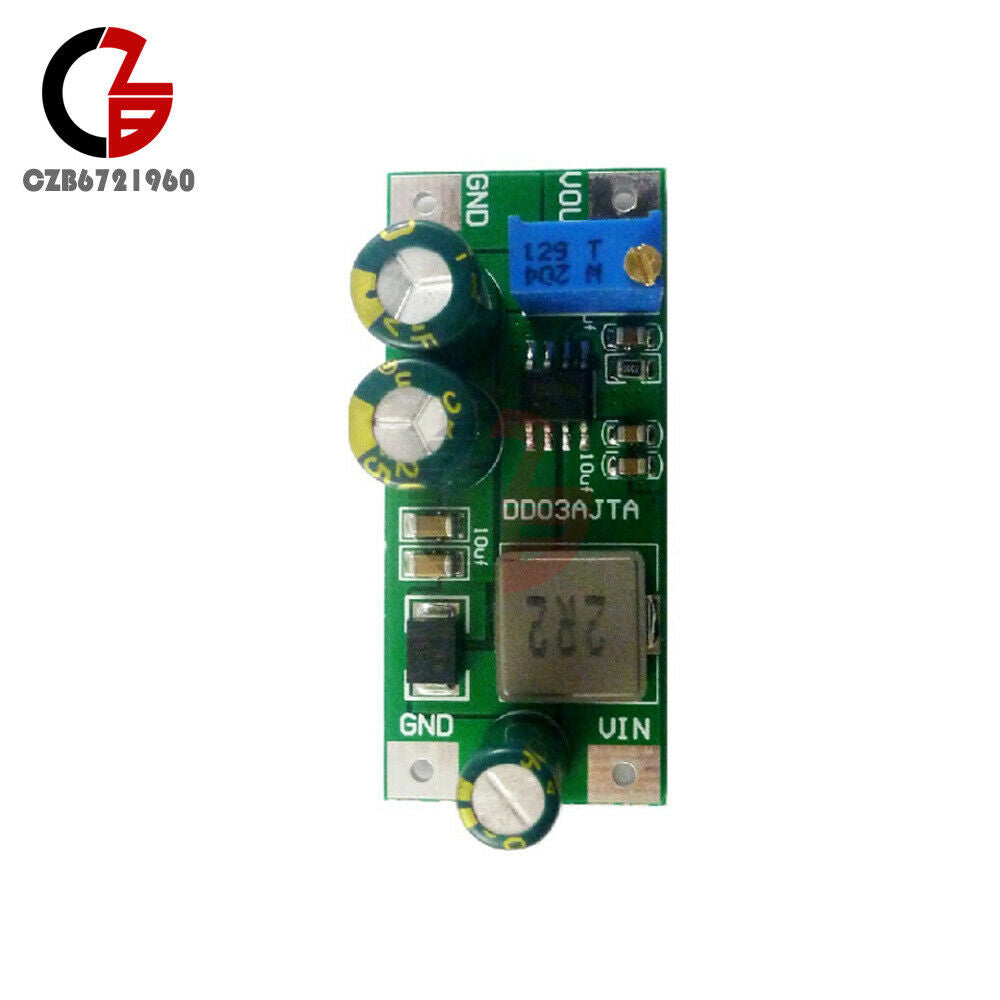

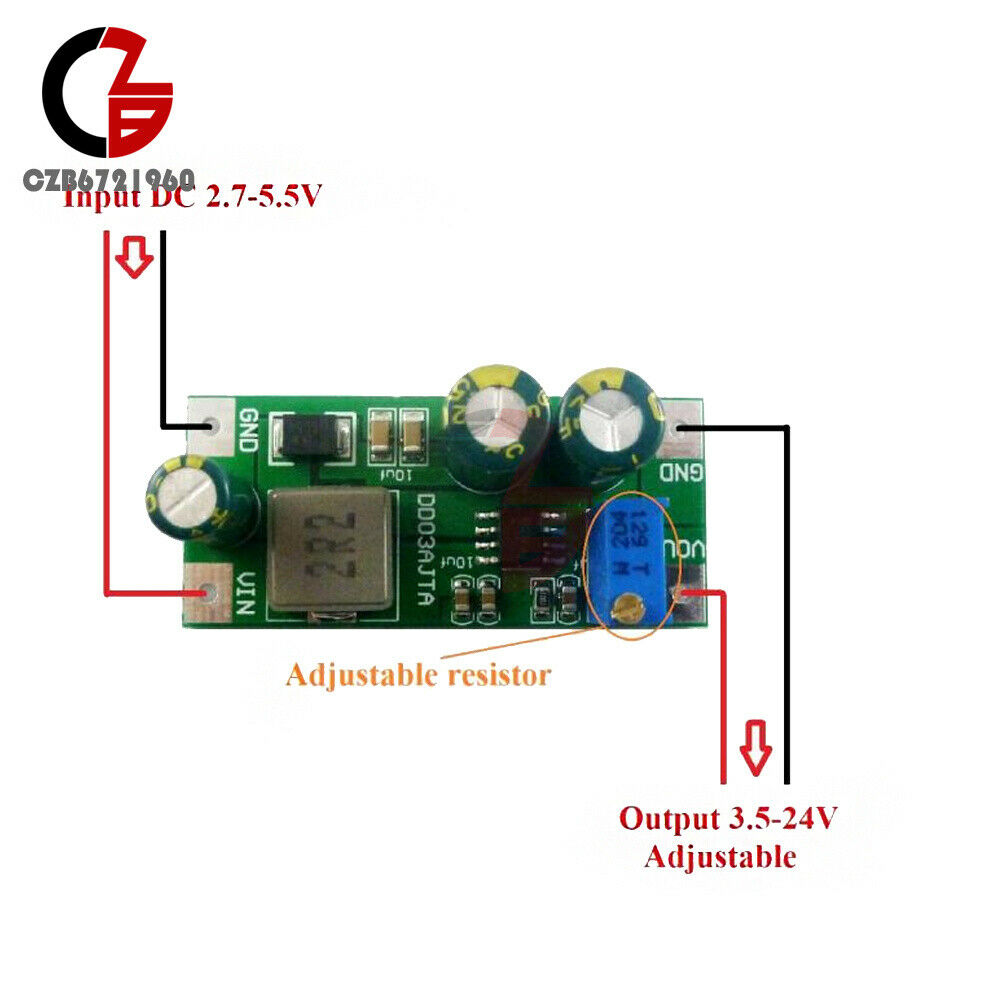

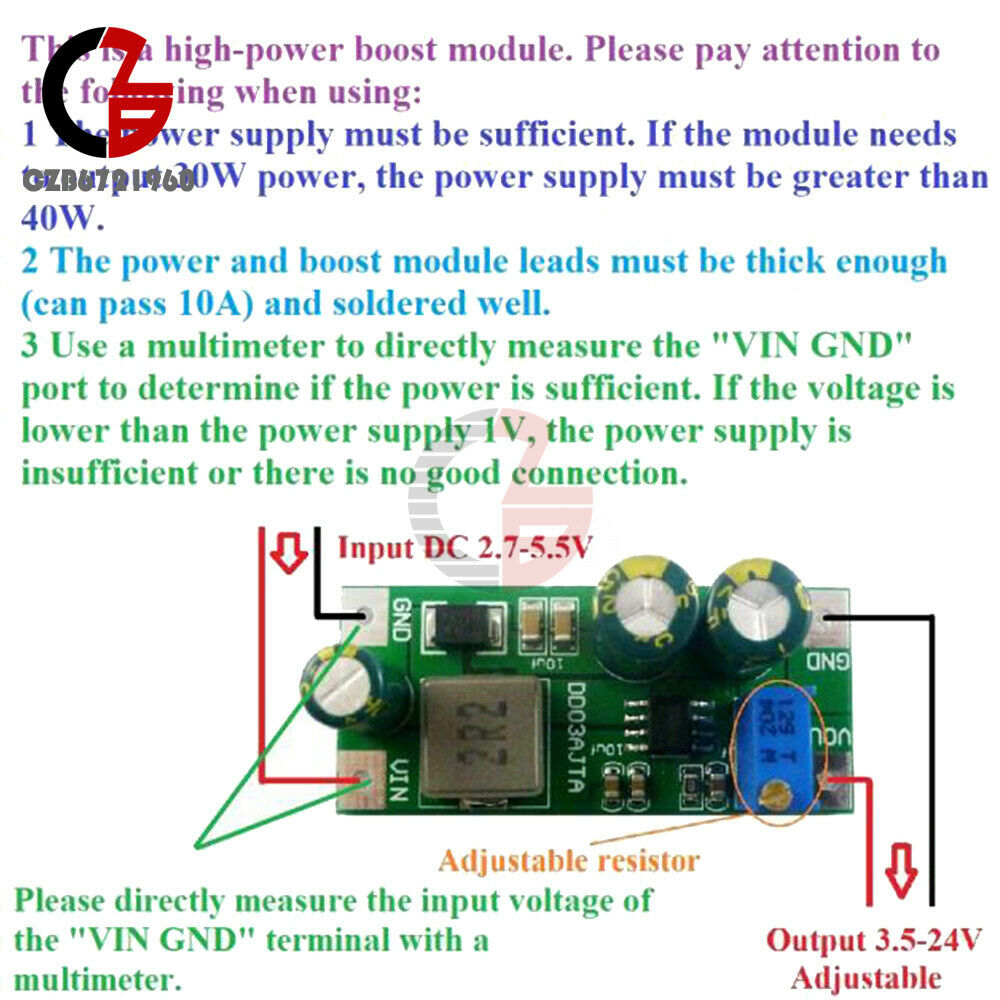

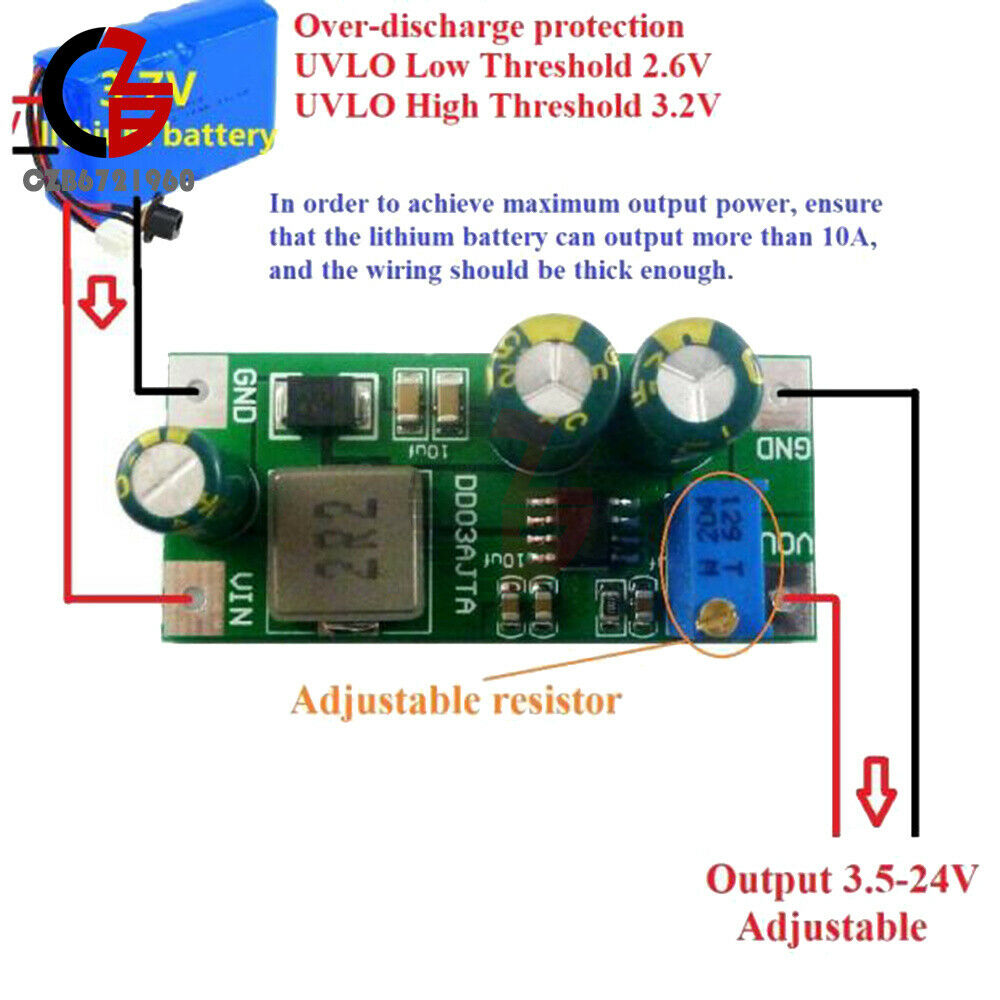

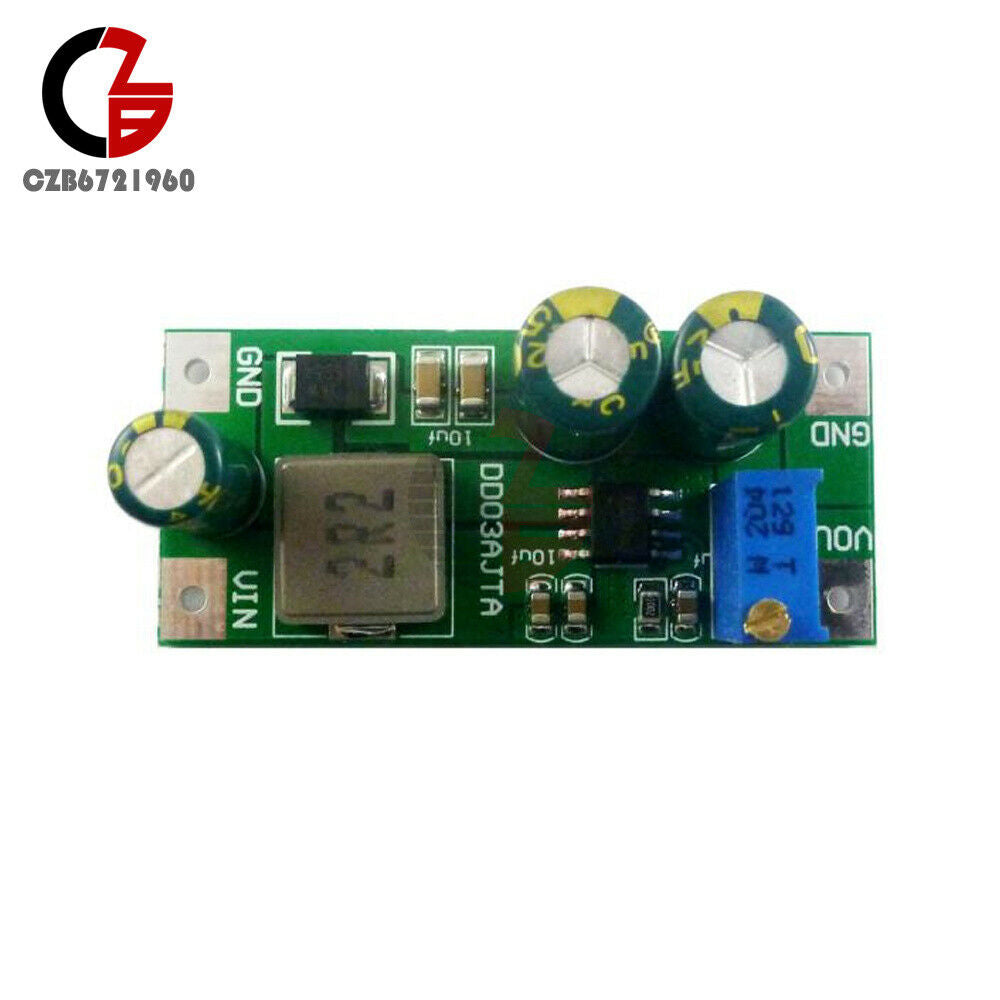

ITEM NAME:6A DC 2.7-5.5V to 3.5-24V DC-DC Adjustable Boost Converter Step-Up Module 30W Home Electronic Component Chips Sensor Arduino Module Raspberry Pi 6A DC 2.7-5.5V to 3.5-24V DC-DC Adjustable Boost Converter Step-Up Module 30W Popular Popular Product Introduction Description: 30W high-power adjustable boost module Input DC 2.7-5.5V,Adjustable Output DC 3.5-24V Maximum output power 30W(See the table for details) Maximum input current: 8A(See the table for details) Maximum output current: 6A(See the table for details) Quiescent current: about 1MA Efficiency : >=96% Switching Frequency : 600KHz fixed Overtemperature shutdown, input under-voltage protection and short circuit protection. UVLO Low Threshold 2.6V,UVLO High Threshold 3.2V,suitable for 3.7V lithium battery power supply Operating Ambient Temperature : -40 to 85 °C Storage Temperature : -55 to 150°C Size : 45*20*15mm Weight : 8.1g Attention : This is a high-power boost module. Please pay attention to the following when using: 1 The power supply must be sufficient. If the module needs to output 30W power, the power supply must be greater than 40W. 2 The power and boost module leads must be thick enough (can pass 10A) and soldered well. 3 Use a multimeter to directly measure the ''VIN GND'' port to determine if the power is sufficient. If the voltage is lower than the power supply 1V, the power supply is insufficient or there is no good connection. 4 Input voltage can not be greater than the maximum input range 5 Output power can not be greater than the maximum load for a long time 6 Input power must be greater than the output power, because the power consumption of the module itself Applications: for QC2.0 3.0 charger for 3.7V li-on Lipo Lithium Battery 18650 PTZ CCTV IP camera Smart home / home automation WIFI Router Switch Network equipment LED Motor Package included: 1PCS*DD03AJTA 30W high-power adjustable Step-Up module.Find many great new & used options and get the best deals for 6A DC 2.7-5.5V to 3.5-24V DC-DC Adjustable Boost Converter Step-Up Module 30W at the best online prices at Order2india Shopping! Free shipping for many products!
