640x480 Security Star, MMS Alarm Camera, Surveillance Camera, Support Photograph / Video, Human Body Injection Video / 360 Days 24h Monitor / MMS Receiving / Monitor, Alarm, Guard Against Theft(White)

Security Star is a modern family remote monitoring system with features of simple installation and low price, so it’s adapted to many families. It integrates invisible VCR, infrared sensing camera and GSM remote control as a whole. Power switch and other fine household products that are made of it can be placed anywhere to monitor and set defense, also it can photograph the monitoring screen immediately, and then send to your mobile phone, in addition, it can remotely control the video through mobile phone, so you can always grasp the situation whether you are travelling or living in other places. Of course, it can also be widely used for investigation and evidence collection, security, media, justice, tourism, health care and other fields.

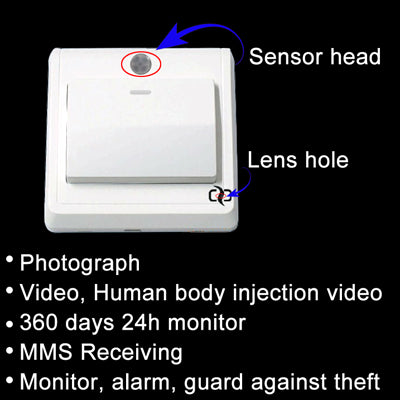

Main characteristics:

1) Photograph

2) Video, Human body injection video

3) 360 days 24h monitor

4) MMS Receiving

5) Monitor, alarm, guard against theft

Use method:

1) Open the rear cover of the power switch, and insert GSM card and TF memory card into it , turn the switch inside to NO, then it will begin to work.

2) Open the camera

Click outside the switching power, indicator lights, auto-sensing when someone video of when the indicator light flashing. Automatically saved when left to stop recording. Then someone enters Shiyou automatic recording, the memory is full, will remove the previous video, recycling.

3) Stop recording

Click on the switch outside the switch, the light can be extinguished.

4) Coat the rear cover, and stick it to the place that has a good point for video. It’s best to install it in a place where there is a power supply so that it can monitor for long time if connected to the power supply.

5) Set defense through mobile phone, and operate according to the following binding instructions

6) If the defense has been set, once someone enters into the defended area, it will photograph immediately and send images to the designated mobile phone automatically.

7) It can photograph or video again under the mobile phone’s remote control for the host machine.

8) Monitor sound. Dial the host machine’s number directly using the master mobile phone, then you can monitor the sound around the host machine.

Time setting

Video file size setting time, connect the computer to create a PIRTIME text document, which time the following format 2011.01.14.23:59:00 T2, T followed by video-minute set, it is recommended to set 1-40 minutes, for example 2011.01.14.23:59: 00T2, it is the time set at 23:59:00 on January 14, 2011, video file for 2 minutes a file. Setting a good time to save the document in the mobile packing, safe exit. It will automatically update.

Light indicates

A normal LED lights flash 1 time

2 SD card full of flashes 5 times or no SD card, the card anomalies

Function parameters:

Infrared sensor: Built-in infrared body sensors, can sense criminal burglary by 24 hours.

Auto Delete: the memory card automatically deletes the oldest full information for repeated use.

Time synchronization: Connect computers to adjust the time, work to adjust and view pictures and video time.

Power saving modes: long standby power adapter input 100V ~ 240V/50Hz USB 5.5 DC output current 500MA

Operating temperature -10 ℃ ~ +45 ℃

Storage Temperature -20 ℃ ~ +60 ℃

Relative humidity 10-90%

Image resolution VGA (1280 × 960)

AVI video format

Video Resolution 640 * 480 30 frames / sec

Camera Resolution 1.3 million

Built-in lithium-ion battery 1200mAh

Current machine

Standby current :1.5-2MA

Power Current: 120MA

Photo Current: 80MA

Video Current: 80MA
