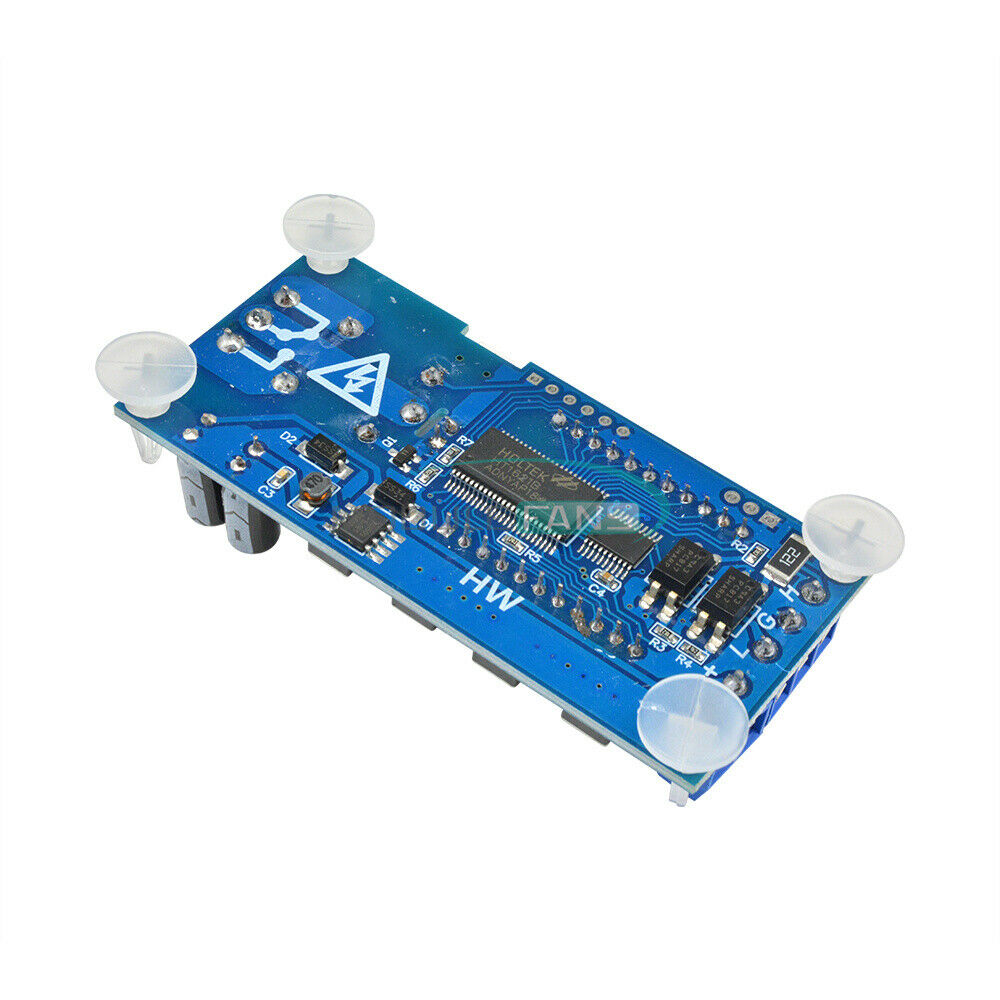

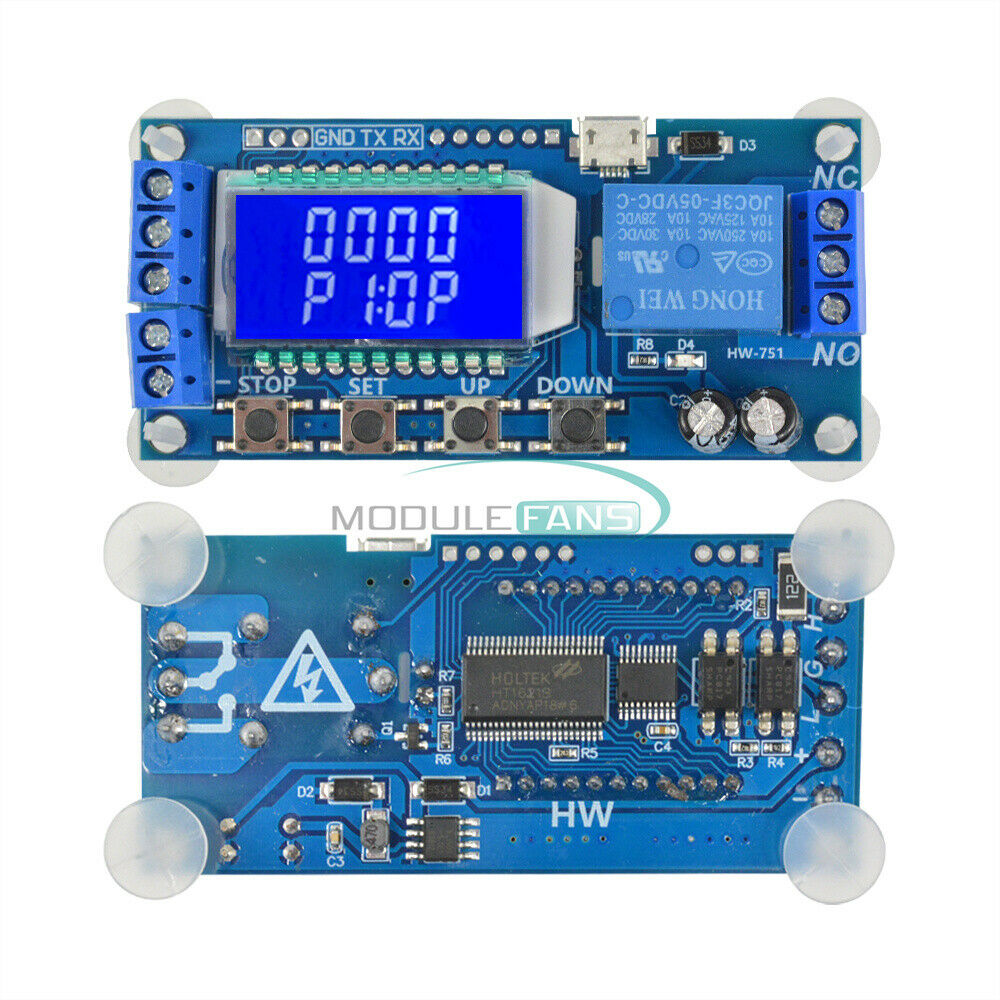

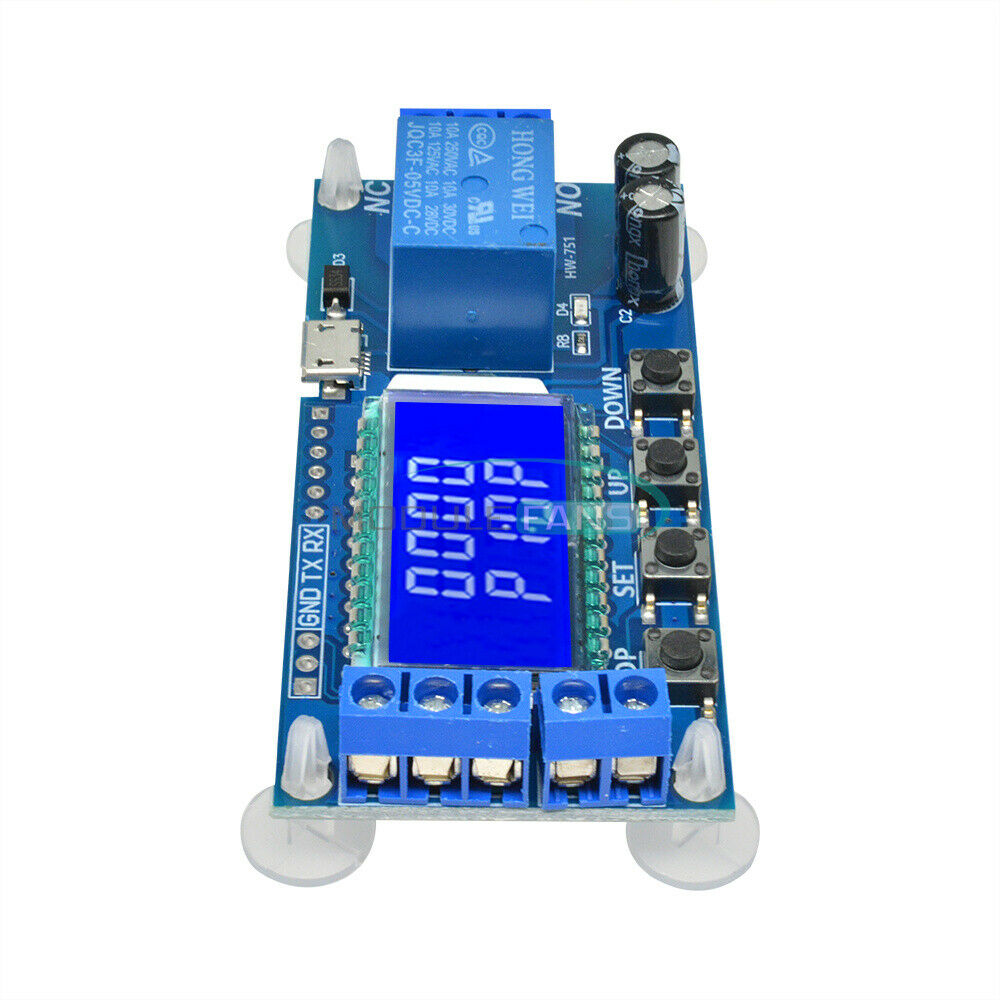

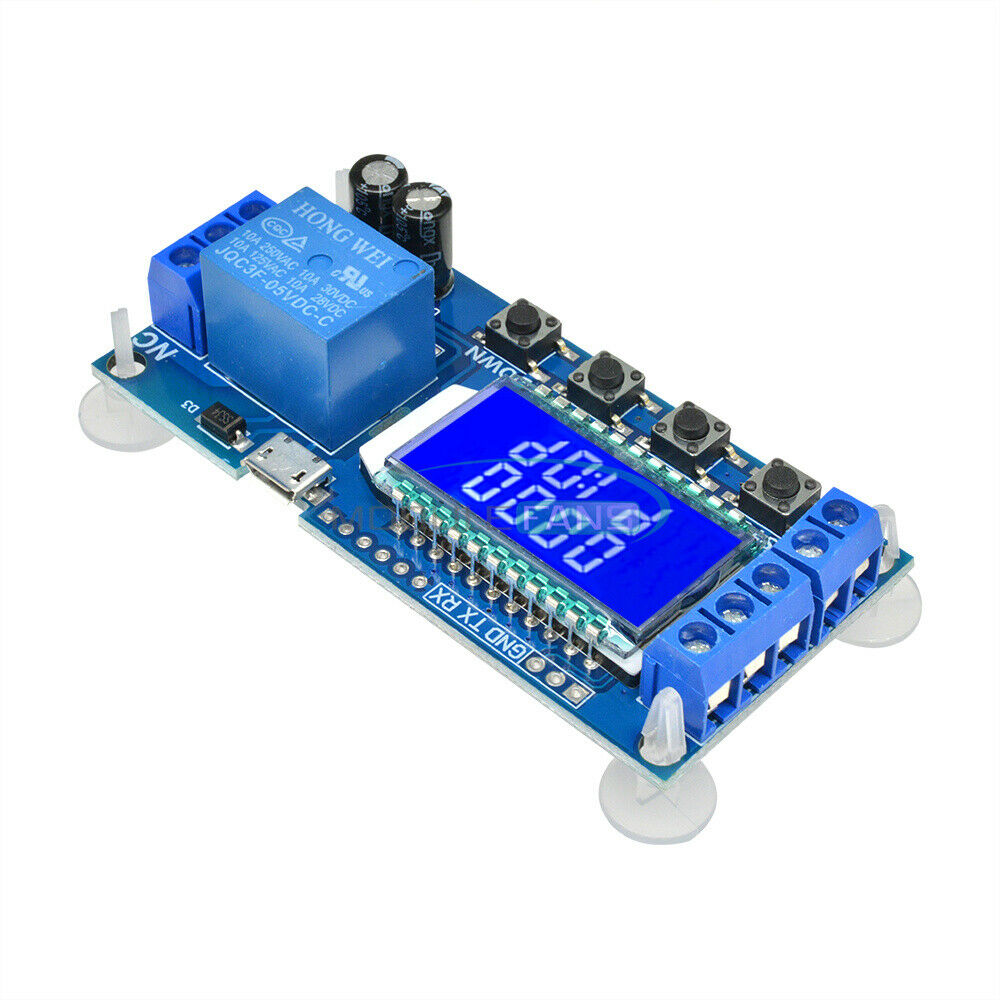

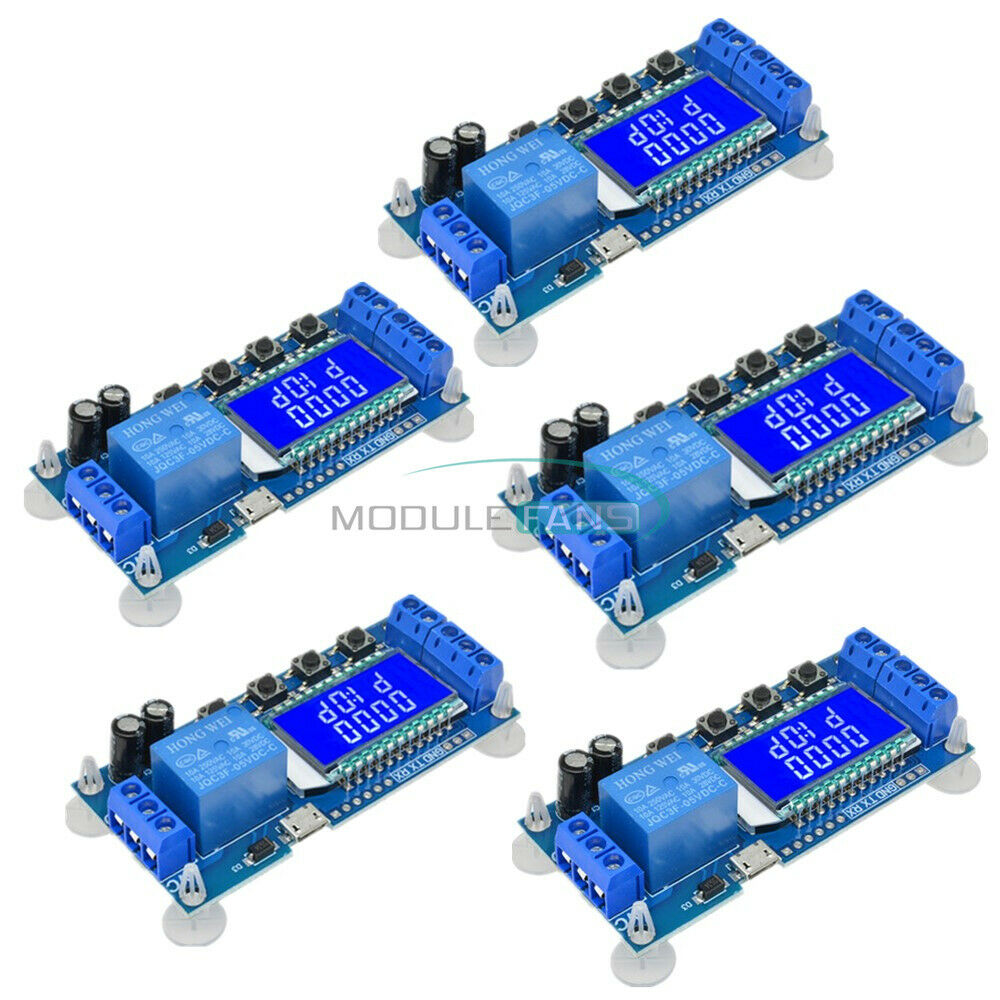

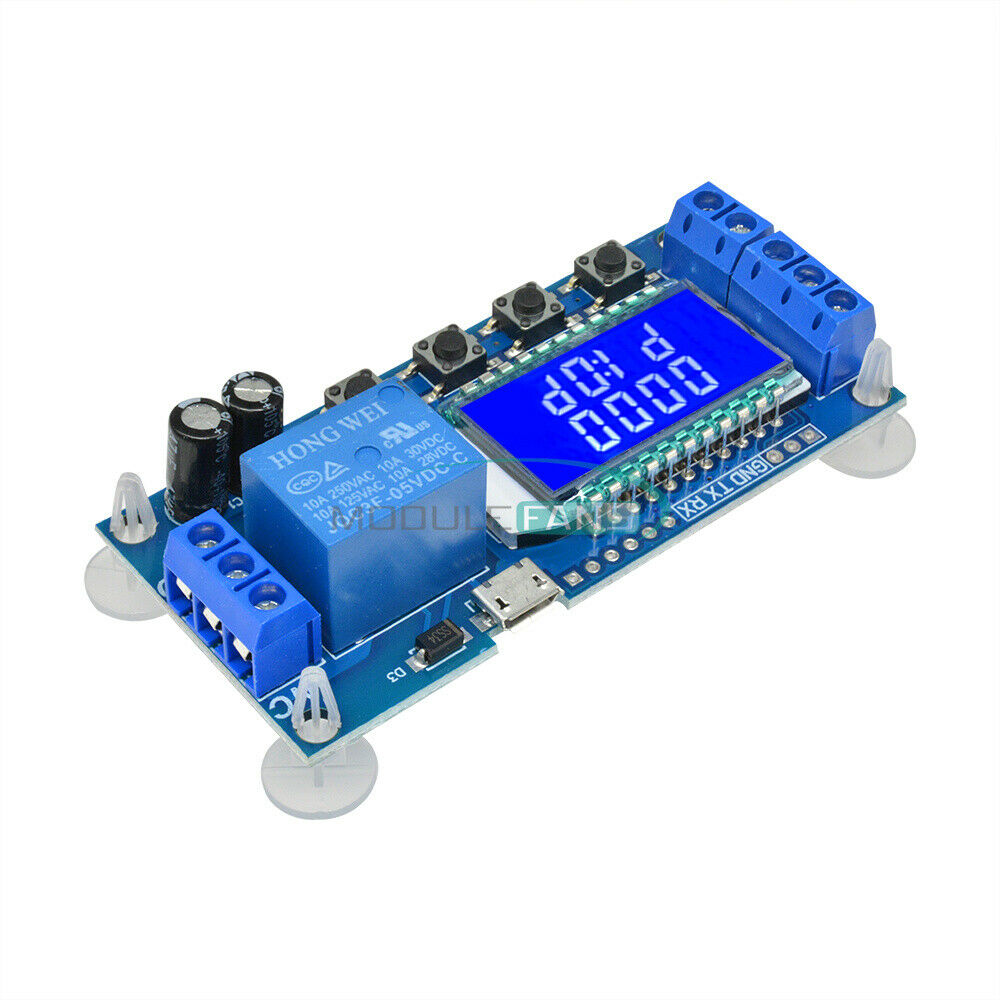

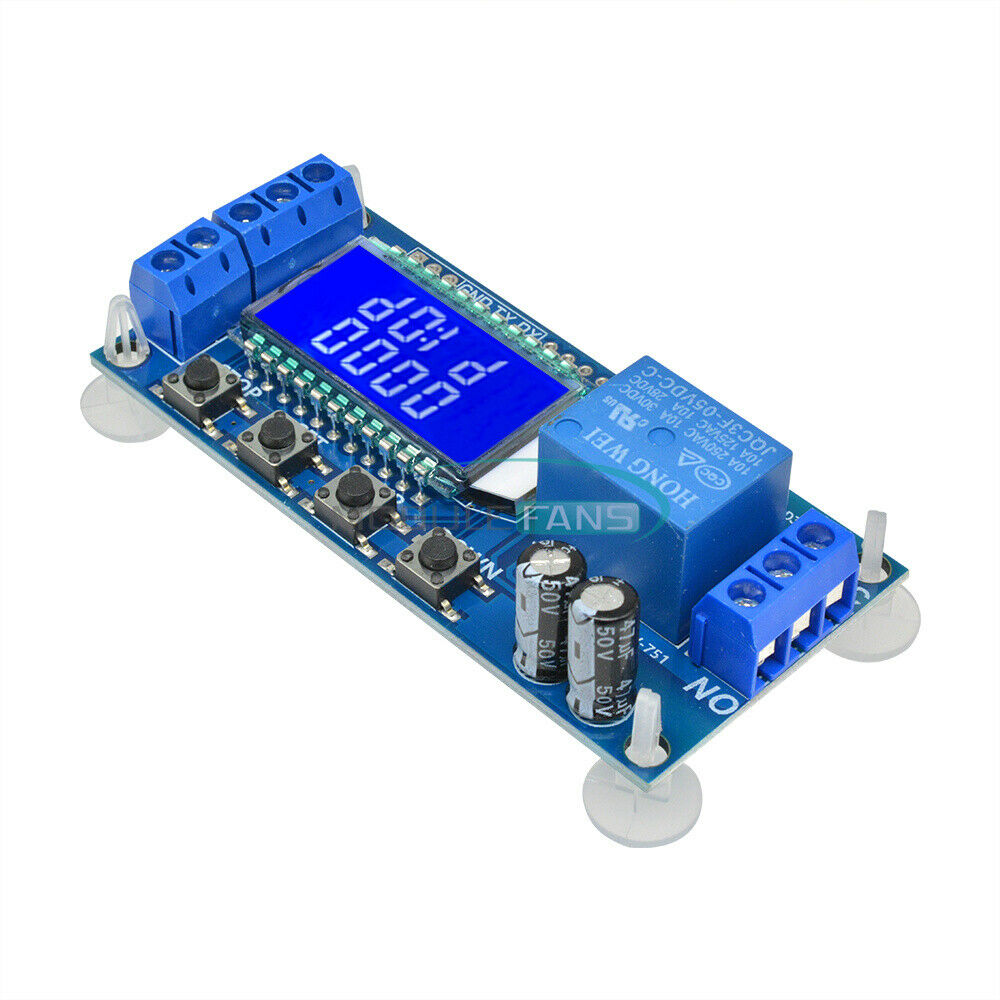

ITEM NAME:5PCS 6-30V Micro USB Relay Module Delay Trigger Cycle Timer Circuit LCD Switch Product Overview 5PCS 6-30V Micro USB Relay Module Delay Trigger Cycle Timer Circuit LCD Switch Product Description: Relay module delay power off and trigger delay cycle timing circuit switch Timing Range:0.01 sec~9999 min This product lcd display, very clear, simple and easy to use, powerful, but please read user instructions carefully before using. Product Highlights: 1. Display with LCD two columns, Can display parameters directly; 2. Trigger mode: high and low level,switch quantity.meet most of the needs. 3. Power supply: 6~30V, also supports micro USB 5.0V, very convenient.Anti back connection of power supply. 4. Parameters can be modified via UART. 5. Stop button to provide emergency stop function. 6. 5 minutes without any operation into a low-power state. Any action wake up. 7. OP/CL/LOP params can be modified individually 8. All parameters are automatically saved by power off. Working Mode Introduction(P1~P7) P1: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, the signal is invalid. P2: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, the signal triggers a new timer. P3: After the signal is triggered, the relay conduction in OP time then disconnects; In the OP time, signal trigger reset timer,relay disconnected and stop timing. P4: When triggered, After the relay is disconnected from CL time, relay conduction OP time, after timing is complete, disconnect relay. P5: When triggered, After the relay conduction op time, the relay disconnects the CL time, and then loops the above action, gives the signal again in the loop, relays disconnect, stops the timer, and the number of cycles (LOP) can be set; P6: When triggered, After the relay conduction op time, the relay disconnects the CL time, and then loops the above action, signal is invalid in the loop, the number of cycles (LOP) c.Find many great new & used options and get the best deals for 5PCS 6-30V Micro USB Relay Module Delay Trigger Cycle Timer Circuit LCD Switch at the best online prices at Order2india Shopping! Free shipping for many products!
