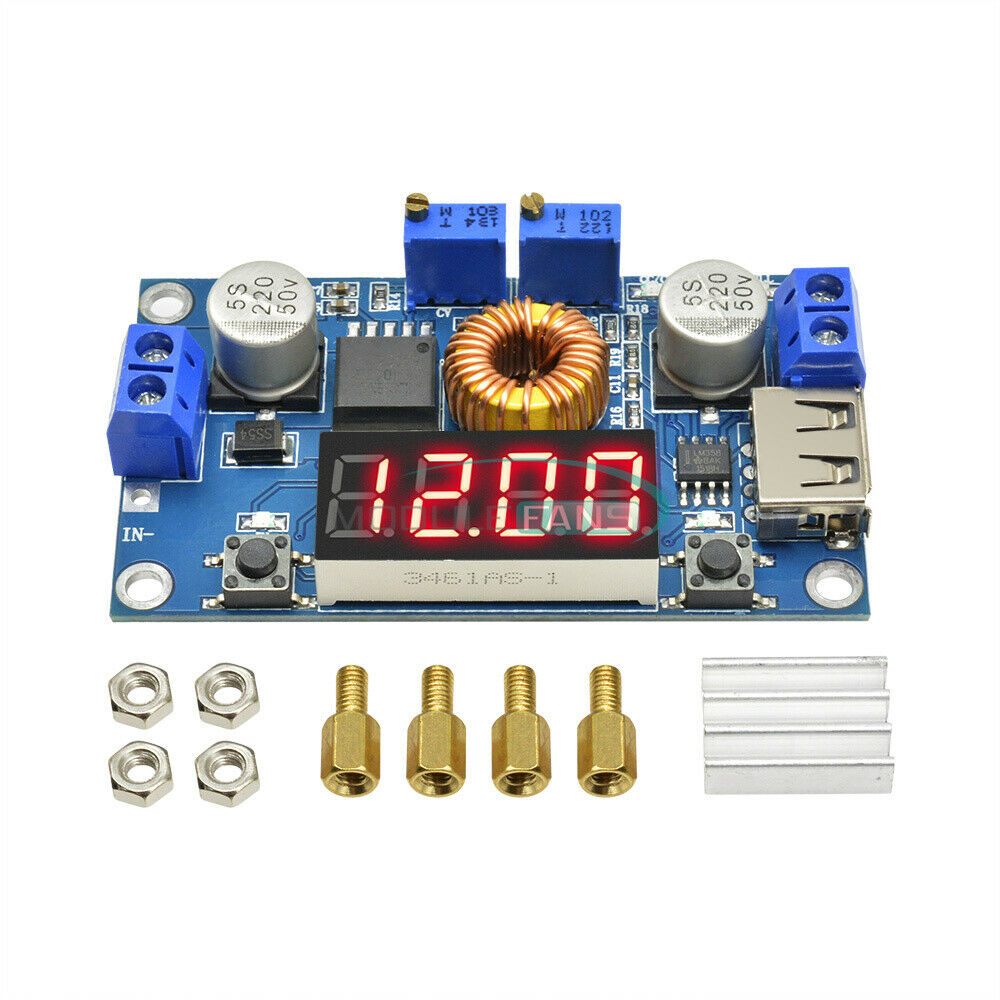

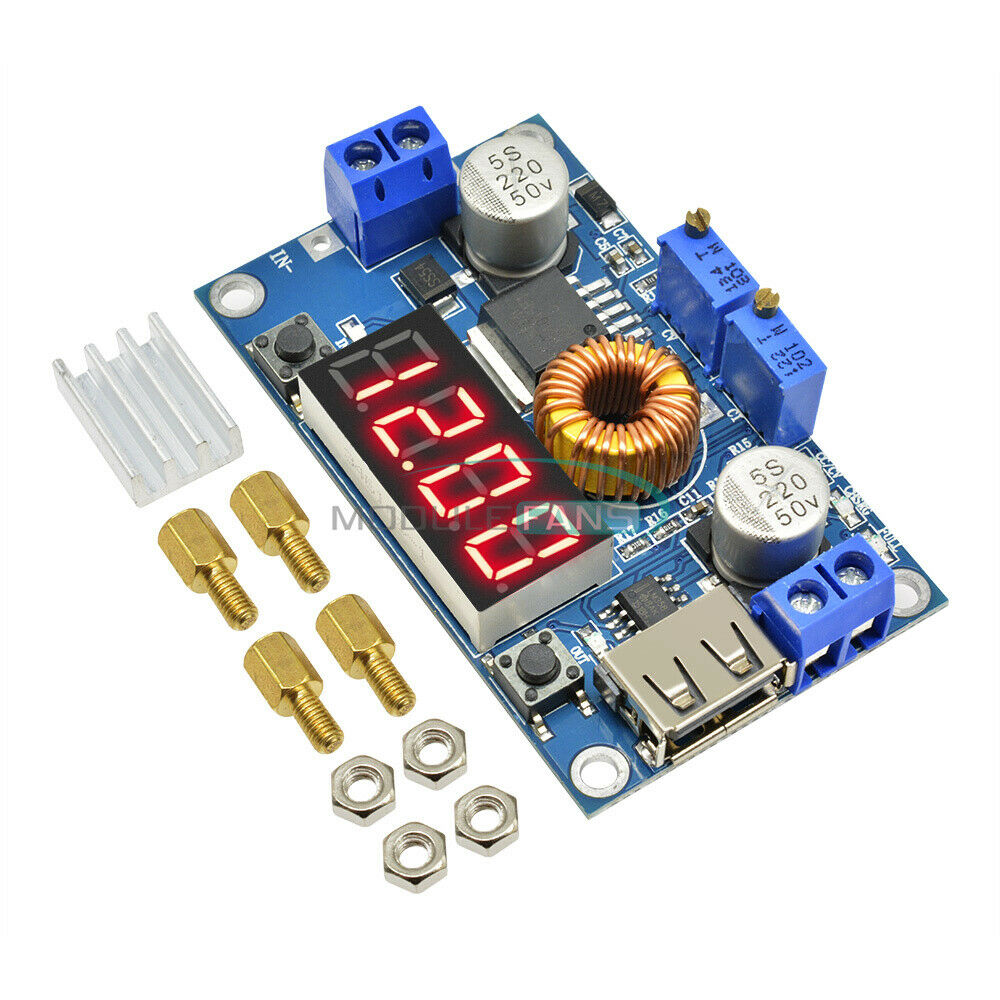

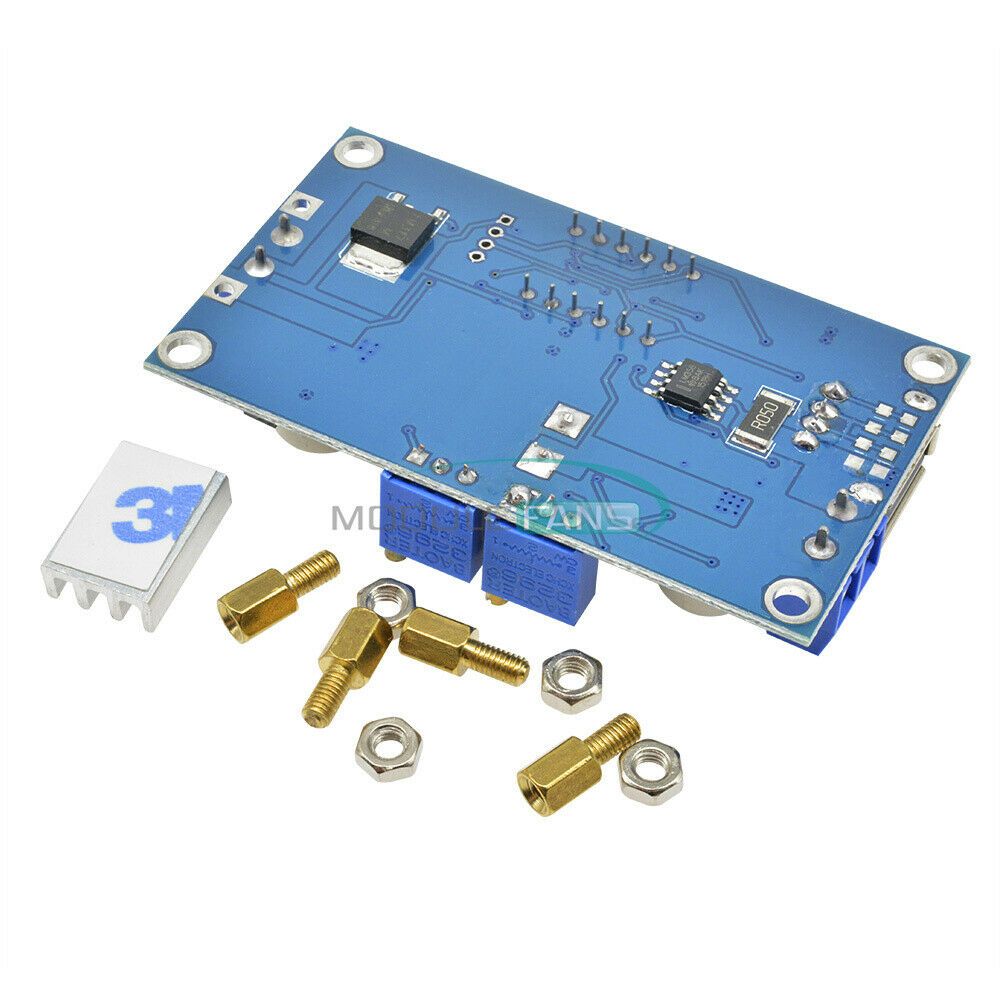

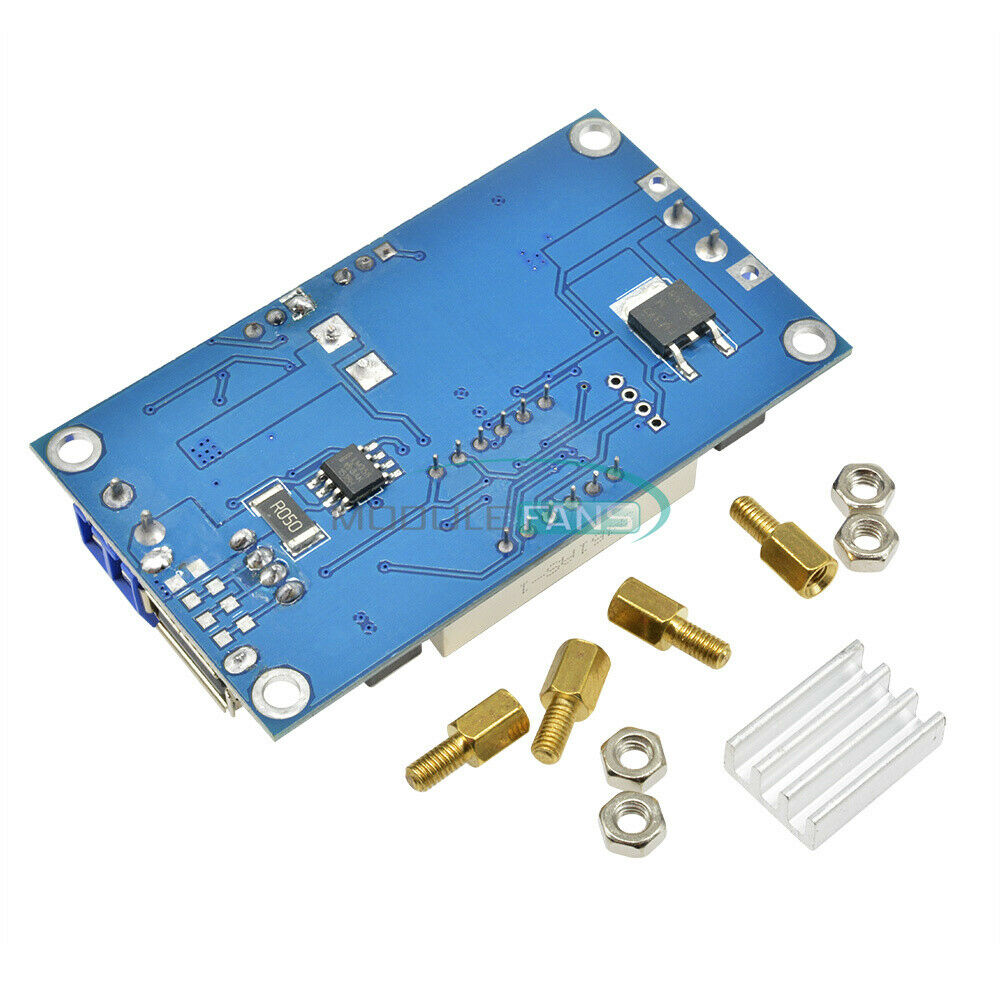

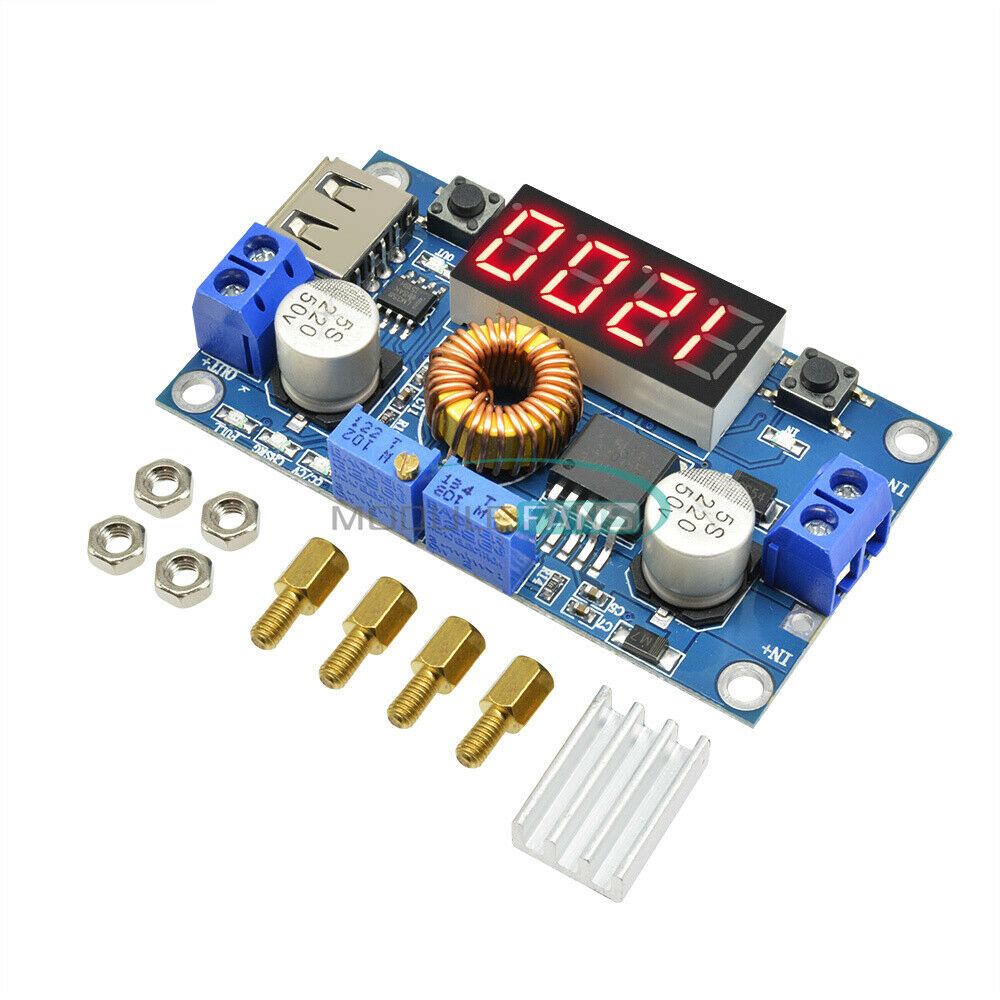

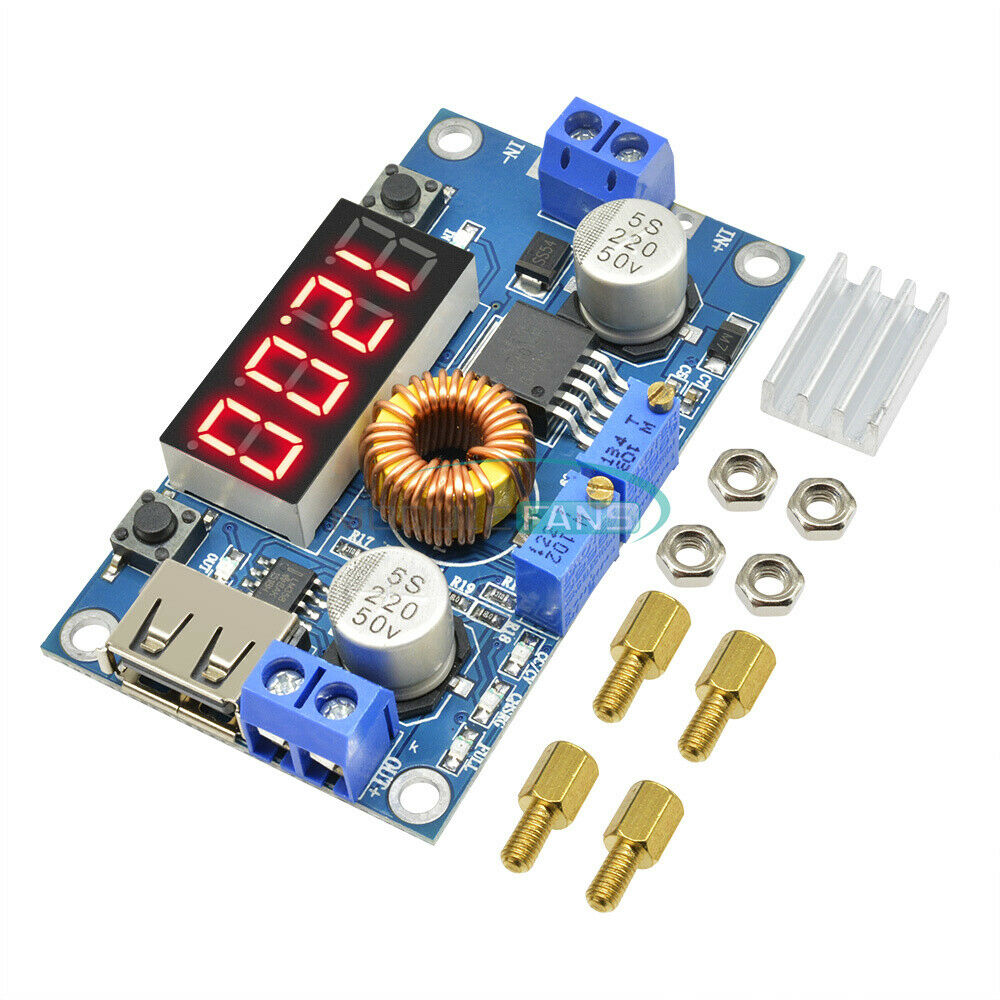

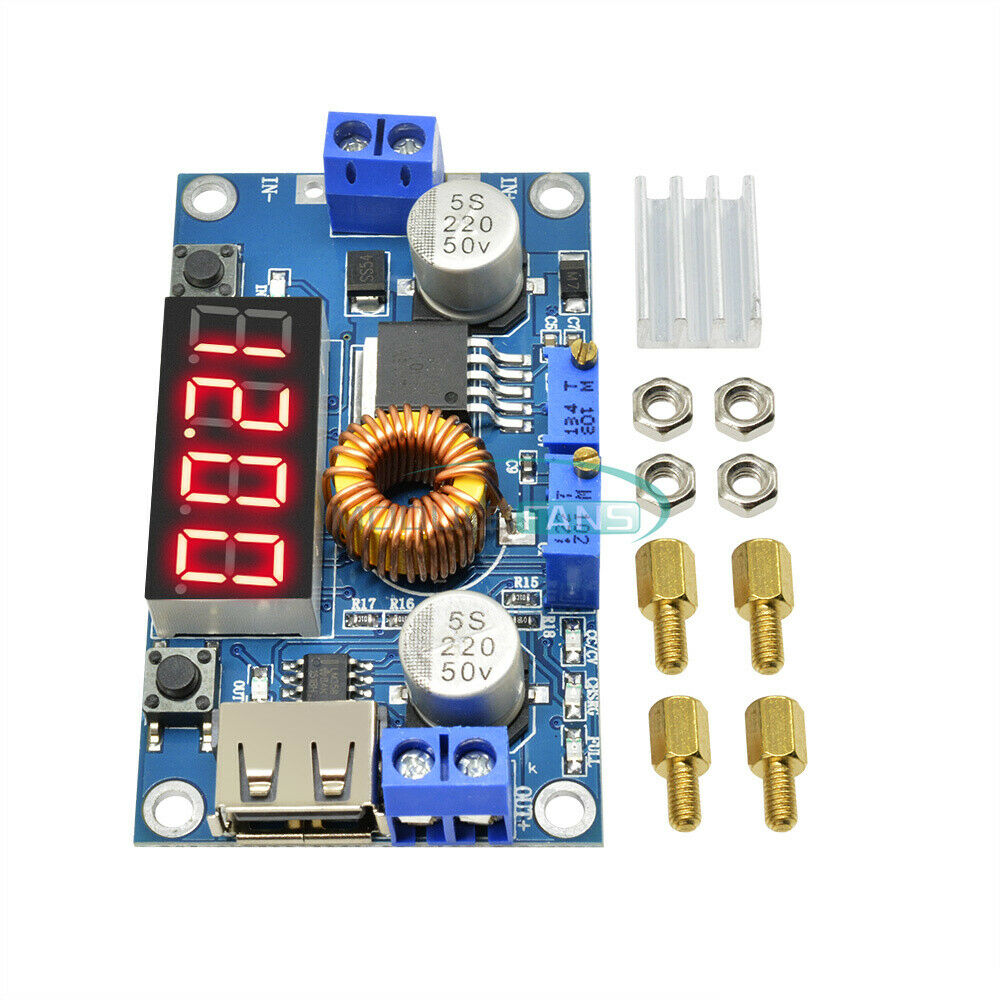

ITEM NAME:5A CC CV LED Display Drive Lithium charger Power Step-down Module +USB Voltmeter Product Overview 5A CC CV LED Display Drive Lithium charger Power Step-down Module +USB Voltmeter Highlights :Contains the voltmeter, ammeter, power meter, USB interface for charging the digital products. Note:1.When you use the product, the module inputs and outputs to be isolated from ground.2.USB output voltage is consistent with the module, not a fixed 5V output. When charging for digital equipment, make sure USB output voltage is 5V.3.Some customers report:“The module can not adjust the output voltage is always equal to the input voltage.”When you encounter this problem, please counterclockwise rotation of the“voltage potentiometer”10 laps or more, then use the module you can adjust the output voltage. Because the factory default output voltage of about 20V. Specifications1.Input voltage range:5-36VDC2.Output voltage range:1.25-32VDC adjustable3.Output current: 0-5A4.Output power: 75W5.High efficiency up to 96%6.Built in thermal shutdown function7.Built in current limit function8.Built in output short protection function9.Input reverse polarity protection: None (if required, high current diode in series with the input).10.L x W x H =68.2×38.8×15mm11.Weight: 39g Application1.Use as a step-down modules with overcurrent protectionUsage:(1) Adjust the right button so that“OUT”LED lighted, Digital meter shows the value of output voltage ,adjust the“voltage potentiometer”so that the output voltage reaches the value you want.(2) Adjust the right button so that Digital meter shows the value of output current;Wire shorted output terminal, then adjust the“current potentiometer”so that the output current reaches a predetermined overcurrent protection value. (For example, the Digital meter displays the current value of 4A, then you can use the module to a maximum current of 4A)(3) Connected to the load. 2.Use as .When you use the product, the module inputs and outputs to be isolated from ground.2. (3)Connect LED, work. Output power: 75W5. High efficiency up to 96%6. Built in thermal shutdown function7.Built in current limit function8.Built in output short protection function9.Input reverse polarity protection: None (if required, high current diode in series with the input).10.
