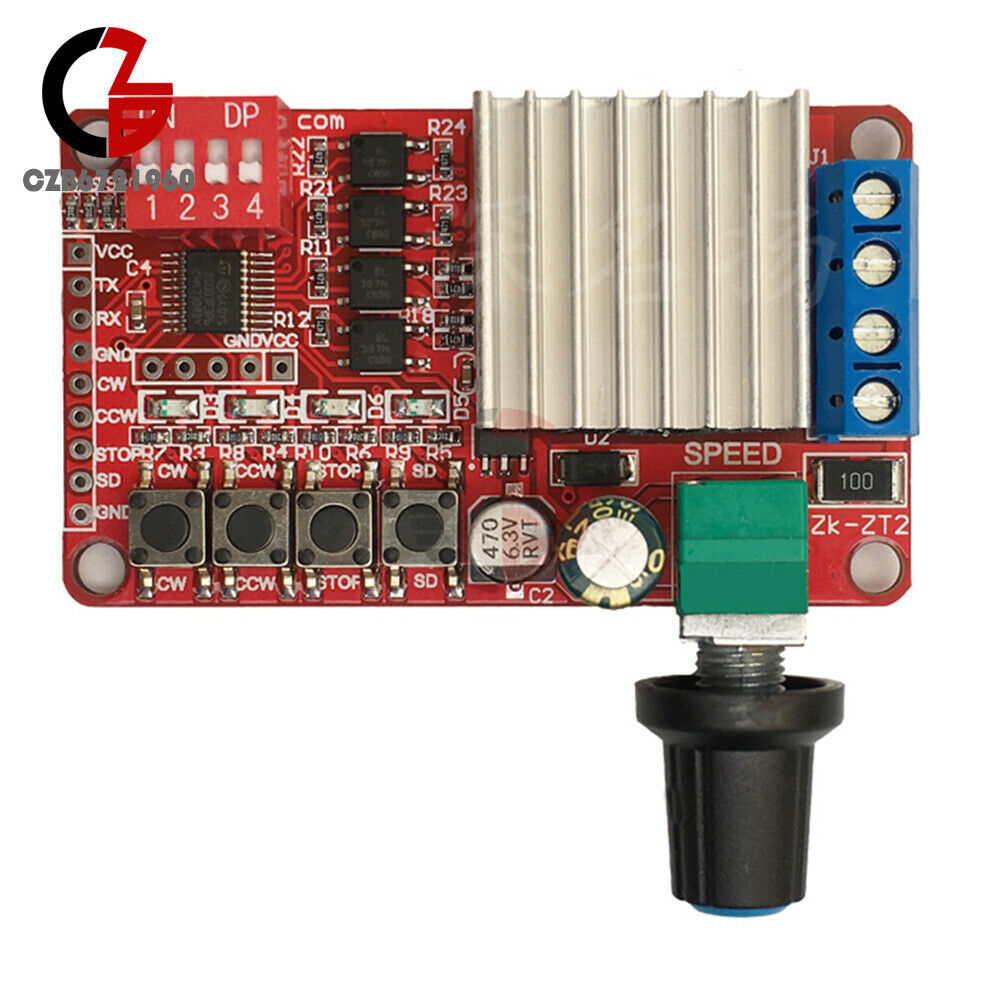

5A 120W DC 5V-26V Motor Forward Reverse Controller Reversible Speed Driver Board
5A 120W DC 5V-26V Motor Forward Reverse Controller Reversible Speed Driver Board
Roll over image to zoom in Click on image to zoom
5A 120W DC 5V-26V Motor Forward Reverse Controller Reversible Speed Driver Board5A 120W DC 5V-26V Motor Forward Reverse Controller Reversible Speed Driver Board

5A 120W DC 5V-26V Motor Forward Reverse Controller Reversible Speed Driver Board

O2INEW
Price:
Rs. 4,624.00

Description

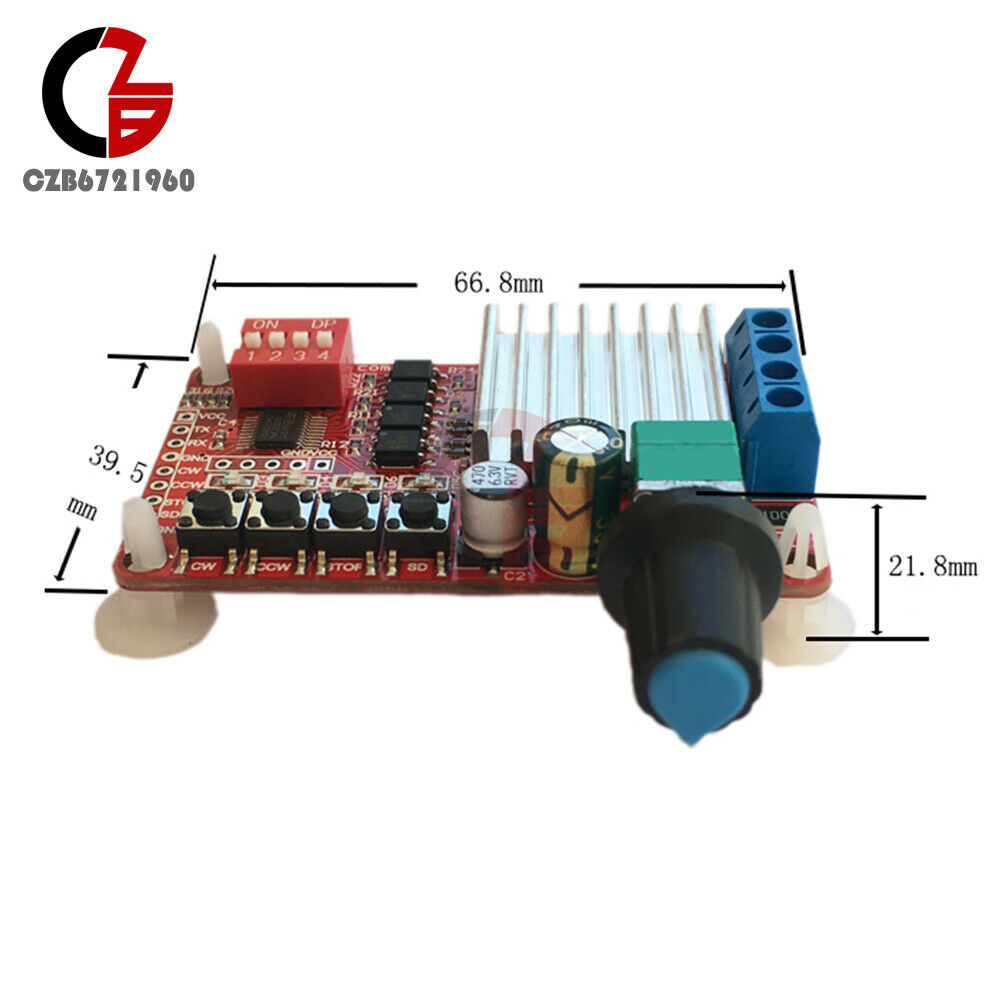

ITEM NAME:5A 120W DC 5V-26V Motor Forward Reverse Controller Reversible Speed Driver Board Home Electronic Component Chips Sensor Arduino Module Raspberry Pi 5A 120W DC 5V-26V Motor Forward Reverse Controller Reversible Speed Driver Board Popular Popular Product Introduction PWM DC 5V-26V 5A Motor Speed Control Forward Reverse Switch Controller Reversible Description: 1. Input voltage range: DC5V-26V. (no anti-reverse protection) 2. Drive motor current: 5A maximum, instantaneous maximum current 50A. (No short circuit protection, it is recommended to connect 6A fuses in series with the output) 3. Standby current: <5mA. 4. Speed ​​regulation range: Adjusted by rotary potentiometer, speed 0%-100% stepless speed regulation. 5. Frequency range: [Manual control] 300Hz-10KHz A total of 8 files. [Automatic, software, serial port control] 300Hz-10KHz can be adjusted arbitrarily. Note: The lower the selection frequency, the greater the fluctuations in the input power supply. 6. Serial communication: TTL level. (Do not connect directly to the computer's 232 interface) 7. Operating temperature: -40 ° C -85 ° C. 8. Size: length, width and height 67*39*15mm. 9. Mounting hole: 4mm in diameter. 10. Weight: 30g 11. Signal interface end introduction: Feature: [VCC] 5V power supply output port, can supply 485 to TTL module for customers, USB to TTL module and other power supply; supply current 20mA. [TX, RX] TTL communication interface, connected to the host computer software. [CW, CCW, STOP, SD] ​​Forward, reverse, stop, brake button outlet, high level 5V when floating, can be connected to the GND button, equivalent to the button on the module, or connected to the 5V microcontroller IO control Low-level trigger (to ensure reliable trigger, low-level time >100ms, the trigger can be set high; if it is low level, but before the next action, be sure to set the port high first; When the code switch is set to the ON position, it is in the automatic control mode, and the button or the port .Find many great new & used options and get the best deals for 5A 120W DC 5V-26V Motor Forward Reverse Controller Reversible Speed Driver Board at the best online prices at Order2india Shopping! Free shipping for many products!
