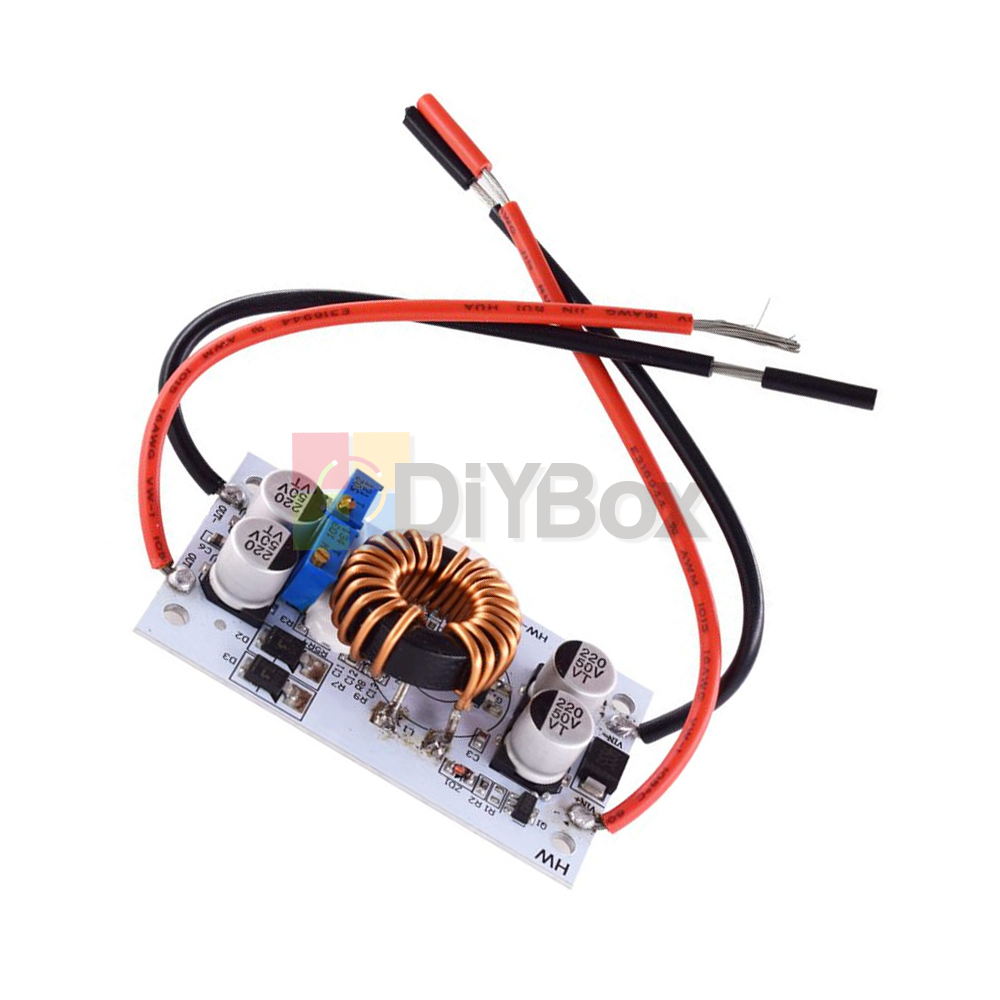

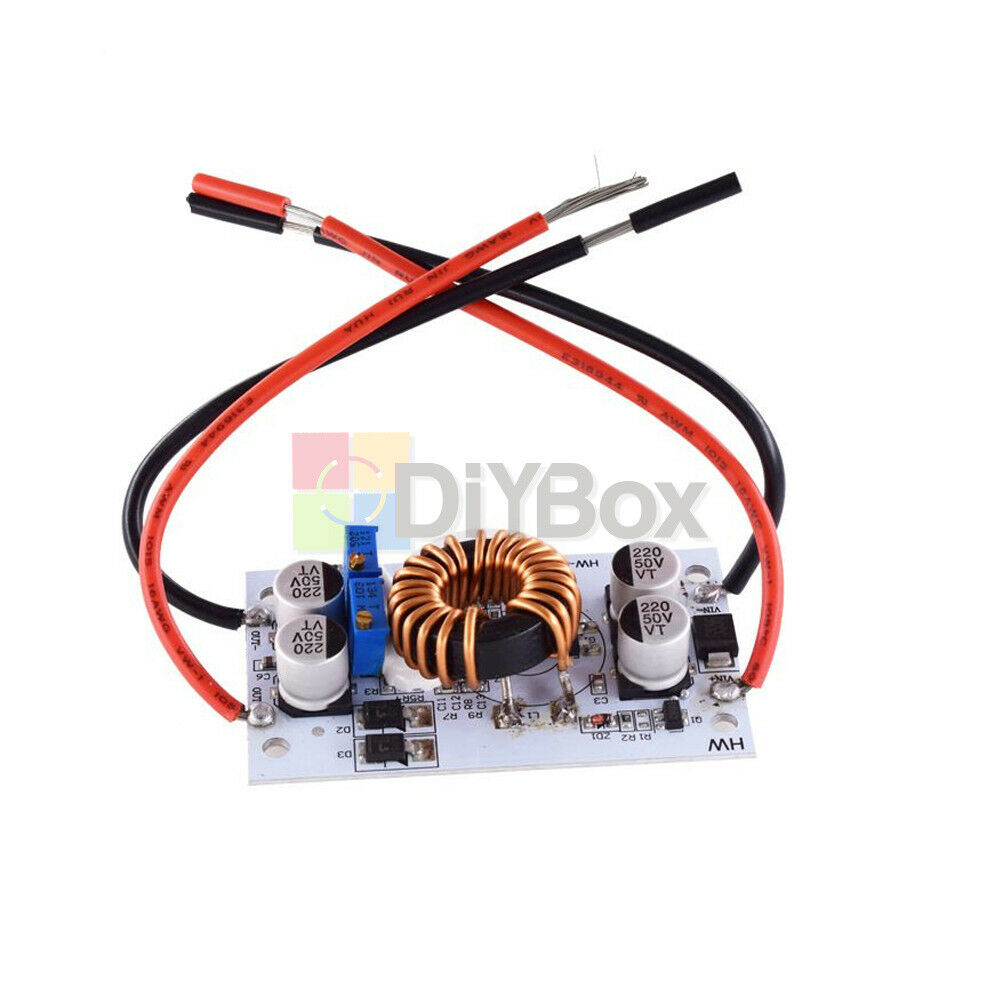

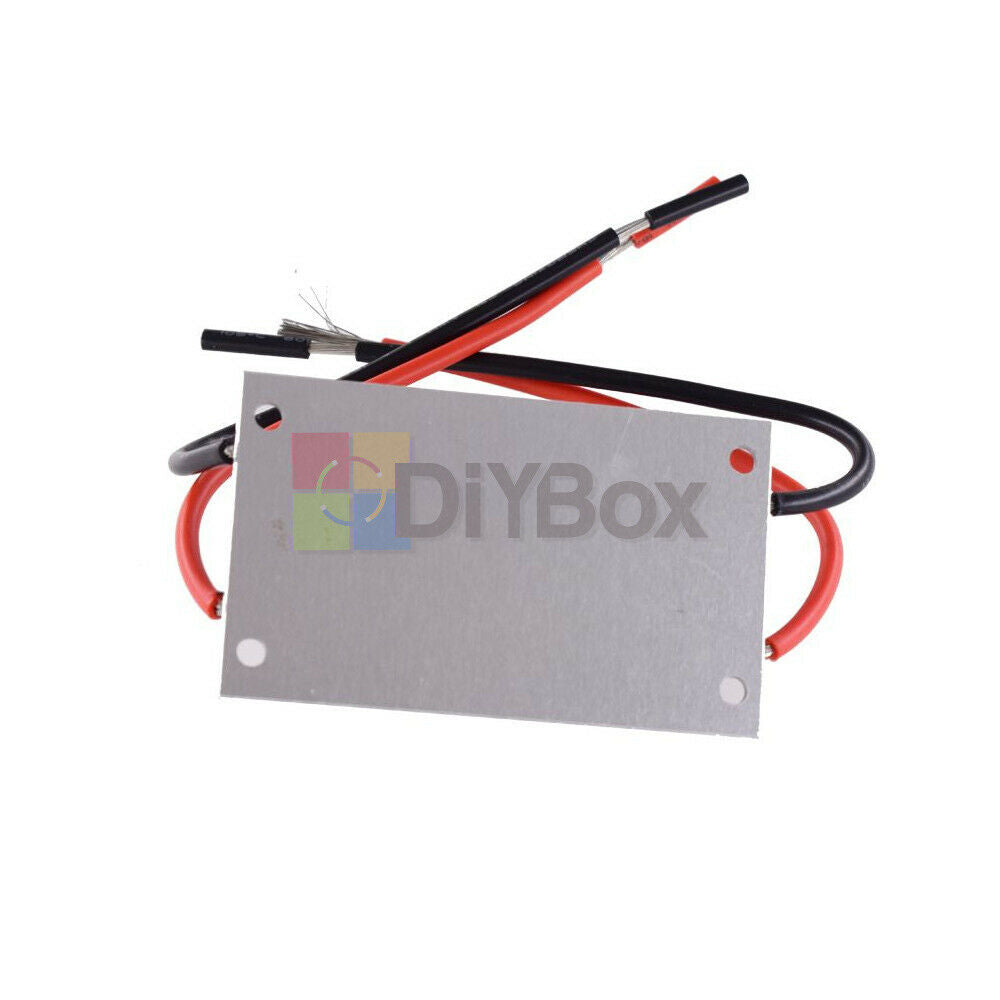

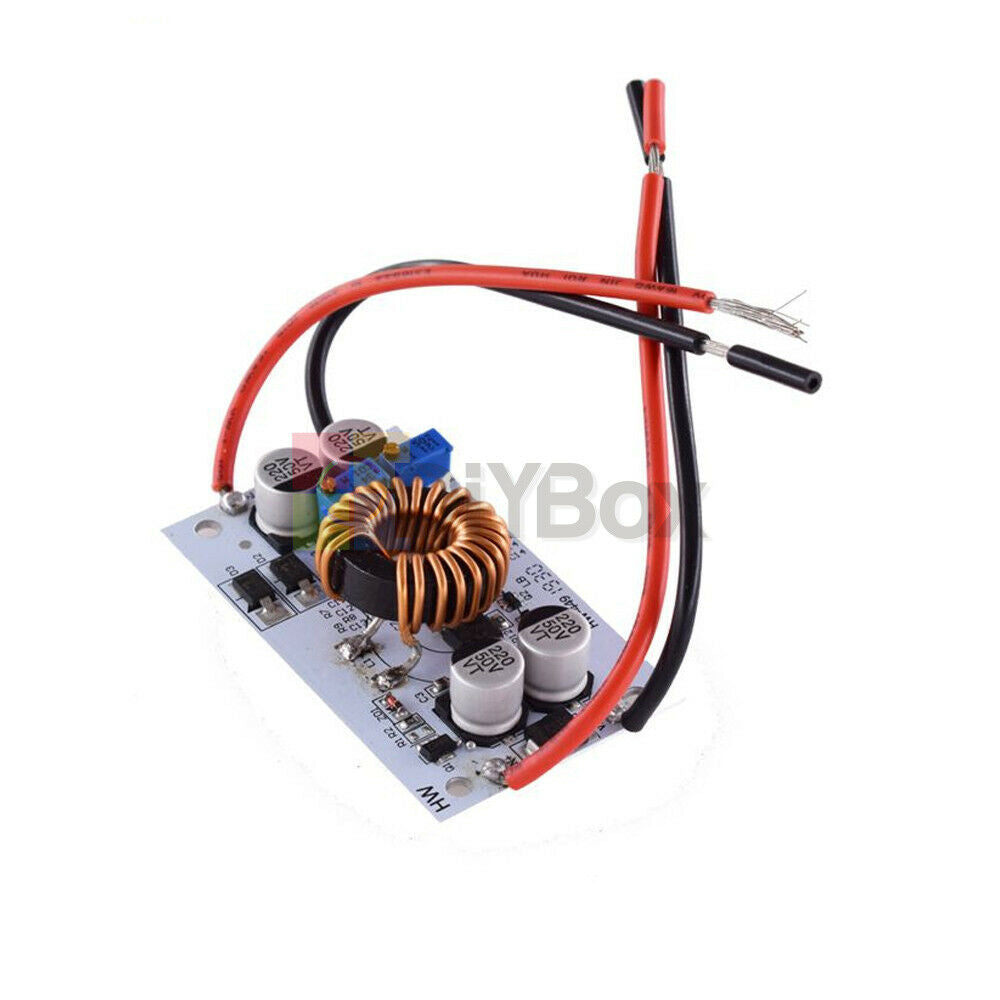

ITEM NAME:500W Adjustable Constant Boost Current Voltage Step up Driver Module DC 10A 500W Adjustable Constant Boost Current Voltage Step up Driver Module DC 10A Description: Product: 500W boost constant current module Type: Non-isolated boost module (BOOST) Input voltage: DC8.5V-48V Input current: 15A (MAX) over 8A, please strengthen heat dissipation, otherwise it may be damaged Static working current: 10mA (when 12V rises to 20V, the higher the output voltage, the higher the quiescent current will increase) Output voltage: 10-50V continuously adjustable Output current: 10A MAX (related to the input and output pressure difference, the greater the pressure difference, the smaller the output current, if the output current exceeds 5A, add a heat sink or fan for heat dissipation) Constant current range: 0.2-10A Output power: = input voltage*10A, such as: input 12V*15A=180W, input 24V*15A=360W, Input 36V*10A=360W, input 48V*10A=480W If you need more power, you can use two modules in parallel. For example, if the output is 10A, you can use two modules in parallel and adjust the current of each module to 5A. Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high) Working frequency: 150KHz Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and pressure difference) Overcurrent protection: Yes (output over 10A, automatic protection, there is a certain range of error. The protection mode is to stop the boost, the output still has voltage) Input reverse connection protection: Yes, (less than 5A, if you need more reverse connection current, please connect the input diode in series) Size: length 70mm width 42mm height 13mm Weight: 50 g Product application range DIY a regulated power supply, input 12V, output can be adjusted from 12-50V. To power your electronic equipment, you can set the output value according to your system voltage. As a vehicle power supply, it can supply power t.Find many great new & used options and get the best deals for 500W Adjustable Constant Boost Current Voltage Step up Driver Module DC 10A at the best online prices at Order2india Shopping! Free shipping for many products!
