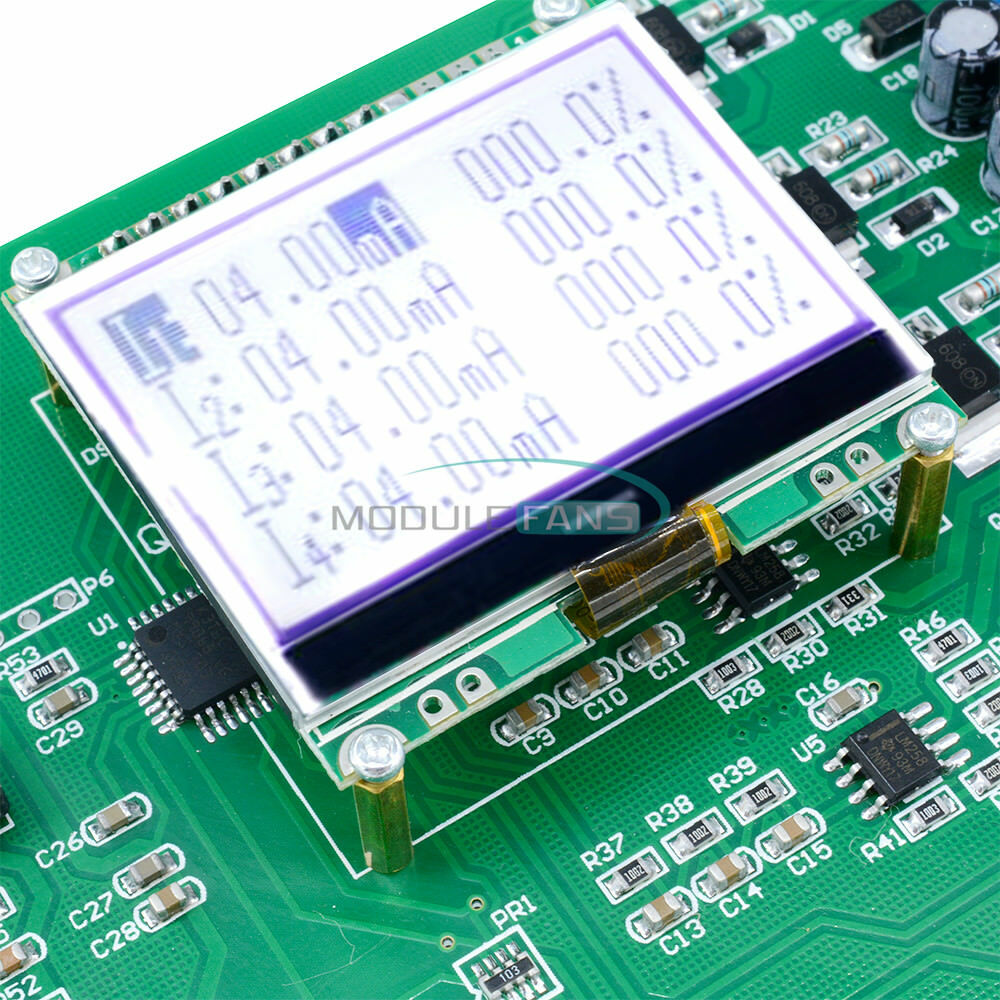

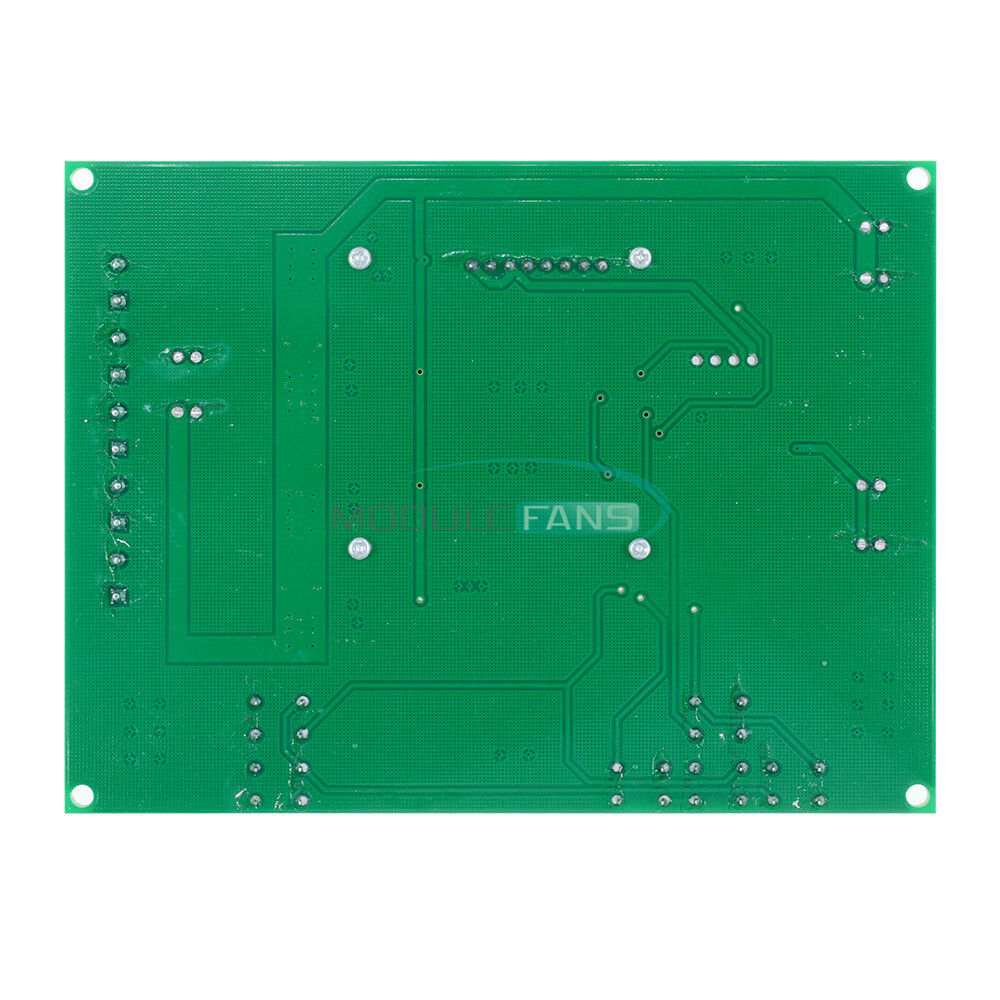

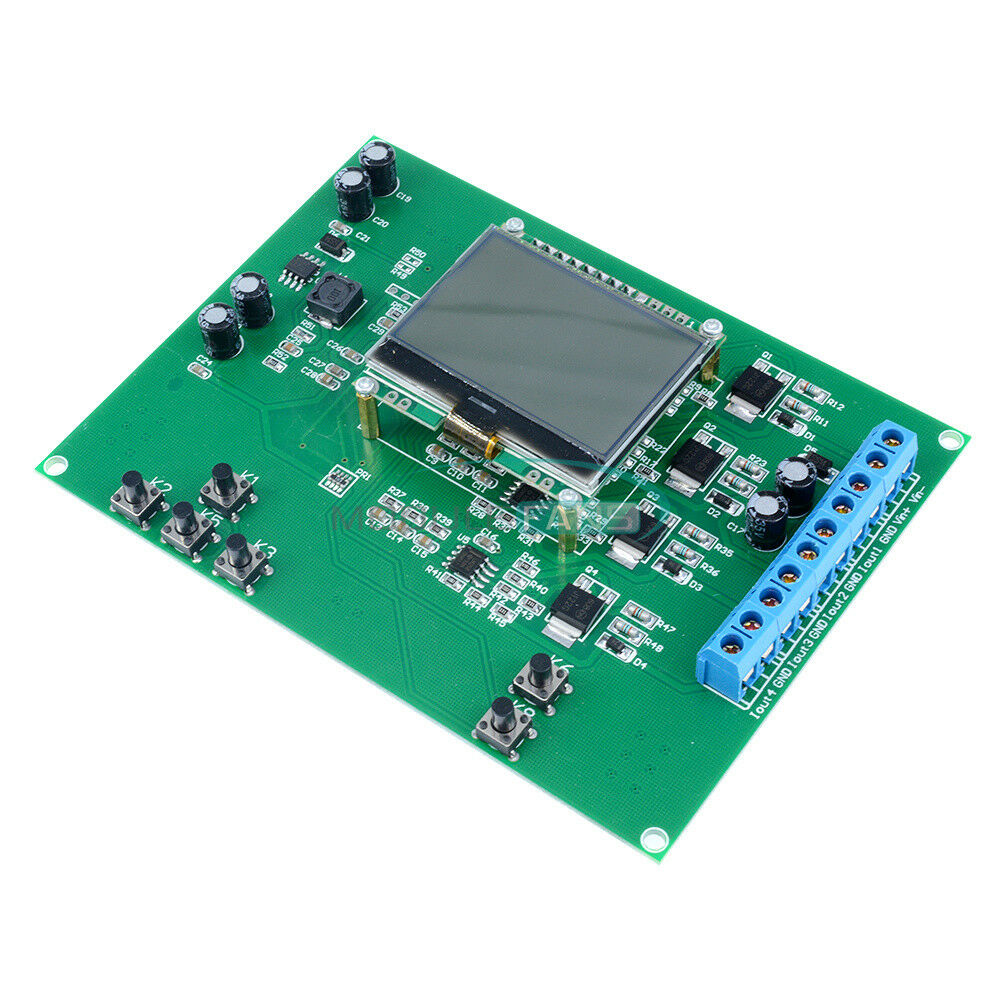

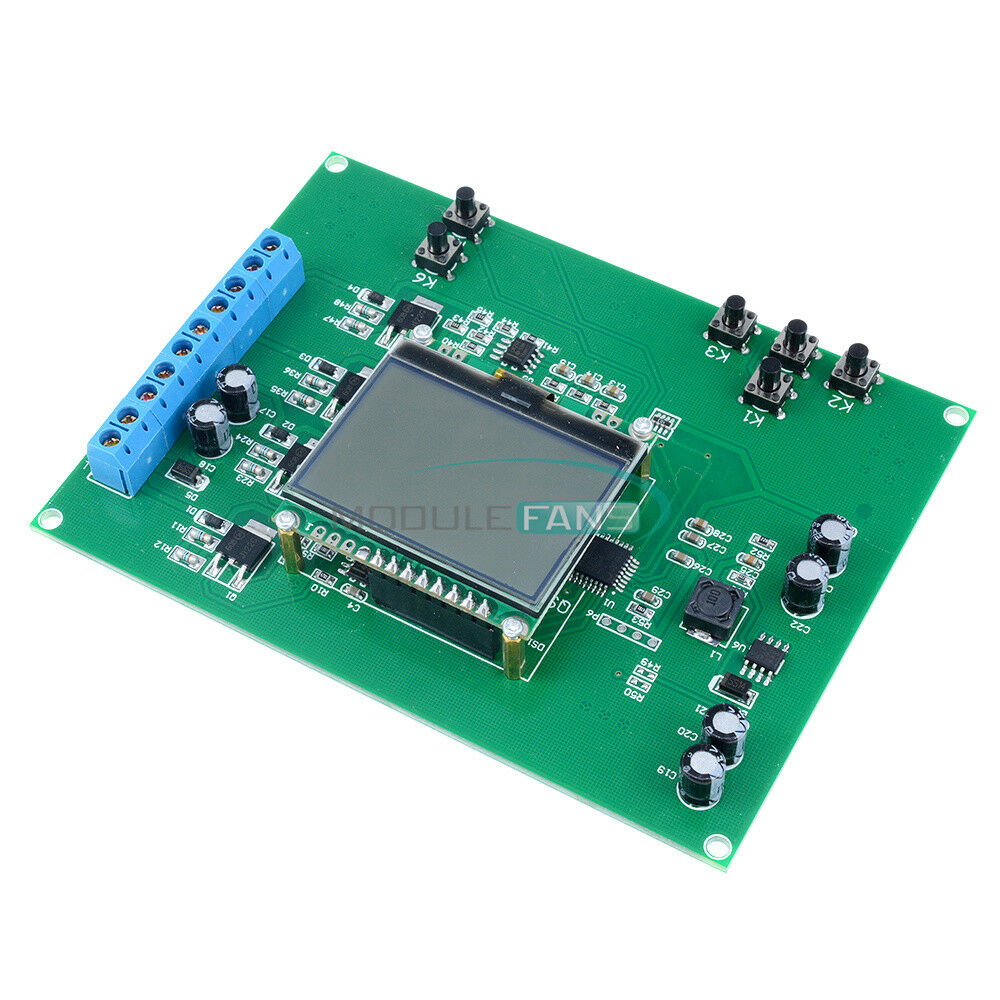

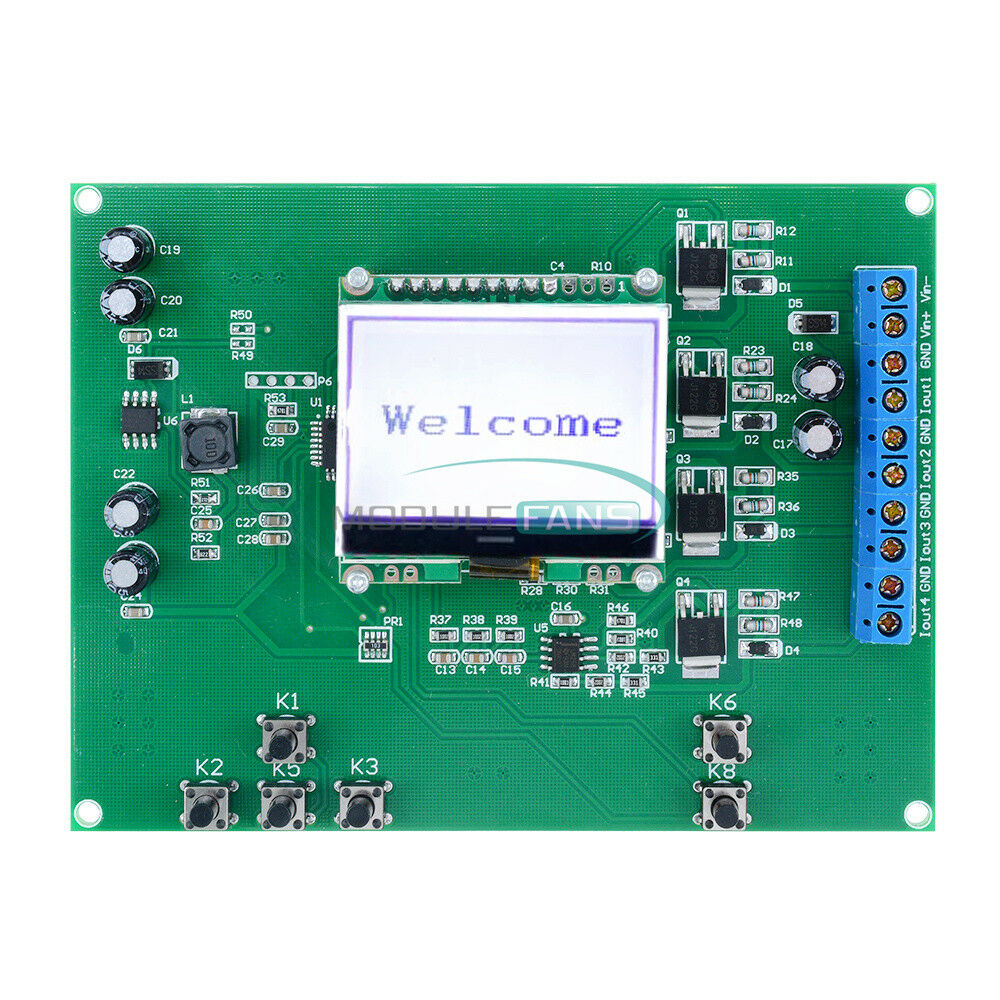

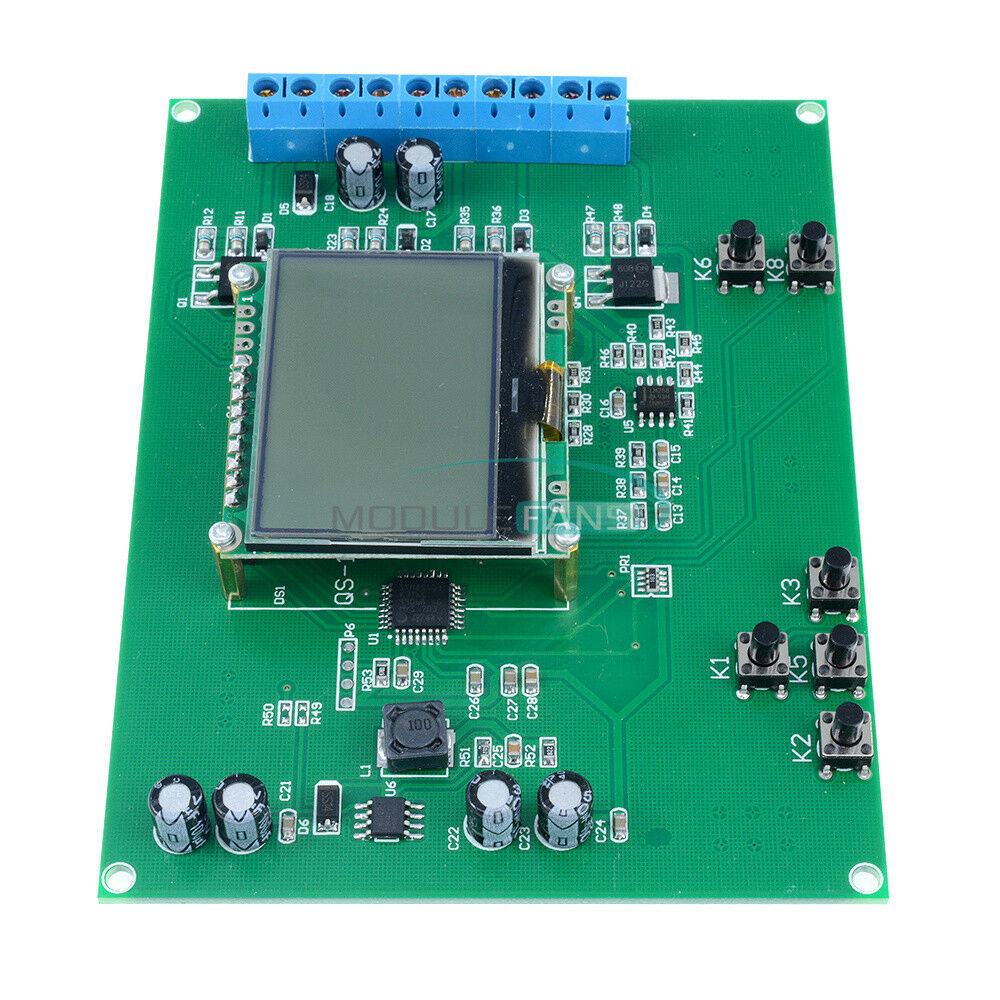

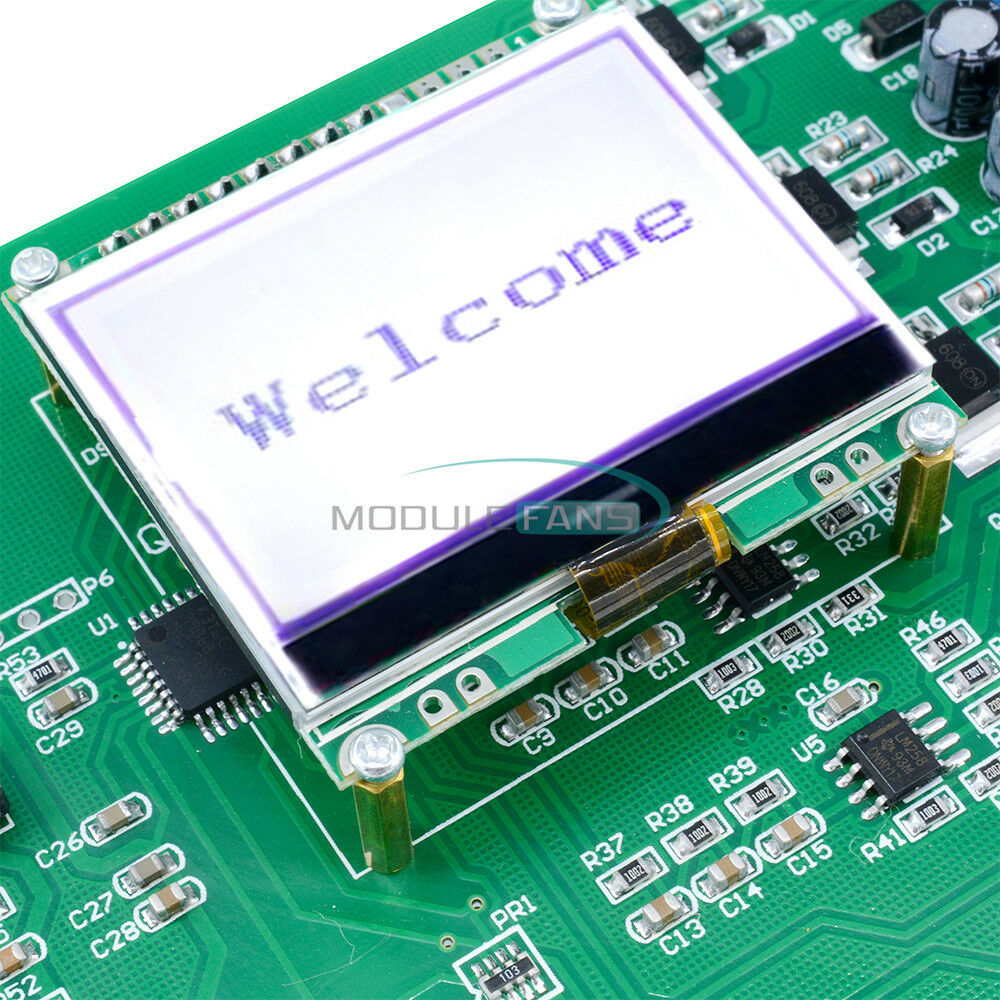

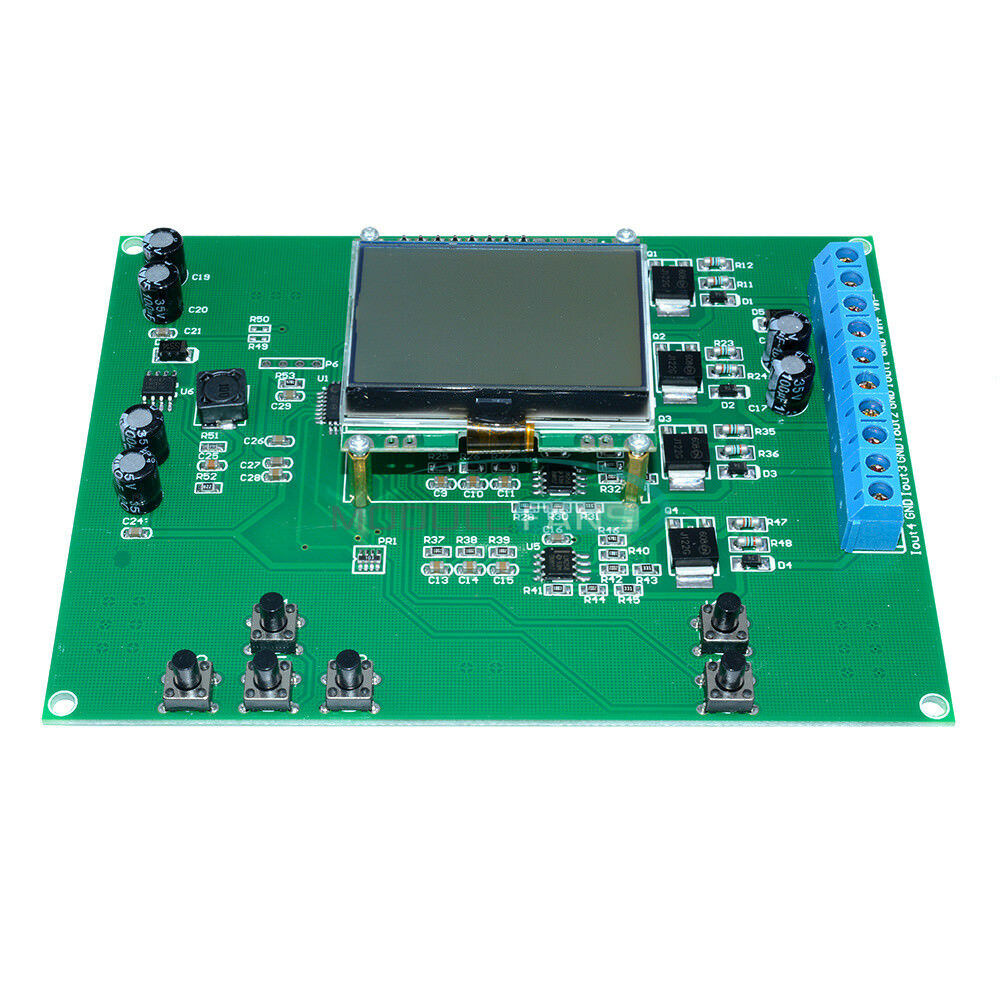

ITEM NAME:4-Channel 4-20Ma Current Signal Generator Source Transmitter 12-24V Adjustment Product Overview 4-Channel 4-20Ma Current Signal Generator Source Transmitter 12-24V Adjustment Features: The module is a multi-channel current signal generator, can produce 4 0 ~ 20mA current signal. Easy to use, enter the data by pressing the key to update the output signal immediately. With 12864 display Active current 0 ~ 20mA output, display resolution 0.01mA, control accuracy 0.1mA Input voltage anti-polarity protection The output of the transmitter can be simulated Product application: Signal generator Valve regulator Instrument calibration The interface description and related operations Interface (power interface) CN1 "+" indicates the positive terminal of the input power supply CN1 "-" indicates the negative (GND) of the input power supply CN1 "OUT1" indicates channel 1 to send current output CN1 "OUT2" indicates channel 2 to send current output CN1 "OUT3" indicates channel 3 to send current output CN1 "OUT4" indicates that channel 4 sends current output CN1 "G" indicates the common terminal GND Key description: Function keys K1: Up arrow keys are used to select the setting channel Function buttons K5: The lower arrow keys are used to select the setting channel Function button K2: Slowly minus 0.01 Press and hold 0.1 Function button K3: Slow increase by 0.01 Press and hold 0.1 Function key K6: actual value or percentage selection key Function button K8: clear key, The use of methods and steps: Output current OUT1 setting: Press the K1 key or K5 key to switch to the OUT1 setting interface, press the K2 or K3 output current value to 0.01MA step. Press and hold the K2 or K3 output current value in 0.1MA step Output current OUT2 setting: Press the K1 key or K5 key to switch to the OUT2 setting interface, press the K2 or K3 output current value to 0.01MA step. Press and hold the K2 or K3 output current value in 0.1MA step Output current OUT3 setting: Press the K1 key or K5 .Find many great new & used options and get the best deals for 4-Channel 4-20Ma Current Signal Generator Source Transmitter 12-24V Adjustment at the best online prices at Order2india Shopping! Free shipping for many products!
