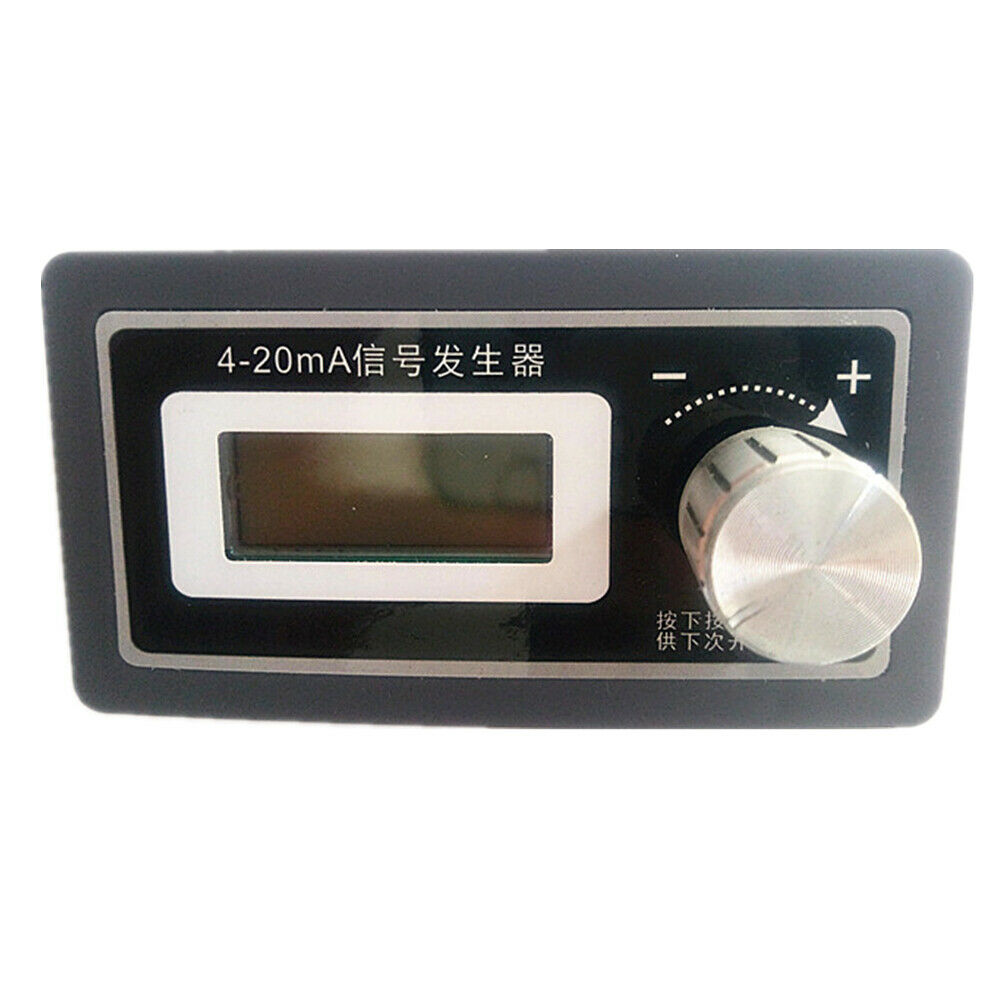

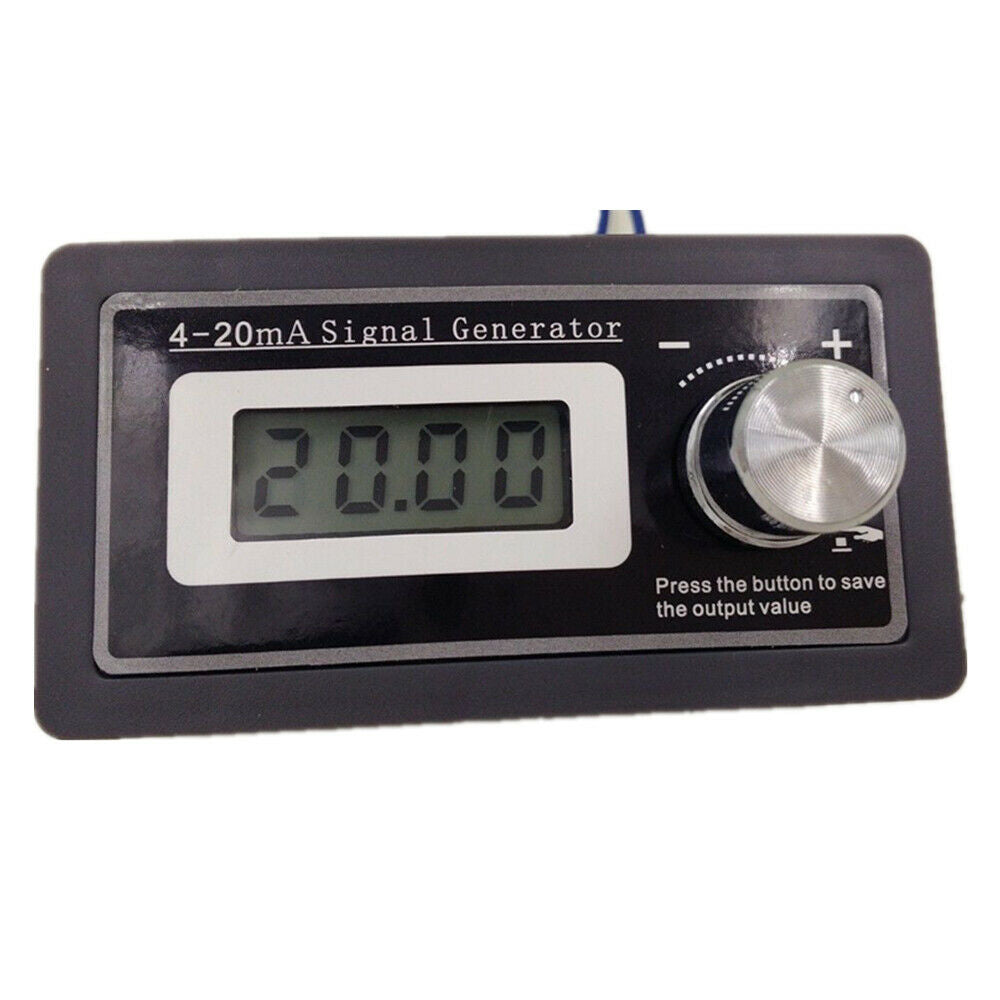

ITEM NAME:4-20mA Signal Generator LCD Current Transducer Test PLC Two-wire Output 15-30V Description: 1. LCD (with backlight); 2. 9 programmable output (can simulate the actual environment of dynamic testing, each section can be set up t running time /A current /b current); 3. digital rotary encoder adjustment (the use of potentiometer, easily affected by temperature and humidity, the resistance value will change); 4. can be connected to the positive and negative (two-wire system, no matter how wiring, can work, will not burn meter); 5. high precision, good linearity (display accuracy of "0.05" of the decimal point, the actual output accuracy of + 0.5%) (two); 6. imported chips, ultra-low power consumption, no heat, more stable output; 7. the shell is beautiful and easy to install; System operation: The working mode of the signal generator is two: 1, manual adjustment mode; 2, dynamic output mode; Manual mode adjustment output current: rotary encoder knob, clockwise current increase, counter clockwise current decreases; The manual mode saves the output value, short press encoder knob, after the opening, the screen shows "...", saved successfully, output the next boot is the value stored value; when debugging equipment, we need to adjust the random output values, as long as you don't press the encoder knob after reboot or the original save this value; Dynamic output mode: is a programmable set of good curve continuous automatic output; Parameter setting: press the encoder knob, after 5 seconds, enter the set state, the first parameter "model": the screen FUNX X said the number of segments in the curve, the rotary encoder knob to adjust the value of X, X=0 said there is no curve in manual mode, X>0 uses dynamic output mode; After adjusting the first parameter "mode of operation", press the encoder knob again. If X=0, exit the setting mode and enter the manual mode. If X>0, then enter the first curve; Each curve is provided with 3 parameters, "tXXX" running time "AXXX".1PC 4-20mA PLC signal generator. Dynamic output mode: is a programmable set of good curve continuous automatic output;. If X=0, exit the setting mode and enter the manual mode. If X>0, then enter the first curve;.
