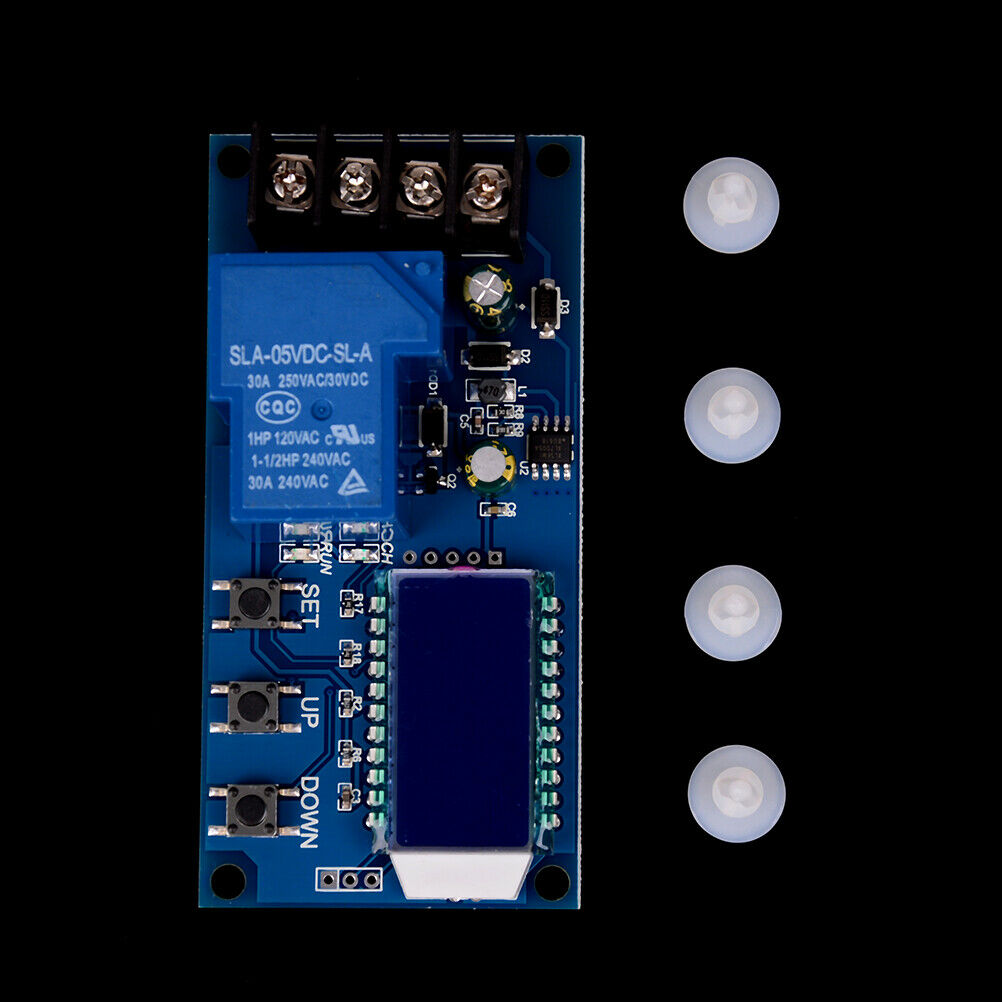

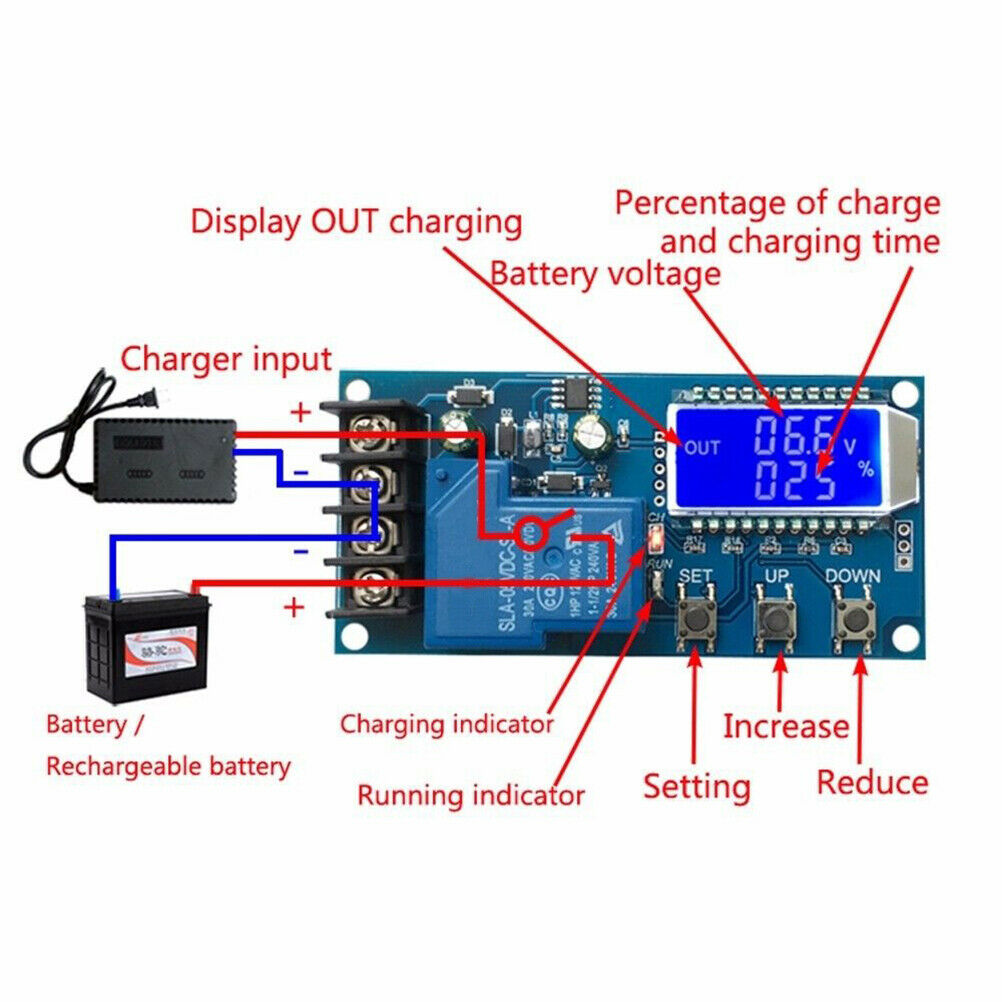

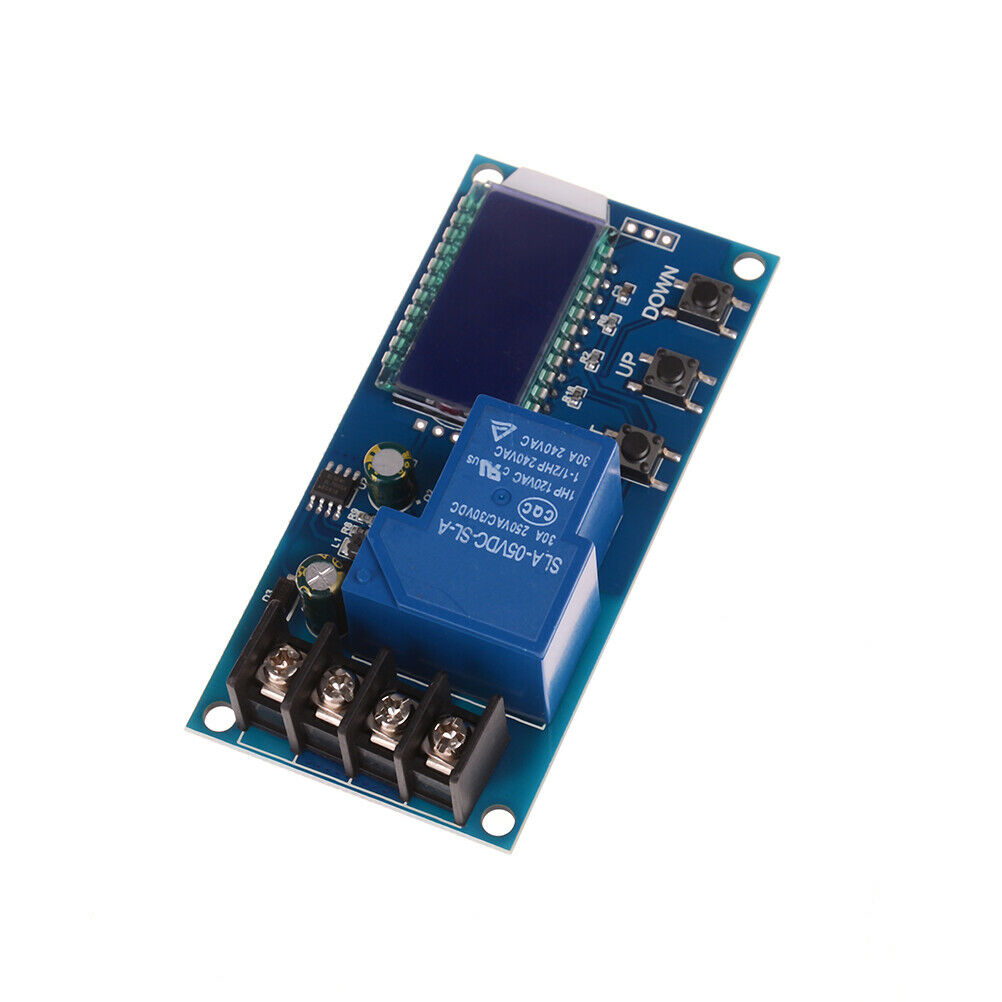

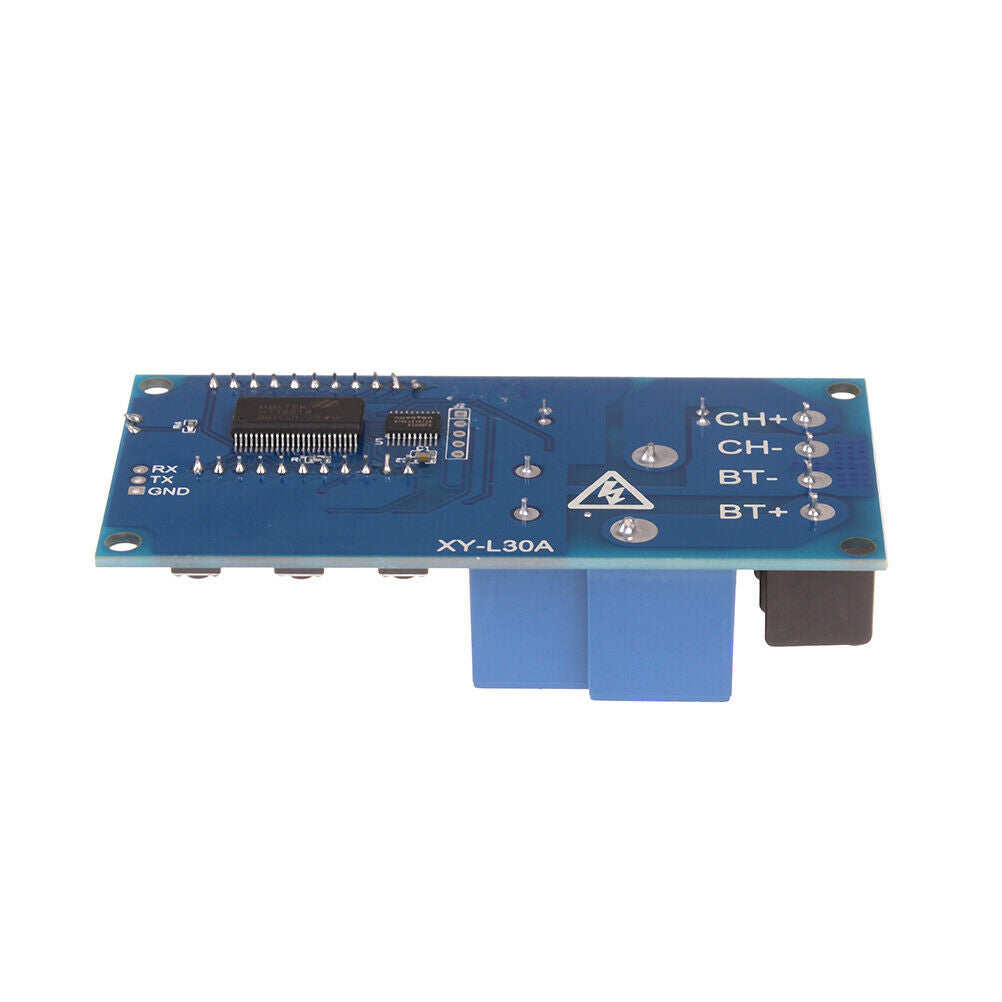

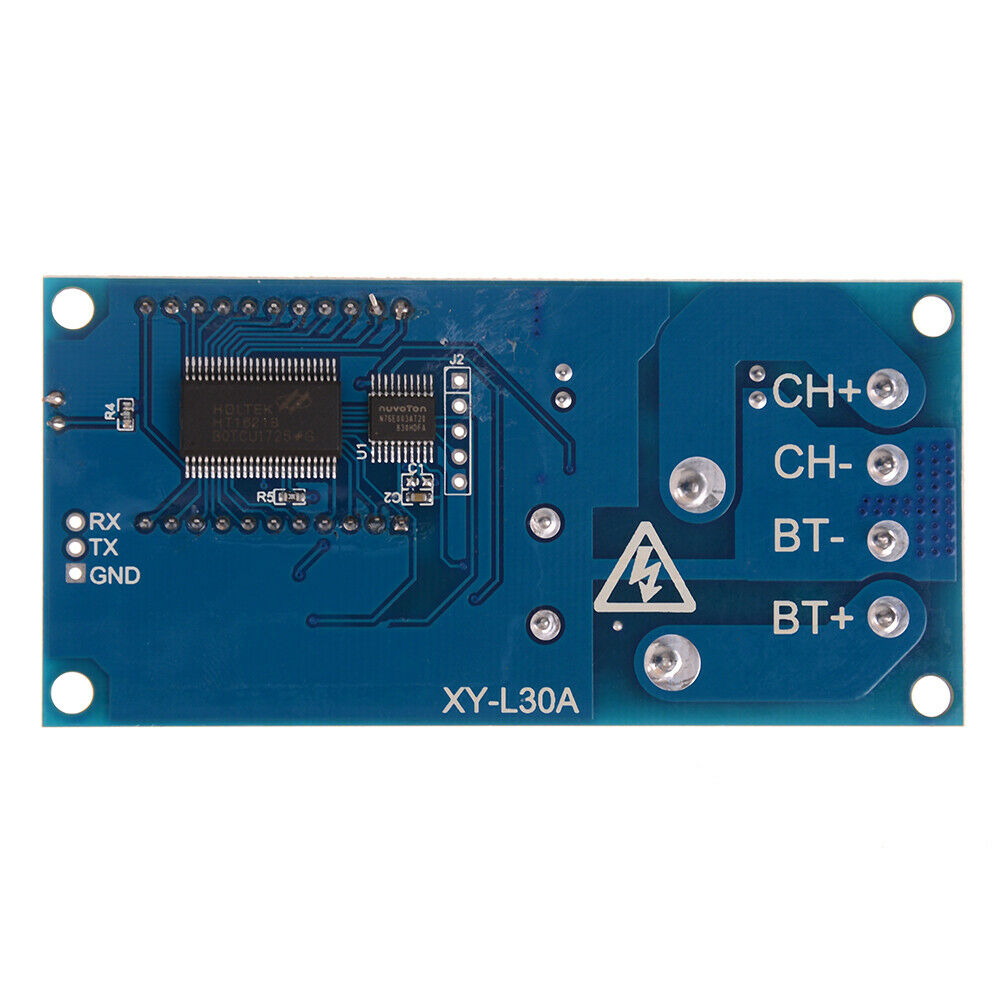

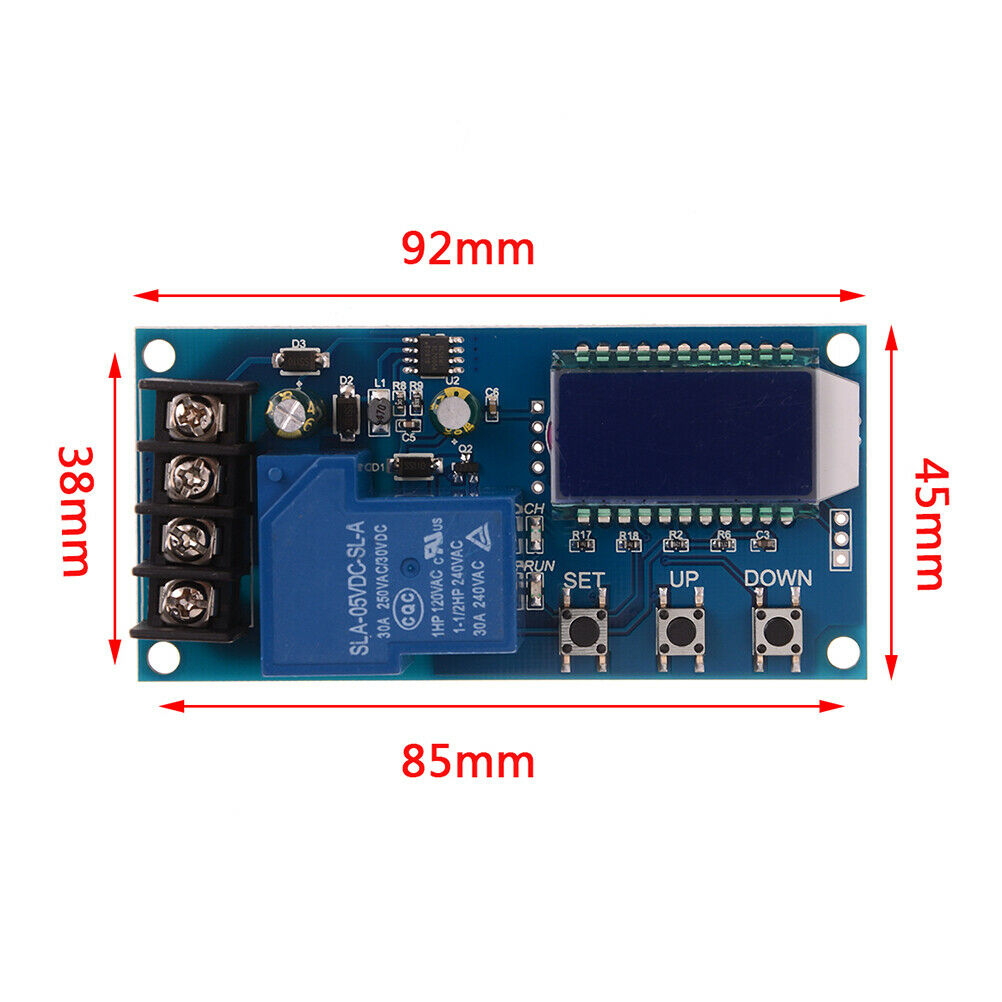

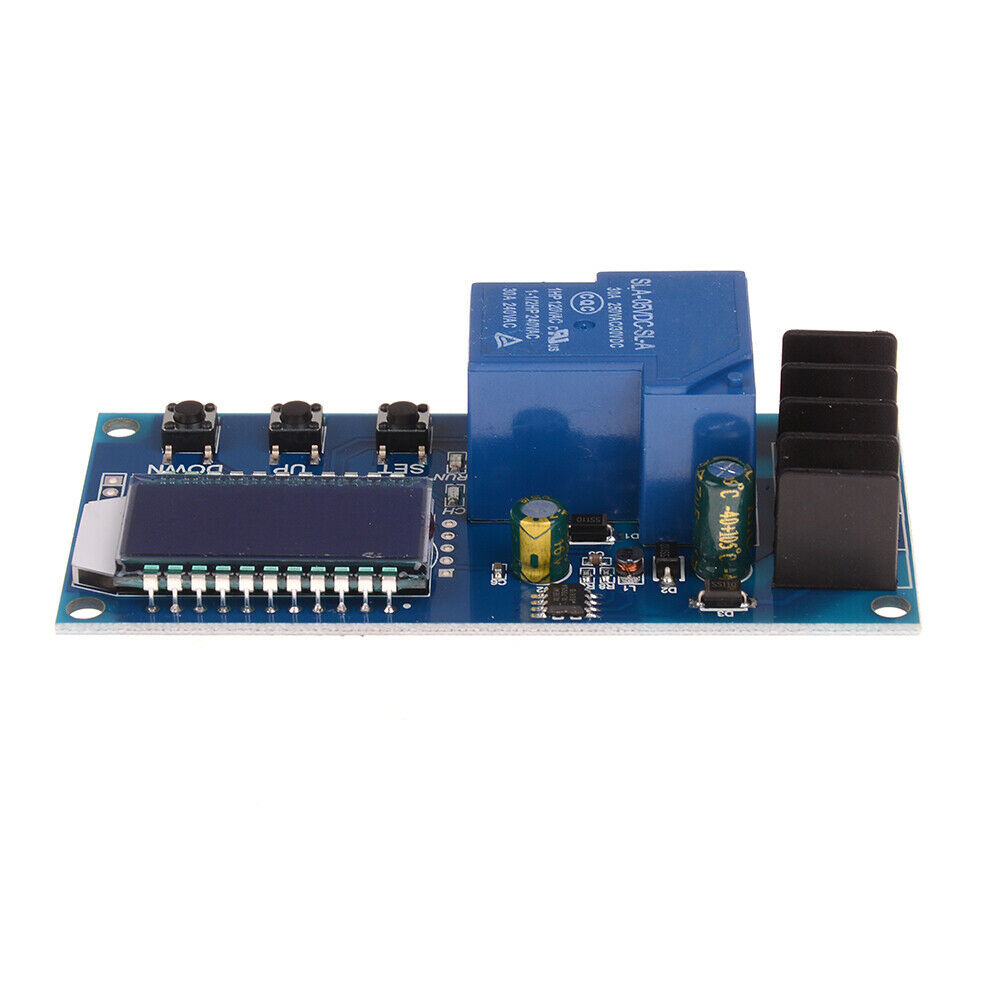

ITEM NAME:30A 6-60V Charging Control Module LCD Display Protection Board Lithium Batter Qx 1.Description: Battery charging control module automatically controls battery charging and discharging to protect battery. 2.Features: 1>.LCD display 2>.Display battery voltage 3>.Percentage of electricity 4>.Time adjustable 5>.Working status indicator 6>.Support UART Set 7>.Automatic protection battery 3.Parameters: 1>.Product Name:Digital control charging module 2>.Product Number:XY-L30A 3>.Control Voltage:DC 6V-60V 4>.Control Current:30A(Max) 5>.Control Precision:0.1V 6>.Output Type:Direct output 7>.Voltage Error:0.1V 8>.Suitable for battery:Storage Battery,Lithium battery 9>.Physical dimension:79*45*2.2mm 4.Function Description: 1>.Automatic Charge control function By setting the Upper limit voltage volt-HI:‘UP’; Lower limit voltage volt-LI:‘dn’; The relay turns ON and the charger starts charging for the battery when Current battery voltage is less than Lower limit voltage ‘dn’. The relay turns OFF and complete an automatic charge when Current battery voltage is more than Upper limit voltage ‘UP’. 2>.Charge Time Control Function How to enable the time control function? It will enable time control function by setting parameter ‘OP’ is not ‘0’ after entering the parameter set menu. ‘OP’ default parameter is:’--:--h’, the default does not turn on time control function; After enable Time Control Function(‘OP’ is not equal to ‘0’): Relay will turn ON and the charger starts charging the battery and the system starts timing when Current battery voltage is less than Lower limit voltage ‘dn’. Relay will turn OFF and end charging if Current battery voltage is more than Upper limit voltage ‘UP’ during timing. Relay will turn OFF and end charging if Current battery voltage is less than Upper limit voltage ‘UP’ but the time(‘OP’) has ended. Relay will keep ON and charging if Current battery voltage is less than Lower limit voltage ‘dn’ even though the time(‘OP’) has ended.Module will a.Suitable for battery:Storage Battery,Lithium battery. LCD display. Automatic protection battery. Enable Relay ON or OFF when short press button ‘DOWN’. Relay will OFF and display OFF if disable relay.
