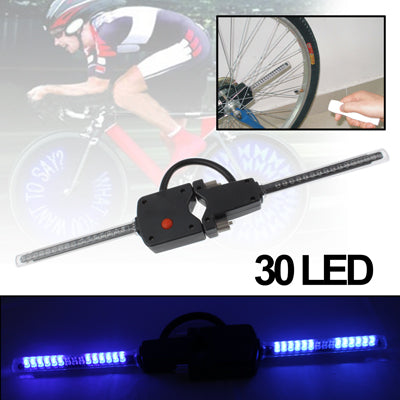

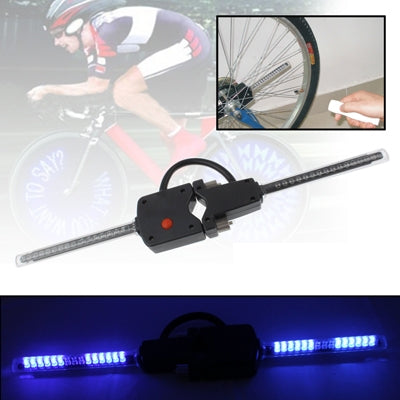

30 Blue LED Wireless Custom Message Bike Wheel Lights(Black)

1) PC Programmable

2) Hub mount keeps wheel balance

3) Wireless portable message transmitter

4) Waterproof

5) 30 blue LED lights

6) Build in 40 different patterns and 5 english words + 4 custom messages

7) Automatic power off

8) Size: 380x85x21mm

* How to install the led bike wheel light

1) Install 3 AAA batteries in the light and 2 AAA batteries in the transmitter .

2) Install Bike Wheel Light unit on hub of bike wheel with the LED's facing either side of bike.

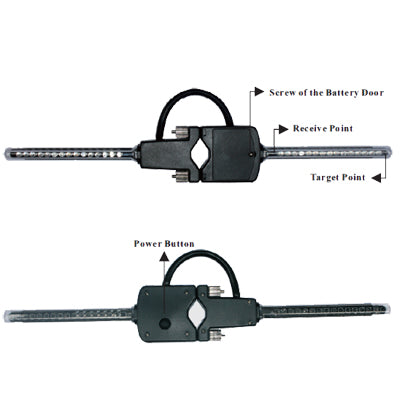

3) Install the sensor unit on the fork of the wheel. Make certain the sensor is aimed at the target point on

the Bike Wheel Light (as in diagram) but does not touch it.

4) If you installed the unit facing the left side of your Bike, the letters will be backwards. To change the letters hold the ON button down for 5 seconds until you see the LED lights start to flashing for a few times. The letters will now be correct.

* How to edit your own message:

1) Copy the software(whole file)to your computer

2) Double click on the icon to open the soft ware.

3) Connect the USB transmitter to your computer. You will see the icon's color of the Read memory change into BLACK.

4) Click on the icon of "New one group" to create a new group. And then you will see both icons' color

of the Read memory and Write memory change into BLACK.

5) Input your message in the Text area, and edit accordingly. After you finished the 00 (first message),then click on 01 (at the bottom of the edit window) you will find the 01 is in a blue pane, you can inpu the message for 01 now. Use the same way to finish 02 and 03.

If you like, you can draw a simple symbol in the edit widow by using your mouse.

6) Click on the icon of "File" and then select "Save" or "Save as…" to save your file.

7) Click on the icon Write memory to write the message into the transmitter and then take off the transmitter from your computer after you see “Write Memory Data” is 100% finished”.

* Note: Default position is at fork of the wheel. You can change the position by pull the blue line under the text(in the blank circle).

* How to transmit finished message to the wheel light:

1) Turn the wheel light on first by pressing the power button.

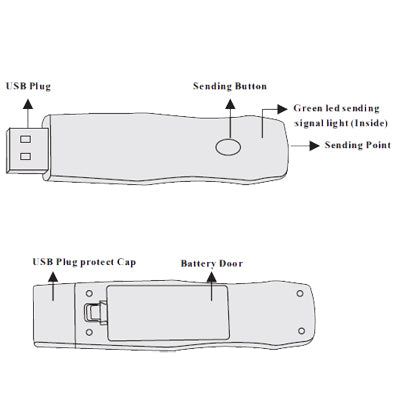

2) Hold the transmitter with the sending point aiming at the receive point on the Bike Wheel Lights, the range should be around 50cm.

Please Note: The wireless signal maybe effected by the strong sunshine. So please

avoid the direct strong sunshine while sending the message.

3.The first message: Press the button on the transmitter and the green signal light inside the transmitter will flash. And you will see Light A turns on. And then Light B turns on. The first message is finished.

4.The second message: Same as the first message. And you will see Light B and C turn on.

5.Using the same way to finish sending the third and the forth message.

6.Your wheel lights now are ready to say your own messages.
