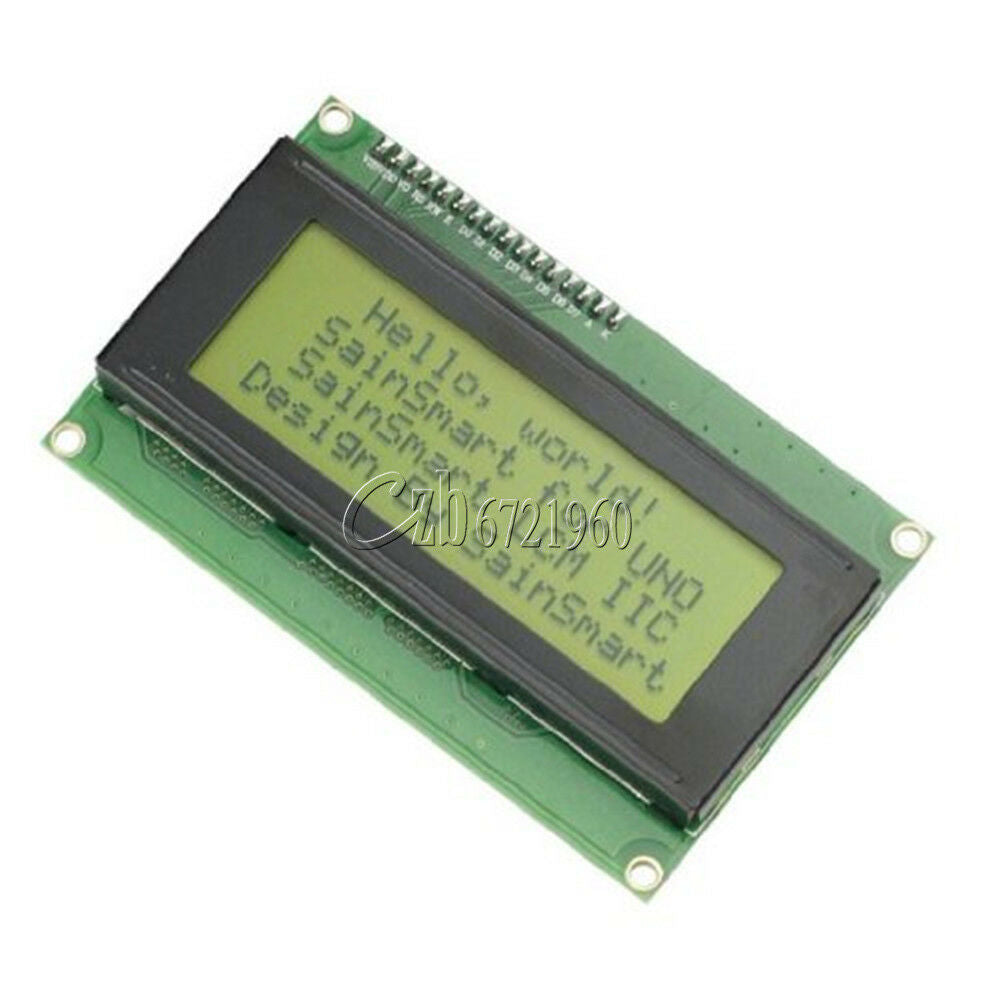

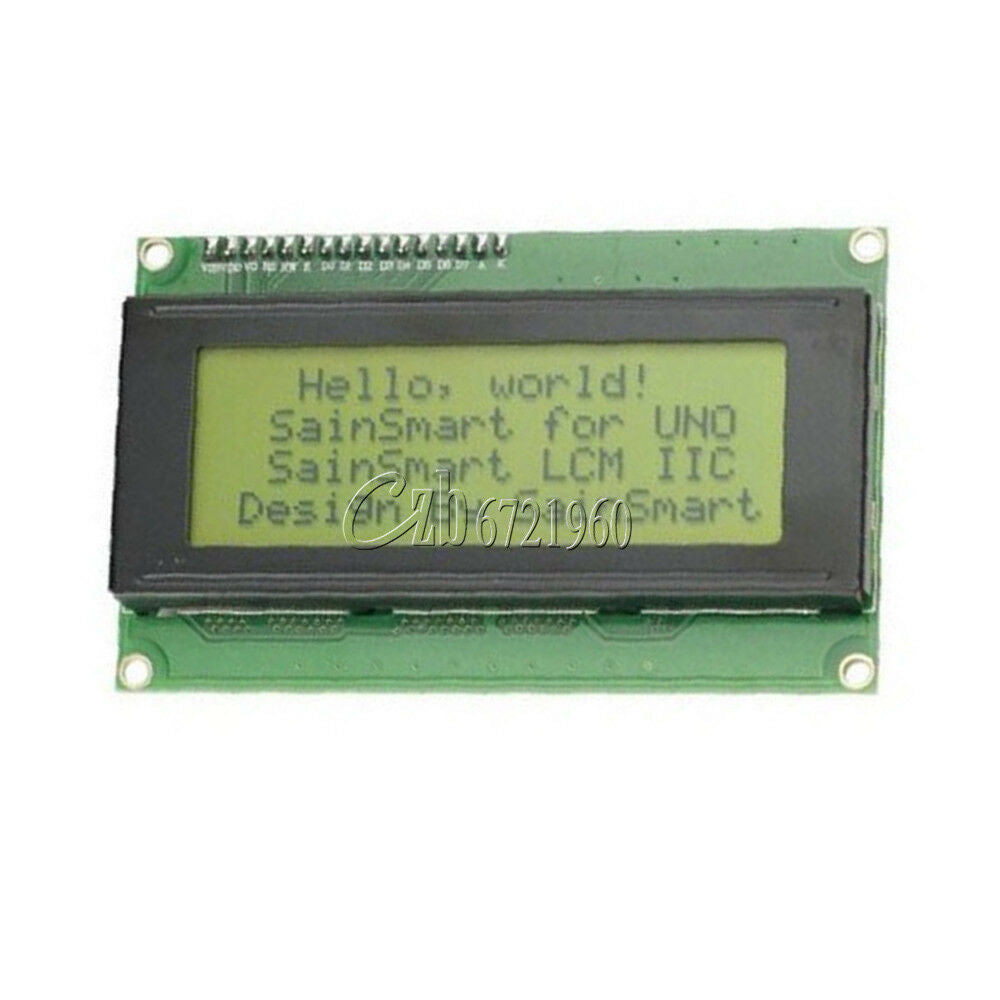

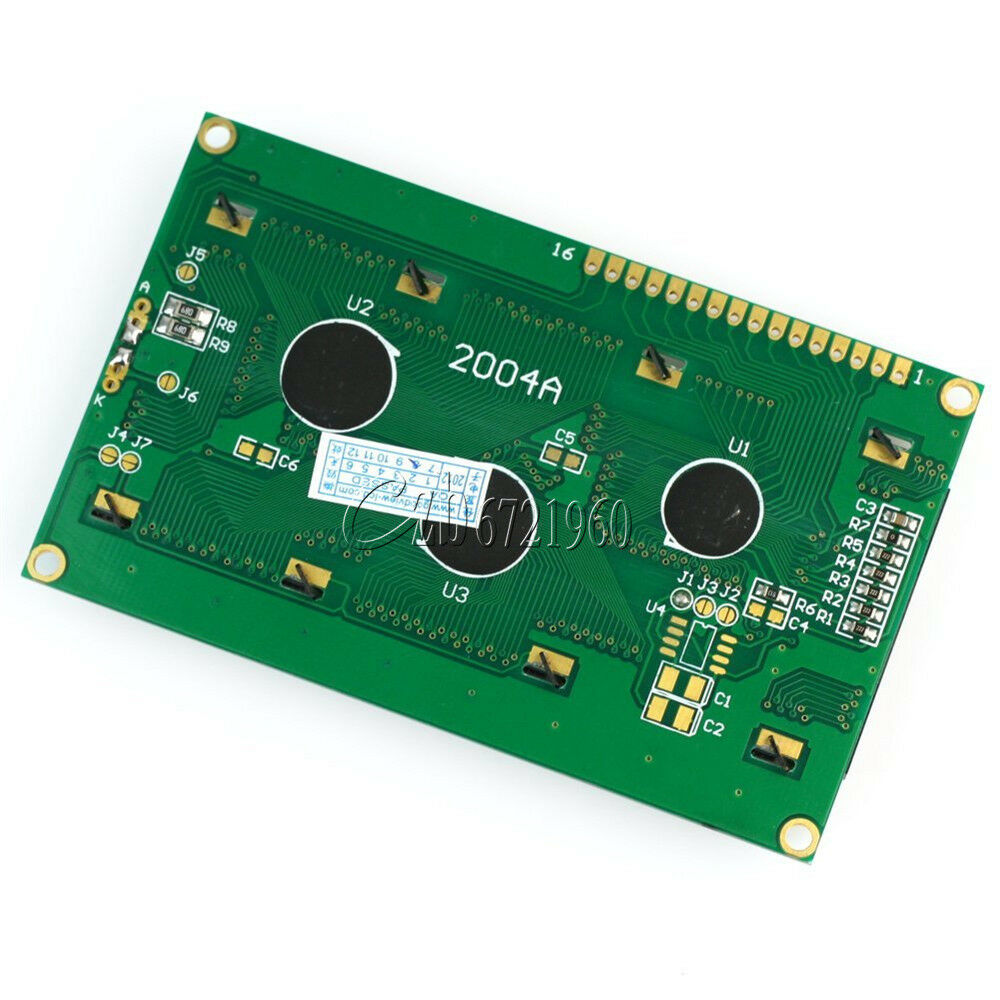

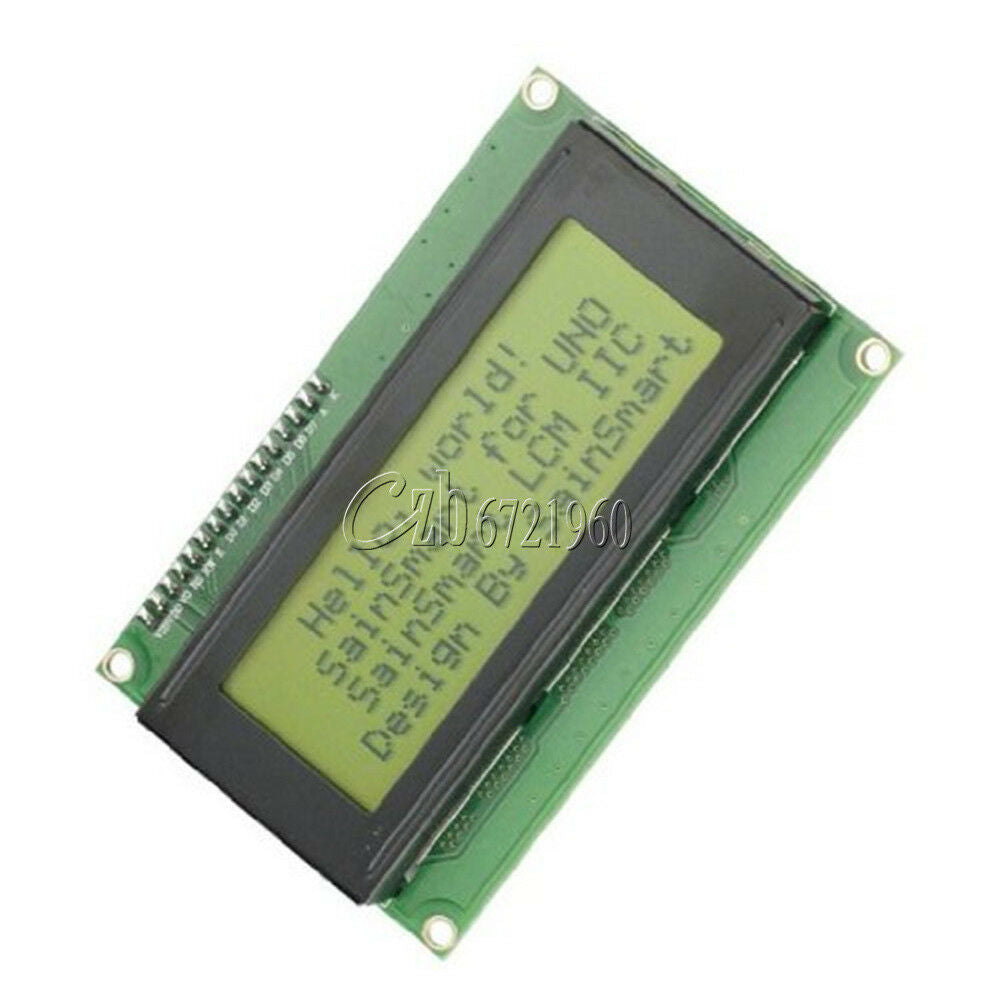

ITEM NAME:3.3V 20x4 Character LCD Module Display,HD44780,High Contrast,Wide View,Arduino Description ERM2004FS-2 is 20 characters wide,4 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,fstn-lcd positive,black text on the white color,high contrast,wide operating temperature range,wide view angle,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment. Specification Gross Weight (kg) 0.0800 Manufacturer EastRising Series Number ERM2004-2 Part Number(Order Number) ERM2004FS-2 Connection Pin Header Display Format 20x4 Character Sunlight Readable Yes Touch Panel Optional No Outline Dimension 98.00(W)x60.0(H)x14.0(T)mm Visual Area 76.00x25.20mm Active Area 70.40(W)x20.80(H)mm Character Size 2.95x4.75mm Diagonal Size No Dot (Pixel) Size 0.55x0.55mm Dot Pitch 0.60x0.60mm IC Package COB IC or Equivalent AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 Interface 6800 4-bit Parallel , 6800 8-bit Parallel Display Type FSTN-LCD Grey Response Time(Typ) No Contrast Ratio(Typ) No Colors No Viewing Direction 6:00 Viewing Angle Range No Appearance White on Blue Brightness(Typ) No Backlight Color White Color Backlight Current (Typ) 75mA Power Supply(Typ) 3.3V Supply Current for LCM(Max) 2000uA Operating Temperature -20℃~70℃ Storage Temperature -30℃~80℃ Package included 1 * 3.3V 20x4 Character LCD Module Display,HD44780,High Contrast,Wide View,Arduino（Yellow Backlights）.Find many great new & used options and get the best deals for 3.3V 20x4 Character LCD Module Display,HD44780,High Contrast,Wide View,Arduino at the best online prices at Order2india Shopping! Free shipping for many products!
