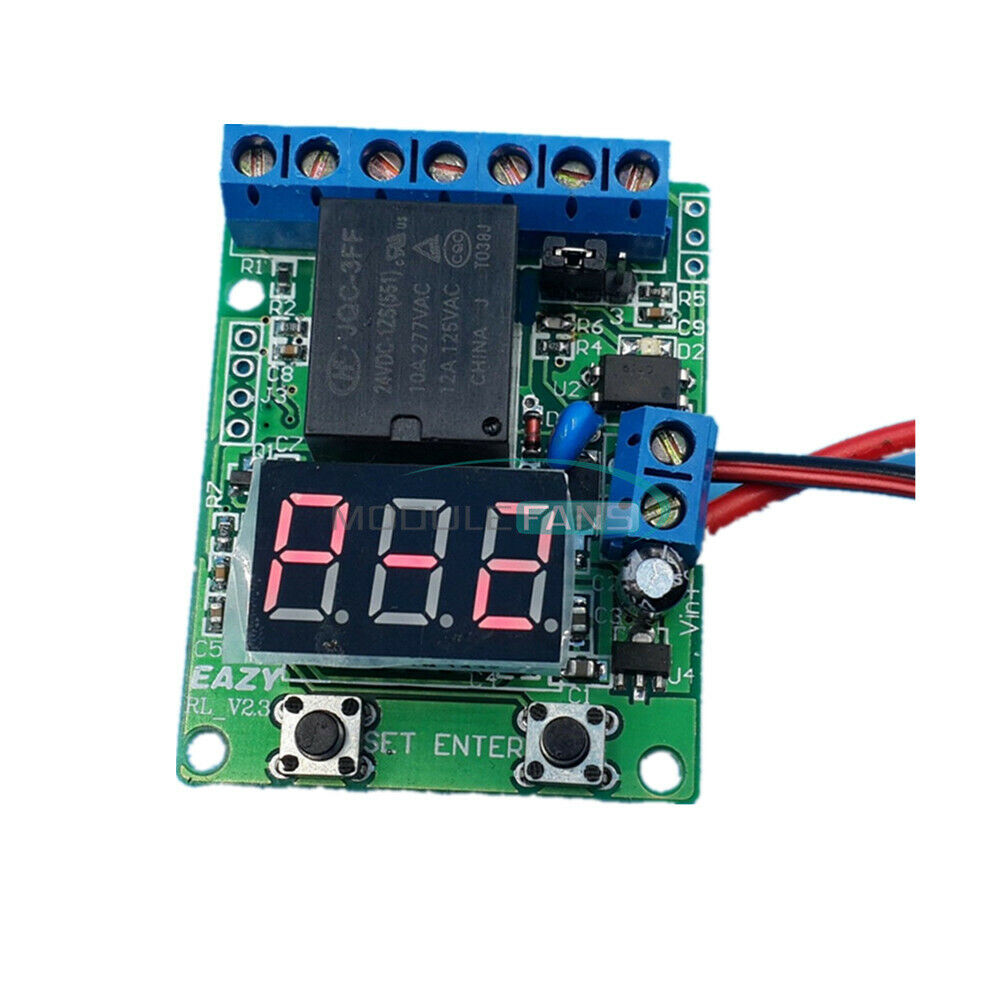

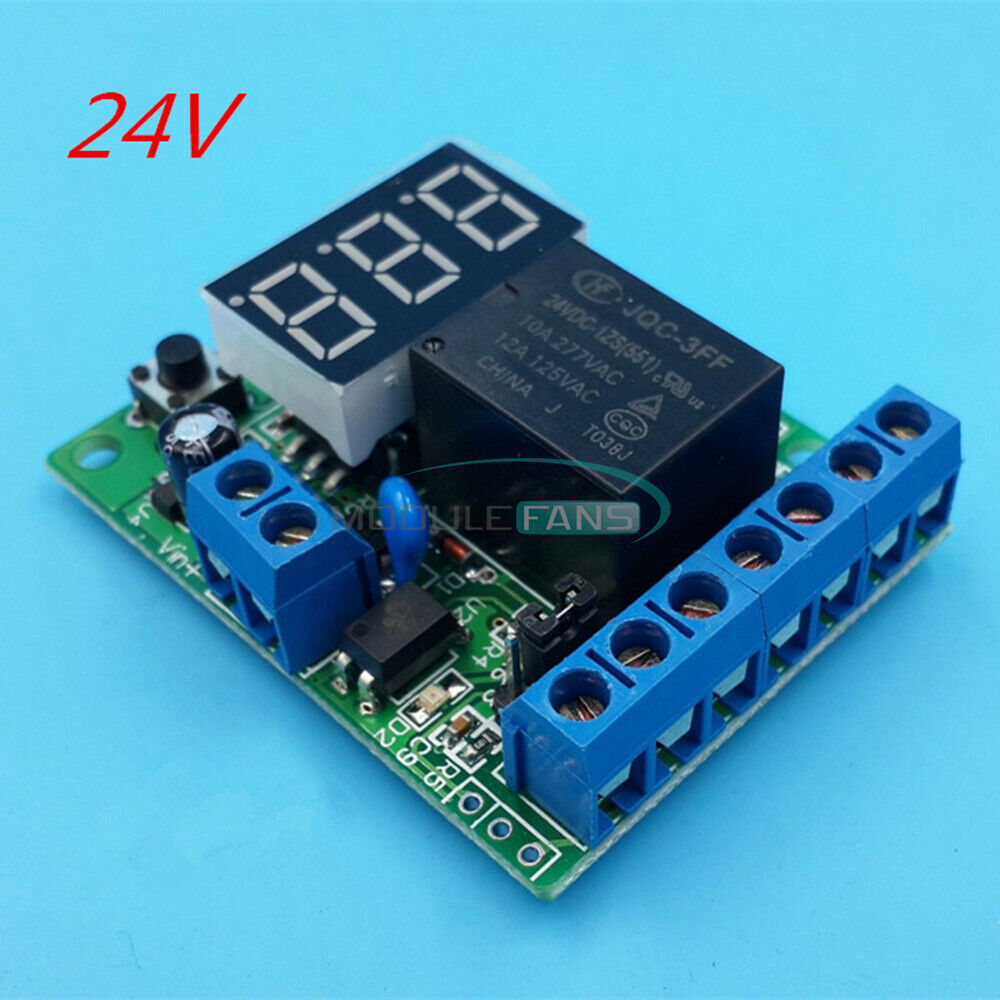

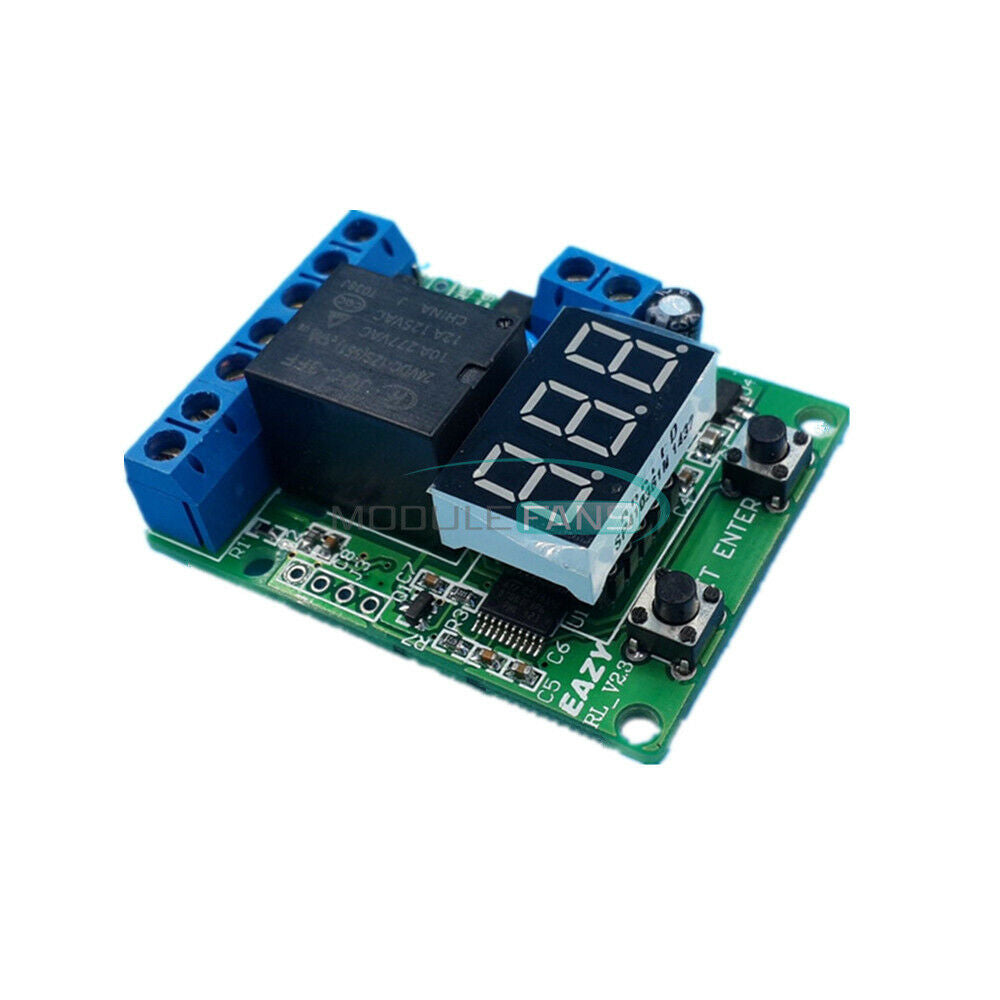

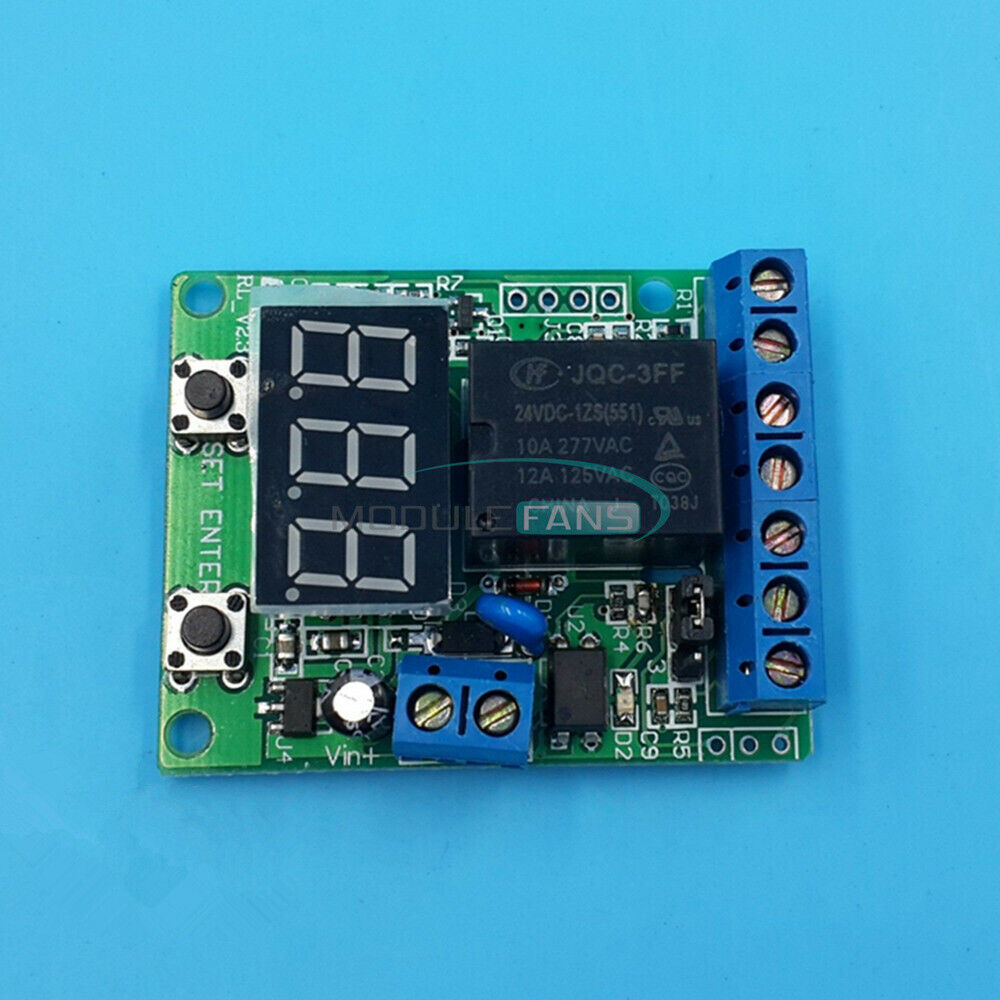

ITEM NAME:24V Voltage Detection Control Delay Upper and Lower Voltage Range Control switch Product Overview 24V Voltage Detection Control Delay Upper and Lower Voltage Range Control switch Description: Operating modes: P-1: Timer ( 1-999 S / 1-999 Min) P-2: Delay timer ( 1-999 S / 1-999 Min) P-3: Voltage control relay ( control the load on/off) P-4: Voltage control Timer- A (release first) P-5: Voltage control Timer- B (close first) P-6: Voltage range control relay P-7: Voltage range control Timer P-8: Set display off Timing Range: 0-999 seconds or 0-999 minutes (0.1s-999s optional) Voltmeter display range: DC 0-99.9 V Voltage detection error: ± 0.1V Operating Power: 24V Relay parameters: Coil Voltage: DC 24V A set of conversion (normally open and normally closed) Contact load: 10A/277V AC or 10A/30V DC Contact resistance: ≤ 100mΩ (1A 6VDC) Mechanical durability: 10 millions Electricity durability: > 100,000 (10A-250VAC) Operating Temperature: -40 ~ 85℃ External signal input: (5~ 12V) or passive switch (9 levels delay time can be set) Timer mode can set the relay contact close and release time, the implementation of a single timing loop In voltage control mode, can preset upper and lower voltage values limits Set display shut, the minimum current values are 6mA/12V (delay released) The pre-set parameters can be saved after power off. 2 operating modes: Connect to power, LED digital tube displays words "E-A-Z-Y-t†in turn, system enter into the selection state, the initial mode selection is displayed as "P-0", press the “SET†button to select "P-1~P-8" mode, press “ENTER†to enter the corresponding mode.while any mode running, press the “ENTER†button for 3 seconds, system will return to the mode selection state. Press the “SET†and “ENTER†button to connect the power, the controller will be restored to factory settings. 2.1 Timer mode (P-1) Press the “SET†button to select "P-1", controller system will enter into the timer mode. “ P-1â€/ “P-2â€: 1-999 seconds /minute .Find many great new & used options and get the best deals for 24V Voltage Detection Control Delay Upper and Lower Voltage Range Control switch at the best online prices at Order2india Shopping! Free shipping for many products!
