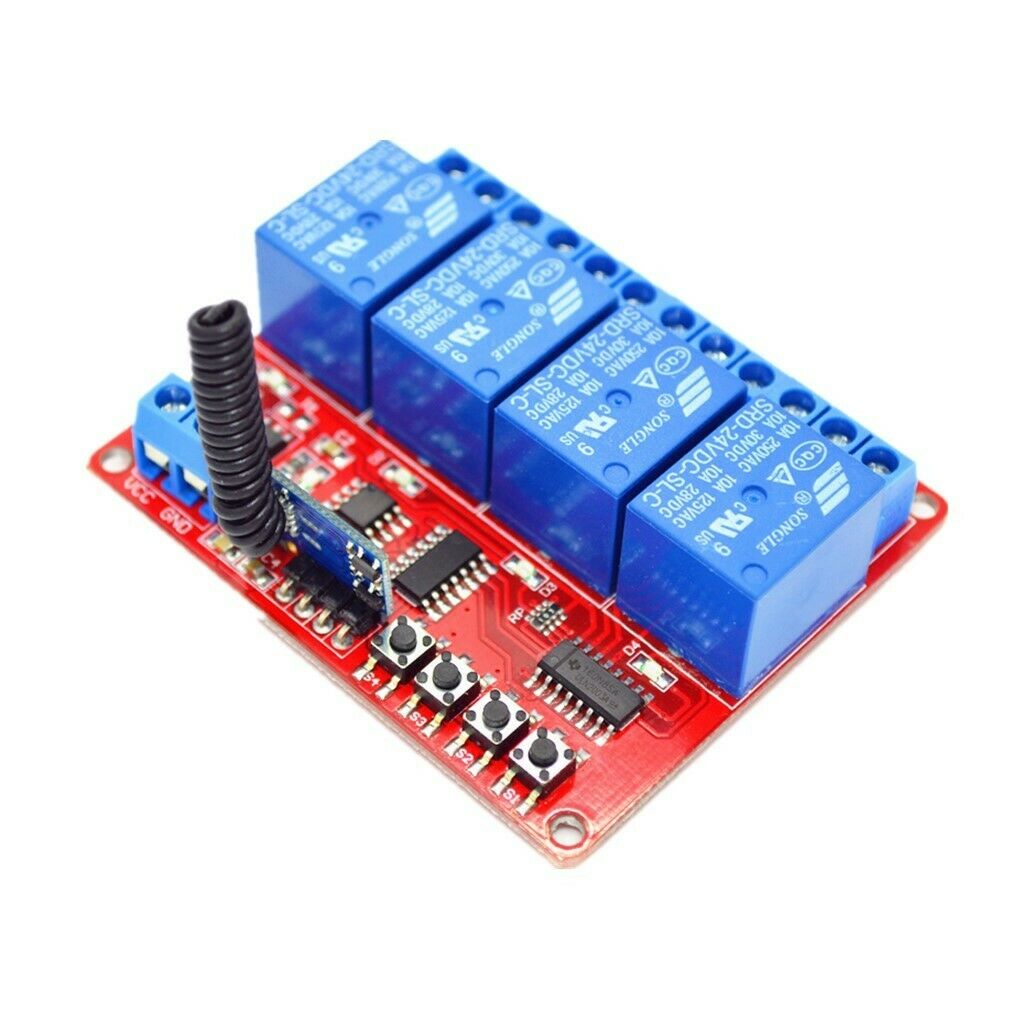

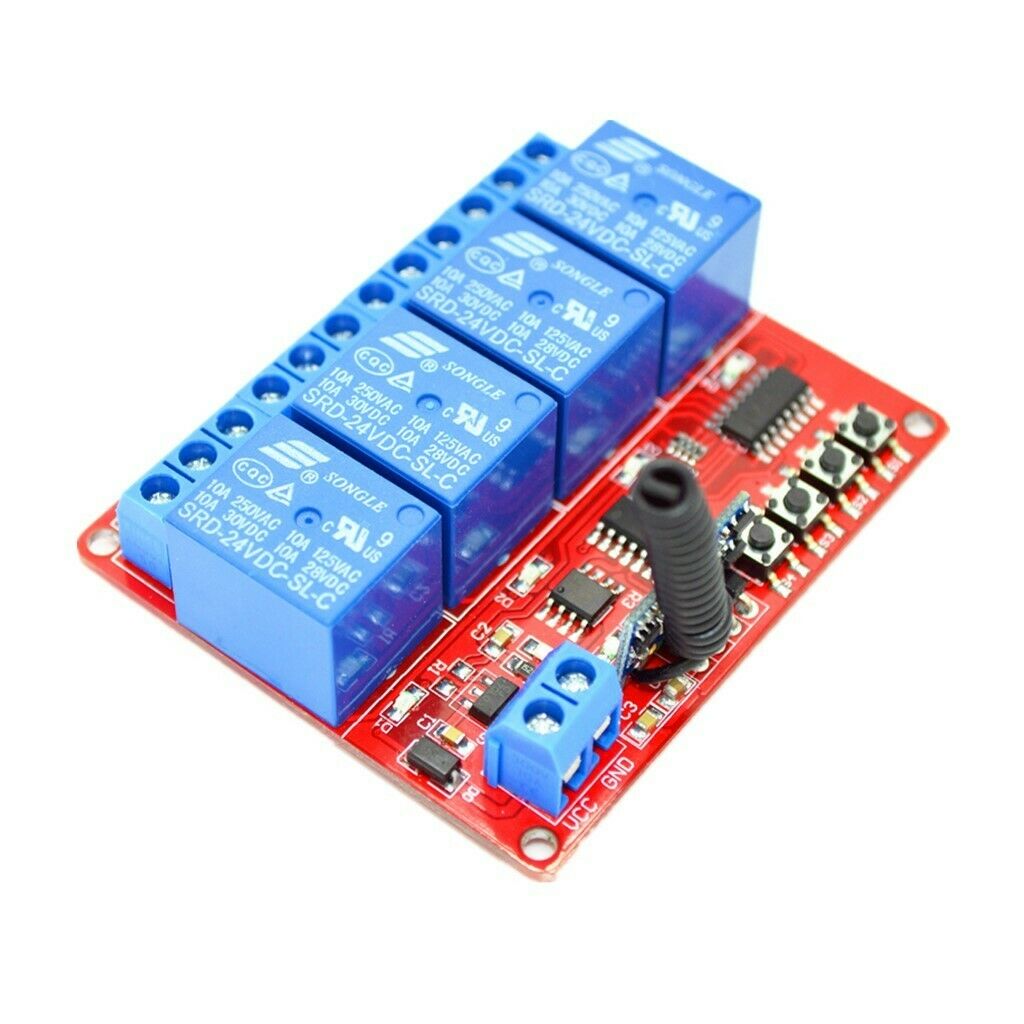

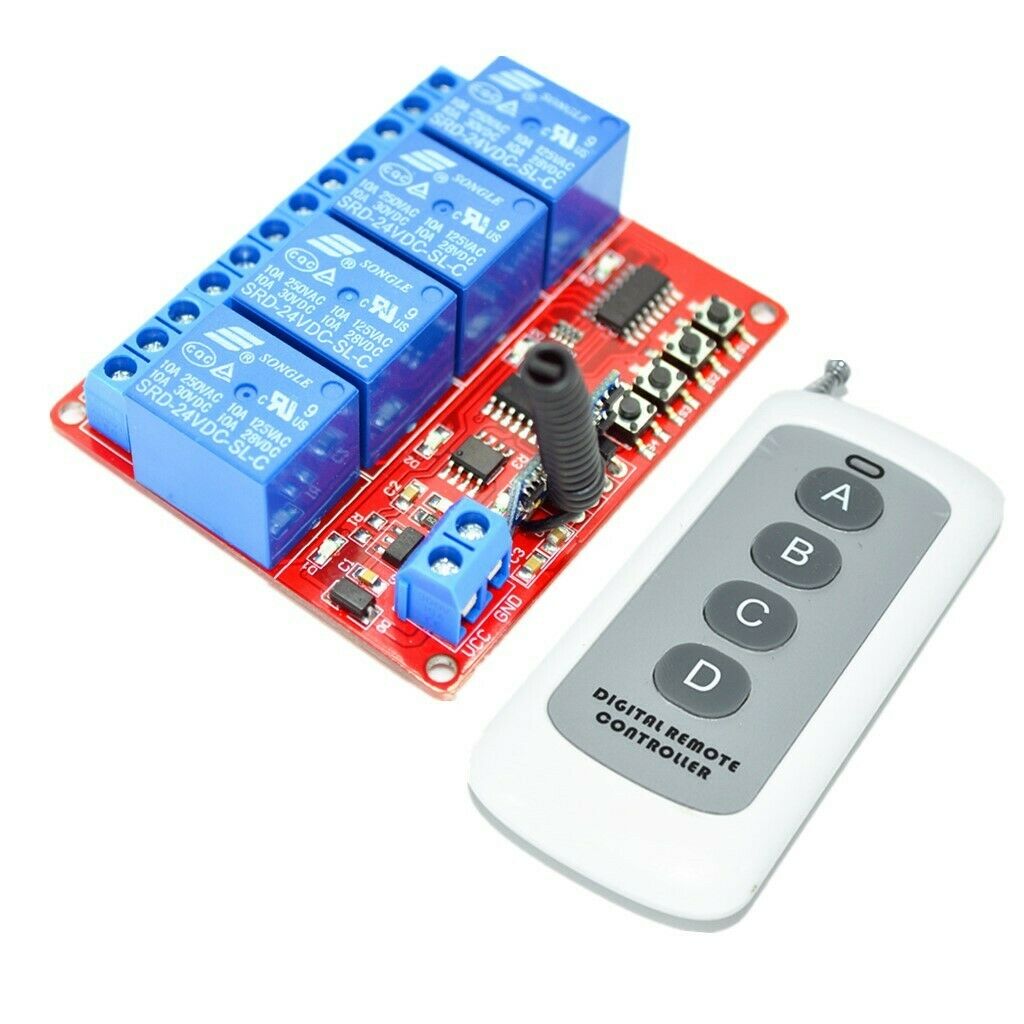

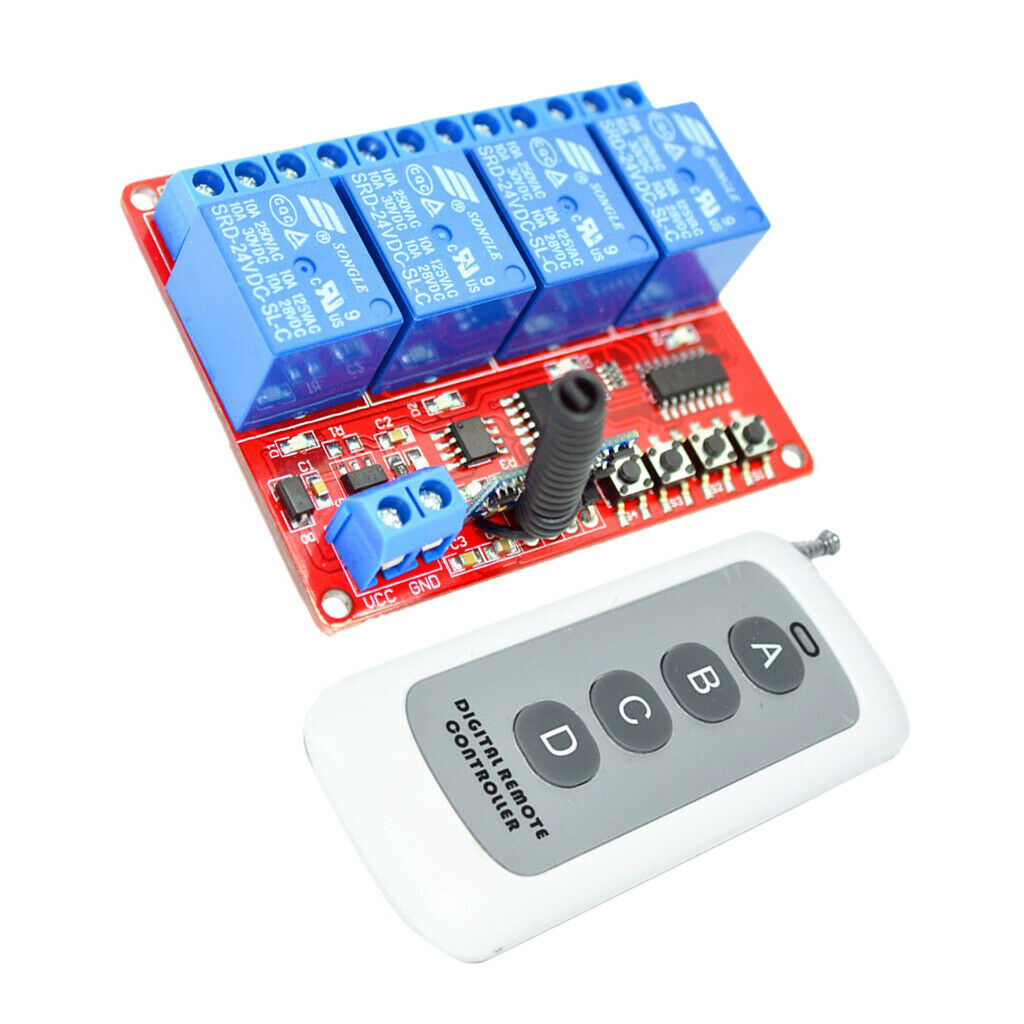

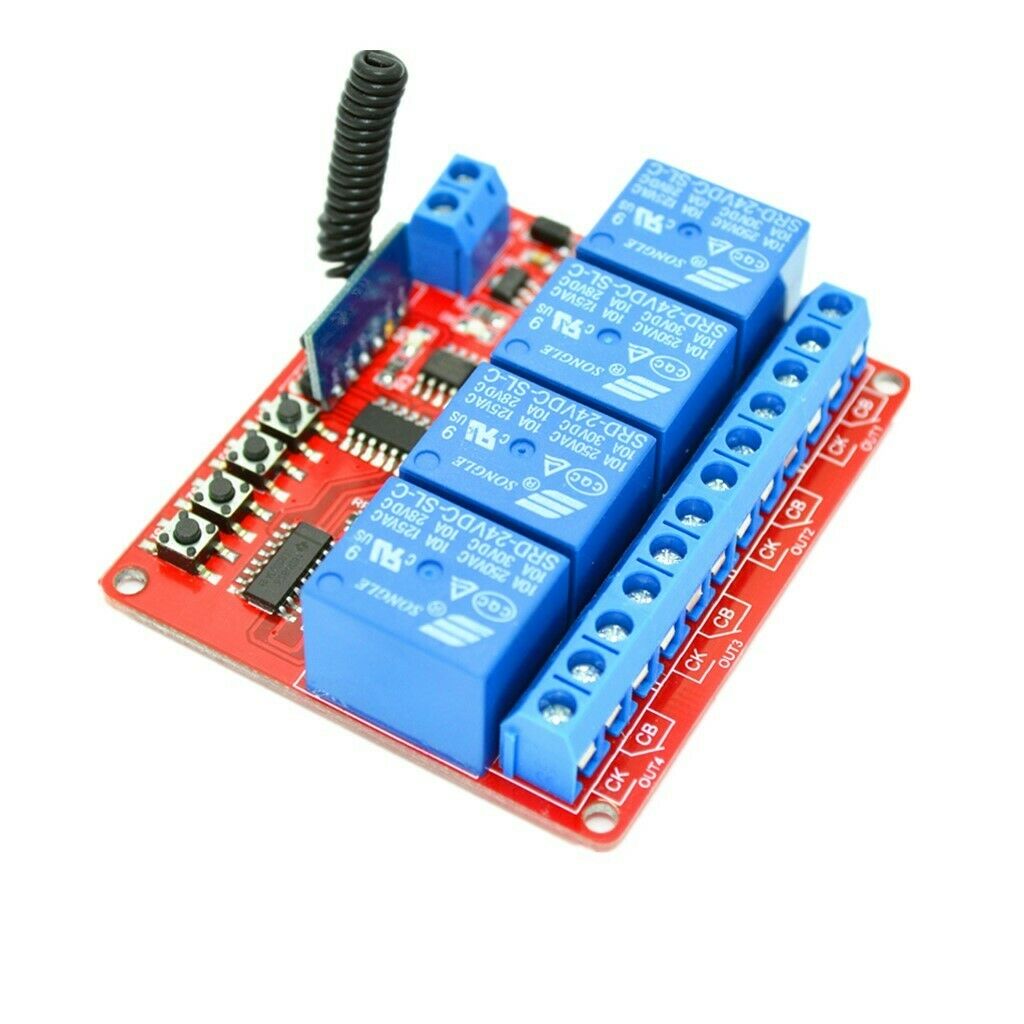

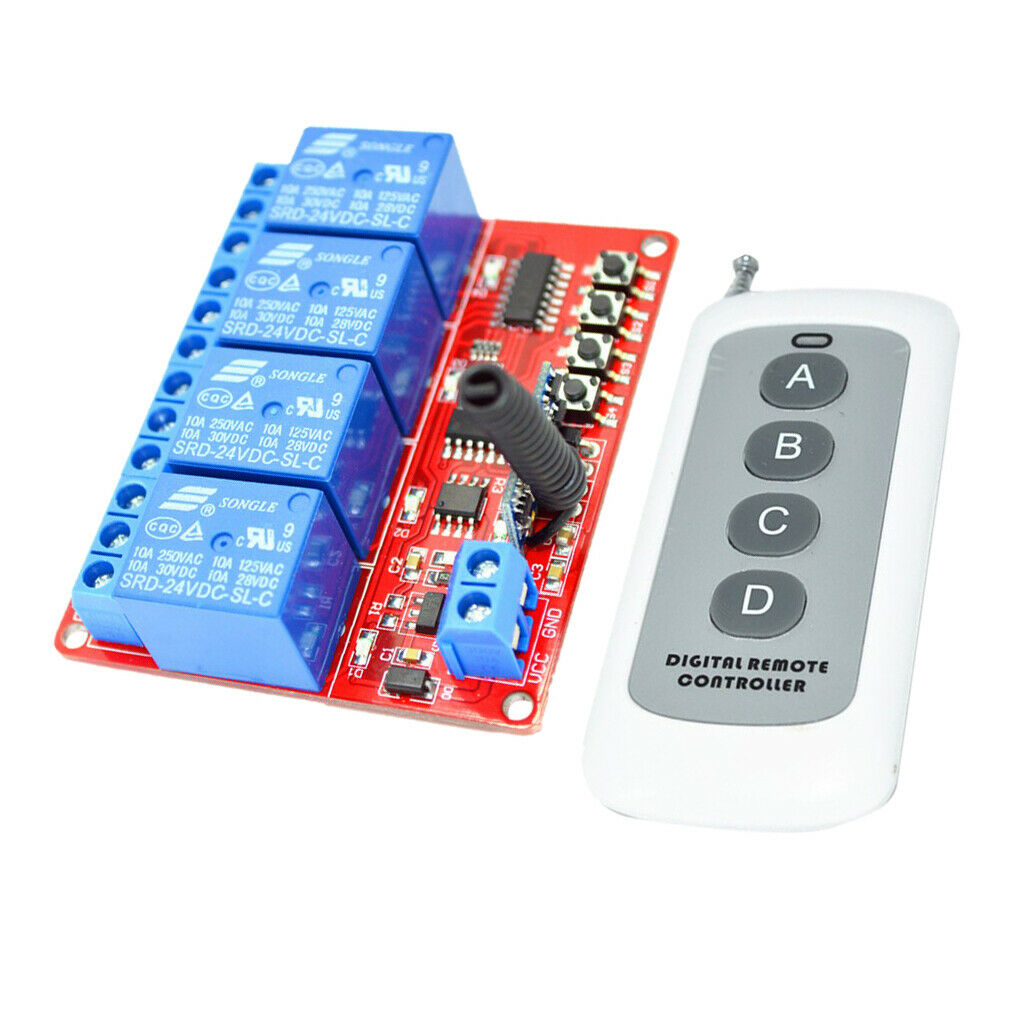

ITEM NAME:24V 4CH Relay Wireless Remote Control Lamp LED Switch Transceiver 1000m Description: Operating voltage: 22-24.5V (input) VCC: Connect the power supply positive GND: Connect the power supply negative Operating current: about 140mA (relay pull state) Static operating current: 8mA or so (relay release state) Receiver size: Approx. 65x 56x23mm/ 2.56x 2.20x 0.87inch (with housing, housing with 3mm screw hole) Scope of application: water pump, light bar, lamp, home appliances, machinery and equipment, mechanical switch, roll gate, shutter curtain, etc. Module type: 433MHz learning wireless access module Specification: Material: FR4 Fiberglass Board Size: Approx. 65x 56x 23mm / 2.56x 2.20x 0.87inch Receiving distance: between 50-1000 meters (can through the wall) Working mode: self-loing, jogging two kinds of work modules (four-way each road can be independently set to self-loing or jog) Work instructions: D5 (power indicator), D1-D4 (relay switch indicator), D6 (learning indicator) Output mode: normally opened (), common (COM), normally closed (CB) (Note: normally closed and common in the normal state is connected, so that the output of the module is used as a switch; The switch is often used when the closed end is usually not used, only the normally open and common) First, learning methods: Press the learning button S1, immediately release, immediately press and hold S1 (faster), learning light D6 flash 1, and then release the S1 key; hold the need to learn the remote control button, learning instructions Light flash 2, to prove the first road to study success Other three way to learn the same way, 2 Road 3 Road 4, respectively, corresponding to the keys S2, S3, S4; Second, the wireless function to clear the method: Power off state, hold down S1-S4 any learning button, and then power, learning light flashing 4, the release button that the module 4-way all clear the success Third, Self-loing and jogging function conversion instructions (4-way each is set indep.Find many great new & used options and get the best deals for 24V 4CH Relay Wireless Remote Control Lamp LED Switch Transceiver 1000m at the best online prices at Order2india Shopping! Free shipping for many products!
