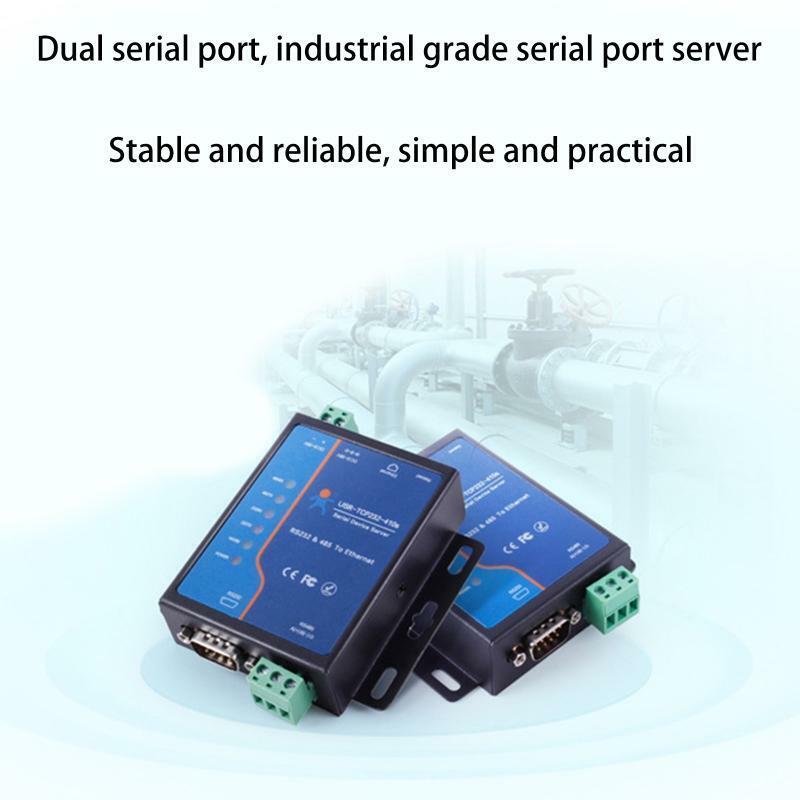

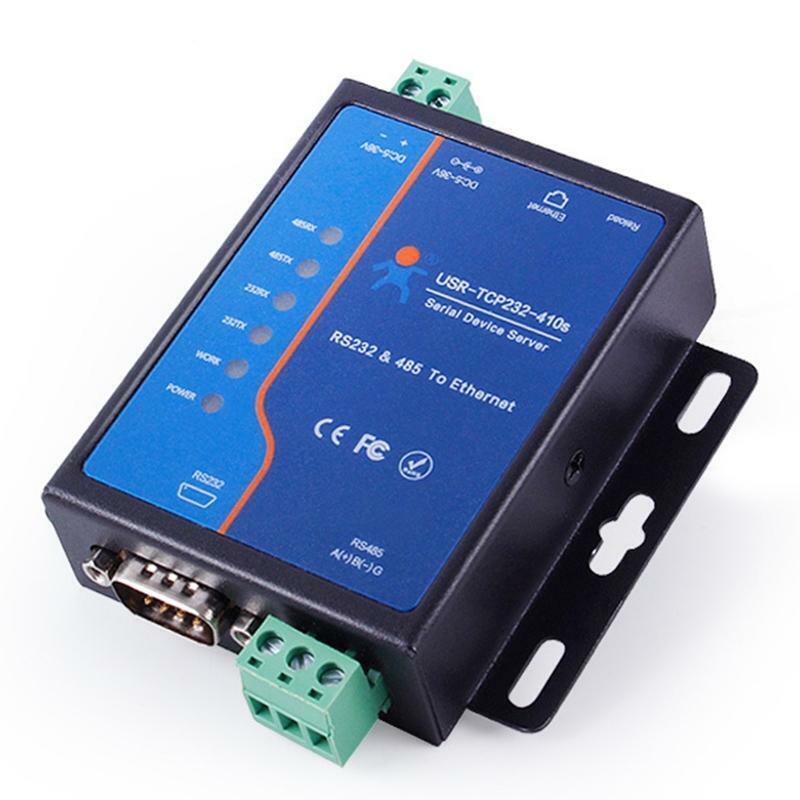

2 Serial RS232/ RS485 to 410s WIFI/ Ethernet Two-way Transparent TransmissionFeatures: 100% brand new and high qualityThis is a serial rs485&rs232 to Ethernet server, used for data transparent transmission.USR-TCP232-410S is a dual serial server, which supports rs232 & rs485 working at the same time.It is based on Cortex-M4 solution And the internal of the serial server integrates TCP/IP protocol stack.Besides,USR-TCP232-410S has the function of terminal power supply.Multiple indicator lights for convenient debugging ARM kernel and TCP/IP protocol stack Auto-MDI/MDIX,RJ45 port with 10/100MbpsTCP Server,TCP Client,UDP,UDP Server and HTTPD Client work mode Support virtual serial port and provide corresponding software USR-VCOMSerial baud rate from 600bps to 230.4K bps Check bit of None,Odd,Even,Mark and SpaceDNS and DHCP supportedProvide PC TCP/IP Socket programming example,VB,C++,Delphi,Android,IOSBuilt-in webpage also can customize webpage for users RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolationThe global unique Mac address bought from IEEE,user can define Mac addressSpecification: Processor: Cortex-M4Basic Frequency:120MHzFlash: 512K byteEthernet Port: 1Interface: Rj45Rate: 10/100Mbps Auto-MDI/MDIX auto switchNetwork Protocol: IP TCP UDP DHCP DNS HTTP ARP- ICMP- Web Receive Buffer: Max 16k byteSerial Port: 2(1x RS- 232, 1x RS-485 3 WireData Bits: 5 6 7 8 Baut Rate: RS-232 600bps-230K bps, RS-485 600 bps-1M bpsFlow Control: Rts .CTSProtection: RS-485: anti-Static 2KV lightning-ProtectionSupport soft ware: Virtual serial Windows 2000 or higher(32bit/64bit)Configuration:Built in webpage,computer set-up soft ware serial commandSize: approx 80x62x24mm/3.15x2.44x0.94inInout voltage: DC5V-36VPower: less than 1W Accessaries: 5V1A high power supply Serial linePackage Includes: 1 Set x Serial rs485&rs232 to Ethernet servernote: Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.Please allow 0-3mm error due to manual measurment.
