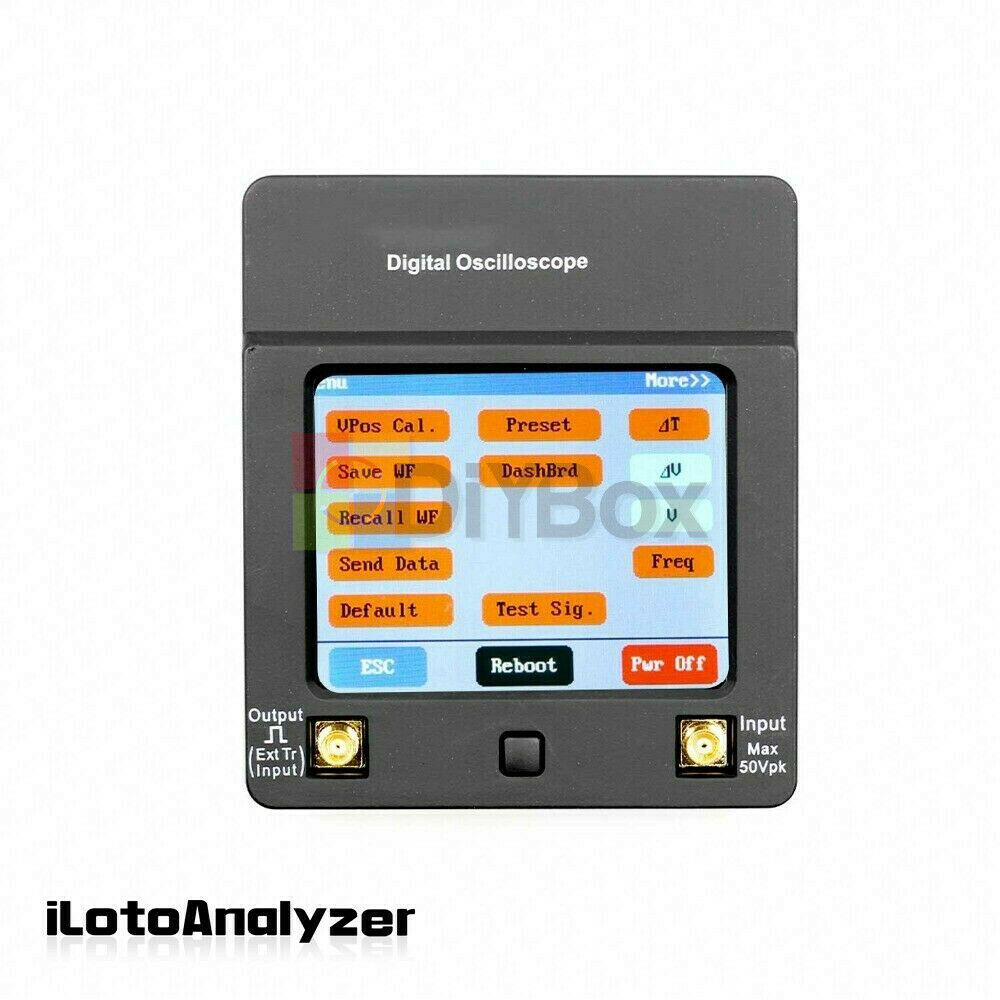

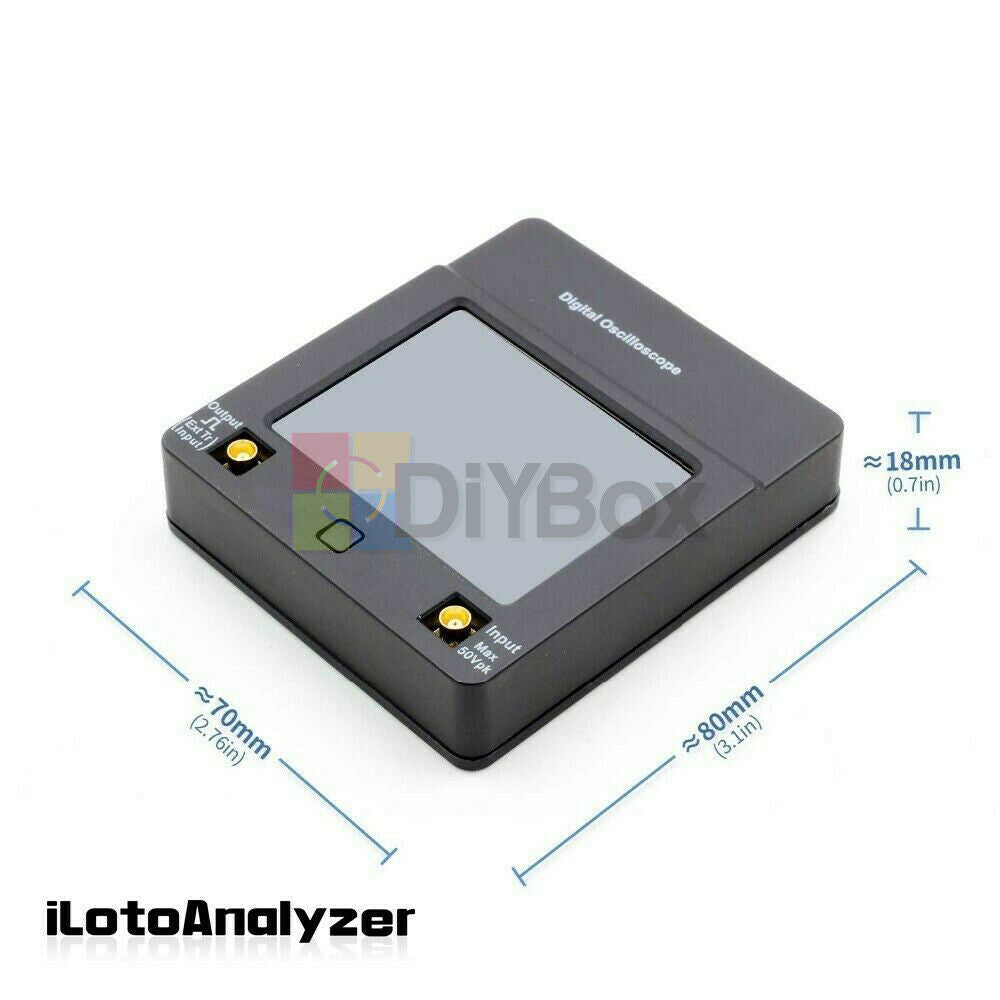

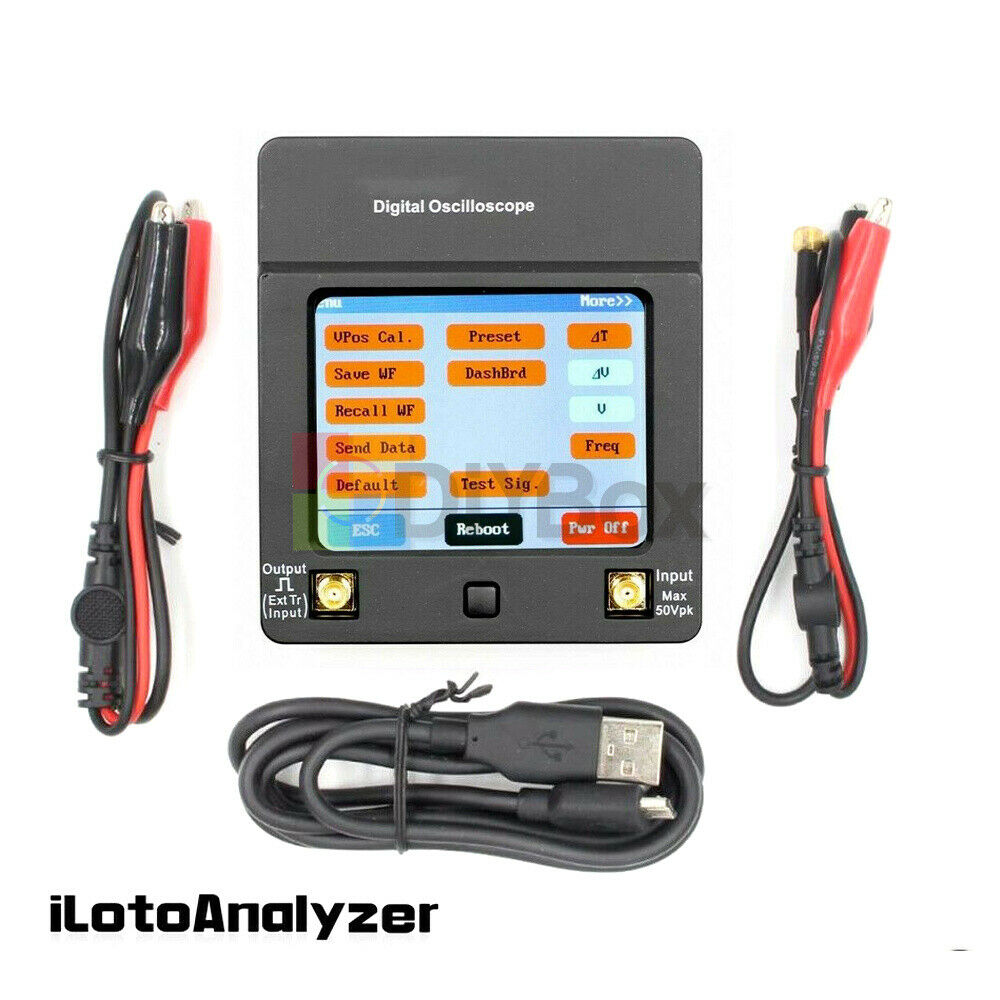

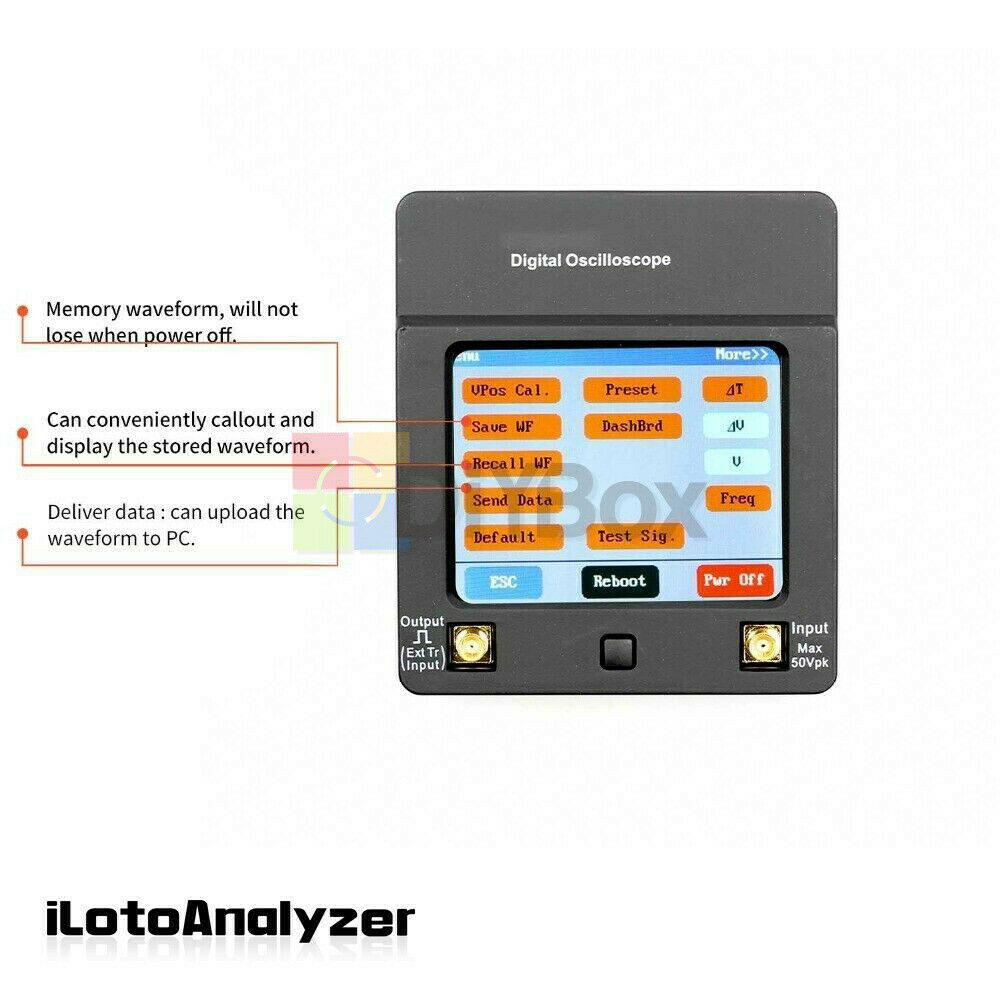

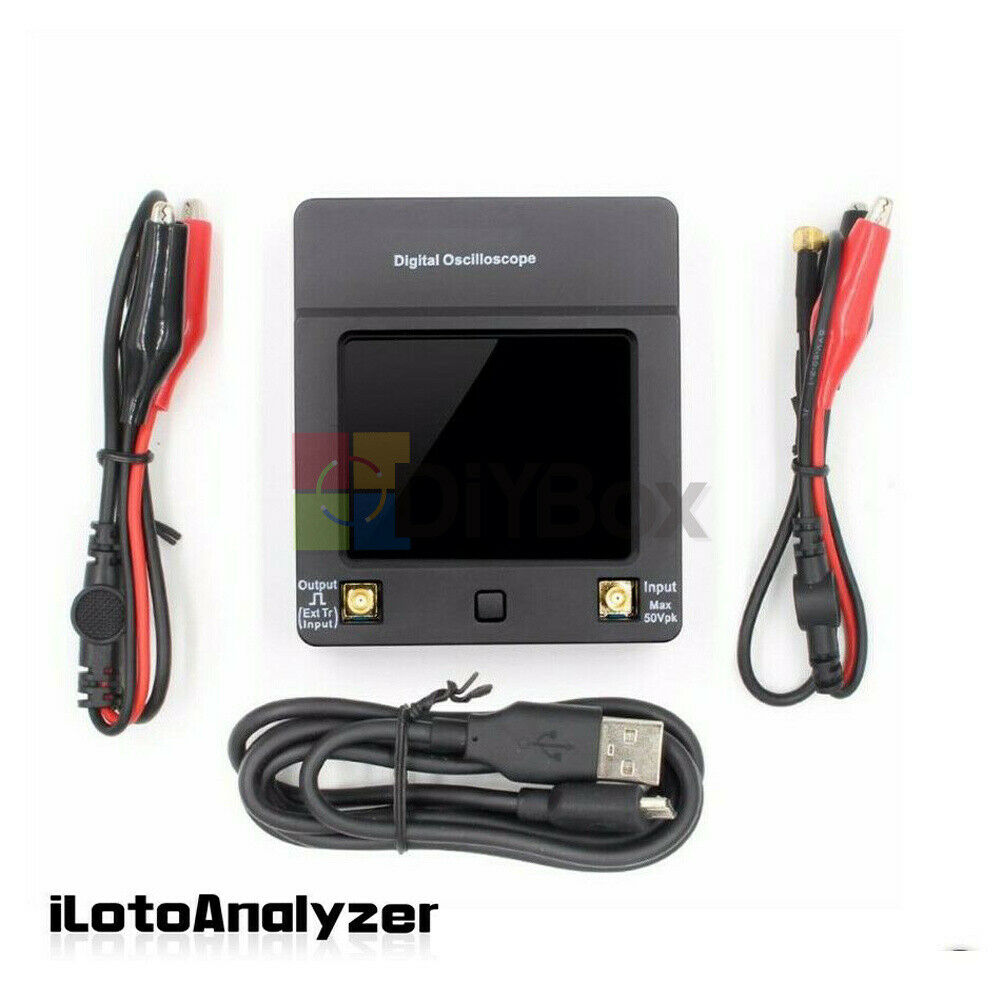

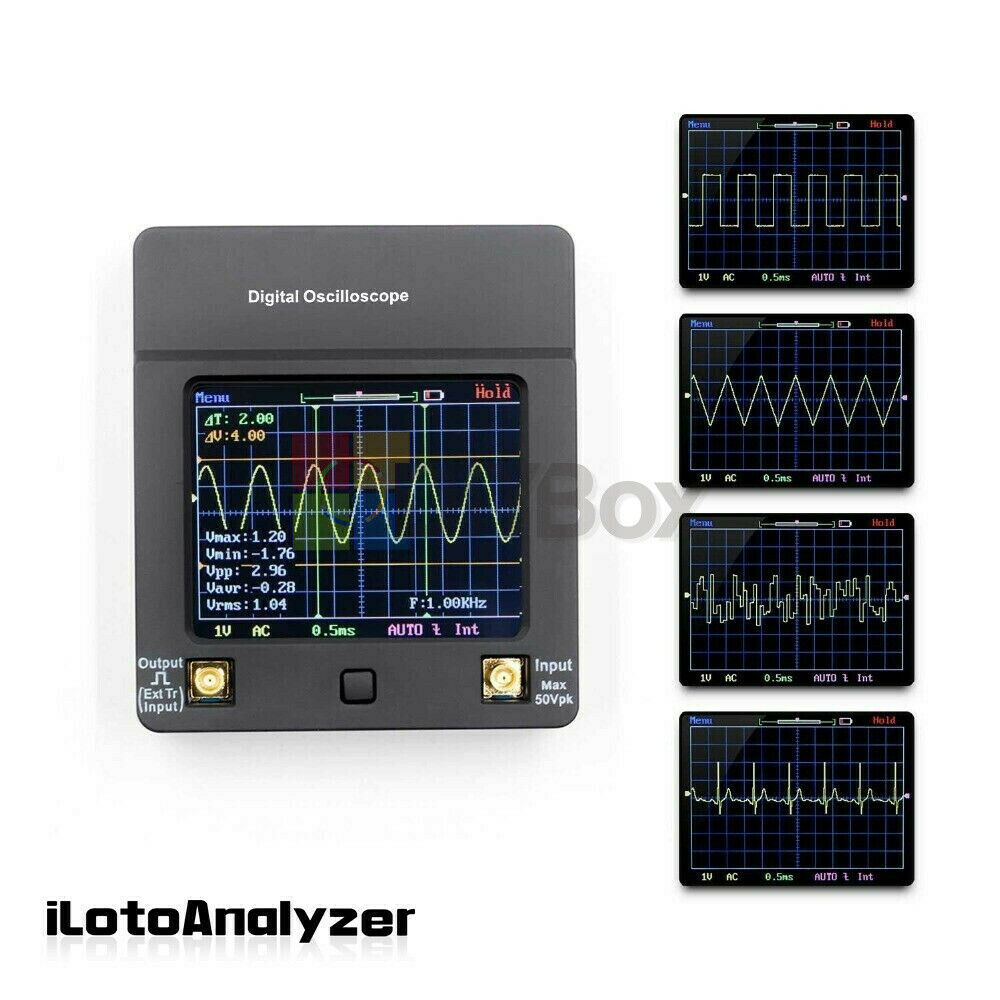

ITEM NAME:2.4inch TFT Mini Digital Handheld Oscilloscope DSO112A 2MHz Touch Screen 2.4inch TFT Mini Digital Handheld Oscilloscope DSO112A 2MHz Touch Screen Specification: Analog bandwidth: 0–2MHz Maximum real-time sampling rate: 5Msps Vertical Sensitivity: 2mV/Div–20V/Div, total 12 gears (advance by 1-2-5 mode) Horizontal time base range: 1μs/Div–50s/Div, total 21 gears (advance by 1-2-5 mode) Maximum input voltage: 50Vpk (100Vpp) Record length: 512/1024 points optional Input impedance: 1MΩ ADC accuracy: 8Bit Coupling method: DC/AC Trigger mode: automatic (AUTO), normal (NORM) and single (SING) Trigger edge: rising, falling Trigger source: internal and external External trigger voltage range: 0-15V Size: 70 x 80 x 18 mm Weight: 85g (without probe) Frequency meter function: directly display the signal frequency Voltmeter function: directly display the maximum value, minimum value, peak-to-peak value, average value and true effective value of the waveform signal Features: -Waveform display can be frozen at any time (HOLD function). -Unique scrolling slow signal display; can display the signal completely continuously, unlike the SCAN mode which will cause the signal display to be discontinuous. -With time cursor, which can automatically calculate the time difference and display. -With voltage cursor, which can automatically calculate and display the voltage difference. -Come with 3.3V square wave test signal, the frequency can be set to Hz/10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/440Hz. -Able to save/recall acquired waveform. -PC upload of waveform data. -Battery/USB power supply. -Built-in smart charger. Note: When the time base is selected within 1μs-5μs, the trigger function will be stopped, and the waveform will appear to walk. At this time, as long as the waveform is frozen with the HOLD function, stable observation can be achieved without affecting the observation effect at all. Package List: 1 x Oscilloscope 2 x BNC-Clip Cable 1 x USB Cable.Find many great new & used options and get the best deals for 2.4inch TFT Mini Digital Handheld Oscilloscope DSO112A 2MHz Touch Screen at the best online prices at Order2india Shopping! Free shipping for many products!
