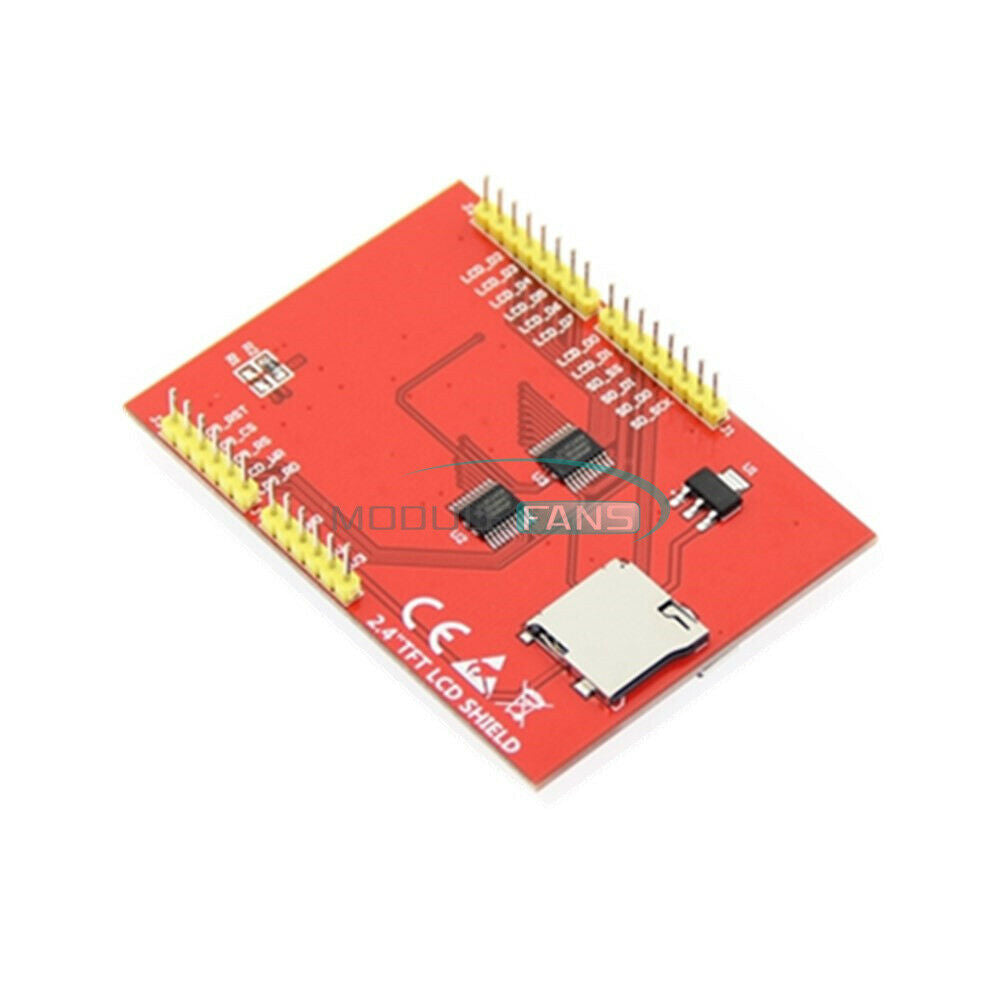

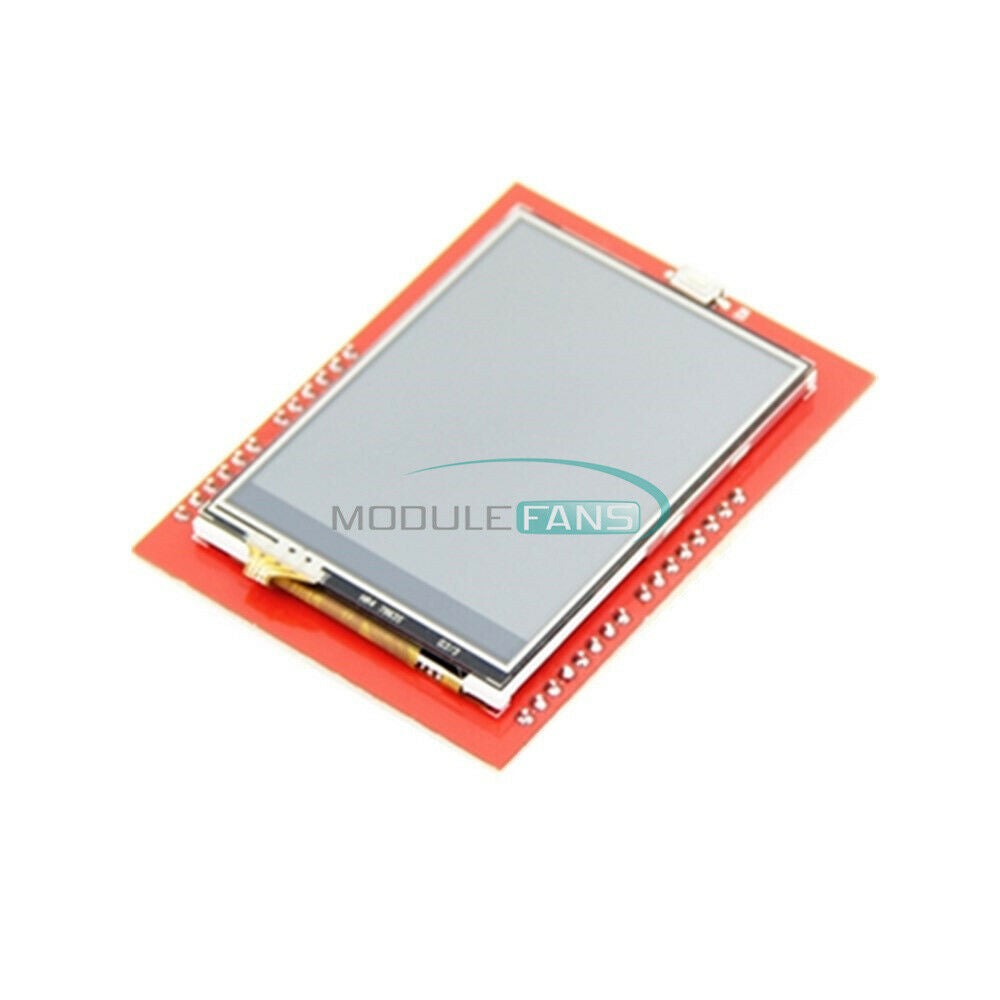

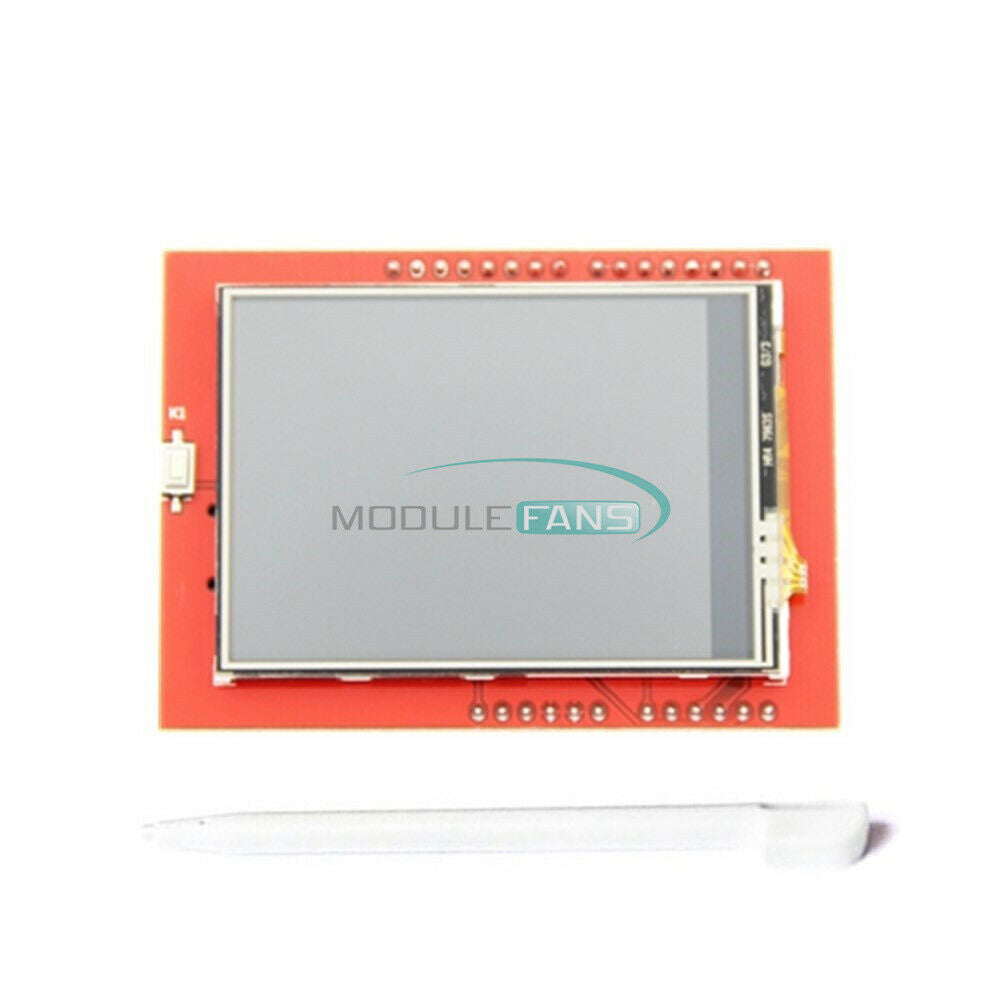

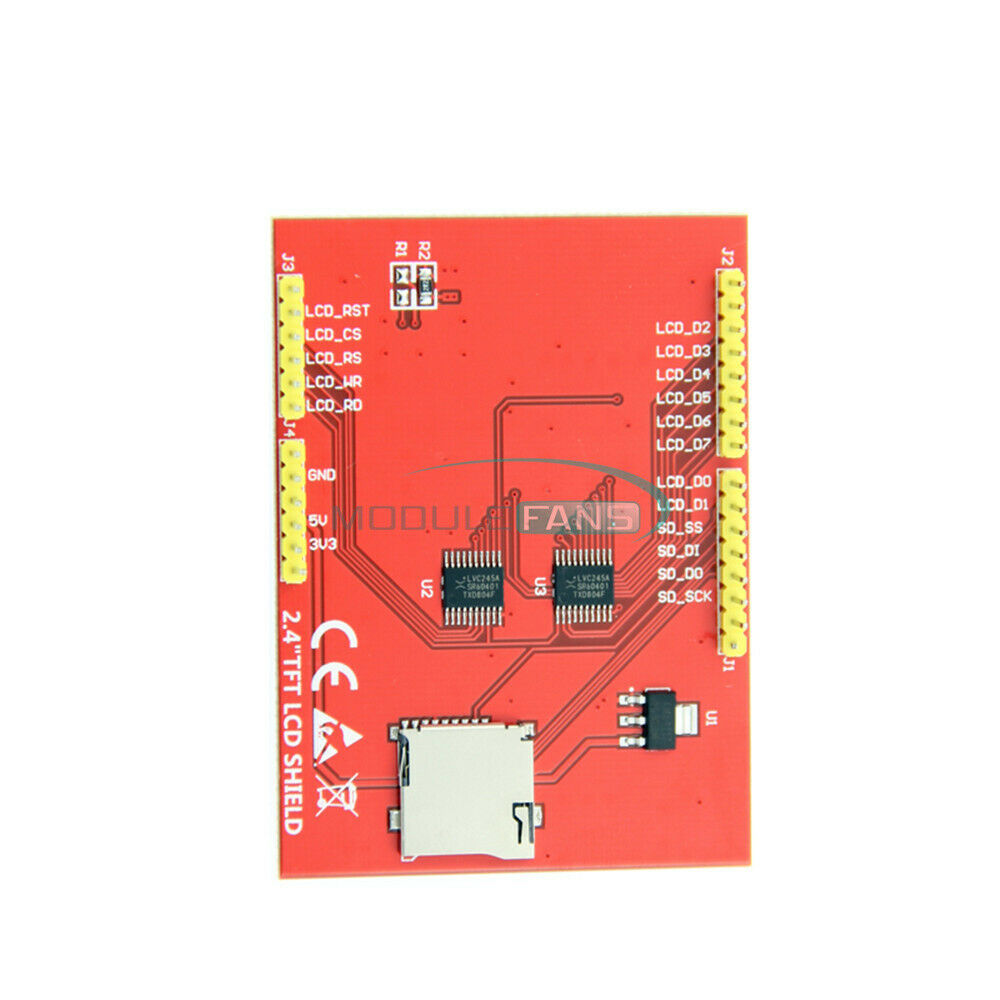

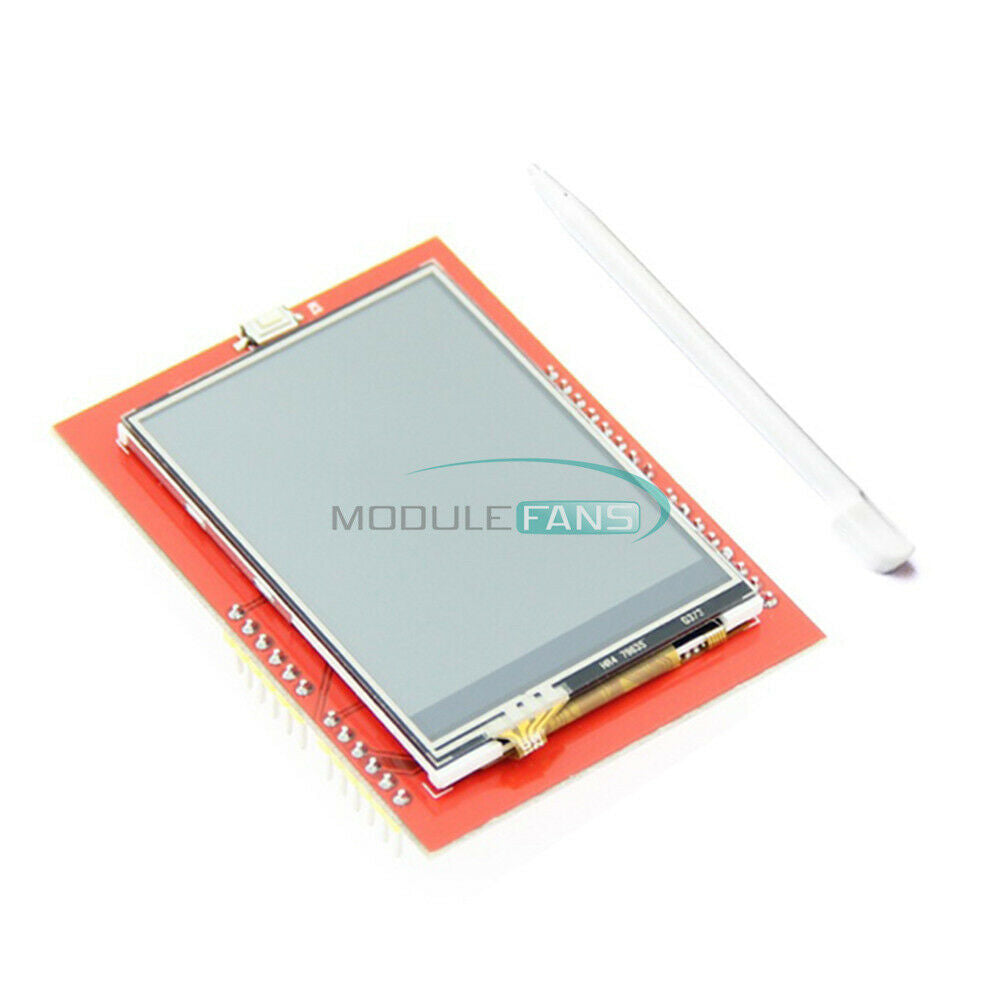

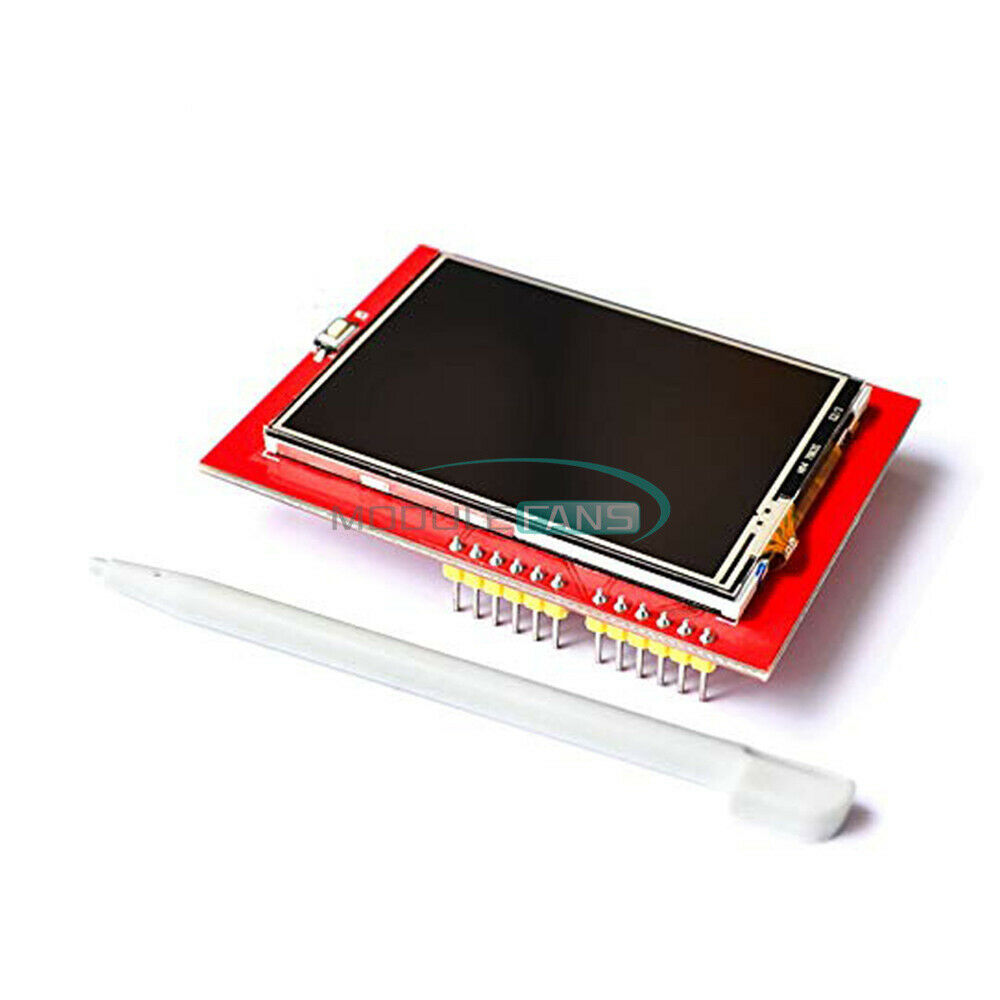

ITEM NAME:2.4'' 320*240 TFT LCD Touch Screen LCD Dispaly Shield Fit Arduino Uno Mega2560 Product Overview 2.4'' 320*240 TFT LCD Touch Screen LCD Dispaly Shield Fit Arduino Uno Mega2560 Product Description Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring 320X240 resolution, clear display, support for touch function Support 16-bit RGB 65K color display, display rich colors 8-bit parallel bus, faster than serial SPI refresh On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage Easy to expand the experiment with SD card slot Provides an Arduino library with a rich sample program Military-grade process standards, long-term stable work Provide underlying driver technical support Product Parameters Name Parameter Display Color RGB 65K color Screen Size 2.4(inch) Type TFT Driver IC ILI9341 Resolution 320*240 (Pixel) Module Interface 8-bit parallel interface Active Area 48.96*36.72(mm) Module PCB Size 72.20*52.7(mm) Operating Temperature -20℃~60℃ Storage Temperature -30℃~70℃ Operating Voltage 5V/3.3V Power Consumption TBD Product Weight(Package containing) 39(g) Interface Definition Number Pin Label Pin Description 1 LCD_RST LCD bus reset signal, low level reset 2 LCD_CS LCD bus chip select signal, low level enable 3 LCD_RS LCD bus command / data selection signal, low level: command, high level: data 4 LCD_WR LCD bus write signal 5 LCD_RD LCD bus read signal 6 GND Power ground 7 5V 5V power input 8 3V3 3.3V power input, this pin can be disconnected 9 LCD_D0 LCD 8-bit data Bit0 10 LCD_D1 LCD 8-bit data Bit1 11 LCD_D2 LCD 8-bit data Bit2 12 LCD_D3 LCD 8-bit data Bit3 13 LCD_D4 LCD 8-bit data Bit4 14 LCD_D5 LCD 8-bit data Bit5 15 LCD_D6 LCD 8-bit data Bit6 16 LCD_D7 LCD 8-bit data Bit7 17 SD_SS SD card SPI bus chip select signal, low level enable 18 SD_DI SD card SPI bus MOSI signal 19 SD_DO SD card SPI bus MISO signal 20 SD_SCK SD card SPI bus clock signal Connect to Arduino Package included 1* 2.4 '' TFT Full .Find many great new & used options and get the best deals for 2.4'' 320*240 TFT LCD Touch Screen LCD Dispaly Shield Fit Arduino Uno Mega2560 at the best online prices at Order2india Shopping! Free shipping for many products!
