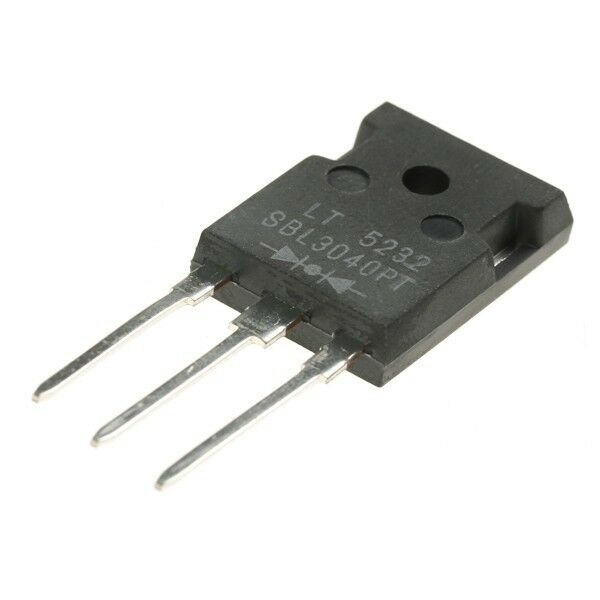

ITEM NAME:1x Schottky Dual Rectifier - SBL3040PT 40V 30A NEW 1x Schottky Dual Rectifier - SBL3040PT 40V 30A NEW Description This brand new Schottky rectifier is a general semiconductor with a reverse voltage of 40V and is ideal for use in free wheeling, low voltage/high frequency inverters and polarity protection applications. Benefits: High quality plastic body conforms to Flammability Classifications 94V-0 Metal to silicon rectifier Majority carrier conduction Low power loss and high efficiency Dual rectifier construction with positive center-tap Over voltage protection High current capability Low forward voltage drop High temperature (250 °C/10 seconds, 0.17†(4.3mm) soldering High surge capability The Schottky rectifier is brand new and unused Specifications: Part number: SBL3040PT Reverse voltage: 40V Forward current: 30.0A Casing material: JEDEC TO-247AD moulded plastic Terminals: lead solderable per MIL-STD-750,method 2026 Mounting torque: 10 in. - lbs. max. Mounting position: free Casing dimensions: 22 x 16 x 5mm Pin length: 20mm Weight: 5.6g Pack size: 1 rectifier.This brand new Schottky rectifier is a general semiconductor with a reverse voltage of 40V and is ideal for use in free wheeling, low voltage/high frequency inverters and polarity protection applications. Benefits: High quality plastic body conforms to Flammability Classifications 94V-0 Metal to silicon rectifier Majority carrier conduction Low power loss and high efficiency Dual rectifier construction with positive center-tap Over voltage protection High current capability Low forward voltage drop High temperature (250 °C/10 seconds, 0.17†(4.3mm) soldering High surge capability The Schottky rectifier is brand new and unused Specifications: Part number: SBL3040PT Reverse voltage: 40V Forward current: 30.0A Casing material: JEDE.
