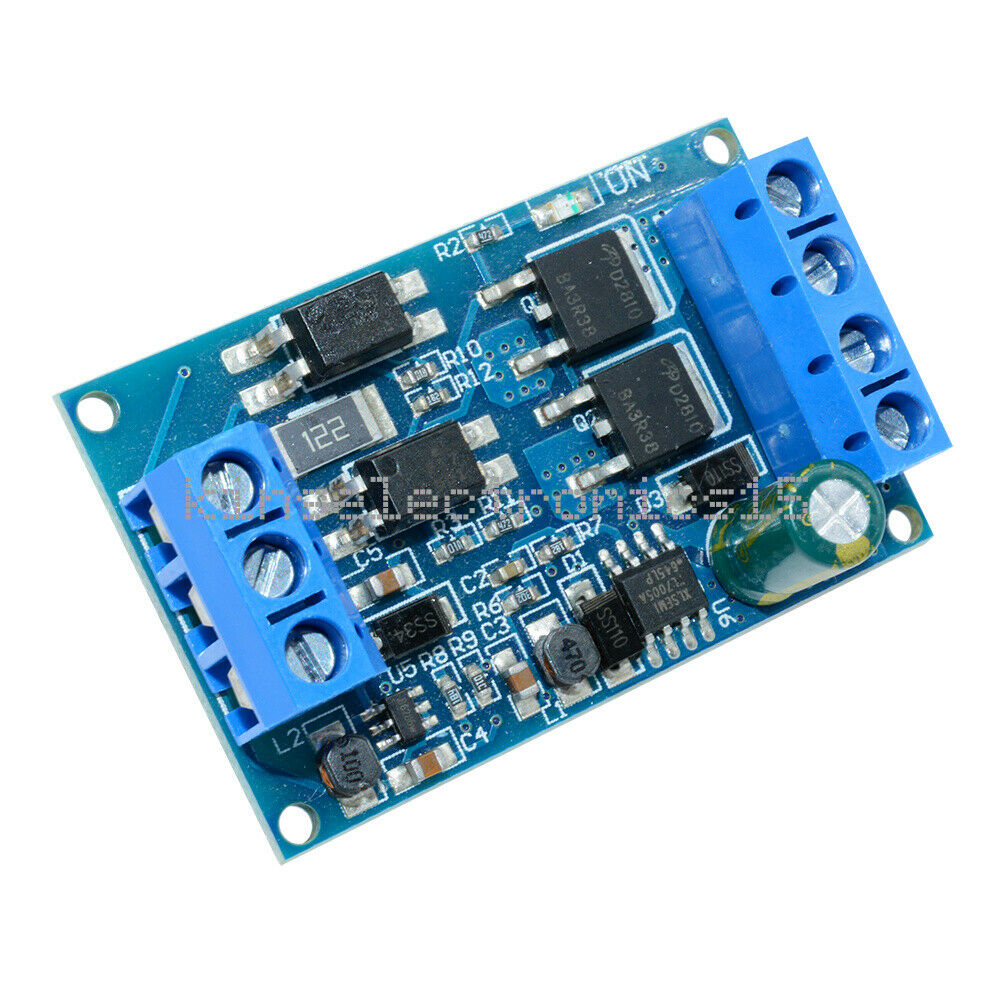

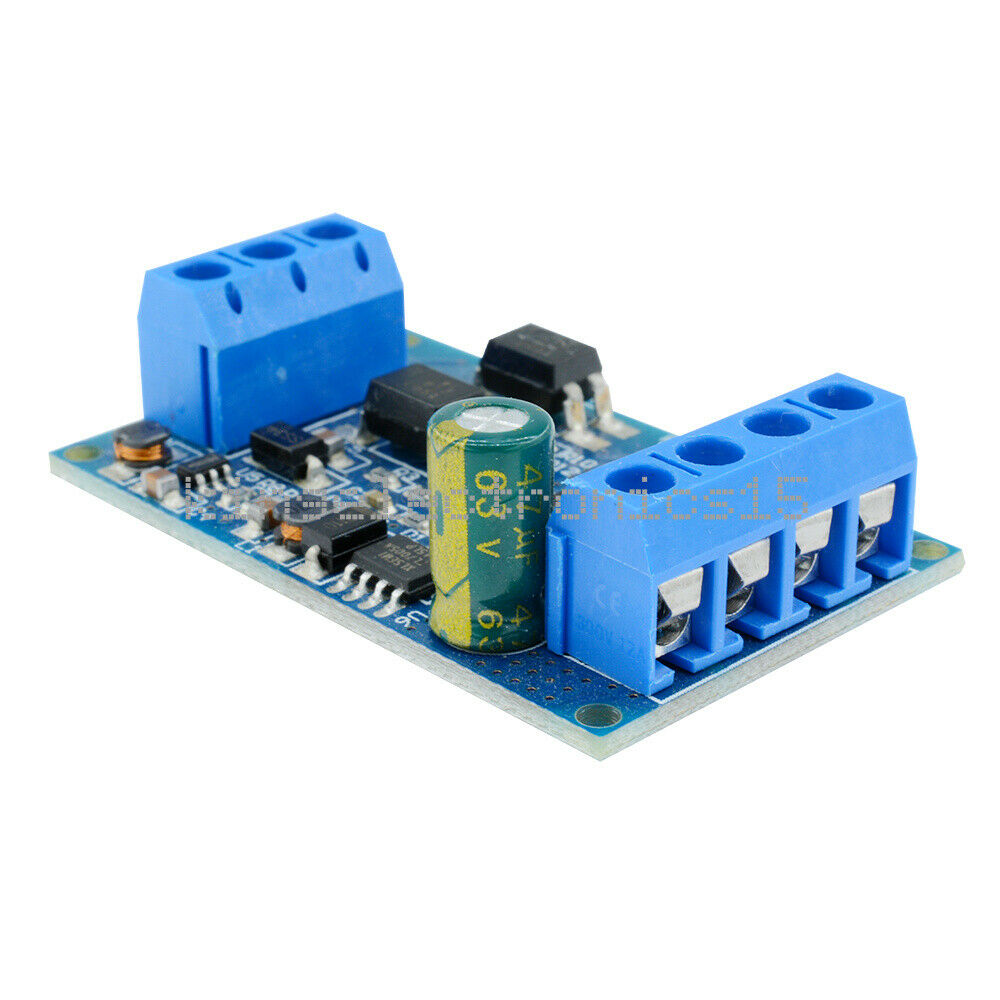

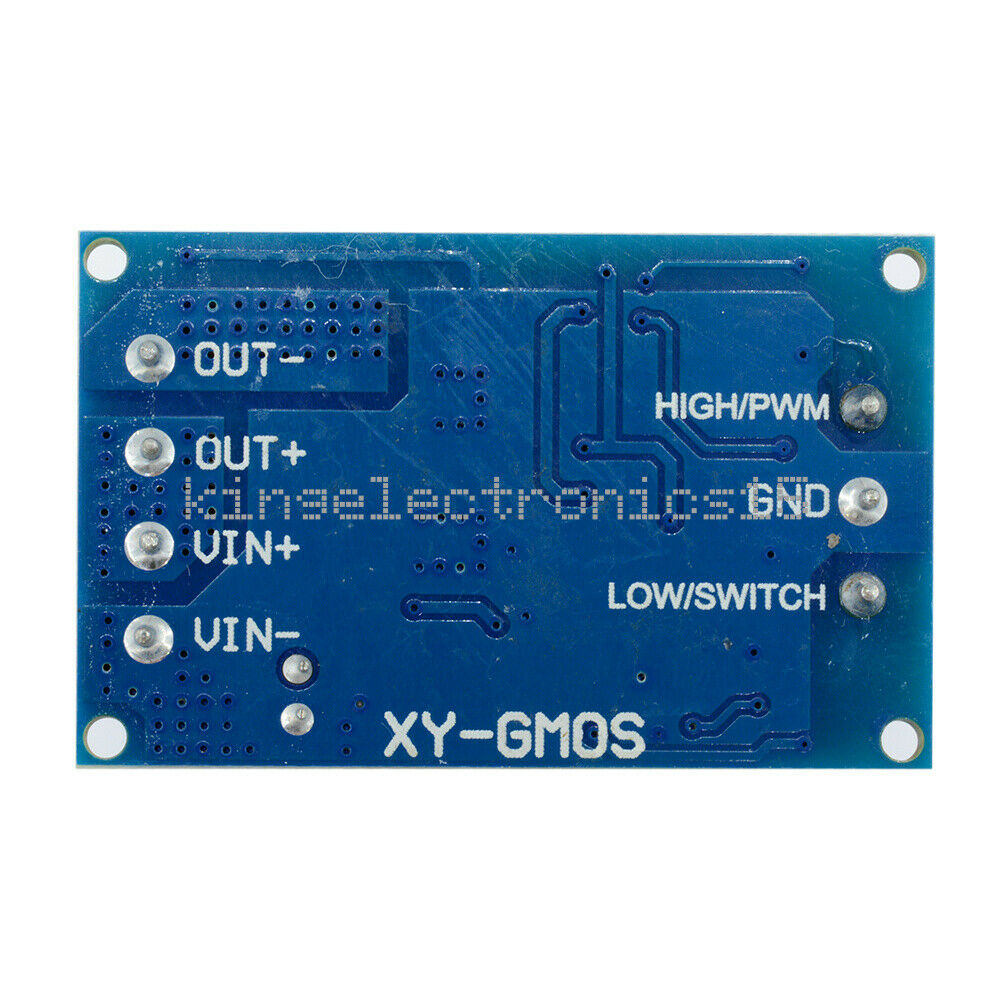

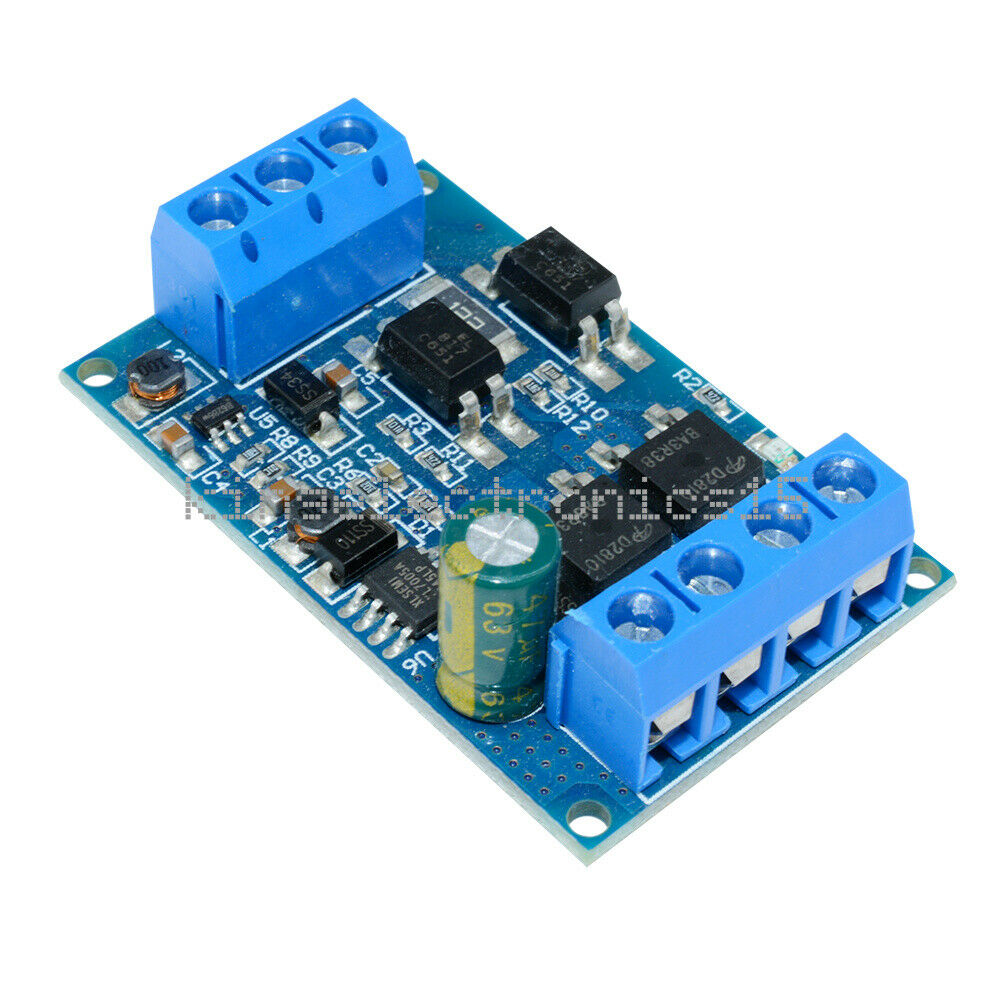

ITEM NAME:1X DC 4 ~ 60V High-Power MOS FET Trigger Drive Switch Module PWM Adjust Control 1X DC 4 ~ 60V High-Power MOS FET Trigger Drive Switch Module PWM Adjust Control Product Image: Product Description: Highlights: The module supports high-level trigger, low-level trigger, switch control, PWM control; The use of imported dual-MOS parallel active output, lower internal resistance, current, power strong, continuous current at room temperature is 10A, 600W, to meet most of the equipment used; Wide voltage input: DC 4V ~ 60V; Easy to control high-power equipment. note: At the same time, there is only one signal to control the module, can not use two or more signals to control the module; High level trigger voltage range: DC3.0V ~ 24V, the trigger signal in the 3.0V ~ 24V, MOS tube conduction; less than 0.6V, that is 0V ~ 0.6V, MOS tube is closed; signal voltage must not 0.6V ~ 3.0V, because the MOS tube is not fully open, high-power output will burn MOS; Low-level trigger voltage range: DC 0V ~ 0.6V, that trigger signal in the 0V ~ 0.6V, MOS tube conduction; higher than 3.0V, MOS tube is closed; signal voltage must not be 0.6V ~ 3.0V , Because the MOS tube is not fully open, high-power output will burn MOS. Product parameters: Operating voltage: DC 4V - 60V; Trigger source: high level trigger (DC3.0V - 24V), low level trigger (DC 0.0V ~ 0.6V), switch control, can connect MCU IO port, PLC interface, DC power supply, etc. PWM signal, support signal frequency range of 0 - 2.5KHZ. Output capacity: DC 4V - 60V, continuous current 10A at room temperature, power 600W! Auxiliary cooling.Find many great new & used options and get the best deals for 1X DC 4 ~ 60V High-Power MOS FET Trigger Drive Switch Module PWM Adjust Control at the best online prices at Order2india Shopping! Free shipping for many products!
