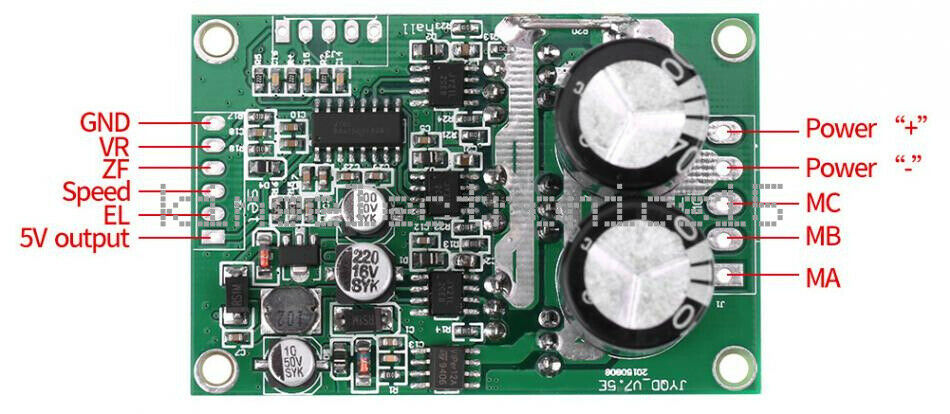

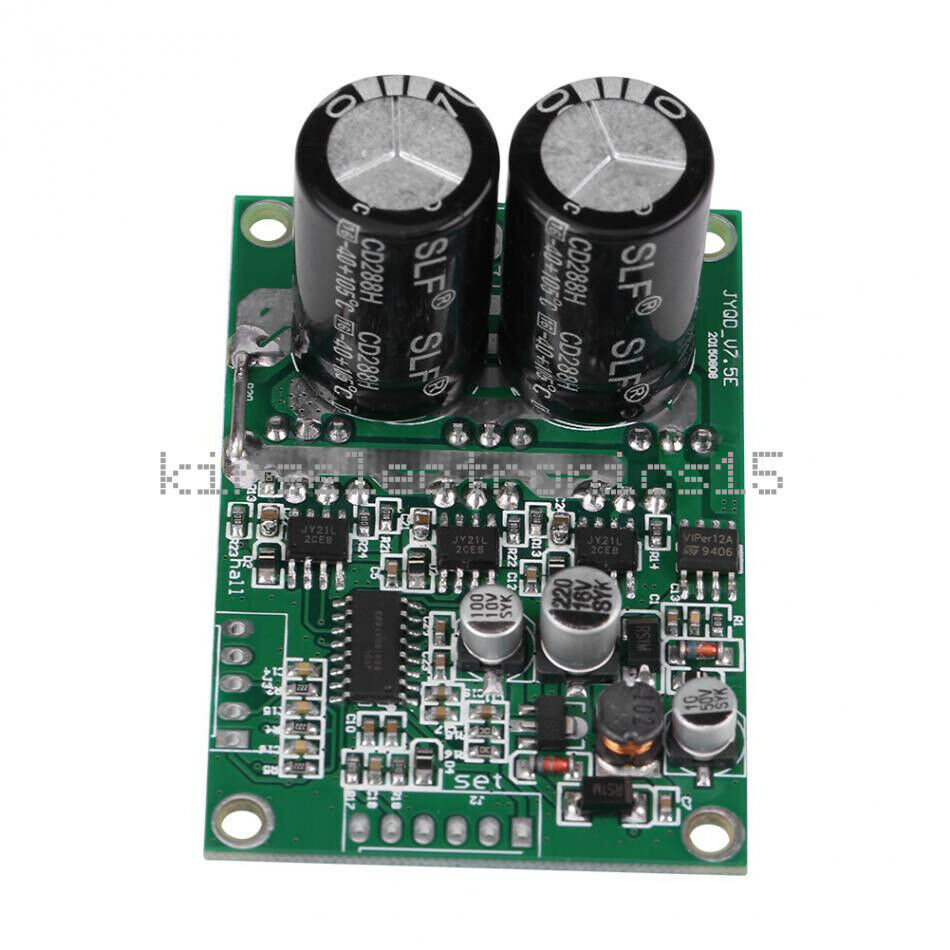

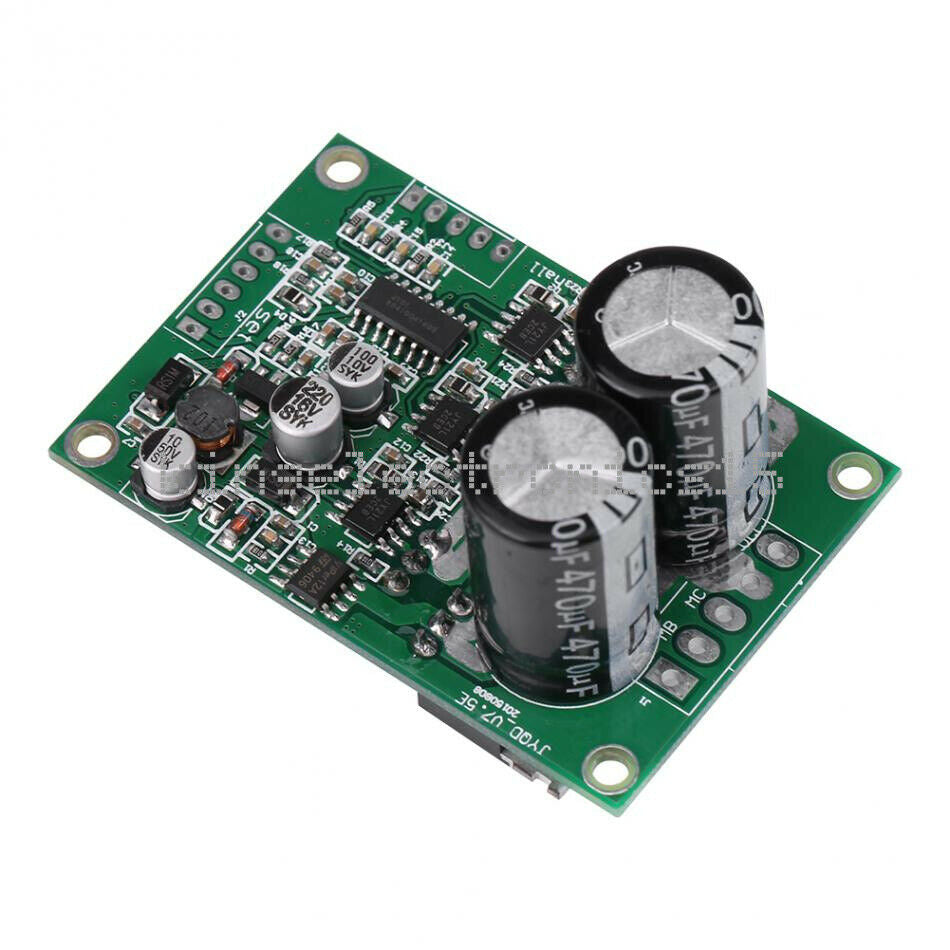

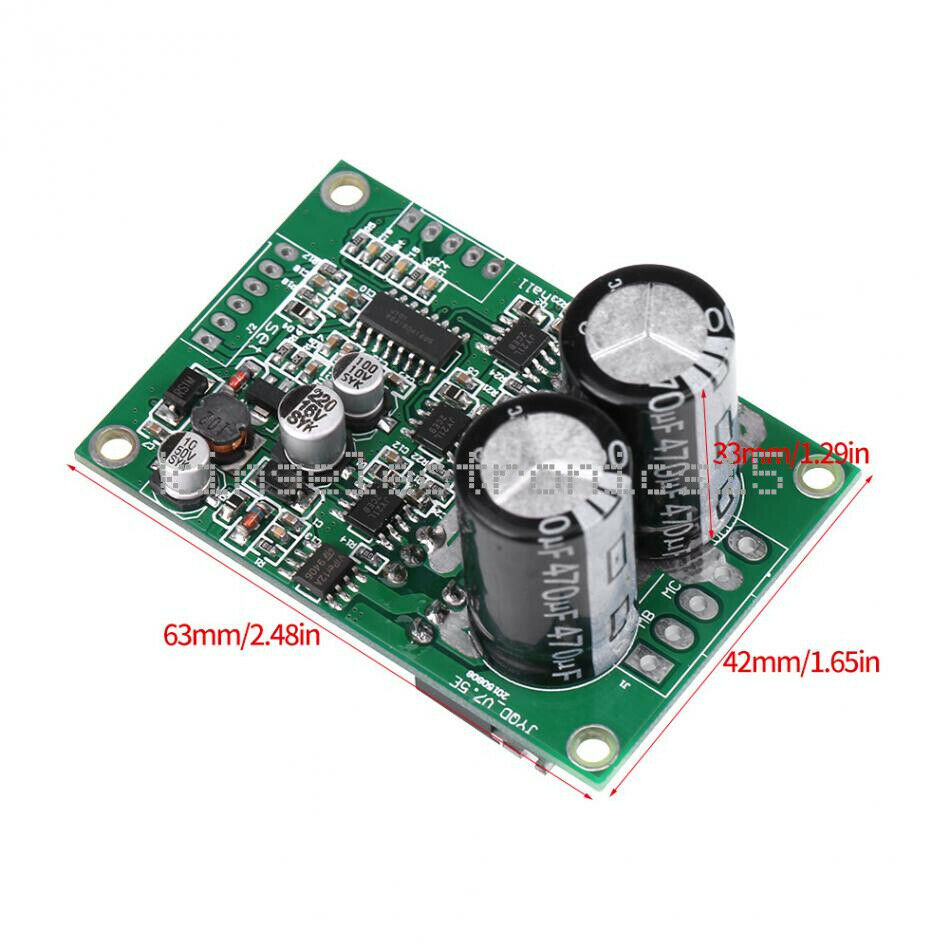

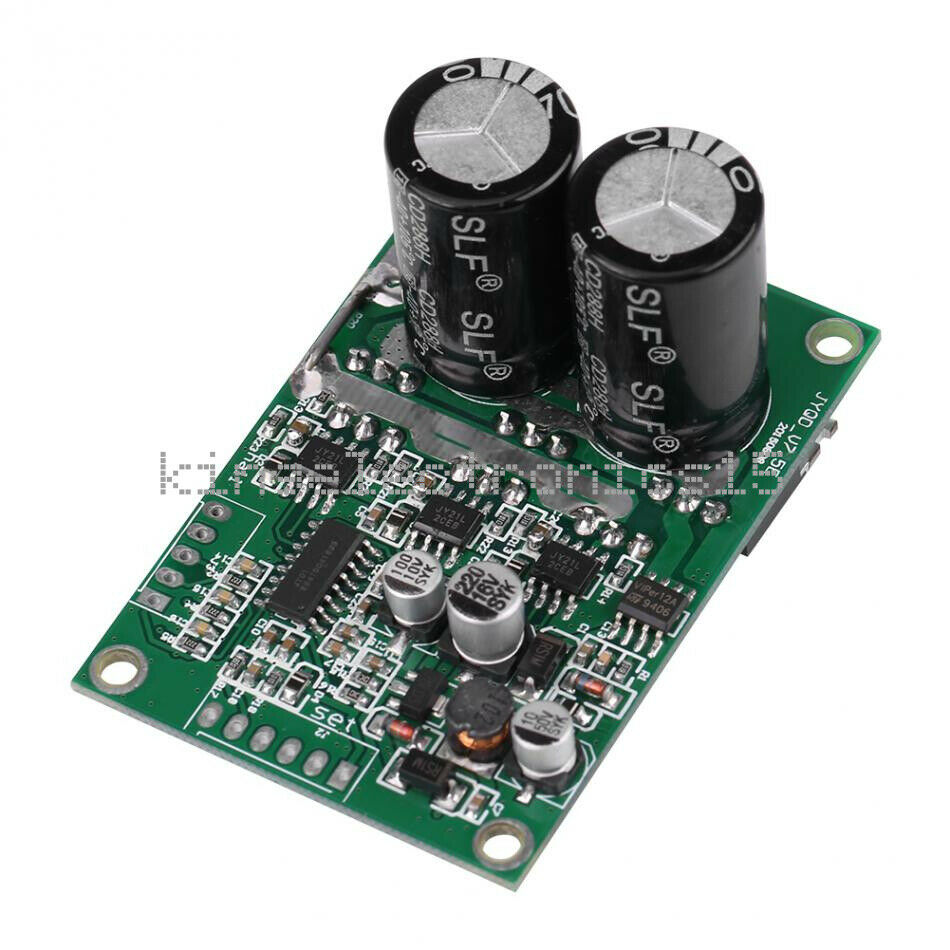

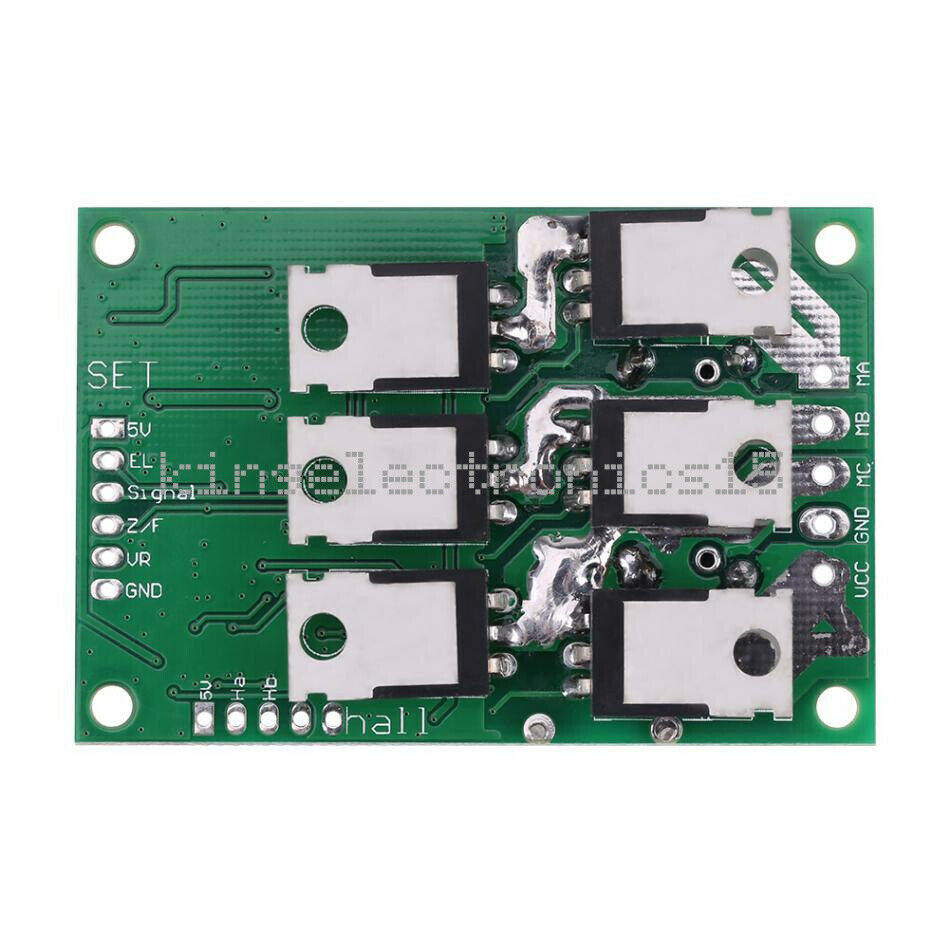

ITEM NAME:1PCS 36V-72V 700W Brushless Motor Controller Hall Balanced Car Driver Board 1PCS 36V-72V 700W Brushless Motor Controller Hall Balanced Car Driver Board Product Image: Product Description: 1. with the abnormal overload protection and current protection function 2. Speed can be adjusted by VR port. Speed control mode: one is voltage control: give VR port input 0 to 5v voltage. 3. Has the locked-rotor protection function, if Motors can not start within 5s repeatedly, module will stop output. Adjust voltage VR port to 0v or power off, the protection status can be removed 4. The function of the speed pulse signal output, M port, read the rotational speed of the machine. Depending on the motor each circle of the output pulse number is different. 5. Enable function, EL port, High level (5v) motor work, low level (0v) motor stop. If motor less than 60W， not need heat sink, more than 60W must be add heat sink, without heat sink will reduce the driving efficiency, the temperature is too high will bring permanent damage ! Working voltage: DC 36V-72V Working current: ≤15A Drive power: ≤700W Speed regulating voltage: 0V-5V PWM control of motor speed frequency: 1KHz--10KHz Work temperature:-40---85℃ Work humidity: ≤90%RH Size: 63MM*42.5MM*33MM (control port, hall port are 2.54 socket，motor terminal is 3.96 socket) Wring Power OUT VCC (power +) GND (power -) MC (motor phase line W) MB (motor phase line V) MA (motor phase line U) Motor HALL GND (Hall -) Hc (Hall line) Hb (Hall line) Ha (Hall line) 5v (Hall +) Control SET GND (control port GND) VR (speed control 0 to 5v, corresponding motor speed 10%-100%) ZF (reversing rotation direction) M (speed pulse output) EL (Enable function port) 5v (control port 5v) Package include 1 * 700W Brushless Motor Controller 1 * English instruction(By mail) Feedback Warranty.Find many great new & used options and get the best deals for 1PCS 36V-72V 700W Brushless Motor Controller Hall Balanced Car Driver Board at the best online prices at Order2india Shopping! Free shipping for many products!
