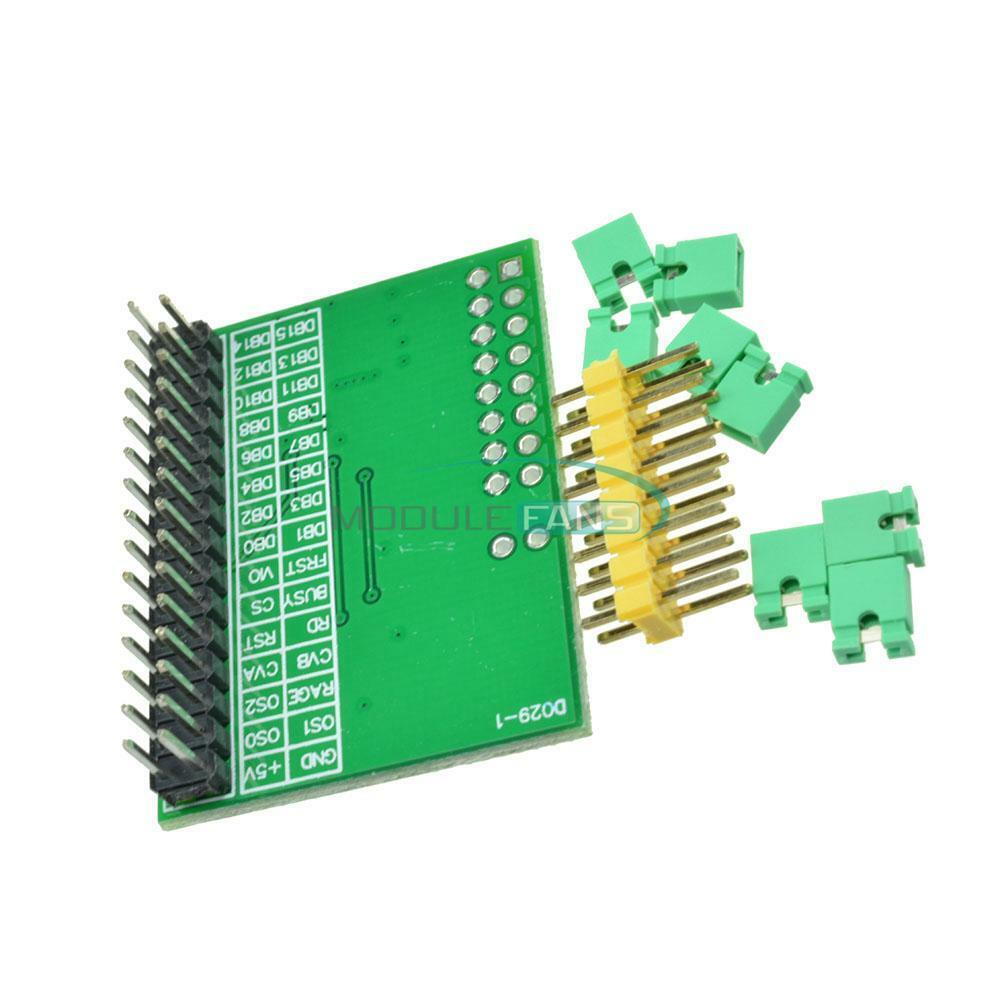

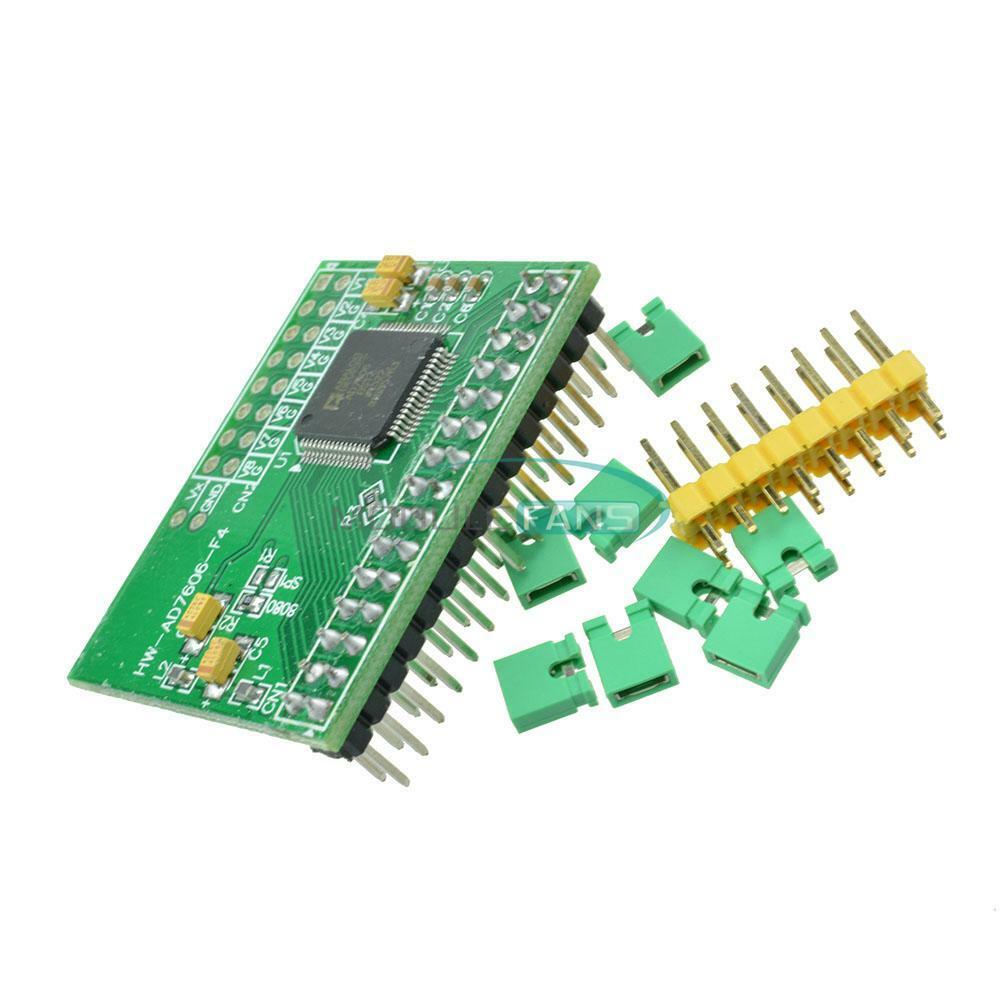

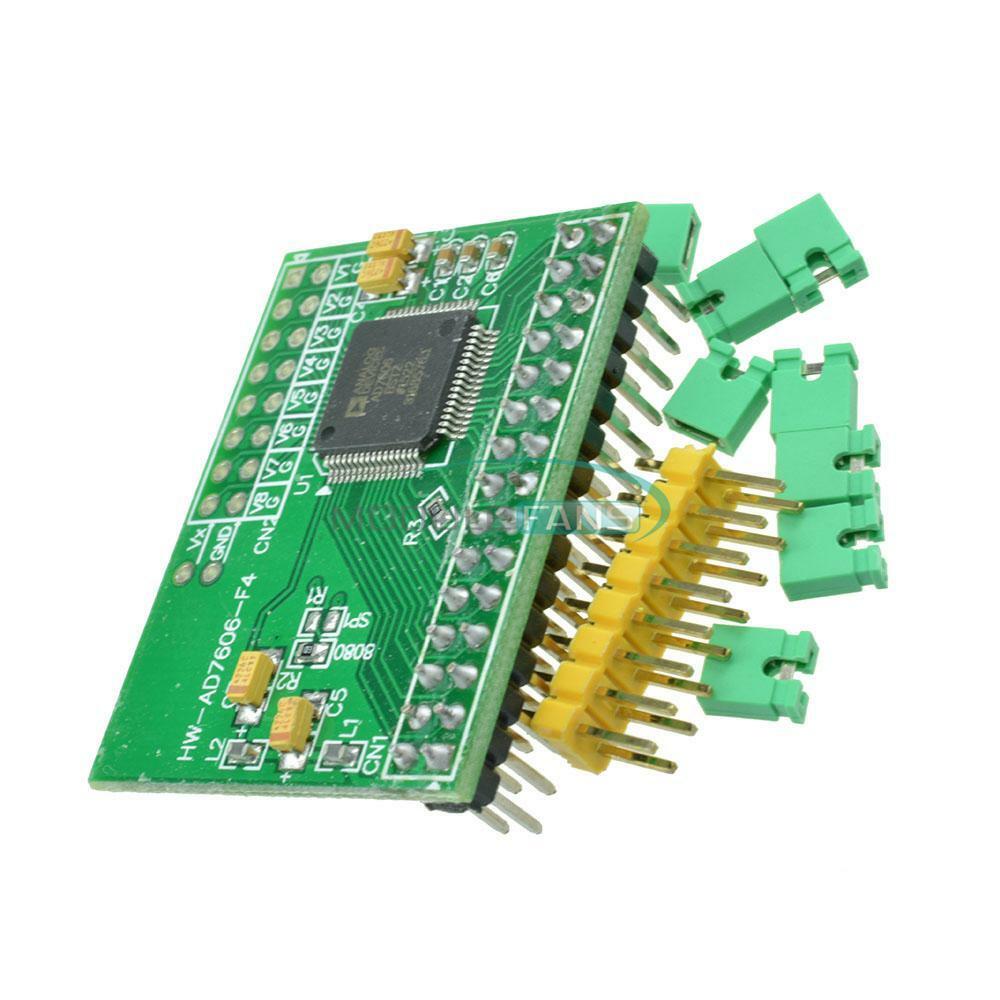

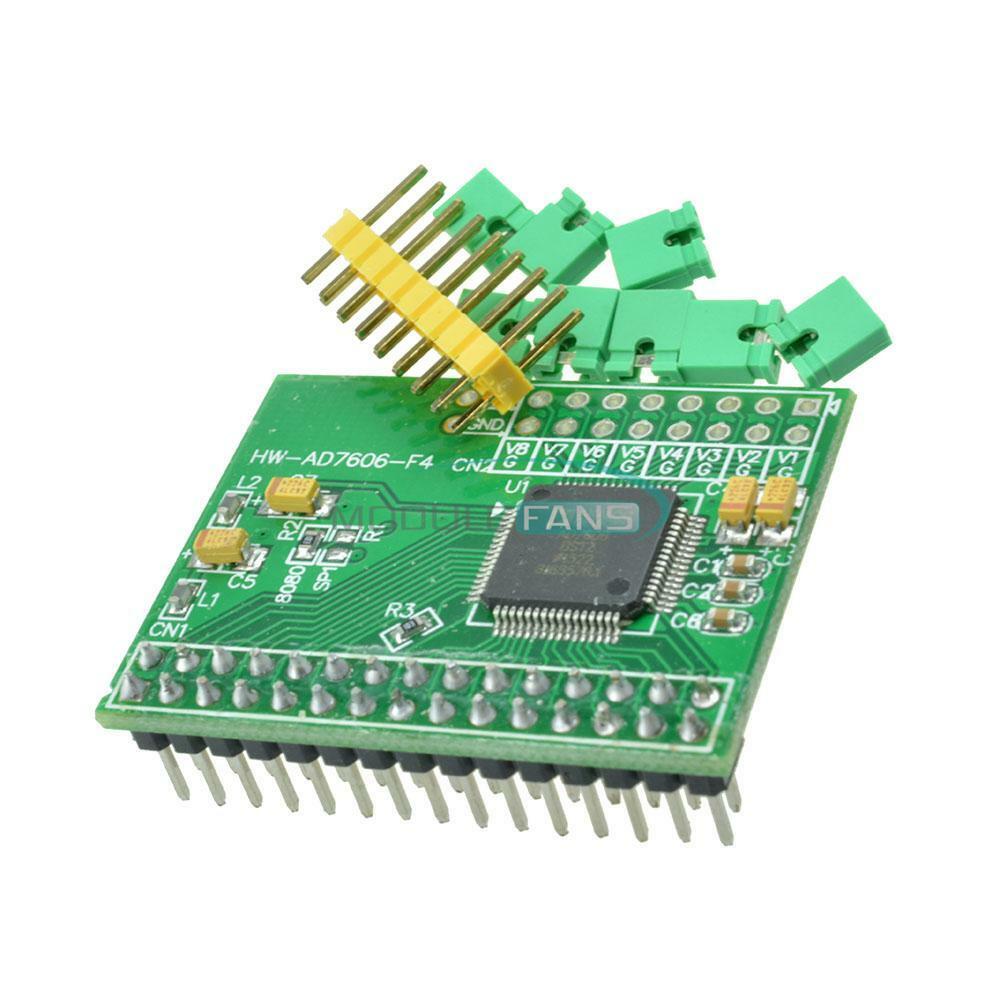

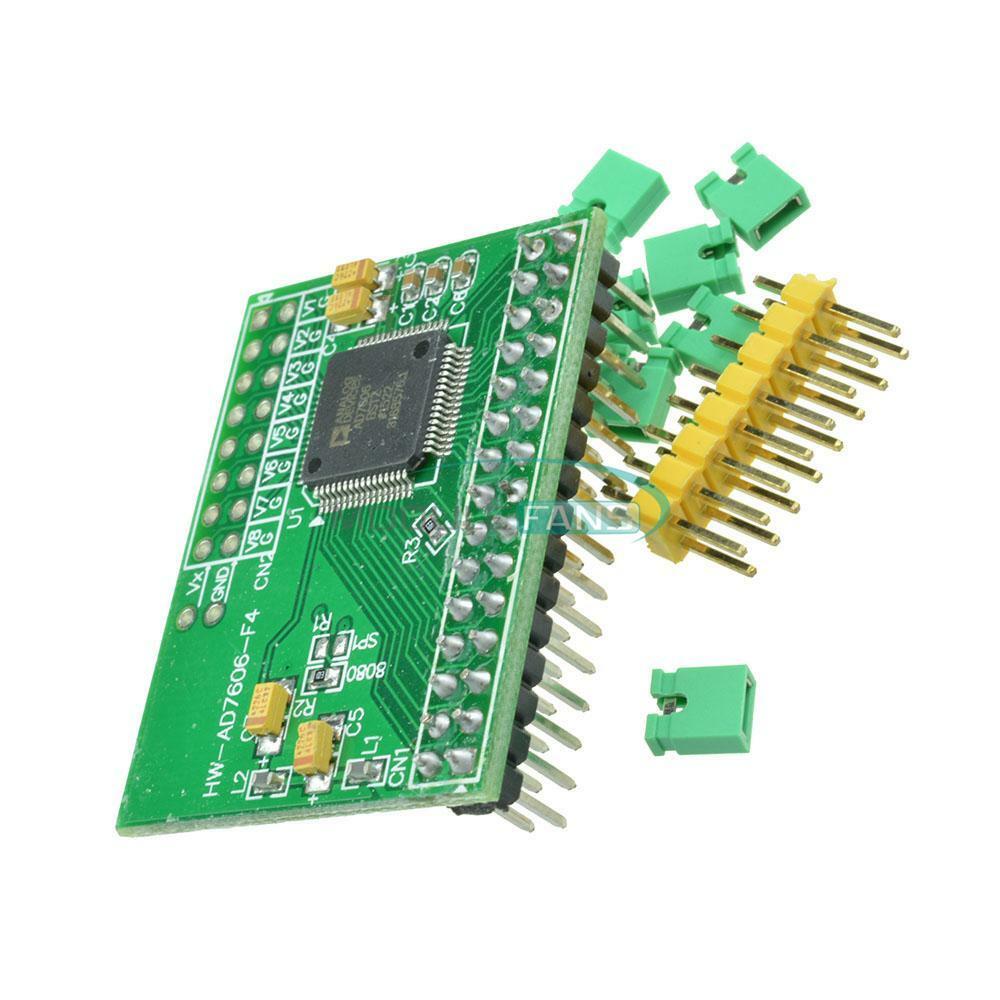

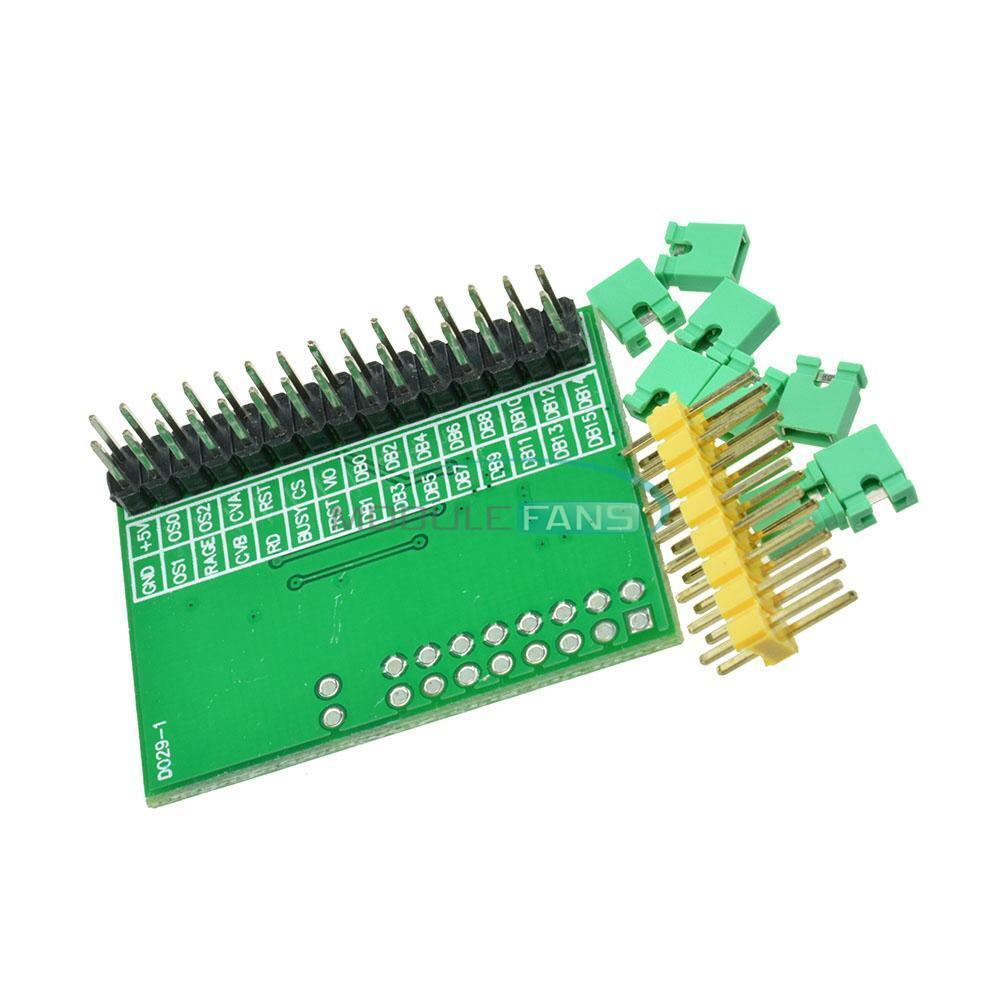

ITEM NAME:16Bits ADC 8CH Synchronization AD7606 DATA Acquisition Module 200Ksps Prodect description: Tip : To facilitate your choice , PCB board analog input front -row pin (2x8/2.54mm pitch ) default not weld . We will be giving away 2x8 's double needle and eight jumpers from the customer's own choice is up welding, soldering or down . 1, using high-precision 16-bit ADC chip AD7606 2,8 analog inputs. 1M ohm impedance.[No negative supply, there is no front-end analog amplifier can be connected directly to the sensor output] 3, the input range of plus or minus 5V, plus or minus 10V. By IO control. 4, Resolution 16. 5, the maximum sampling frequency sampling rate of 200ksps. Supports eight sampling settings file (which can effectively reduce the jitter) 6, built-in benchmark 7, a single 5V power supply 8, SPI Interface, or 16-bit bus interface. Interface IO level can be 5V or 3.3V. We AD7606 module factory default is 8080 parallel interface. If SPI interface mode, you need to modify R1 R2 resistor configuration. Parallel Mode Jumper: R1 floating (not stickers), R2 10K resistor paste SPI interface mode jumper: R1 stickers 10K resistor, R2 floating (not stickers) AD7606 configuration is very simple, it has no internal registers. Range and over-sampling parameters are controlled via an external IO. Pulse frequency sampling rate provided by the microcontroller or DSP control. AD7606 must use a single 5V supply. Level communication interface between the AD7606 and SCM controlled by VIO pin. That VIO power supply must be connected to the microcontroller can be 3.3V can also be 5V. [Module Pin Description] OS2 OS1 OS2: a combination of state selection oversampling mode. 000 means no oversampling, the maximum sampling rate of 200ksps. 001 represents two times oversampling, which is the hardware inside collected two samples averaging 010 represents four times oversampling, which is the hardware inside collect four samples averaged 011 represents eight times oversampling, whic.Find many great new & used options and get the best deals for 16Bits ADC 8CH Synchronization AD7606 DATA Acquisition Module 200Ksps at the best online prices at Order2india Shopping! Free shipping for many products!
