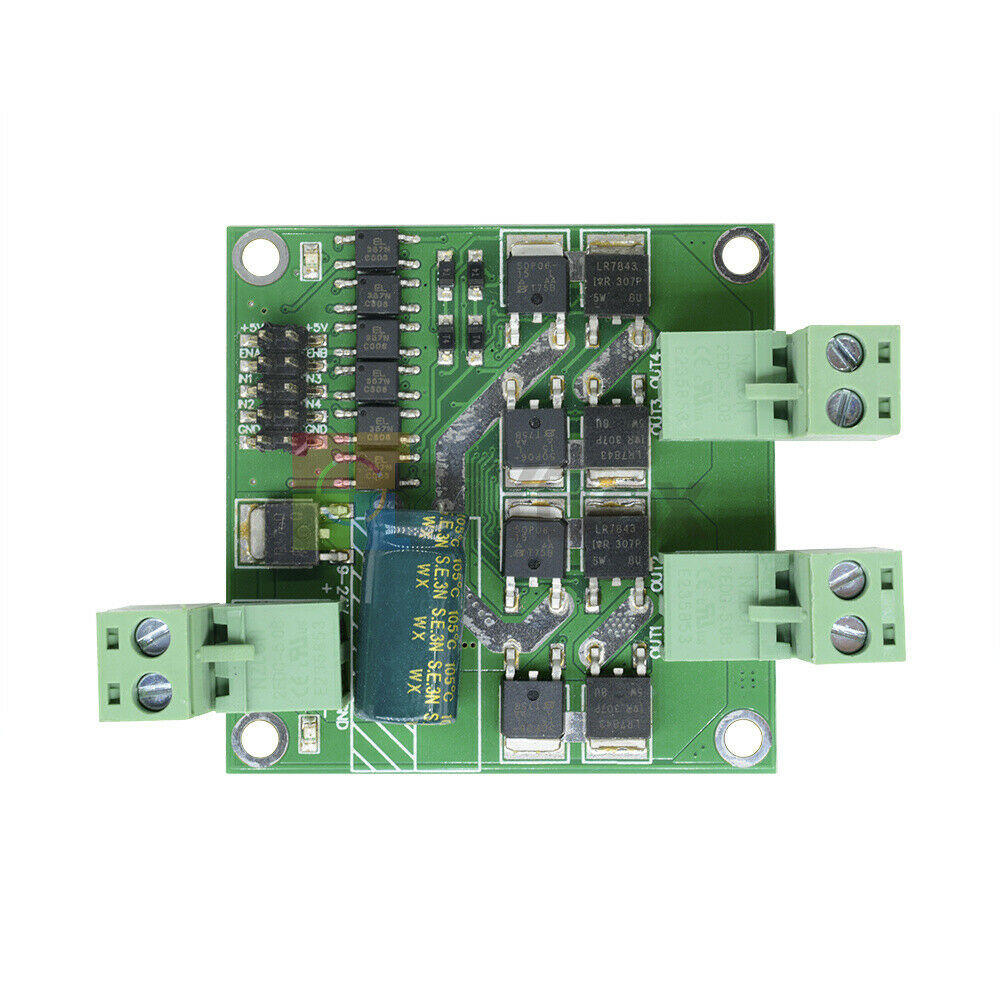

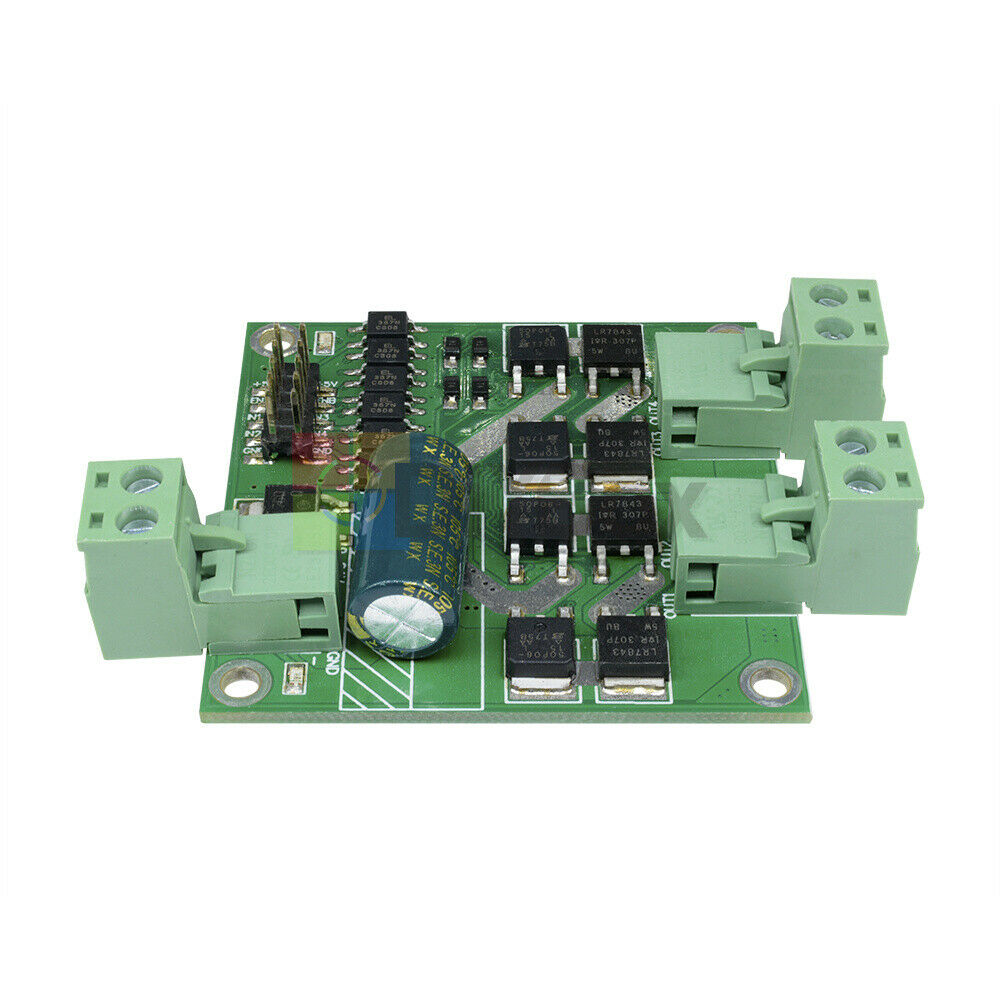

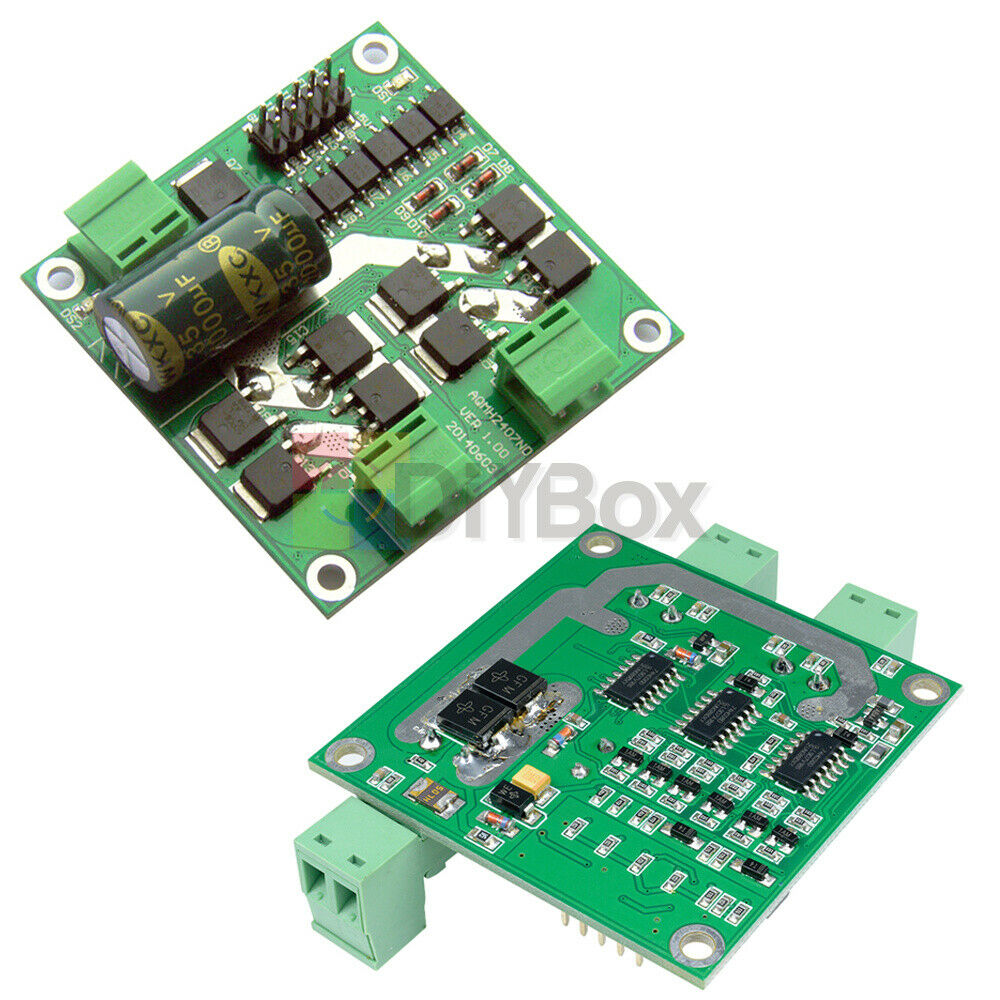

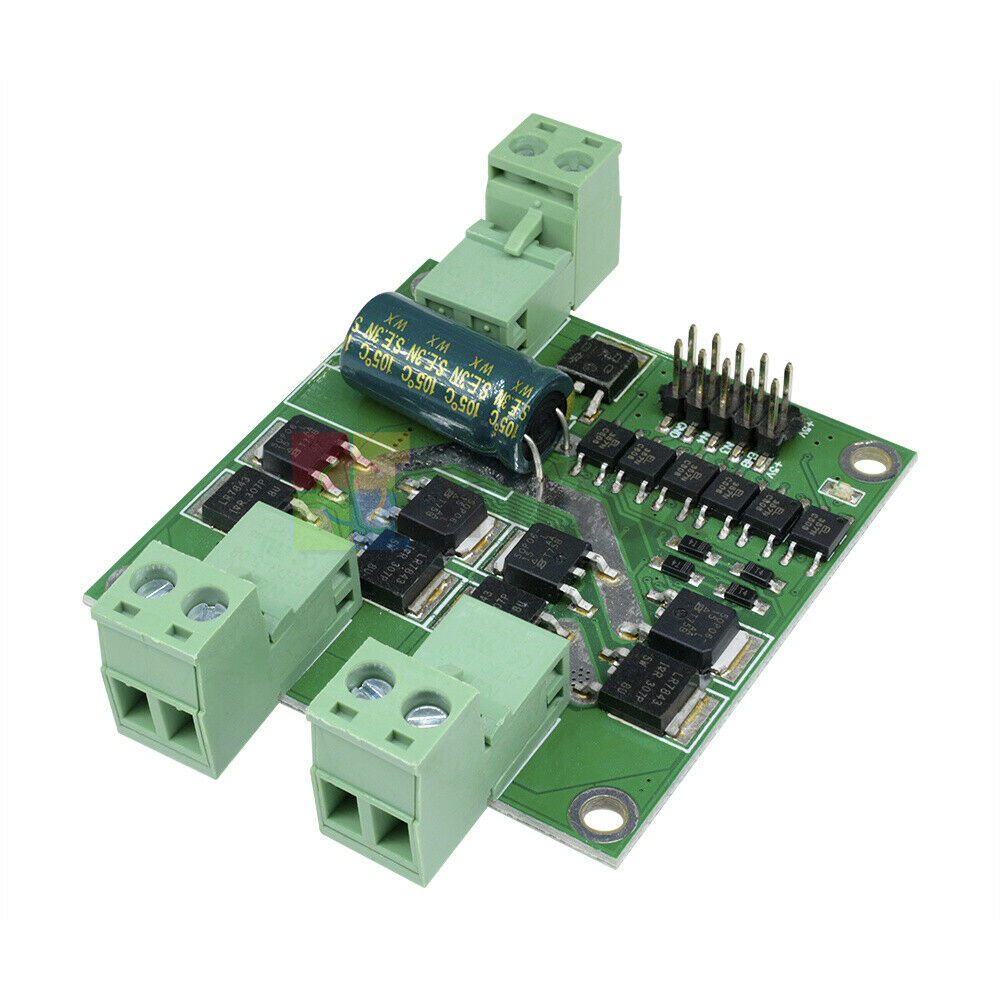

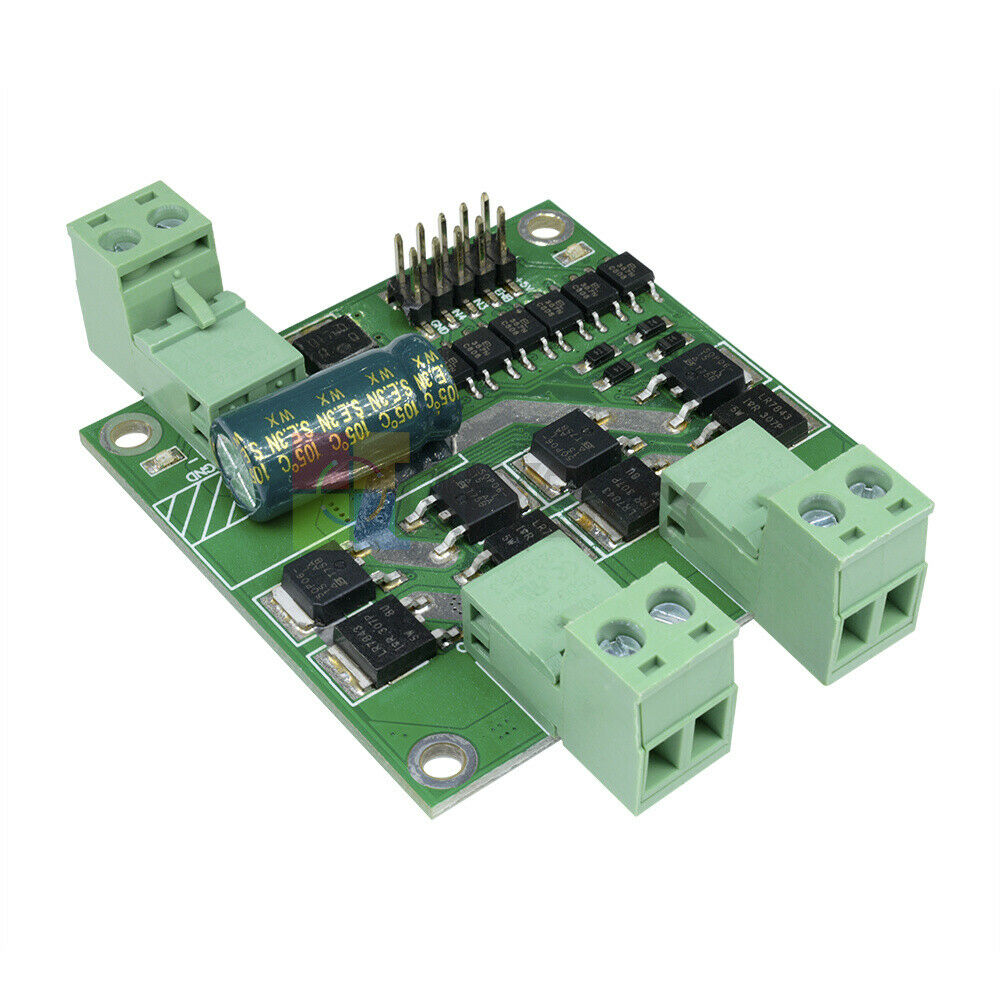

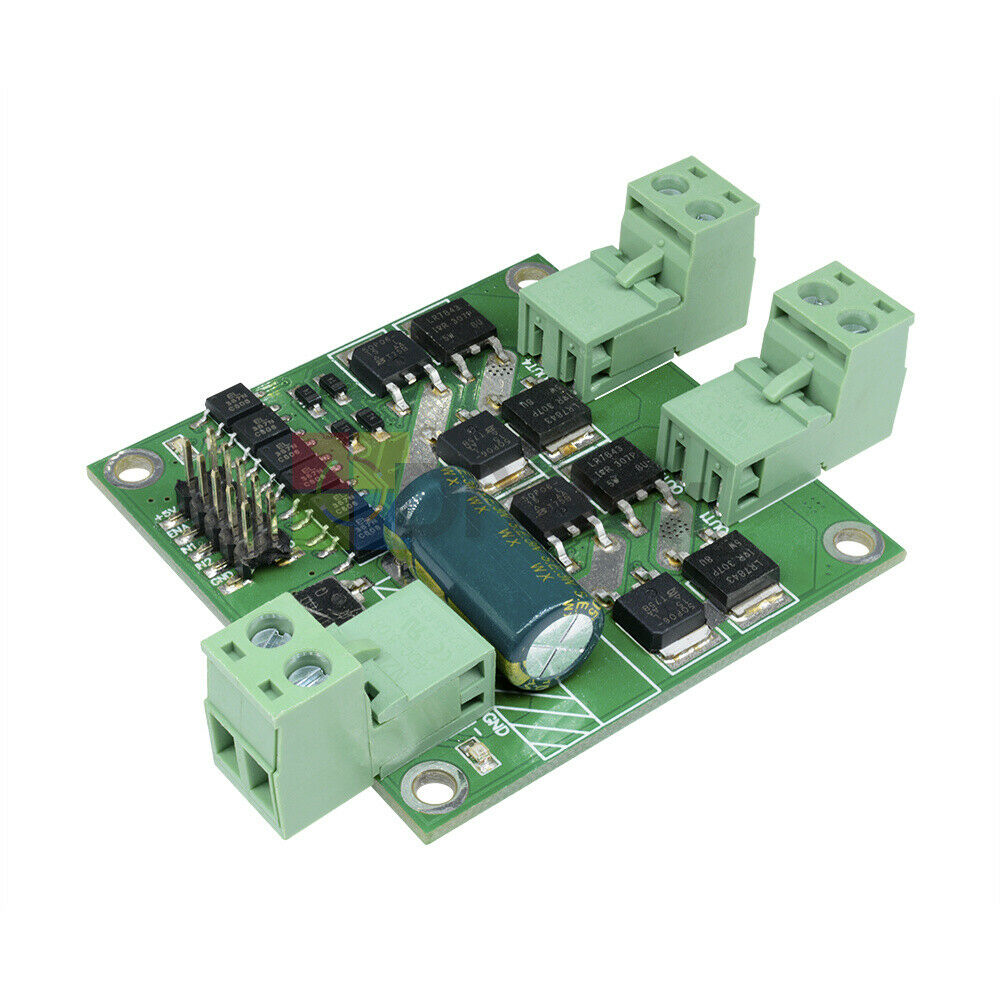

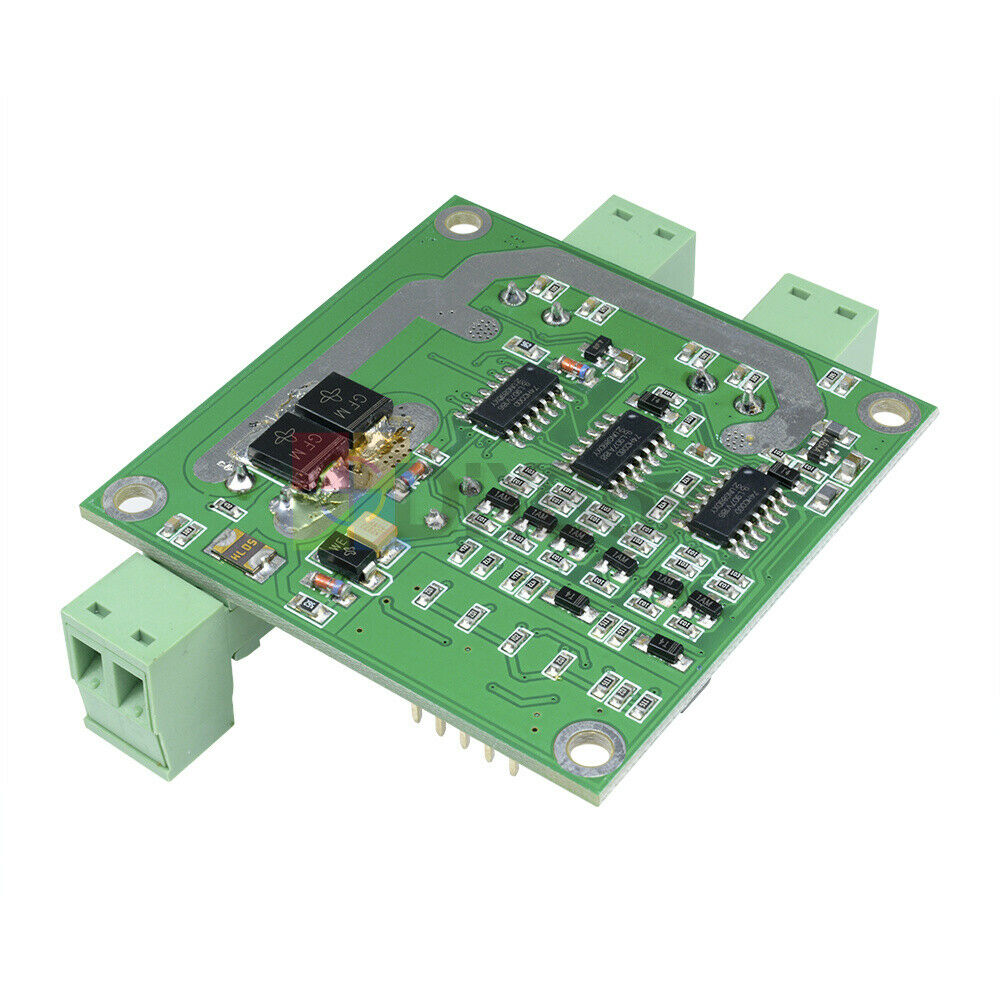

ITEM NAME:160W 12V 24V 7A Dual DC Motor Driver Module Board H-bridge L298 Logic Controller 160W 12V 24V 7A Dual DC Motor Driver Module Board H-bridge L298 Logic Controller Features: 1, the dual H-bridge; 2, rated 7A / Road 3, optocoupler isolation; 4, undervoltage protection; 5, compact size. Specific: extremely small size, only 5.5cm × 5.5cm Support voltage 7V ~ 24V, undervoltage protection Dual motor interface, each rated output current 7A L298 similar control logic, each supported by three-wire control is enabled, reversing and braking Enable signal to an external PWM, reversing limit switch control signal can be connected in series Control signal sink drivers, support the vast majority of single-chip direct drive Use optocoupler isolation for all control signals Electrostatic discharge circuit Principle Overview: The H-bridge module gate circuit, motor reversing combination with MOS transistors, braking and speed control. Both have similar large output current L298 flexible logic control signal. Interference approach: control signal optocoupler isolation, power spike voltage suppression. Control signal logic: L298 using gates to achieve a similar control logic. H-bridge Method: Use P, N complementary MOS transistors to achieve the H-bridge. Power voltage protection: Use reset chip undervoltage protection. Technical parameters: Input voltage range: DC 6.5V ~ 27V Rated input voltage: DC 12V / 24V Output channels: 2-way Rated output current per channel: 7A Peak output current per channel: 50A Each rated output power: 84W (12V supply) 168W (24V power supply) The control signal voltage: 3 ~ 6.5V Each control signal current: 3 ~ 11mA The minimum effective PWM pulse width: 5us Working temperature: -25 ℃ ~ 80 ℃ Dimensions: 5.5×5.5×2.0cm Package Include: 1 x 12V/24V 7A 160W *2 L298 H-bridge DC Motor Drive Module.Find many great new & used options and get the best deals for 160W 12V 24V 7A Dual DC Motor Driver Module Board H-bridge L298 Logic Controller at the best online prices at Order2india Shopping! Free shipping for many products!
