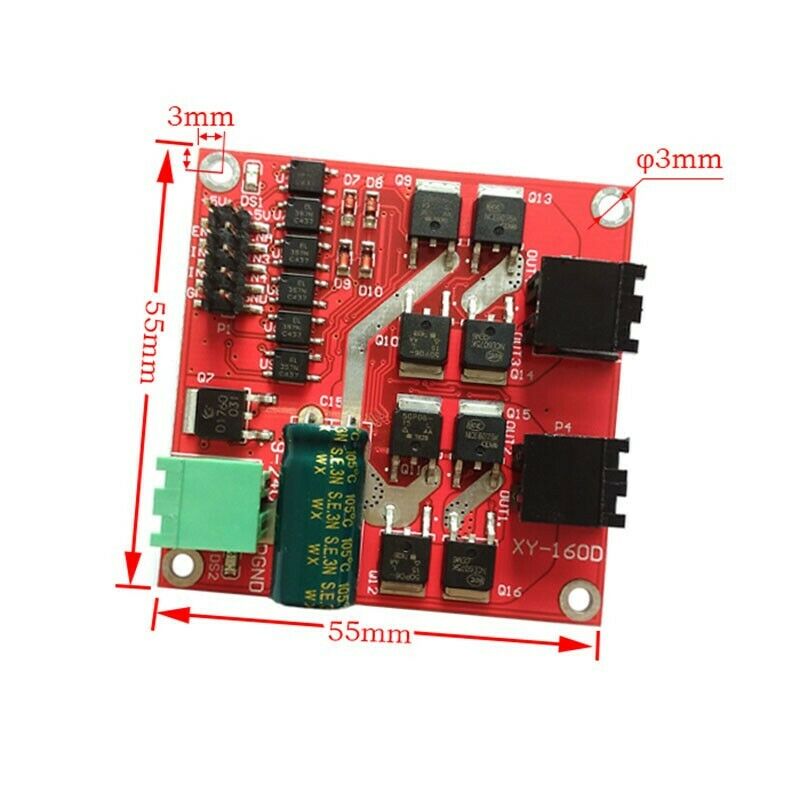

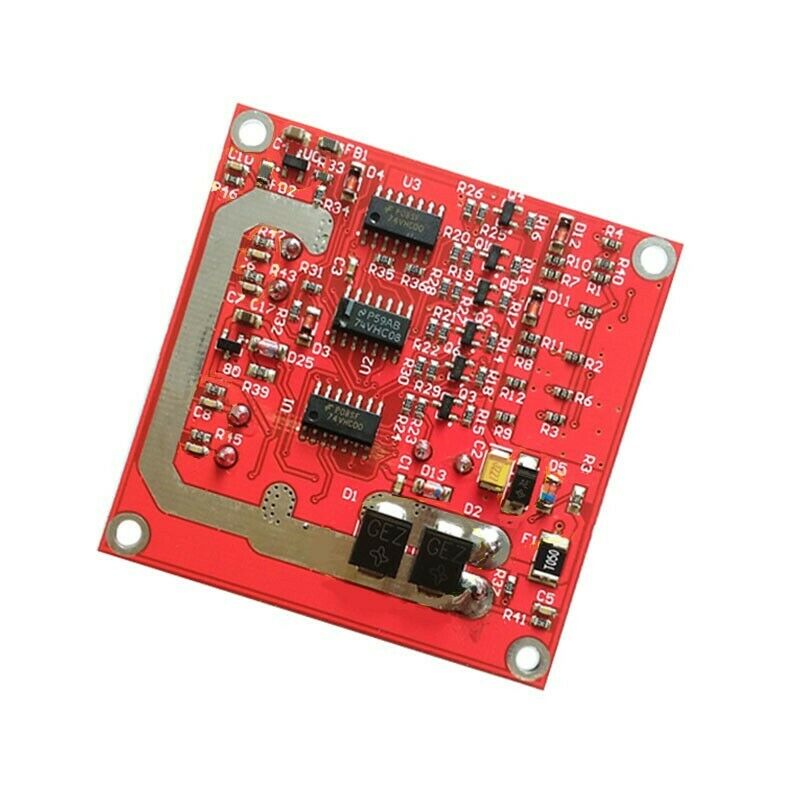

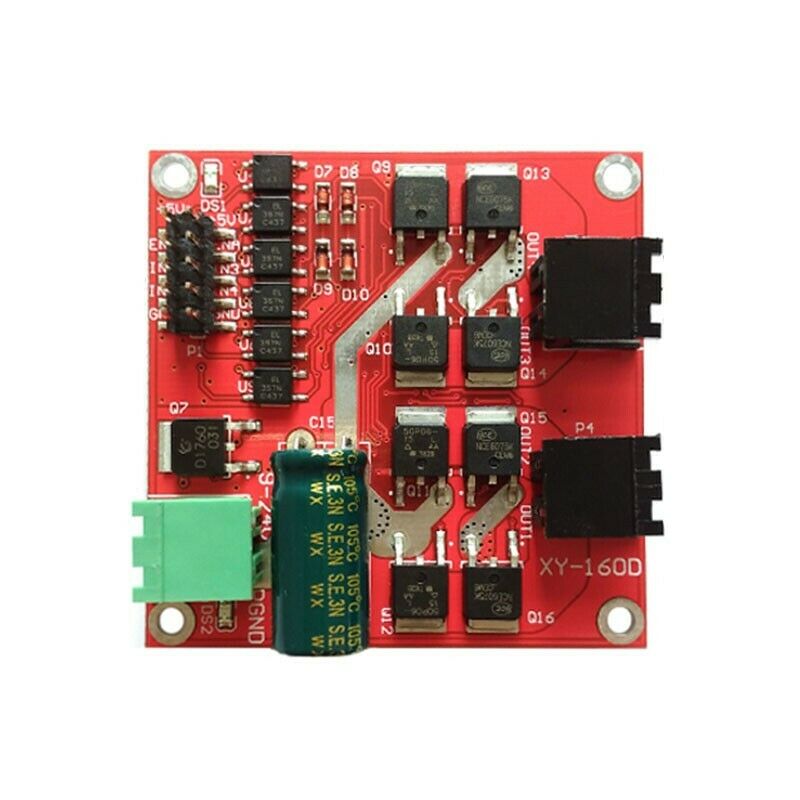

ITEM NAME:12V/24V Dual Dc Motor Drive Module 160W 7A Pwm H Bridge L298 Logic Control Board Product Description Description: Product introduction: Double H-bridge, can drive two DC motors at the same time, single-channel 7A high power; wide voltage 6.5V～27V; optocoupler isolation input signal; with isolation and undervoltage protection; in line with EMC design specifications, with static electricity Drain circuit, stable and reliable, industrial grade. Product model: XY-160D Product Highlights: 1. Double H bridge, can drive two DC motors at the same time, single-channel 7A current, high power; 2. Wide voltage input 6.5V～27V; 3. Signal optocoupler isolation input, which can be directly controlled by IO port without interference; 4. Under-voltage protection to prevent instantaneous high current from burning down the module; 5. The high-power TVS and electrostatic discharge circuit suppress the transient interference pulse and static electricity, enhance the EMC performance, the product is stable and reliable, and the industrial-grade design. Product parameters: 1. The power supply voltage is 6.5V-27V. The power supply must not be connected reversely or exceed 27V, otherwise the module may be burned out. It is recommended to connect a 15A fuse in series with the power input terminal. 2. Two-way motor interface, each with a rated output current of 7A and a peak current of 50A. The motor interface must not be short-circuited. It is recommended to connect a 10A fuse in series. 3. The control signal voltage is 3-6.5V, which are the enable signal and the forward and reverse control signal respectively. 4. Enable signal terminal (ENA) input PWM adjustable speed, PWM frequency range 0-10KHZ, PWM minimum pulse width 10us. 5. Working temperature -25℃-80℃. 6. Product size: 55*55*16mm (length, width and height). 7. Mounting hole diameter: 3mm. When installing, pay attention to prevent short circuit on the back of the circuit. You can add insulating pads or copper pillars to rais.Find many great new & used options and get the best deals for 12V/24V Dual Dc Motor Drive Module 160W 7A Pwm H Bridge L298 Logic Control Board at the best online prices at Order2india Shopping! Free shipping for many products!
