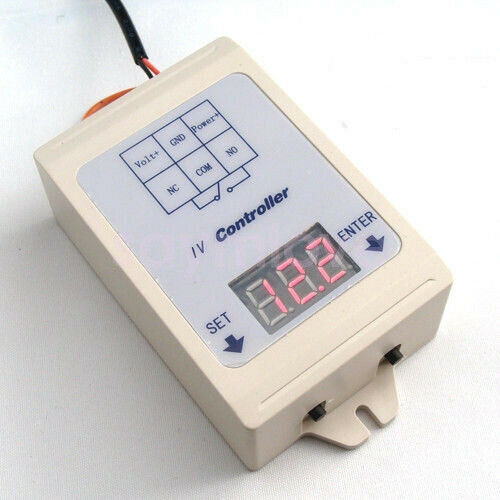

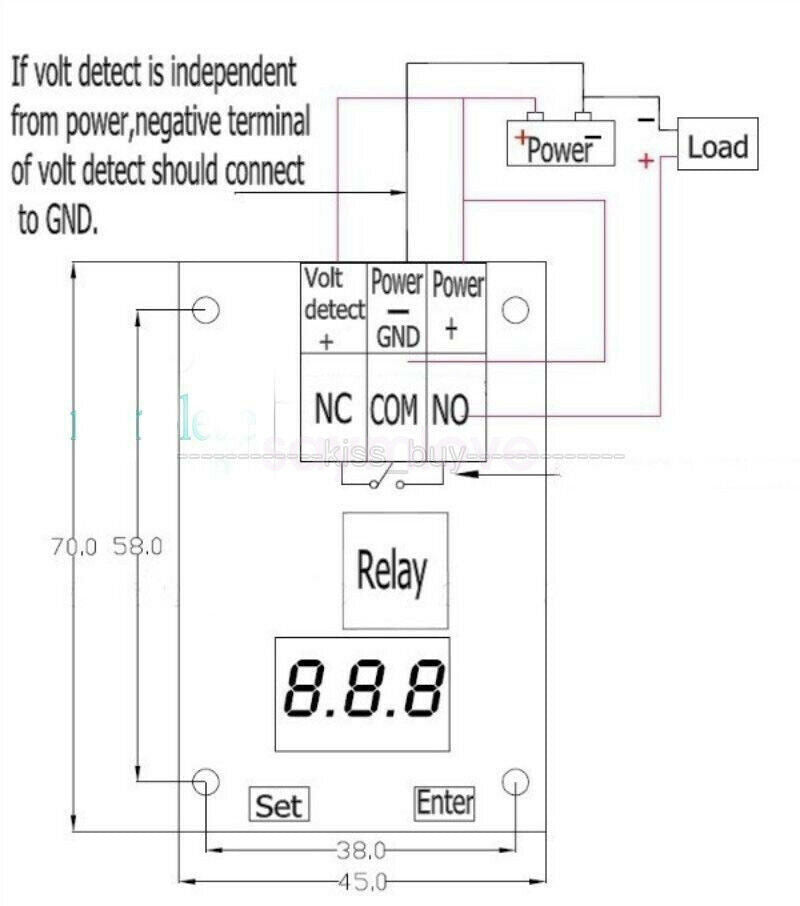

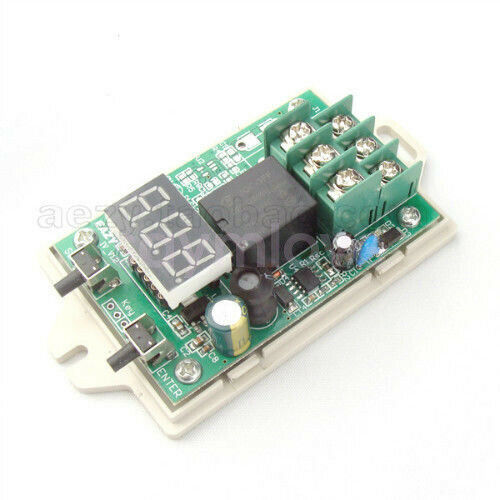

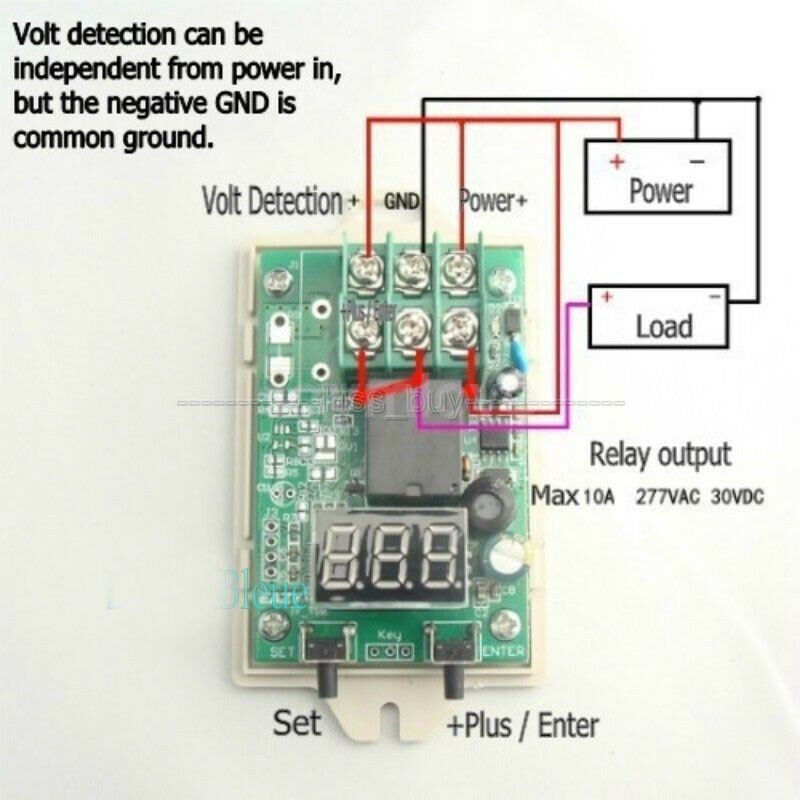

ITEM NAME:12V 24V Digital Voltage Meter Test Control Relay Timer Time Delay Switch Module Product Overview 12V 24V Digital Voltage Meter Test Control Relay Timer Time Delay Switch Module Detail This controller uses a LED to display status. It has one channel of voltage detection, a relay for switch signal output (normal open and normal closed). So it can control circuit on/off when voltage is too high or too low. Specification: Working Voltage: DC 8~35V Voltage Detection Range: DC 0~99.9V ( ±0.1V) Input Voltage Detection Sensitivity is adjustable. Adjustable range 0.1 to 0.9 second. Delay time for relay out is adjustable. Delay time range 0 to 999 seconds. Relay spec: load 10A/277V AC , 10A/30V DC Stand-by current: 15mA/12V After power off, can memorize settings for 30 years. Enclosure box size: 78x53x30mm (L*W*H) Work Mode: P1: Setting of delay details (delay time, lit-up time of LED) P2: Upper/lower voltage limit - a (setting upper/lower limit voltage. The set voltage limit will trigger relay to change status: relay initial status is off) P3: Upper/lower voltage limit - b (setting upper/lower limit voltage. The set voltage limit will trigger relay to change status: relay initial status is on) P4: Set relay status (on or off) within the upper/lower limit of P2/P3. Details about work modes; P1: under the P1 mode, we can set the delay time for relay to go off (T1), and delay time for relay to go on (T2), Time rage 0~999 seconds. If off time is set 005, on time is set 000, then relay will wait 5 seconds to go off, then will be always on. If off time is set 000, on time is set 005, then relay immediately goes on, then, after 5 seconds, goes off. If delay off time is set 005, on time set 006, relay will wait 5 seonds to go on, remain on for 6 seonds, then go off. The minimal stand-by current of the LED is 6mA(12V). When the LED displays "d-0", it means the off time of LED is 0, in other words, it is always on. We press Enter button to set time 1~9 minutes delay off: unde.Find many great new & used options and get the best deals for 12V 24V Digital Voltage Meter Test Control Relay Timer Time Delay Switch Module at the best online prices at Order2india Shopping! Free shipping for many products!
