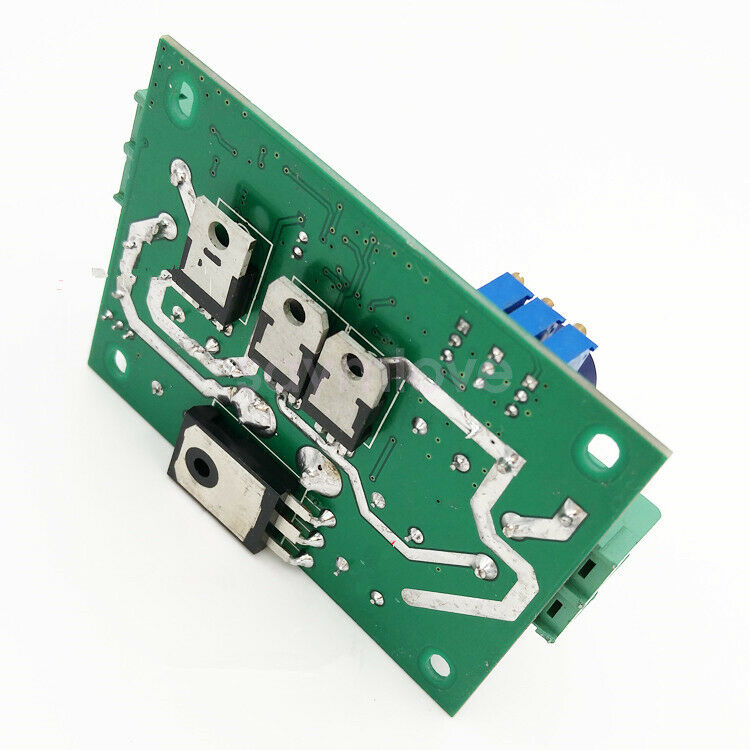

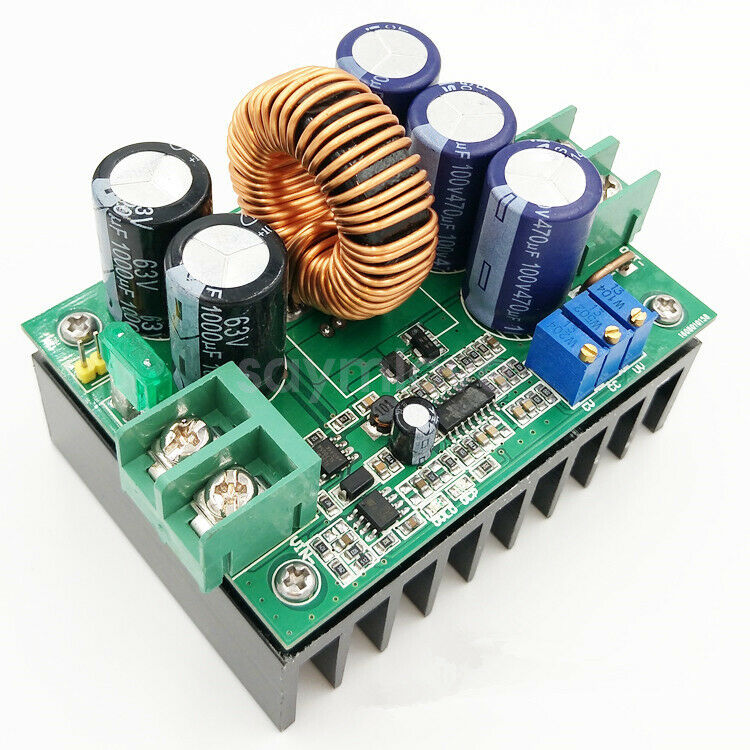

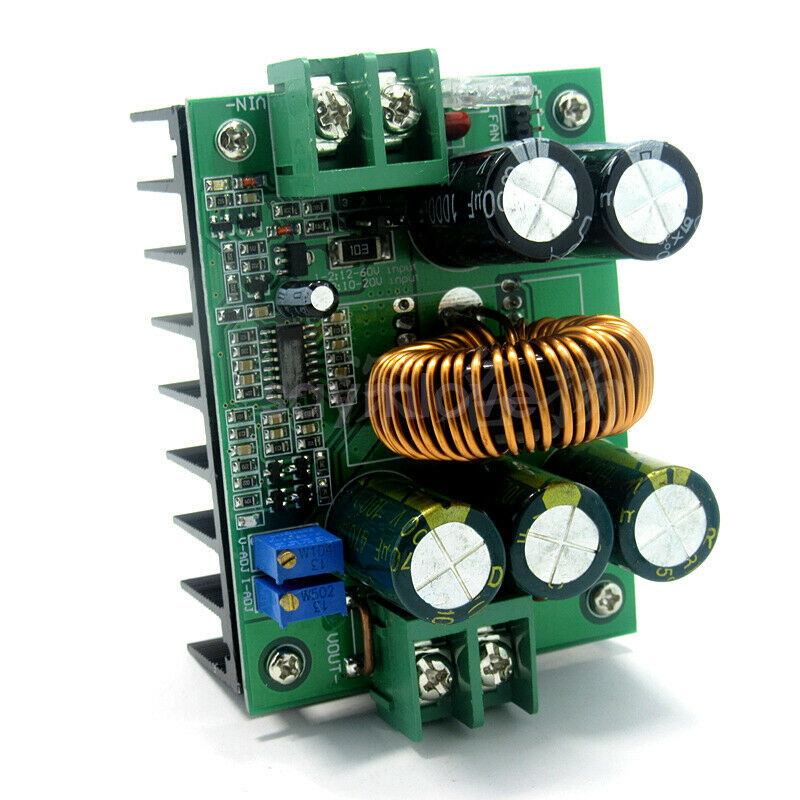

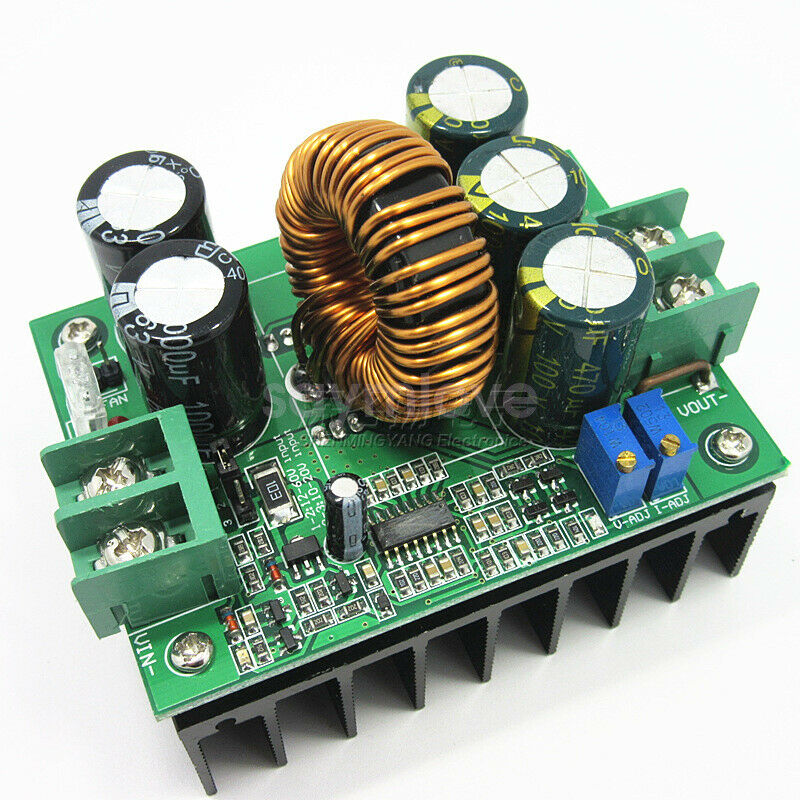

ITEM NAME:1200W DC-DC Converter 12V-60V 12V 36V to 12V-80V 20A 24V 48V 72V Step-up Power Product Overview 1200W DC-DC Converter 12V-60V 12V 36V to 12V-80V 20A 24V 48V 72V Step-up Power Detail Module Properties: non-isolated step-up module (BOOST) Input voltage: 10 - 60V (Jump cap switch) Input Current: 20A Quiescent current: 15mA (12V to 20V, the output voltage the higher ,the current will increase ) Output voltage: 12-80V continuously adjustable Output Current: 20A MAX than 18A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current) Constant Range: 20A Output Power: Input voltage x 20A, such as: input 12V x 20A = 240W, input 24V x 20A = 480W, Enter 36V x 20A = 720W, input 48V x 20A = 960W, input 60V x 20A = 1200W This module can 't be used in parallel. The current per module can be adjusted to 15A. Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation) Operating frequency: 150KHz Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related) Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.) Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security. Input reverse polarity protection: None, (if necessary, please enter the string into the diode) Output Counter filling: Yes, for charging plus blocking diode is not required. Installation: four 3mm screws Connection: solderless terminals output Dimensions: 85mm x63mm x 64mm(LxWxH) Instructions: 1. Default input voltage range: 12-60V DC 2. Output voltage and current regulation method: (1) Adjust the output voltage: adjust the V-adj potentiometer, according to the actual needs of the load device voltage, adjusted to match the o.Find many great new & used options and get the best deals for 1200W DC-DC Converter 12V-60V 12V 36V to 12V-80V 20A 24V 48V 72V Step-up Power at the best online prices at Order2india Shopping! Free shipping for many products!
