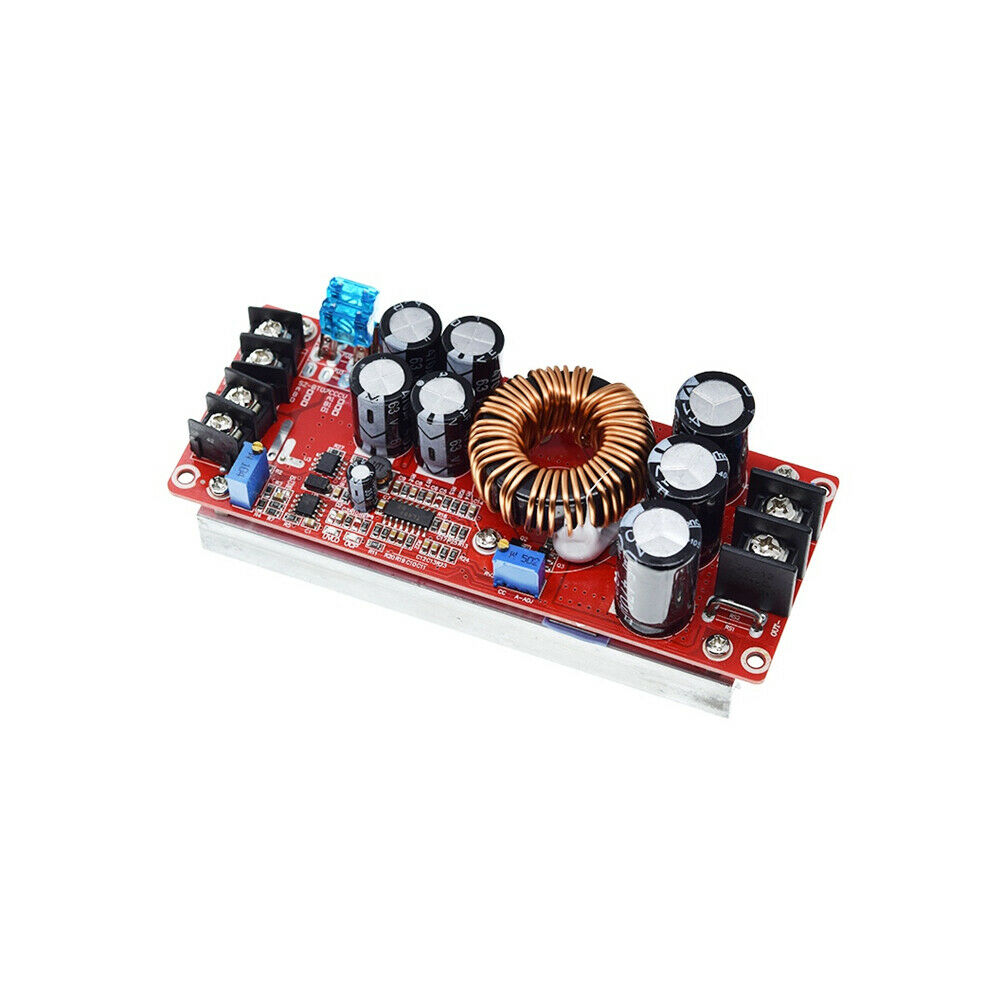

ITEM NAME:1200W 20A DC Converter Boost Step-up Power Supply Module IN 8-60V OUT 12-83V Product Description Power description: Because the input current of this power supply is up to 20A. The output power is related to the input voltage. The higher the input voltage, the higher the high power. For example, the input 12V*20A power is 240W. The input 24V*20A is 480W. This is the maximum power. Due to the limited heat dissipation area, please add a 12V fan to dissipate heat when the input voltage exceeds 10A or the output current reaches 10. Module parameters: Module model: SZ-BT07CCCV-A Module name: 1200W boost constant current module Module nature: non-isolated boost module (BOOST) Input voltage: DC10-60V (input 10-60V directly without jumper cap to select voltage) (2016/5/15 update) Input current: 20A (MAX) more than 15A, please add fan for heat dissipation (when the input voltage is 12-24V, the input current can reach 25A) Static working current: 15mA (when 12V rises to 20V, the higher the output voltage, the static current will increase) Output voltage: 12-83V continuously adjustable (the default output is adjusted to 19V, if you have a multimeter, the buyer can adjust it yourself) Output current: 18A MAX, please strengthen heat dissipation if it exceeds 10A (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current) Constant current range: 0.5-18A (+/-0.3A) Input anti-reverse connection: Yes (150A power MOS anti-reverse) Low battery protection: Yes (9-50V adjustable) Working temperature: -40~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high) Working frequency: 150KHz Conversion efficiency: 92%-97% (Efficiency is related to input, output voltage, current, pressure difference. Small pressure difference, high efficiency) Input overcurrent protection: Yes (input over 25A, automatic protection, power supply does not boost) Short circuit protection: Yes (input 30A fuse) .Find many great new & used options and get the best deals for 1200W 20A DC Converter Boost Step-up Power Supply Module IN 8-60V OUT 12-83V at the best online prices at Order2india Shopping! Free shipping for many products!
