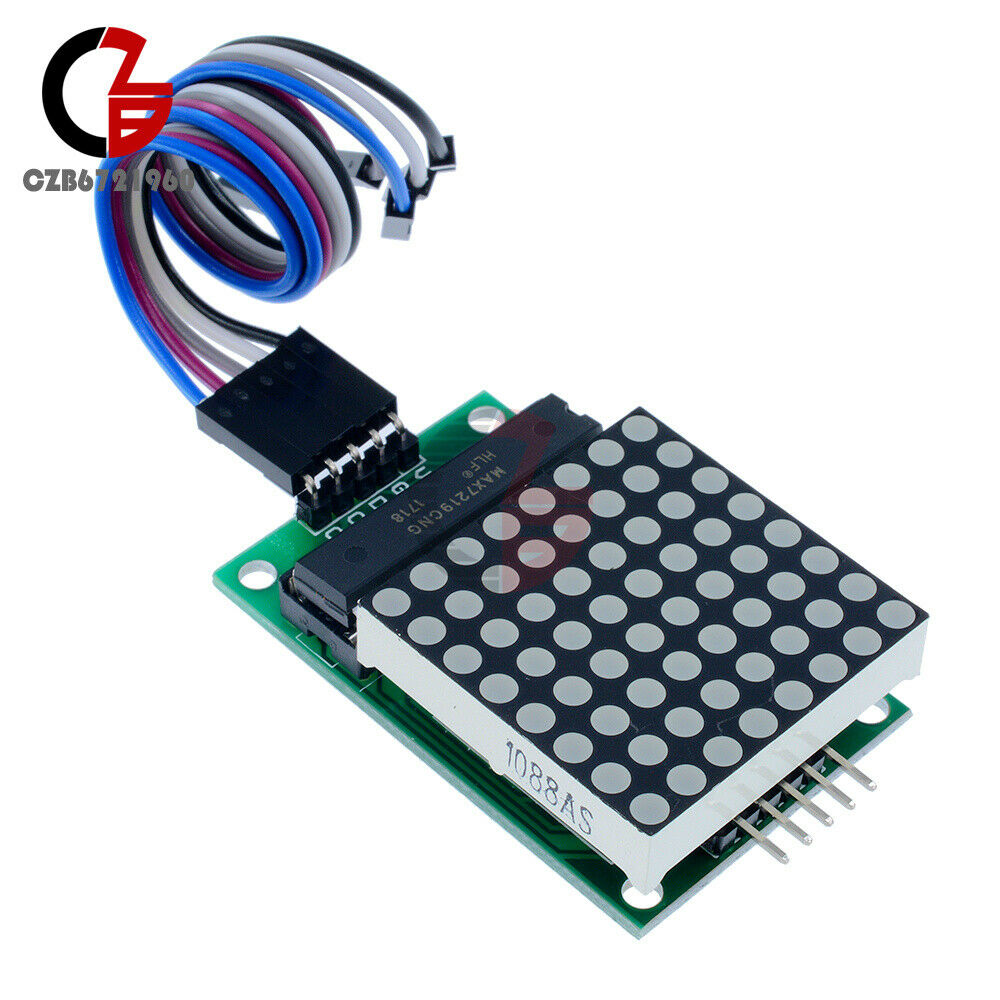

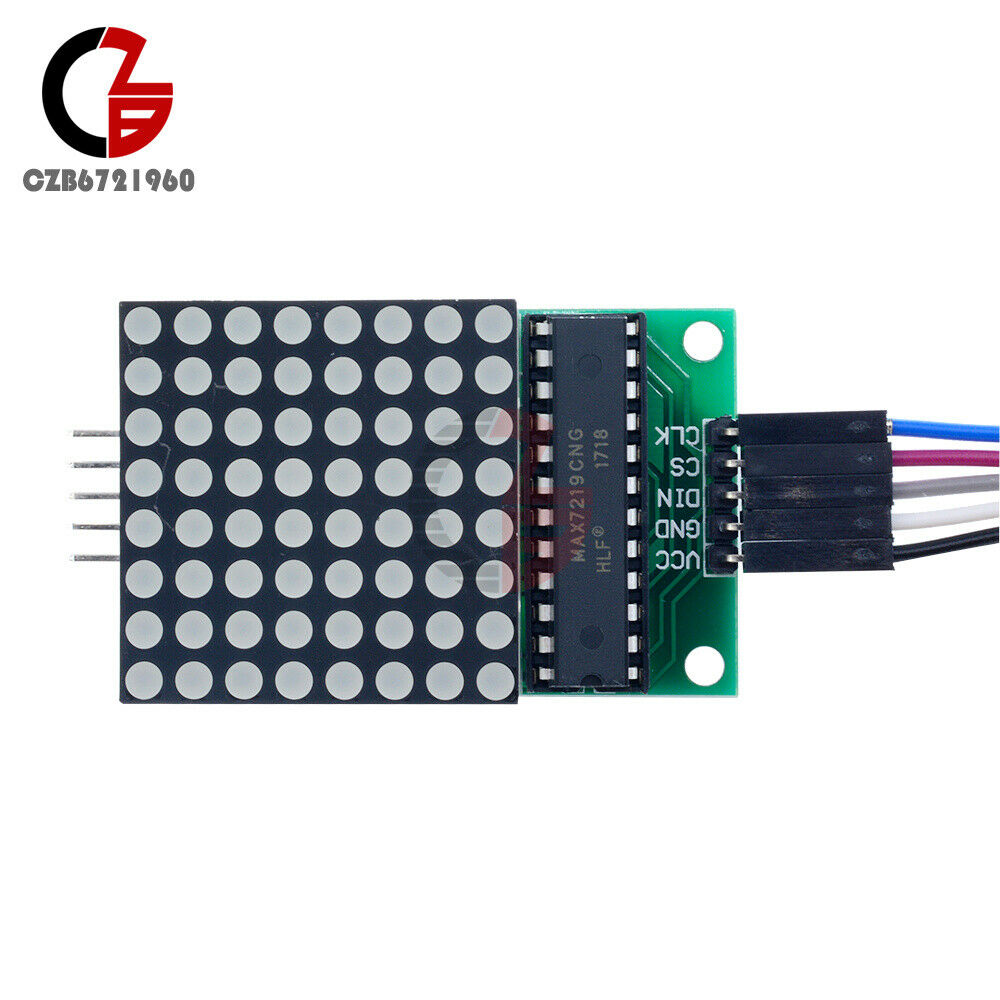

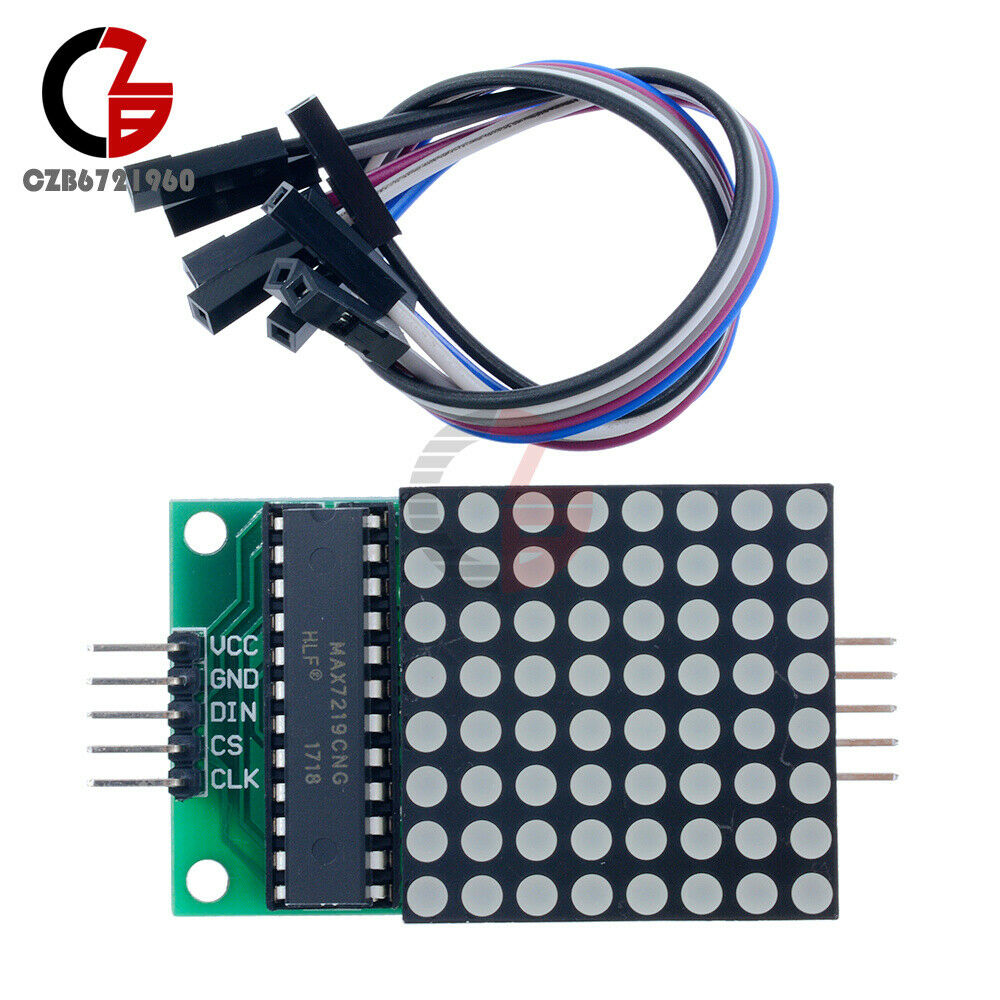

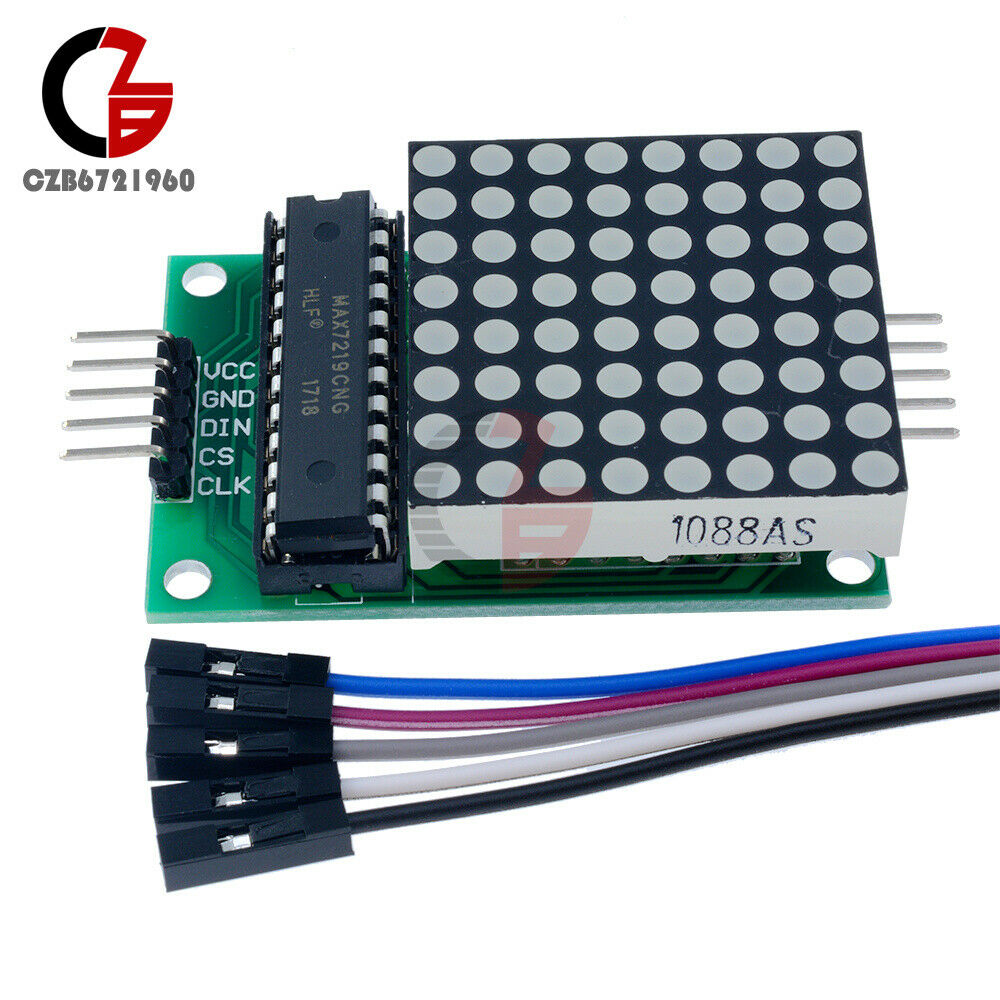

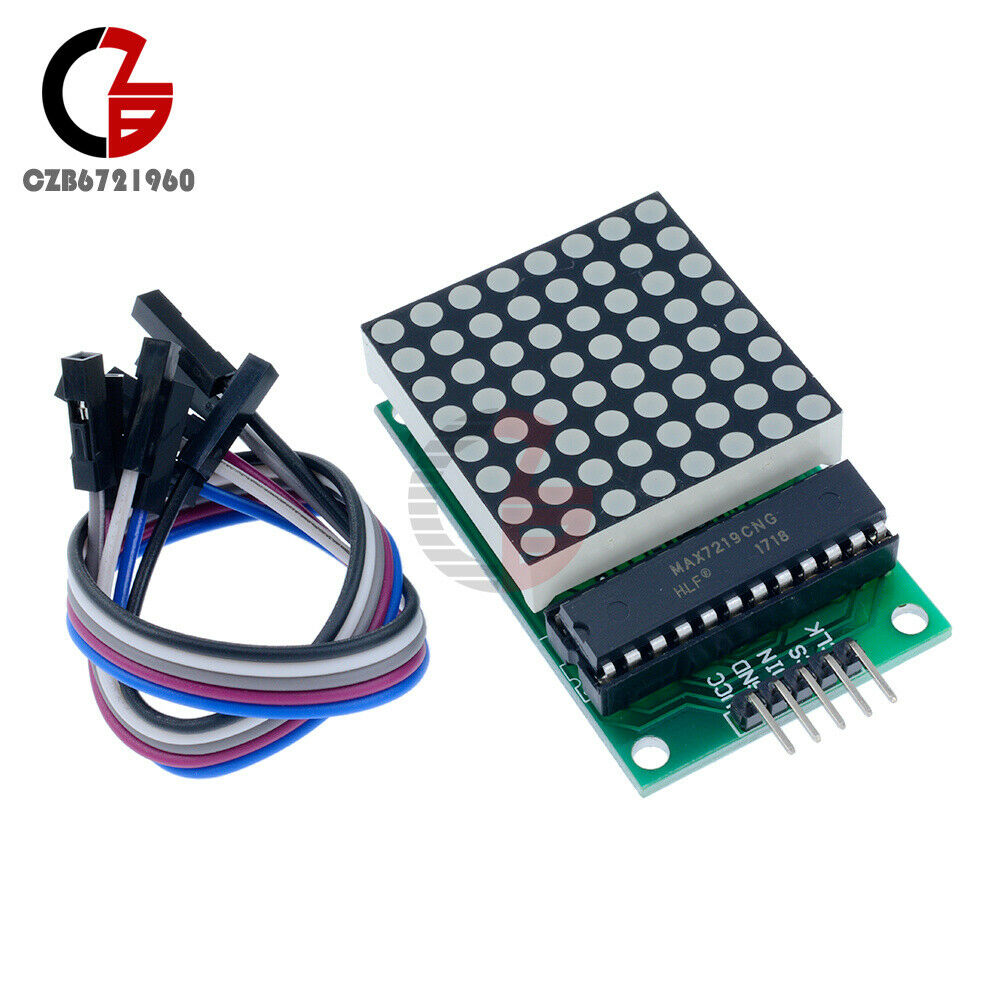

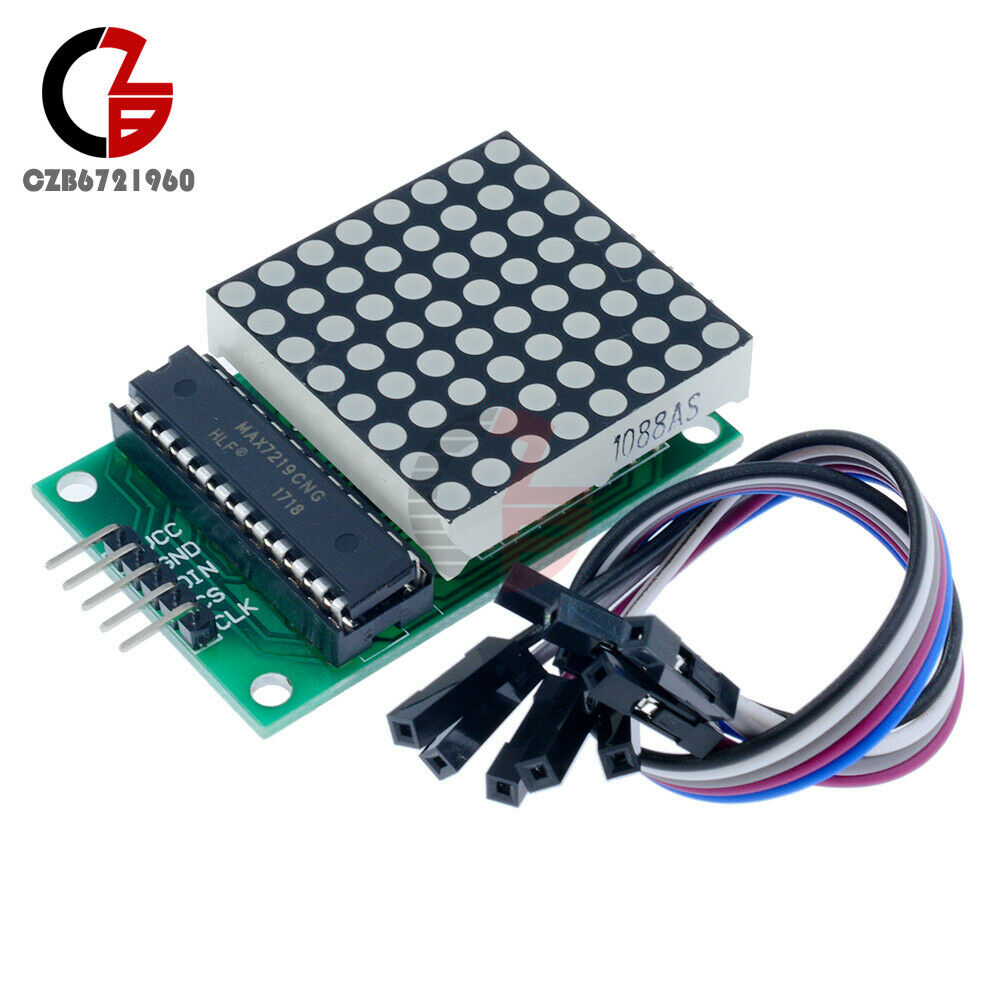

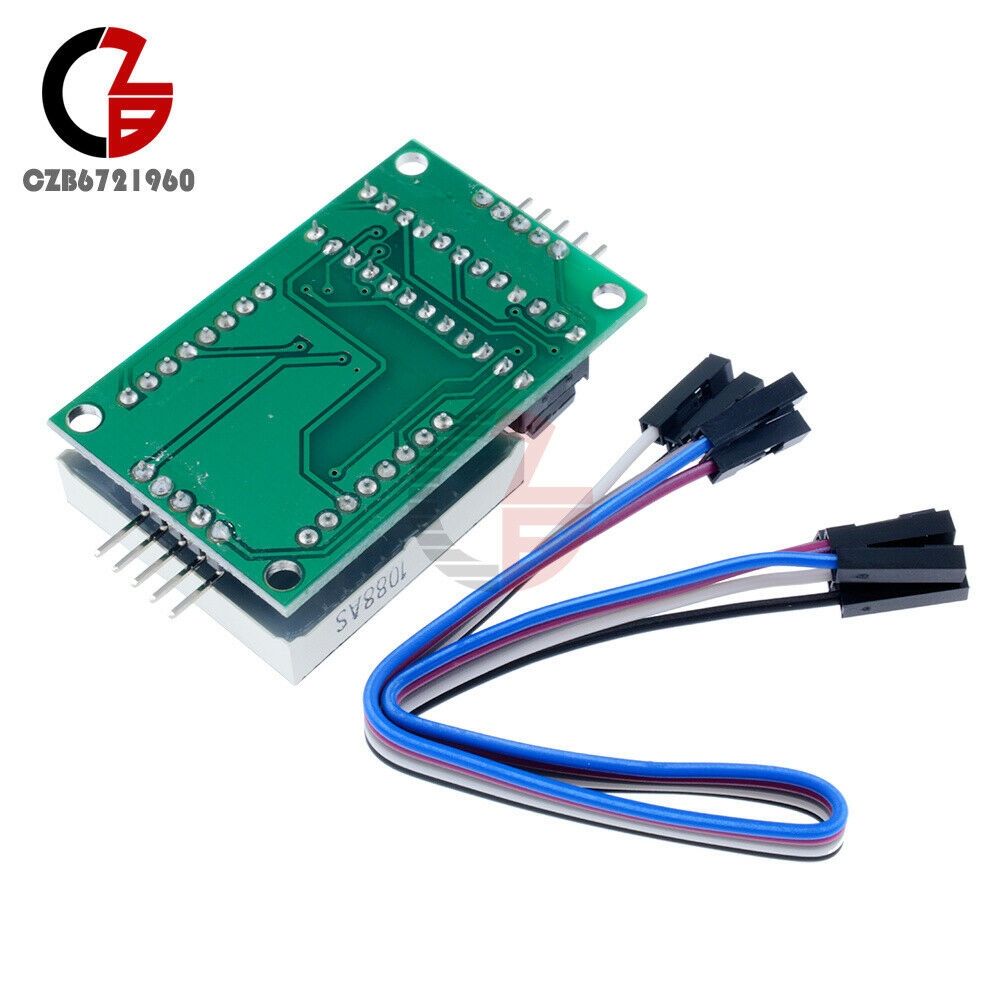

10PCS MAX7219 LED 8x8 Dot Matrix Module Red Light Assembled w/ Cable For Adduino

ITEM NAME:10PCS MAX7219 LED 8x8 Dot Matrix Module Red Light Assembled w/ Cable For Adduino Home Electronic Component Chips Sensor Arduino Module Raspberry Pi 10PCS MAX7219 LED 8x8 Dot Matrix Module Red Light Assembled w/ Cable For Adduino Popular Popular Product Introduction Module parameters: 1. A single module can drive an 8 * 8 common cathode lattice 2. Module Operating voltage: 5V. 3. Module size: 5 cm long X 3.2 cm wide X 1.5 cm high 4. With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed 5. Module with input and output interfaces, supports multiple modules cascade 6. LED colour: Red Wiring instructions: 1. The module left as an input port to the output port on the right. 2. The control of a single module, simply input port to the CPU 3. Multiple modules cascade input termination CPU, 2 output termination module, a module of the input of the input terminal, the output terminal of the first two modules of the first three modules, and so on ... 51 MCU, for example: VCC → 5V GND → GND DIN → P22 CS → P21 CLK → P20.Find many great new & used options and get the best deals for 10PCS MAX7219 LED 8x8 Dot Matrix Module Red Light Assembled w/ Cable For Adduino at the best online prices at Order2india Shopping! Free shipping for many products!
