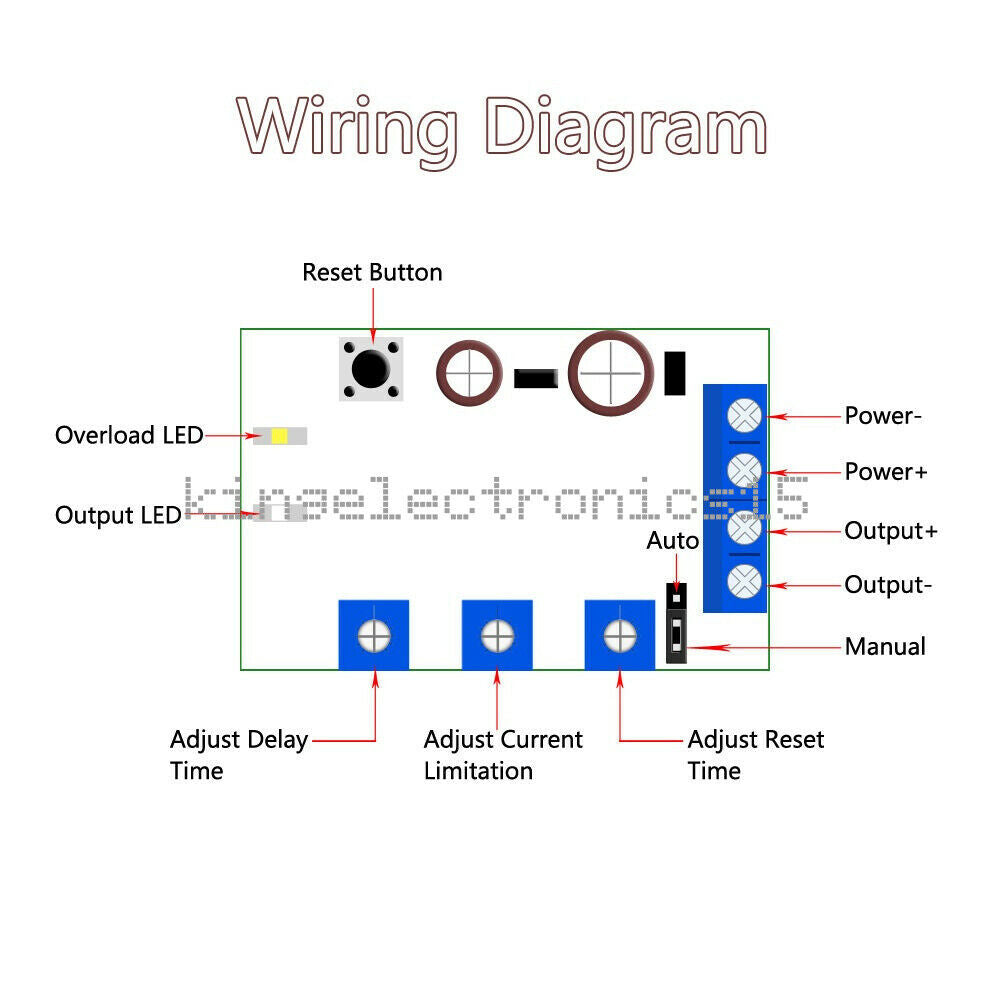

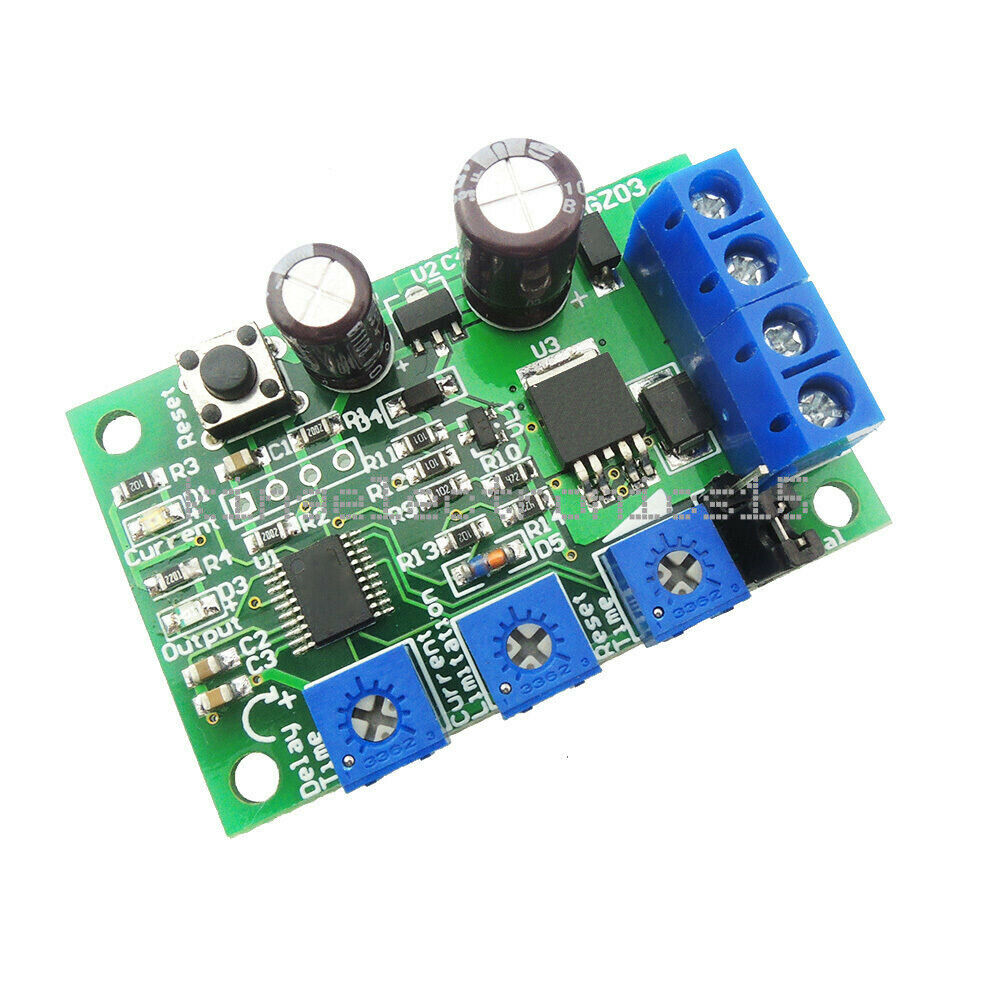

ITEM NAME:10A 6V 12V 24V PWM DC Motor Over Current Load Protection Switch Module Governor 10A 6V 12V 24V PWM DC Motor Over Current Load Protection Switch Module Governor Product Image: Product Description: Features: GZ03 DC Overload Protector used for overcurrent protection, short circuit protection, motor blocked protection, auto-stop overload protection. The input voltage is DC 6V-38V Output current: 8A max (resistance load); 5A max (motor load) The protected Delay Time: 0-20s The Current Limitation: 0.2A-10A The Reset Time: 1-600s(automatic mode) Include Power-on LED and current-limit-protected alarm LED Parameters: Input supply voltage: 6V-28V Output current: 8A max (resistance load); 5A max (motor load) Include Power-on LED and current-limit-protected alarm LED Adjustable current limitation, Adjustable protected delay time, and Adjustable reset time Item size: 32mm * 50mm * 15mm (1.3" * 2" * 0.6" ) Operating Instruction: Before you attempting to wire the protector , make sure power is off. WARNING: DO NOT REVERSE POSITIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER. 1. Connect wires refer to the "wiring diagram" (NO. 9 picture). 2. Install the jumper to “ Auto †or “ Manual †modes. (Default is automatic mode.) 3 . Set parameter s of Current Limitation, Delay Time and Reset Time (automatic mode). 4. Turn on the power. Current Limit Adjustment: When the red alarm LED is lighting, e liminat e the overcurrent factors , it will automatic reset (automatic mode), or push the Reset Button, reset the power (Manual Mode). Reset the current limitation pot should a s follow: 1. Turn off the power. 2. Adjust the Current Limitation pot until the desired maximum current is reached. 3. R eset the power. Package Includes: 1 x DC Current Overload Protector Feedback Warranty.Find many great new & used options and get the best deals for 10A 6V 12V 24V PWM DC Motor Over Current Load Protection Switch Module Governor at the best online prices at Order2india Shopping! Free shipping for many products!
