Description
1. PCB adopts 4-layer board structure with superior performance
2. Shell, shielding cover double shielding, shielding effect is better
3. The display screen is optimized, the touch chip is replaced, and the touch is more sensitive

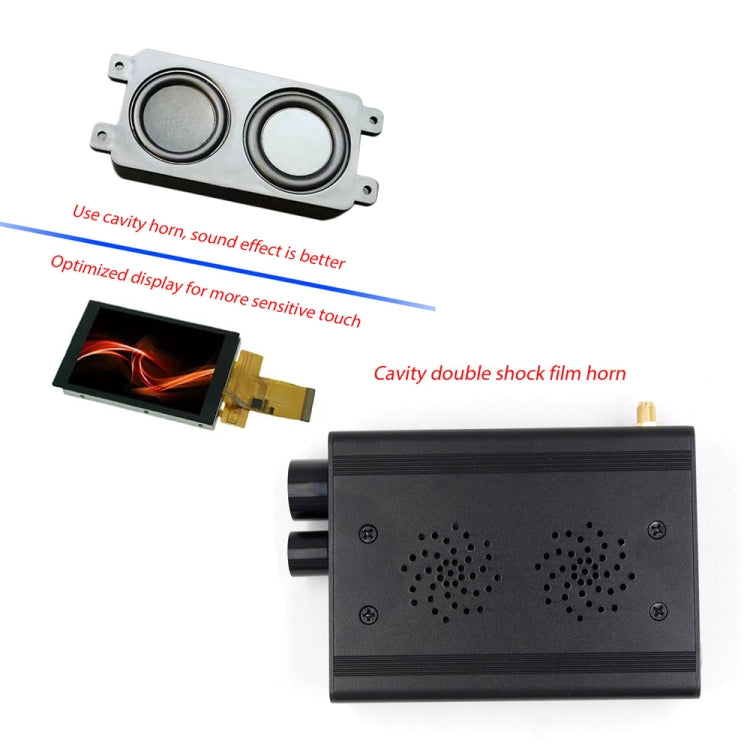

4. The use of mature cavity double shock film horn, sound effect is better
5. Battery line optimization, no standby power consumption, more durable battery
6. Select high quality crystal oscillator to improve performance
7. Improve the charging circuit, to solve the battery can not charge, do not turn on the problem
8. The radio is based on the original SDR construction, and the function is determined by the loaded software
9. Frequency range from 50kHz to 250MHZ and 400MHz to 2GHz (registered upgrade version)
10. So the type of analog modulation: AM SSB(LSB USB) NFM WFM
11. Powerful: variable filter width, adaptive Noise suppressor, threshold noise suppressor, Noise Bianker AGC equalizer
12. Use the fully functional chip MSI001
13. The application of the clock frequency of 480MHz powerful STM32h743

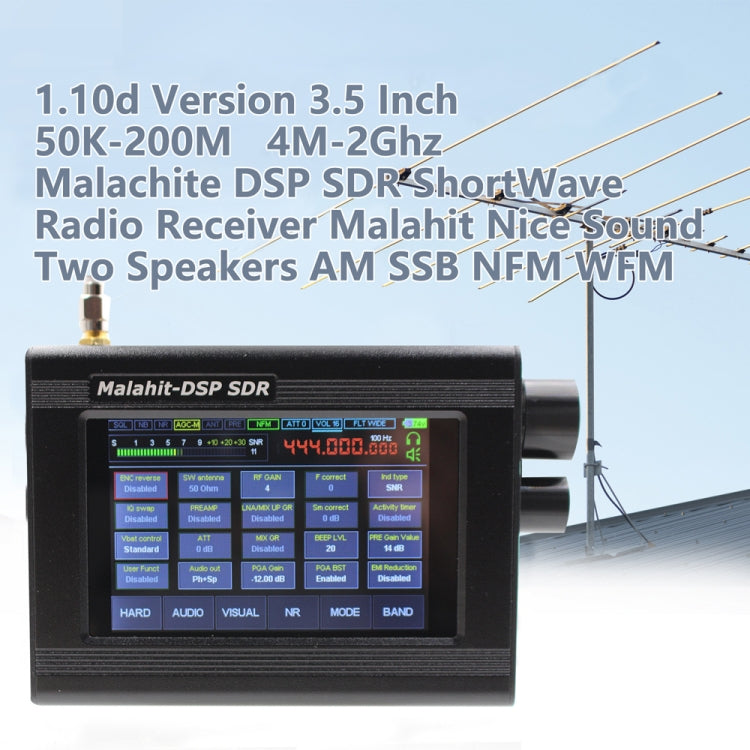

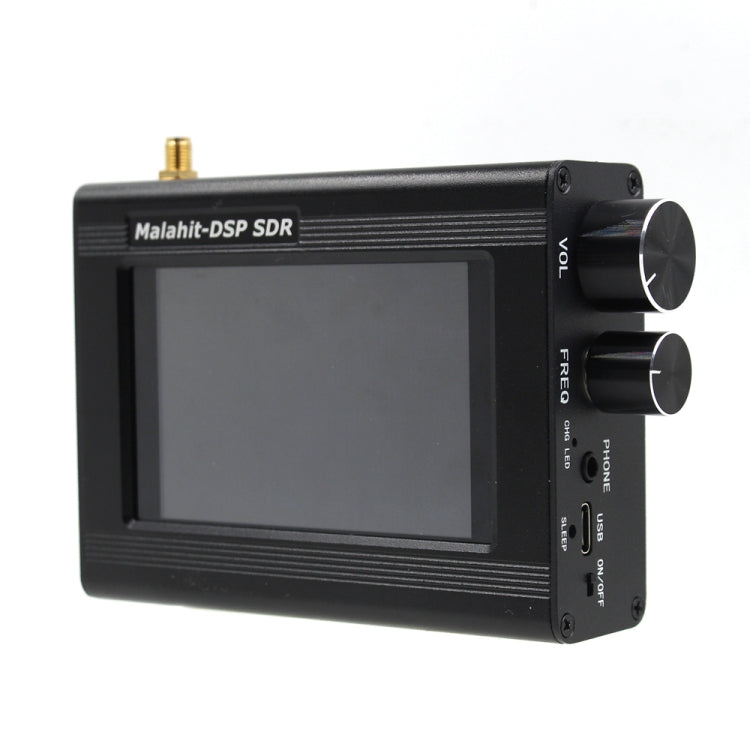

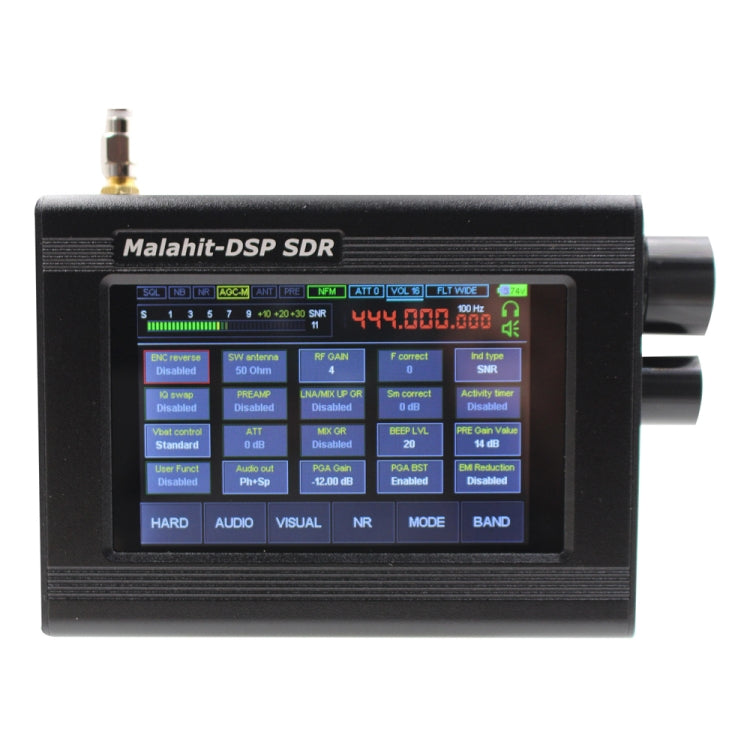

14. 3.5-inch IPS display with touch
15. There is a built-in UHF

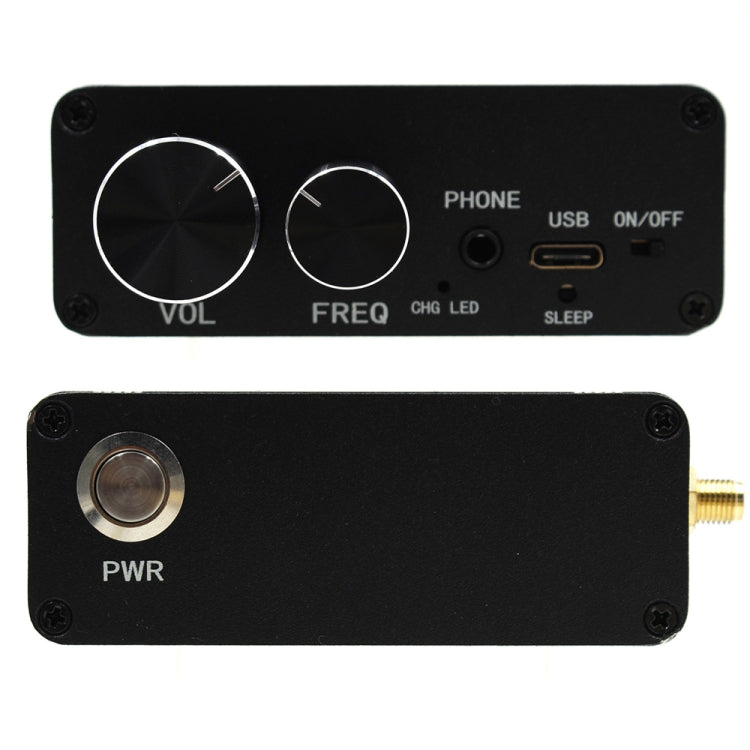

16. Control 2 encoders with buttons and touch screens
17. The power supply is powered by external Type-C/USB-C ports and can be charged by Type-C/USB-C ports
18. The headset mode consumption current is 300mA
19. Built-in receiver module to improve HF reception on antenna, additional board with source pole follower developed to be built into standard receiver design
20. USB link to computer, can transmit CAT,IQ and audio
21. 160 KHZ span with extensibility
22. Sensitivity up to 250MHz, equal to 0.3 microvolts 10 decibels at s/w
23. Due to the characteristics of the MSI001 chip used, the dynamic blocking range is about 85dB
24. SMA female antenna socket
25. Cancel the function of audio encoder short press exit menu, the menu interface does not affect the original function, still can adjust the volume and other parameters or switch items, can only use the frequency encoder short press exit menu
26. In the menu interface, use the frequency encoder to adjust the project parameters
27. The menu is adjusted by adding EMI Reduction, WF GAMMA mode setting, and removing the LCD SLEEP TIME screen off setting
28. Battery capacity: 2200 mah
29. The power supply mode: USB charging/built-in lithium battery
Packing list:
-1 x host
-1 x type-c/usb-c charging cable
-1 x antenna adapter
-1 x SMA to M seat (SMA male head to UHF female head)
-1 x wiping cloth
