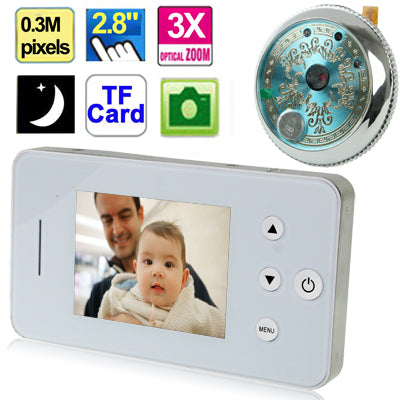

0.3 Mega Pixels 3X Digital Zoom 2.8 inch TFT Screen Ultra High Definition Electronic Peephole Viewer with Photographing / Night Vision / Destruction Alarm Function, Internal 2G Micro-SD(TF) Memory Card (S4)

Electronic peephole viewer is a new kind of home security product. It is different from the traditional glass peephole. With the LCD screen set up inside your home to observe the visitors, it is safer and more beautiful. To set up the item on your door, no construction is needed and there is no damage to your door. Just use the electronic peephole viewer to replace your traditional glass one. It is also easy to install the electronic peephole viewer on the door without glass peephole on it. The electronic peephole viewer can totally replace the the traditional glass peephole.

1) Fashion appearance, ultra-thin design, perfectly melt into modern home life

2) Wide-angle, high definition, high brightness screen, very clear image of the visitor

3) Prevent from reverse peeping, protect your privacy

4) Strong night vision function, able to be used at night

5) Our new destruction alarm function

6) Advanced power management and energy-saving technology

7) Automatically take photos and restore the photos when the visitors ring the doorbell, easy to check the record and able to upload the photos to your computer

8) Internal 2G Micro-SD(TF) memory card

Model: T1

Main functions:

2.8 Inch Screen Ultra High Definition Electronic Peephole Viewer with Photographing

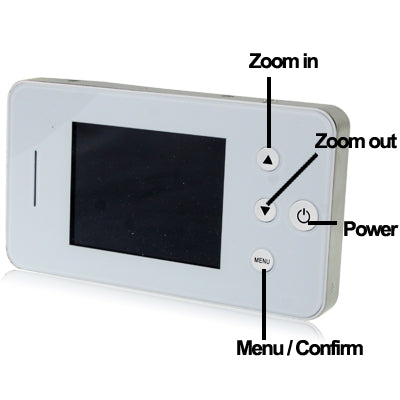

1) Display the visitor on the LCD screen

2)300 thousand pixels camera

3) Internal 2G Micro-SD(TF) memory card

4) Night vision

5) Photographing

6) Destruction alarm

Product Specifications::

1) Indoor Device：Shape size: (L)109×(W)96mm

LCD Screen size: 2.8 inch

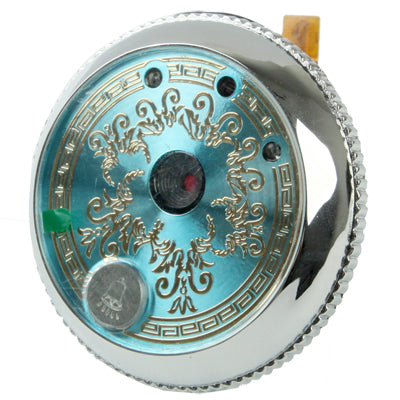

2) Outdoor Device: Shape size: Φ54mm

Camera: 300 thousand pixels camera

3) Installation Dimensions: Door Thickness: 35mm～105mm

Installation Hole Diameter: 18mm～50mm

Installation(T2):

1) Remove your old peephole from the door. If you do not have a peephole on your door, determine a location of the electronic peephole on the door(about 1.5m high). Drill a hole of Φ18mm with a drilling machine and clear the sawdust.

2) Take out the outdoor device. Remove the rubber circle and put the device into the hole. Let the FPC cable pass through the hole. Remove the cover of the adhesive tape and stick it tightly to the door. Make sure that the button on the outdoor device is downward. (Take care of the FPC.)

3) Take out the hanging board and one suitable long screw nut according to the thickness of your door. Let the long screw nut through the hole of the hanging board. Let the FPC cable pass through the hole of the long screw nut. Then, remove the cover of the adhesive tape and assemble the long screw nut with the bolt of the outdoor device until they are fixed.

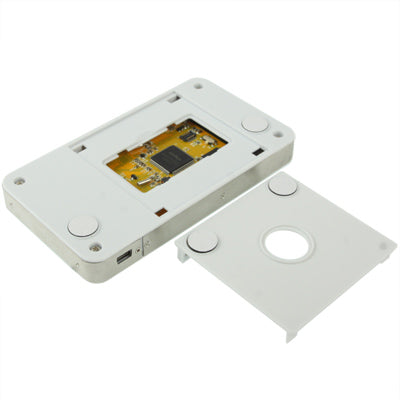

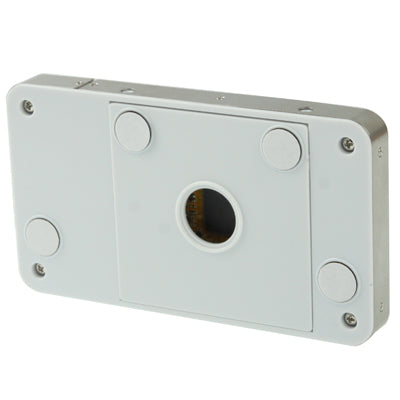

4) Take out the indoor device and remove the back cover of the device. Let the FPC cable pass through the hole on the back cover. Then connect the FPC cable to the FPC cable connector as the figure below shows. After that, put the back cover on the indoor device. ( take care of the FPC cable)

5) Put the indoor device on the hanging board and use the M2.5*6 screws to fix the indoor device. Then, use white rubber plugs to cover the screw holes.

6) Remove the protective film from the indoor device and the outdoor device.

(Please connect the FPC cable according to the schematic diagram )

Operating Temperature: -25℃—+55℃

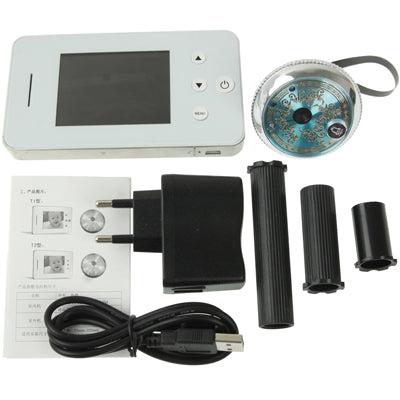

Accessories:

1x indoor unit

2xM2.5x6 screw

2x white stopper

1x manual

1x charger

1x data cable

1x Screw

1x outdoor unit
